SANO puts people first

Makes Work Easier

Description

Modulkar
Superior-quality modular handtruck
for loads up to 660 lbs

MODULKAR is a hand truck built from high-strength stairclimber components. Basically the LIFTKAR without a motor. Modular design means virtually all components can be changed. As a result the MODULKAR can be optimised for a wide range of transport situations. The maximum load capacity is 660 lbs.

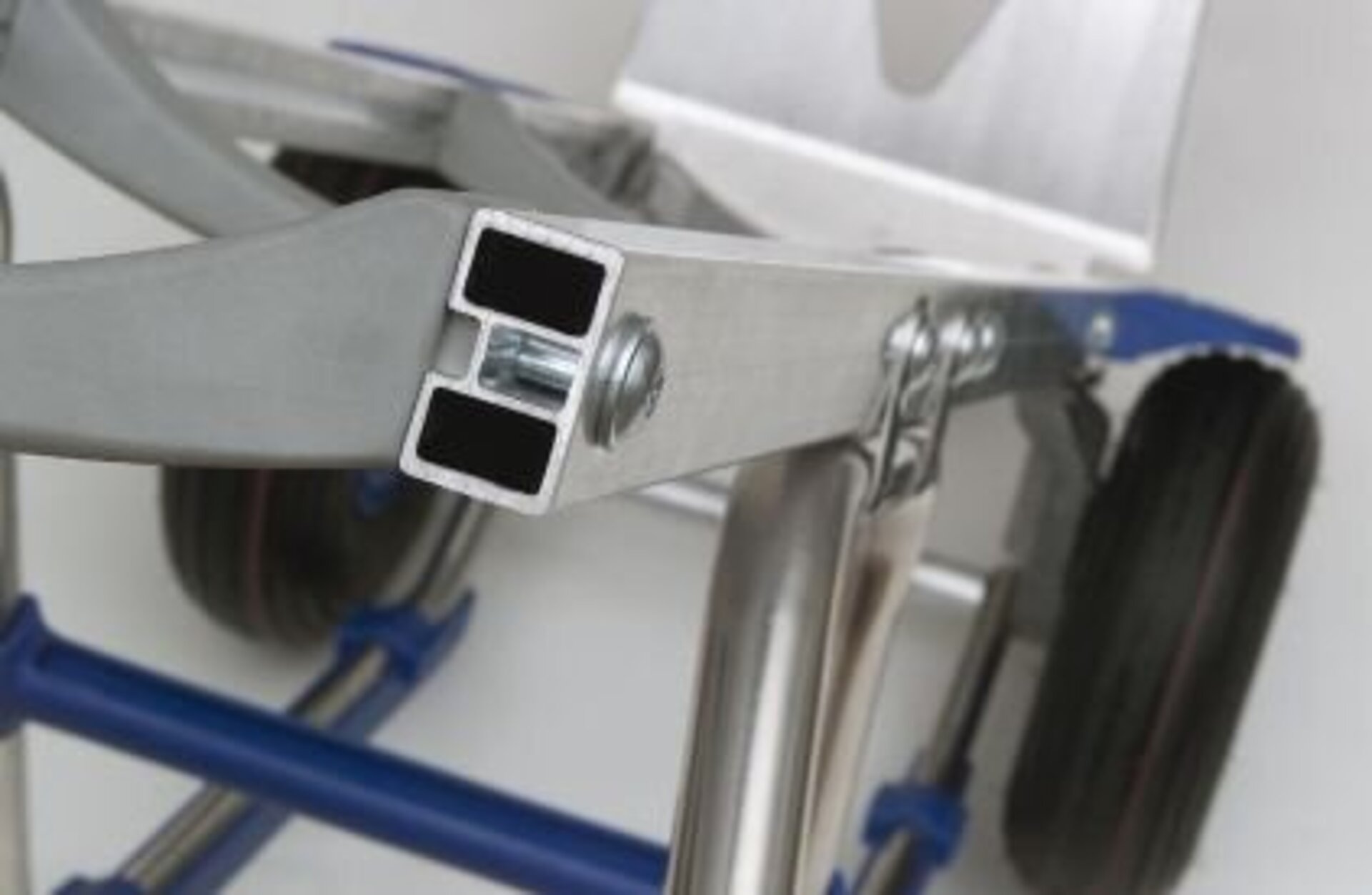

The patented tube cross-section with double-center web means bolts can go right through. The groove on the inside provides extra strength. The heavy-duty wheel mountings in combination with the connecting axle being just 3 in above the ground make it easy to tilt. Only one spanner is required because the same TORX bolts are used throughout.

A synthetic washer together with a cup spring prevent the toe plate from clattering. Wheel changes are easy with the bolted two-piece rim. Puncture-proof tires can be fitted as an alternative. Wheel changes are Formula 1 style using just one bolt! The wheels are mounted on industrial-class ball bearings.



Downloads Product Resgitration
for loads up to 300 kg

extremely strong wheel bracket

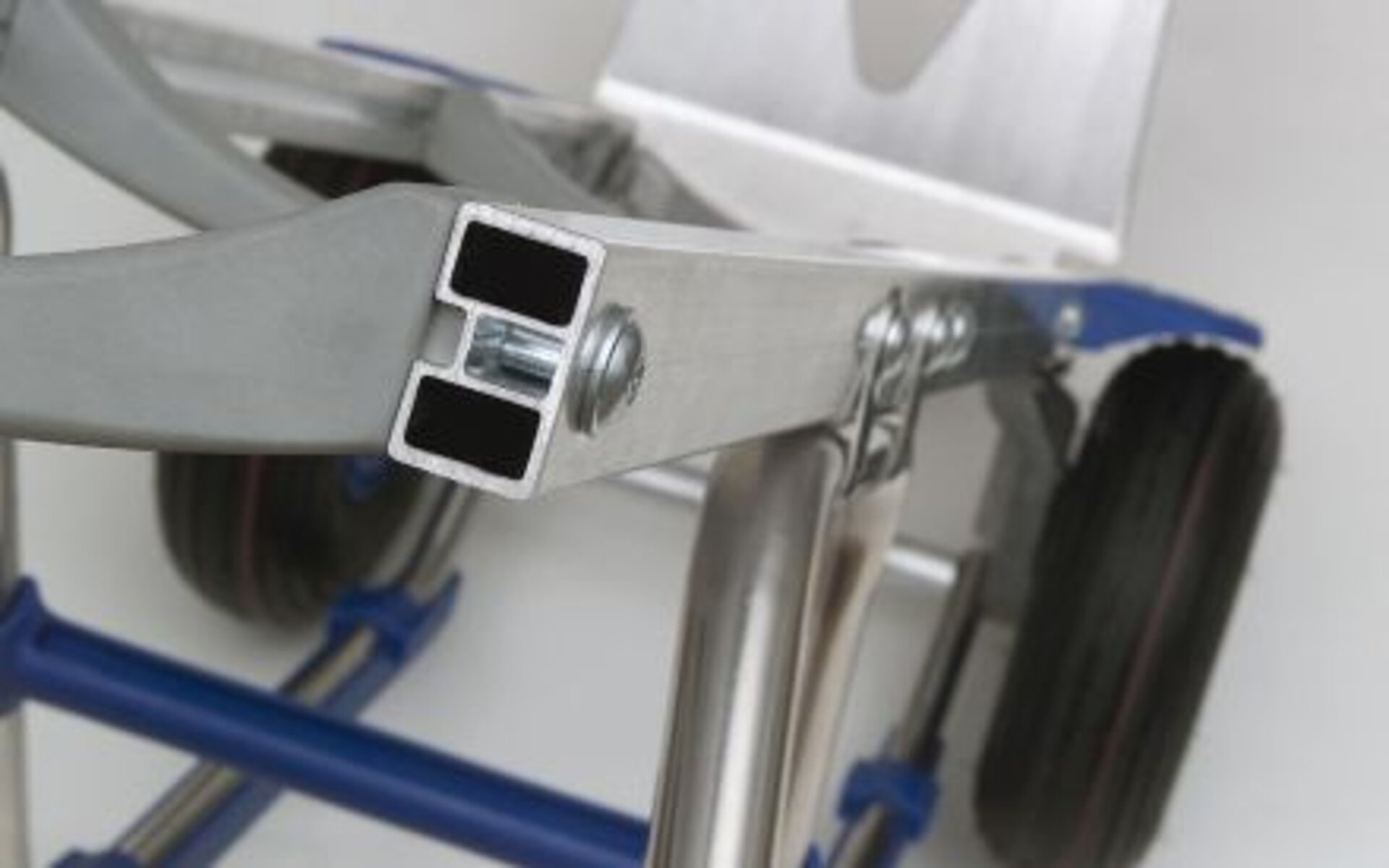

patented tubular cross-section
Details
Advantages

8 unbeatable advantages
to convince you

  1. patented tubular cross-section, extremely strong

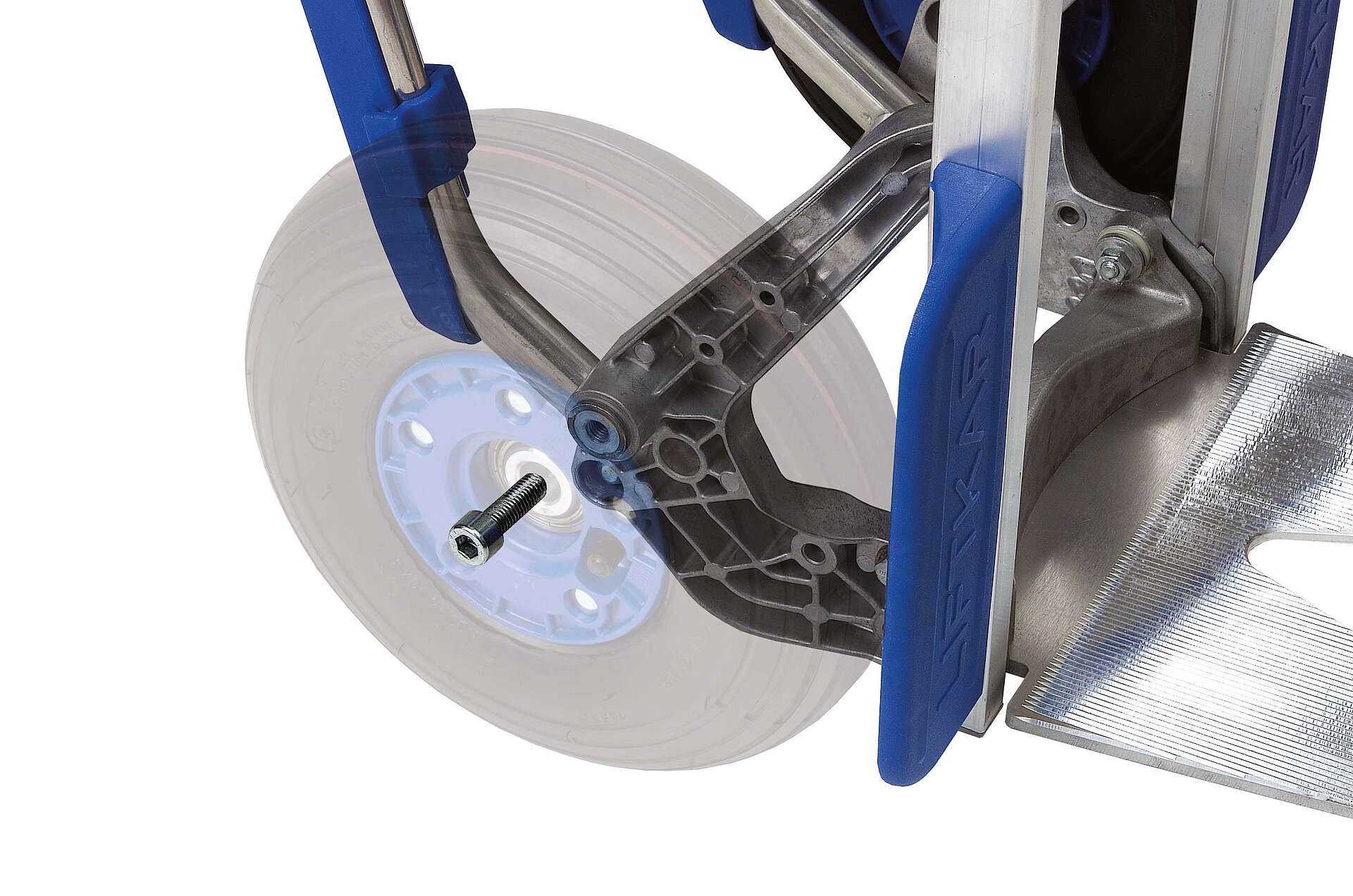

  2. easy wheel changing using just one bolt
  3. customizable for all transport situations
  4. extremely strong wheel brackets
  1. connecting axle with support struts for rigidity

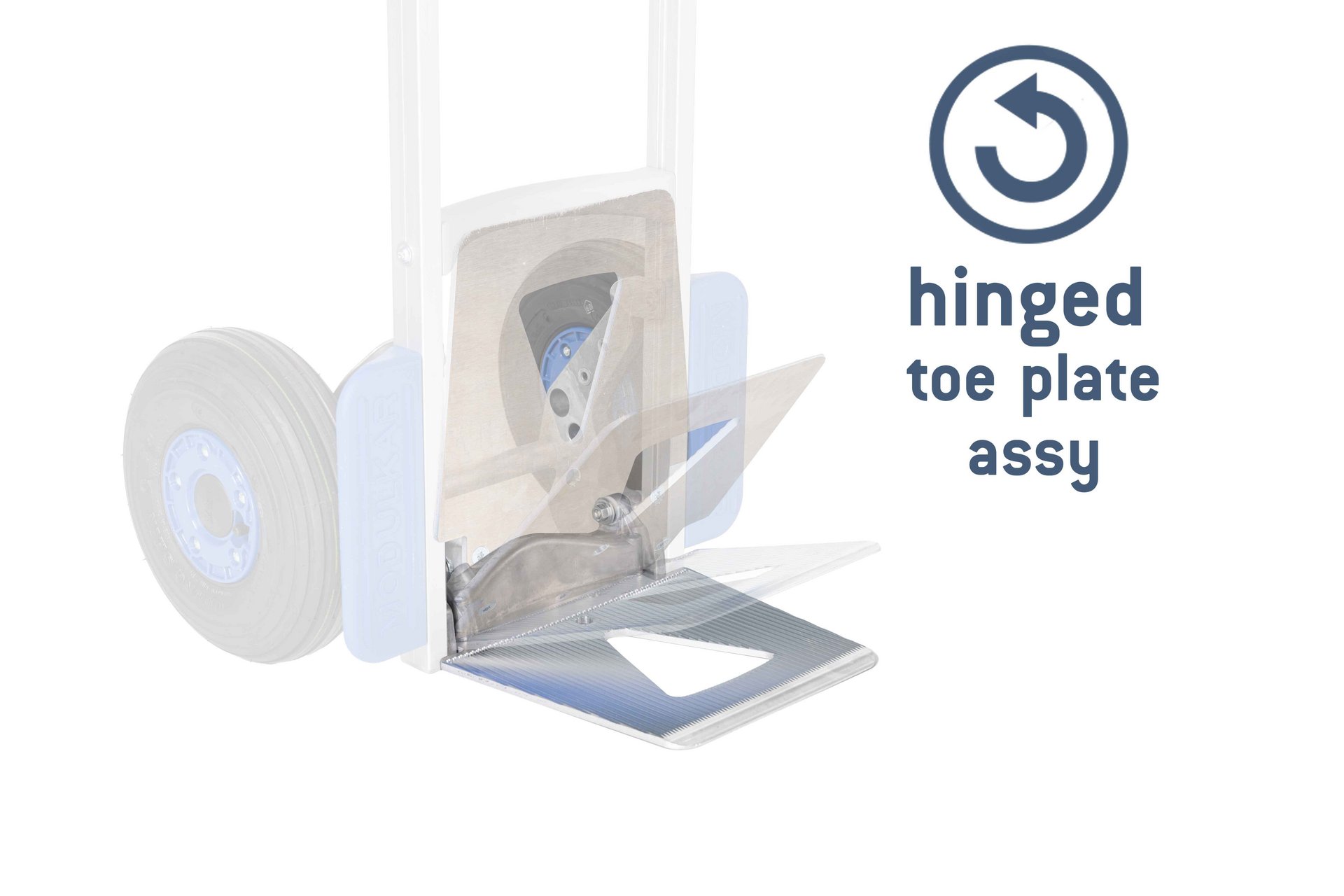

  2. innovative rattle free foldable toe plate mounting
  3. two-piece wheel – mounted on ball bearings
  4. new ergonomic design
Models

Meet the Modulkar BASIC by SANO: the hand truck redefining efficiency in load transport. With a 660 lbs capacity and quick wheel change system, it adapts to your industry needs seamlessly, ensuring safe and timely deliveries.

Article number: 025725

standard equipment:
- height adjustable loop grips

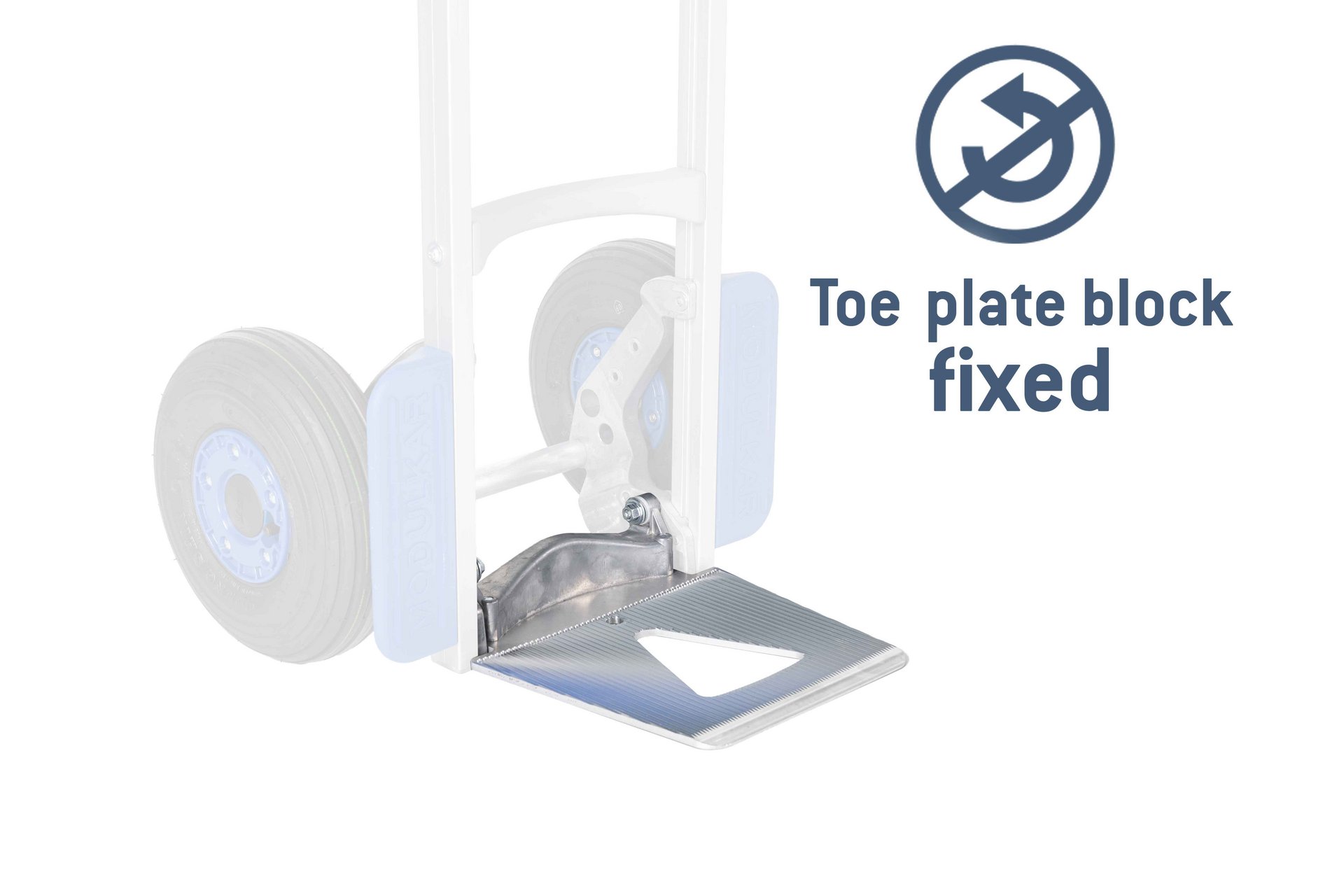

- toe plate foldable/fixed

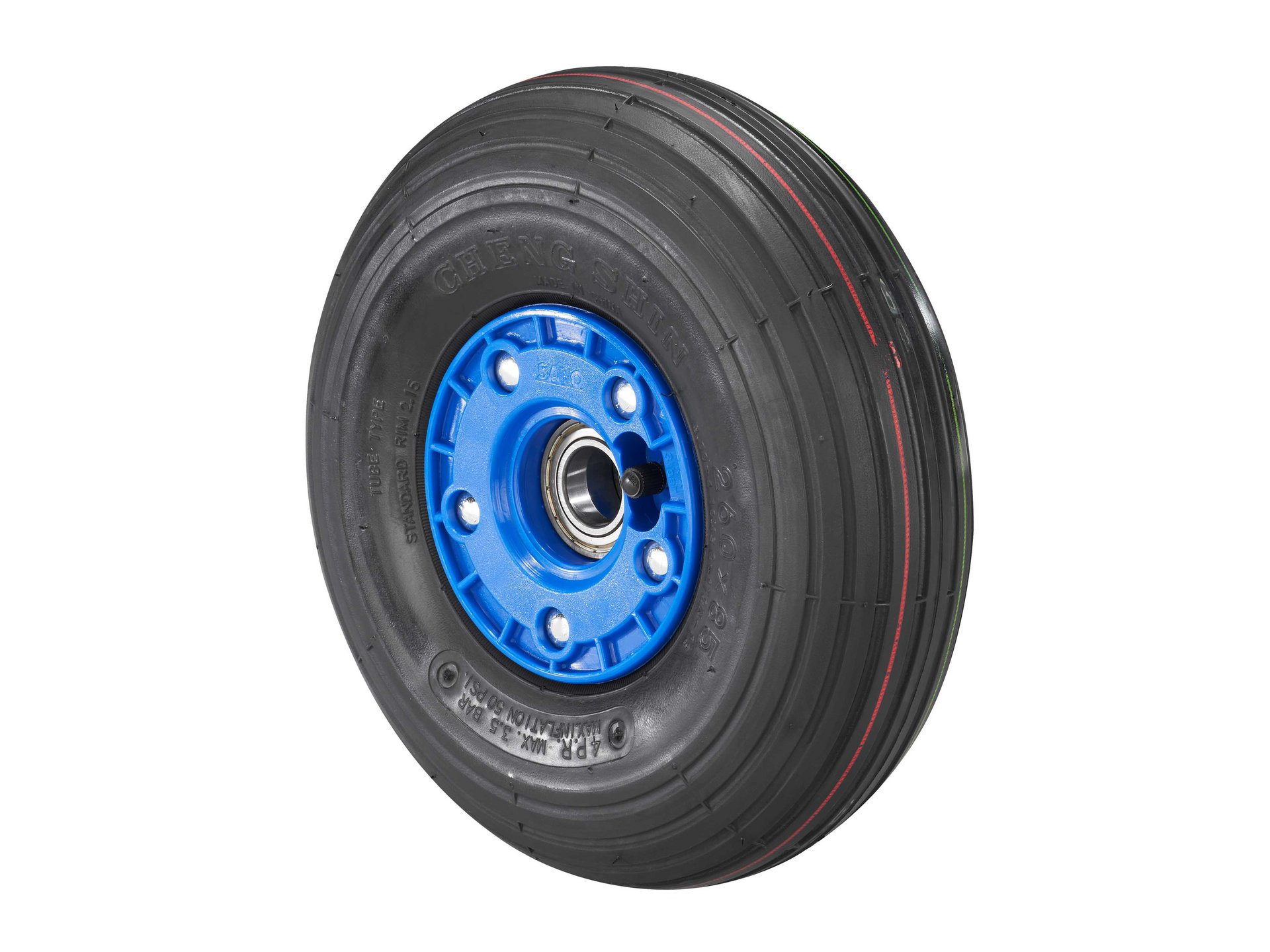

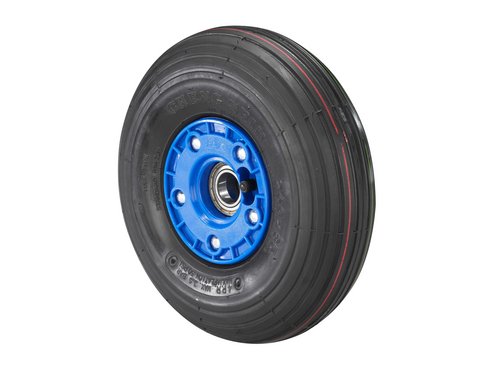

- pneumatic tyres

key data:
weight: 22 lbs
dimensions: HxWxD 51 in x 19 in x 11 in (toe plate folded up)

numerous accessories and options available

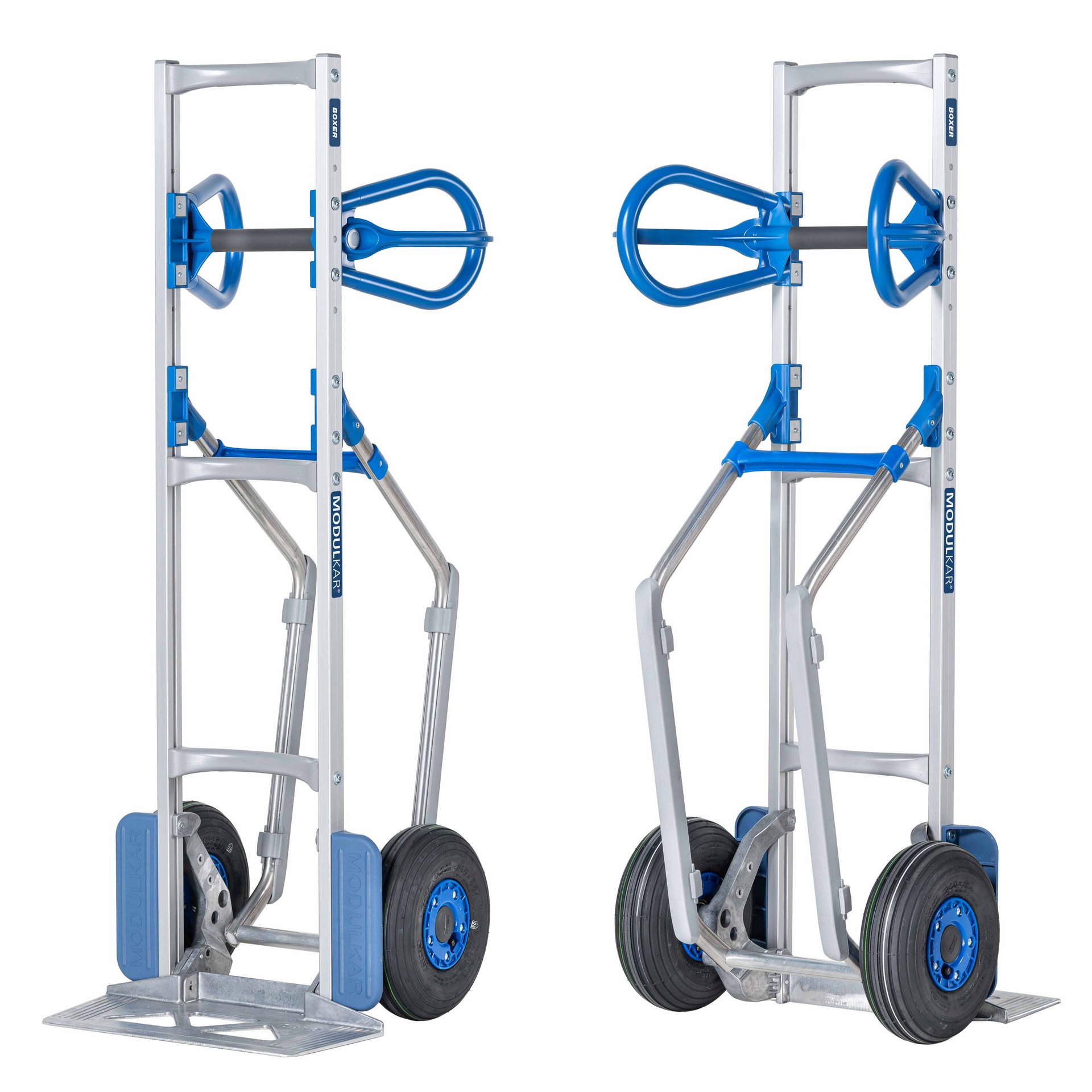

Meet the MODULKAR Boxer: the handtruck redefining transport on long, flat surfaces. With its ability to effortlessly handle loads up to 660 lbs, this handtruck excels in industries like beverages, postal services, furniture, and construction. Its ergonomic design not only exceeds quality expectations but also significantly reduces spinal strain.

The MODULKAR Boxer stands unmatched in versatility and ease of use. Its tire change service is simple and efficient, adapting to various terrains and challenges, including step navigation with its helpful back rails. This makes it an unparalleled tool in the market.

Embrace a new level of efficiency, ergonomic handle and spine-friendly transport with the MODULKAR Boxer, an undefeatable choice in heavy lifting. Transform your load transport with unparalleled quality and ease.

article number: 025720

standard equipment:

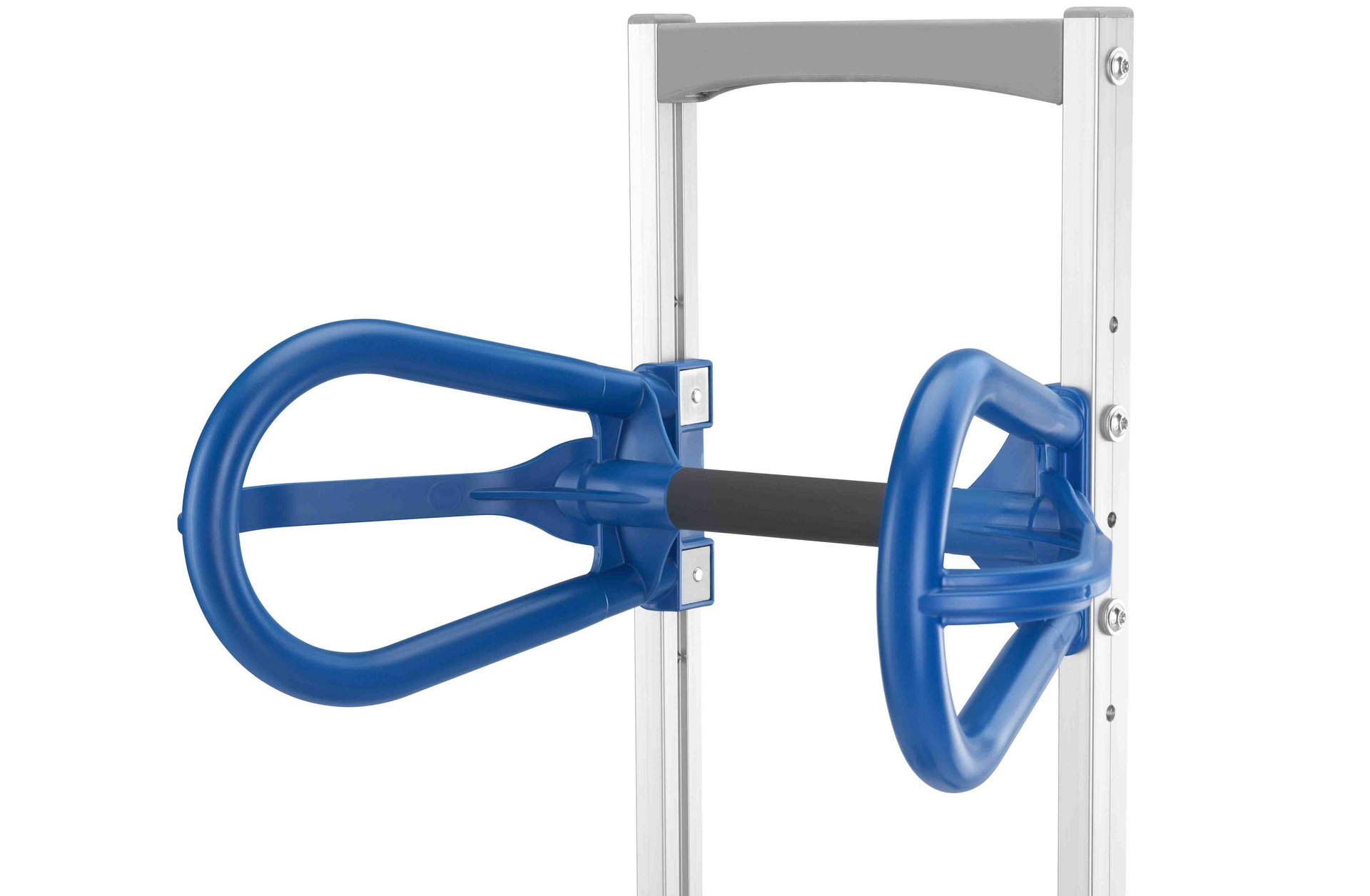

- height adjustable loop grips with handguard
- toe plate foldable/fixed
- pneumatic tyres
- stair gliders (nylon profiles easy to replace)

key data:
weight: 24 lbs
dimensions: HxWxD 51 in x 20 in x 15 in (toe plate folded up)

numerous accessories and options available

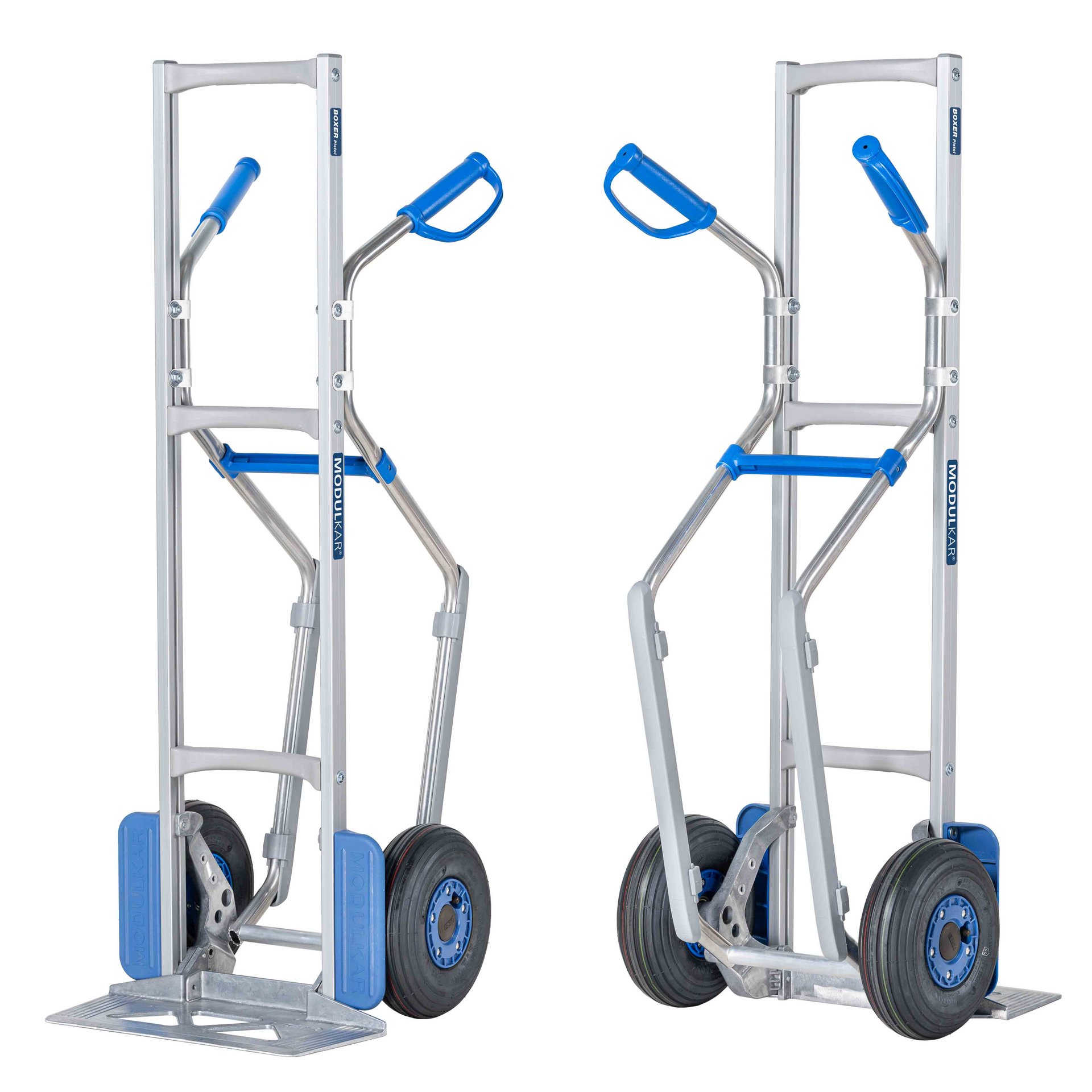

Discover the MODULKAR Boxer Pistol: another versatile handtruck version revolutionizing transport on long, flat surfaces, with pistol grips. Tailored to effortlessly handle loads up to 300 kg, this model excels in industries like retail delivery, warehouse operations, event logistics, and heavy equipment handling. The pistol grips handles various environmental needs or weight requirements, enhancing ease of use and reducing spinal strain.

The MODULKAR Boxer Pistol tire change service is simple and efficient, perfect for different terrains, and the stair gliders make navigating steps a significant advantage in challenging delivery scenarios. This handtruck stands as an unparalleled tool in the market for its combination of practicality and ergonomic design.

Step into a new era of efficient, spine-friendly transport with the MODULKAR Boxer Pistol. Redefine how you handle heavy loads with superior quality and user-friendly design.

article number: 025703

standard equipment:
- pistol grips with handguard
- toe plate foldable/fixed
- pneumatic tyres
- stair gliders (nylon profiles easy to replace)

key data:
weight: 24 lbs
dimensions: HxWxD 51 in x 19 in  x 15 in (toe plate folded up)

numerous accessories and options available

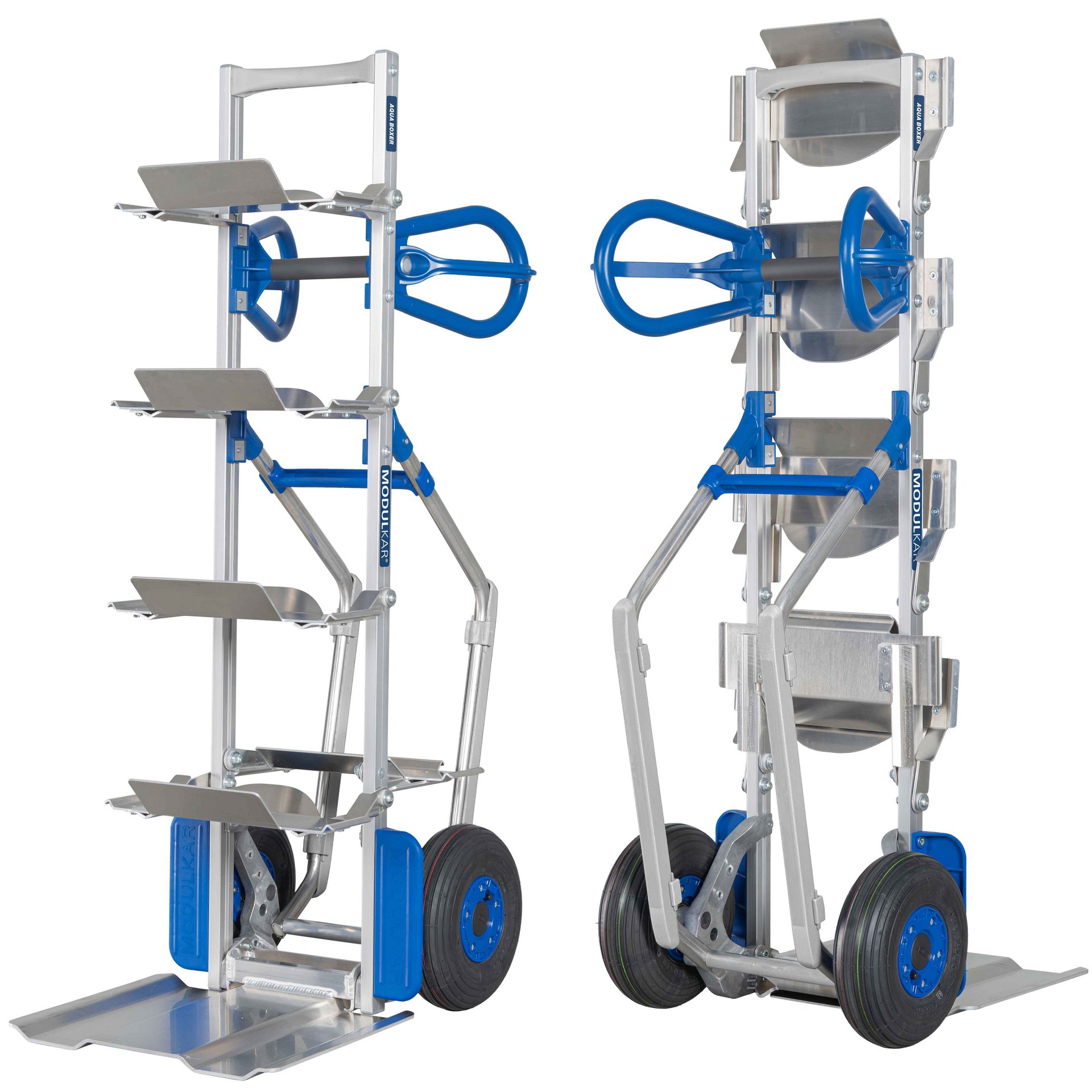

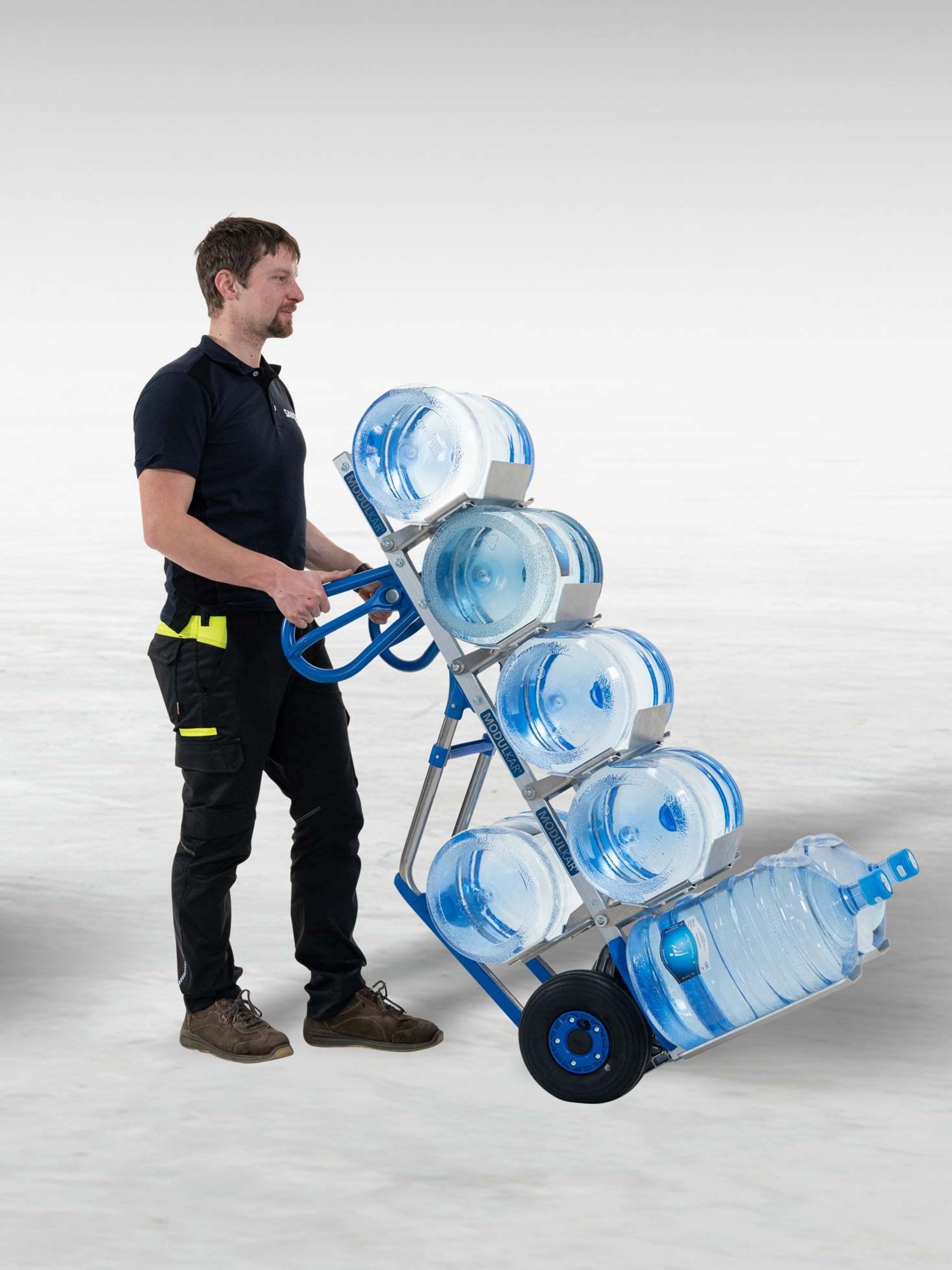

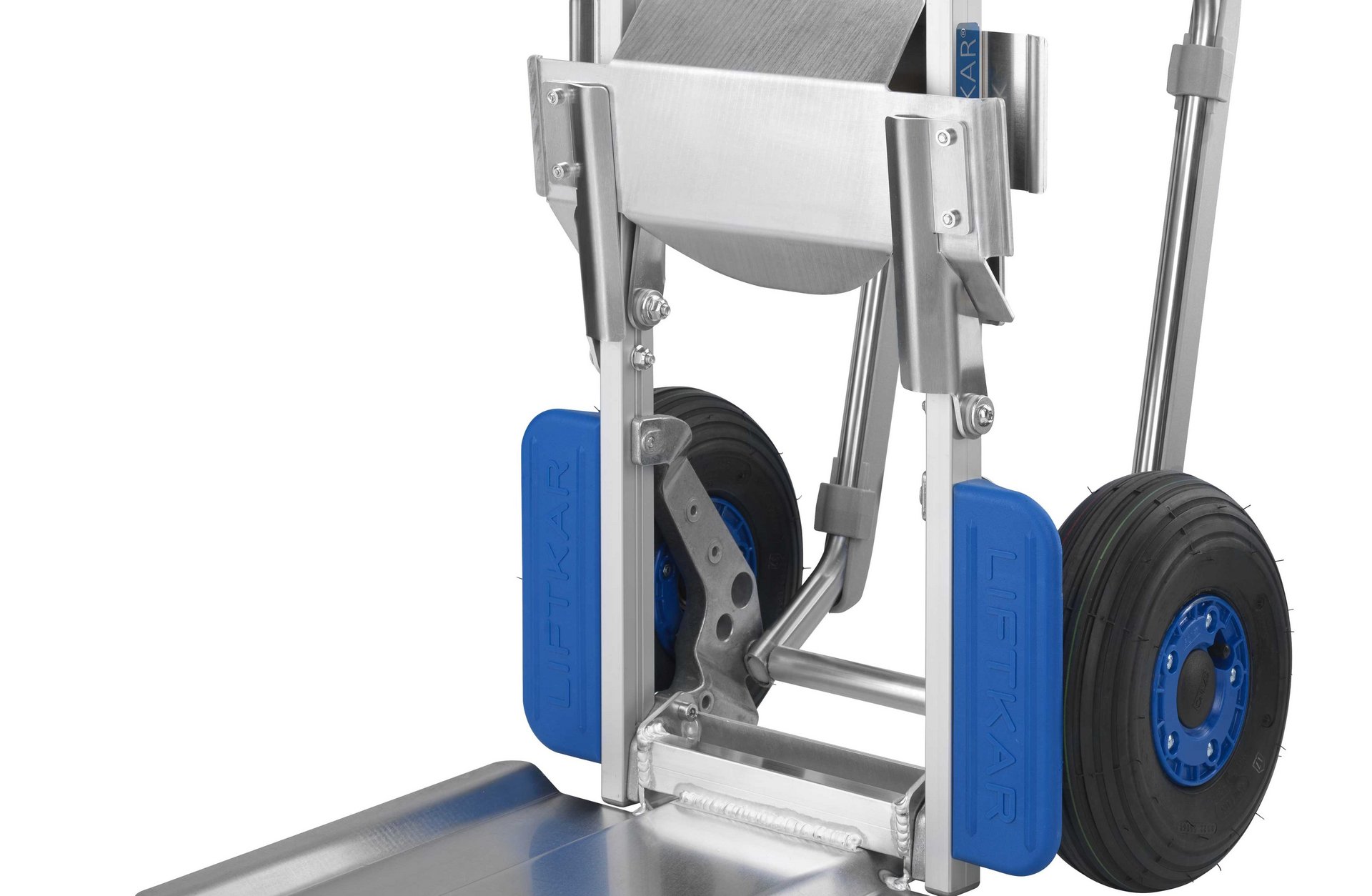

Introducing the MODULKAR AQUA, the newest addition to our innovative product line, specifically designed to streamline water deliveries. This robust handtruck can carry up to 7 water bottles, catering to the high demands of water delivery services.

Building on the strengths of our renowned MODULKAR Boxer, the MODULKAR AQUA inherits features like ergonomic design and adaptability to various terrains. One of its standout features is the easy tire change system, which can be completed in less than 10 minutes. This ensures that water deliveries are never delayed due to a flat tire or a handtruck being out of order.

The MODULKAR AQUA is not just about functionality; it's about reliability and efficiency. It's designed to withstand the rigors of daily use, ensuring that water delivery professionals can perform their jobs without interruption. Like the MODULKAR Boxer, it's built to handle significant weight – in this case, up to 7 large water bottles – while ensuring the operator's comfort and safety.

Step into a new era of efficient and reliable water delivery with the MODULKAR AQUA. Experience uninterrupted service, ease of maintenance, and the proven ergonomic benefits of the MODULKAR line.

article number: 025726

standard equipment:
- loop grips with handguard
- trays for 7 bottles (5 foldable trays)
- pneumatic tyres
- stair gliders (nylon profiles easy to replace)

key data:
weight: 38 lbs
dimensions: HxWxD 53 in x 20 in x 29 in

numerous accessories and options available

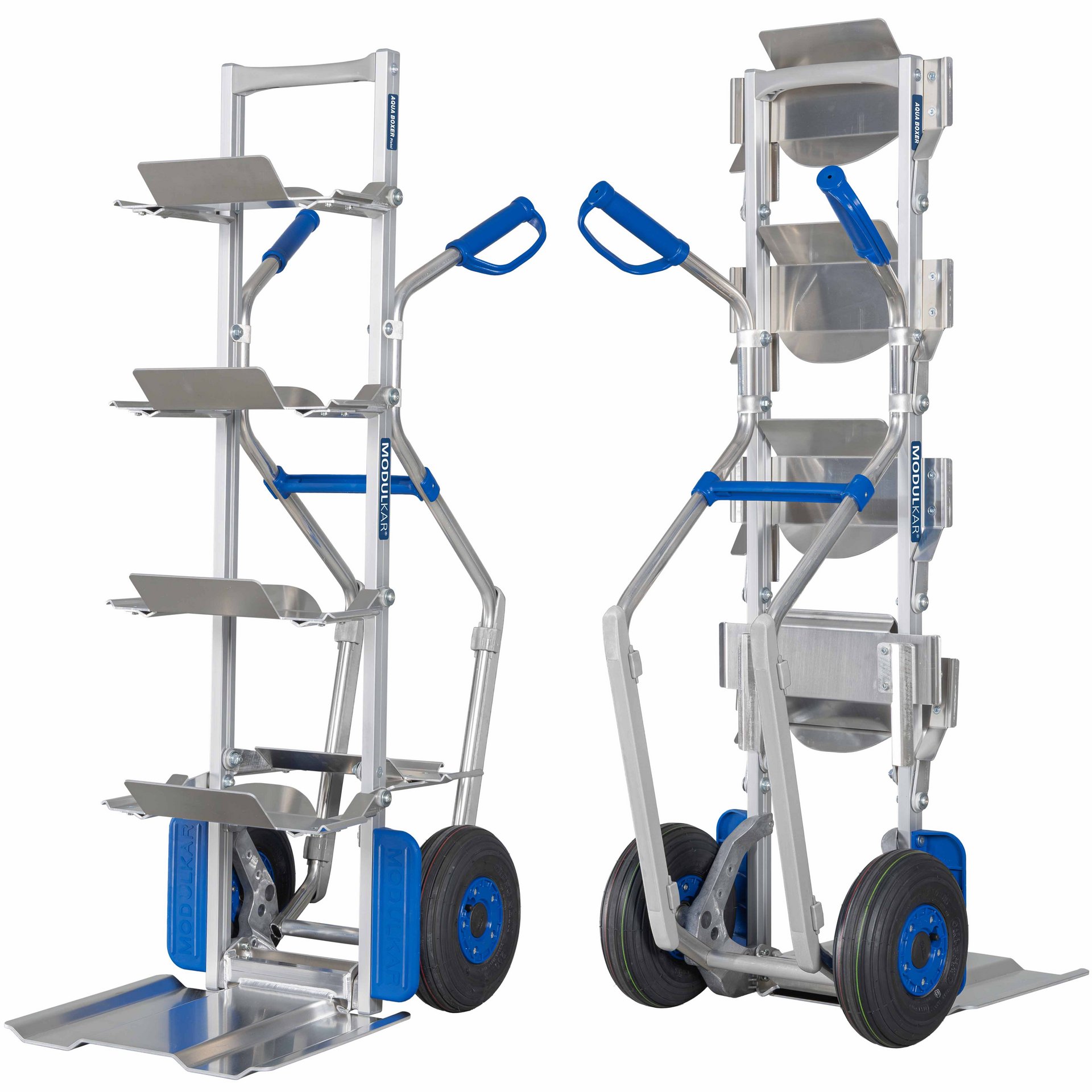

Presenting MODULKAR AQUA Pistol, an innovative addition to our product line, designed to revolutionize water deliveries. Equipped with pistol grips, this handtruck can transport up to 7 water bottles, meeting the demanding requirements of water service and perfectly adapting to environmental needs.

Similar to our renowned MODULKAR Boxer, the MODULKAR AQUA Pistol features an ergonomic design and is adaptable to various terrains. Its tire change system is simple and quick, completing in less than 10 minutes, ensuring that deliveries aren’t interrupted by unforeseen issues like a flat tire. More than just functional, the MODULKAR AQUA Pistol stands for reliability and efficiency. Designed for daily use, it ensures professionals can perform their water deliveries without interruptions. Capable of carrying up to 7 large water bottles, it guarantees operator comfort and safety, thanks to its pistol grips, which offer an ergonomic and adaptable grip.

Discover the MODULKAR AQUA Pistol and transform your water deliveries with a tool that combines superior quality, adaptability, and ease of use.

Article number: 025718

standard equipment:

- pistol grips with handguards
- trays for 7 bottles (5 folding trays)
- pneumatic wheels
- ladder slides (nylon profiles easy to replace)

Key features
weight:36 lbs

dimensiones: Hx W x D 53 in x 19 in x 29 in

numerous accessories and options available

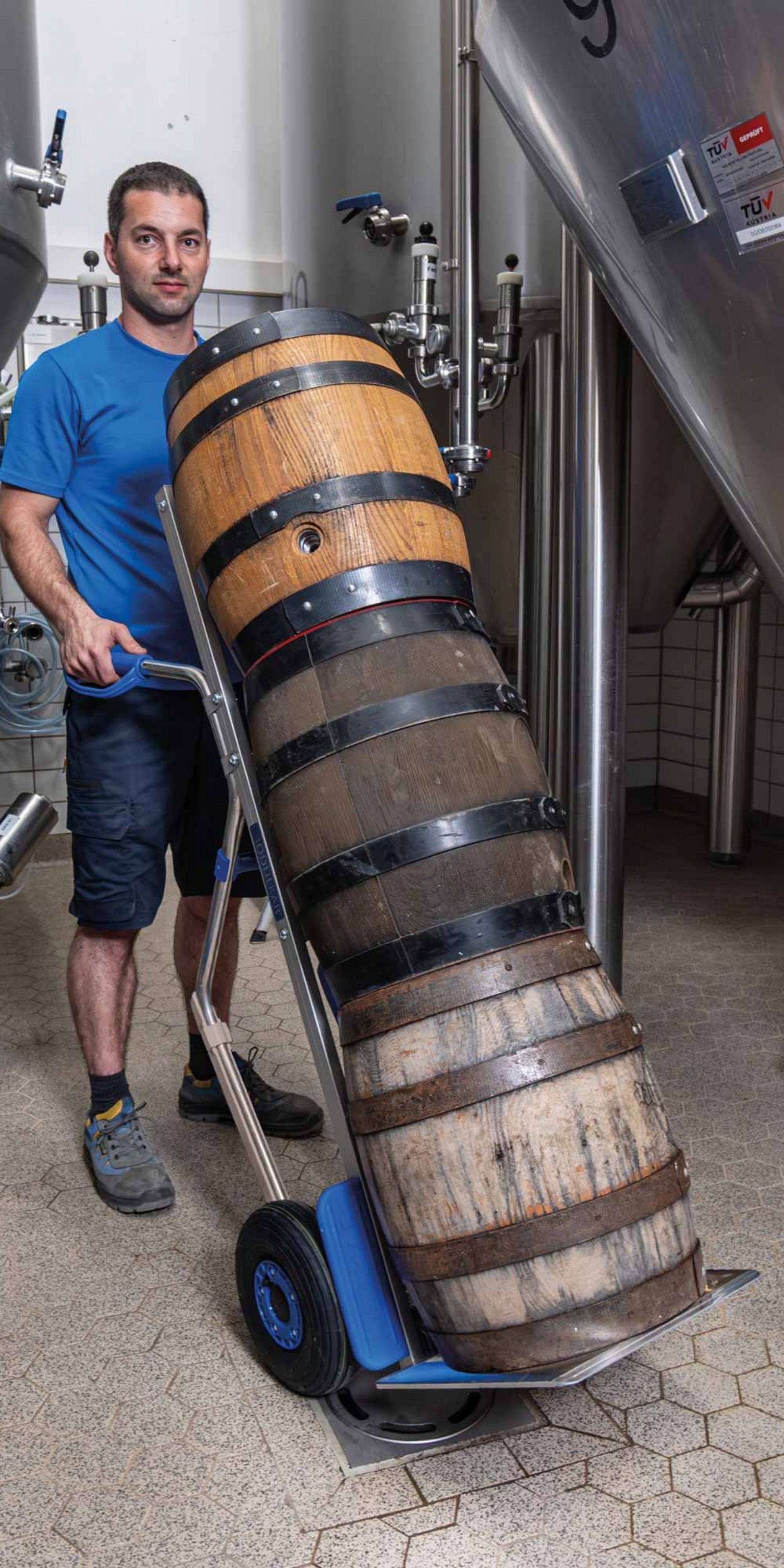

Applications

The Modulkar hand truck
in daily situations

Extras & Accessories

Additional options matching your needs

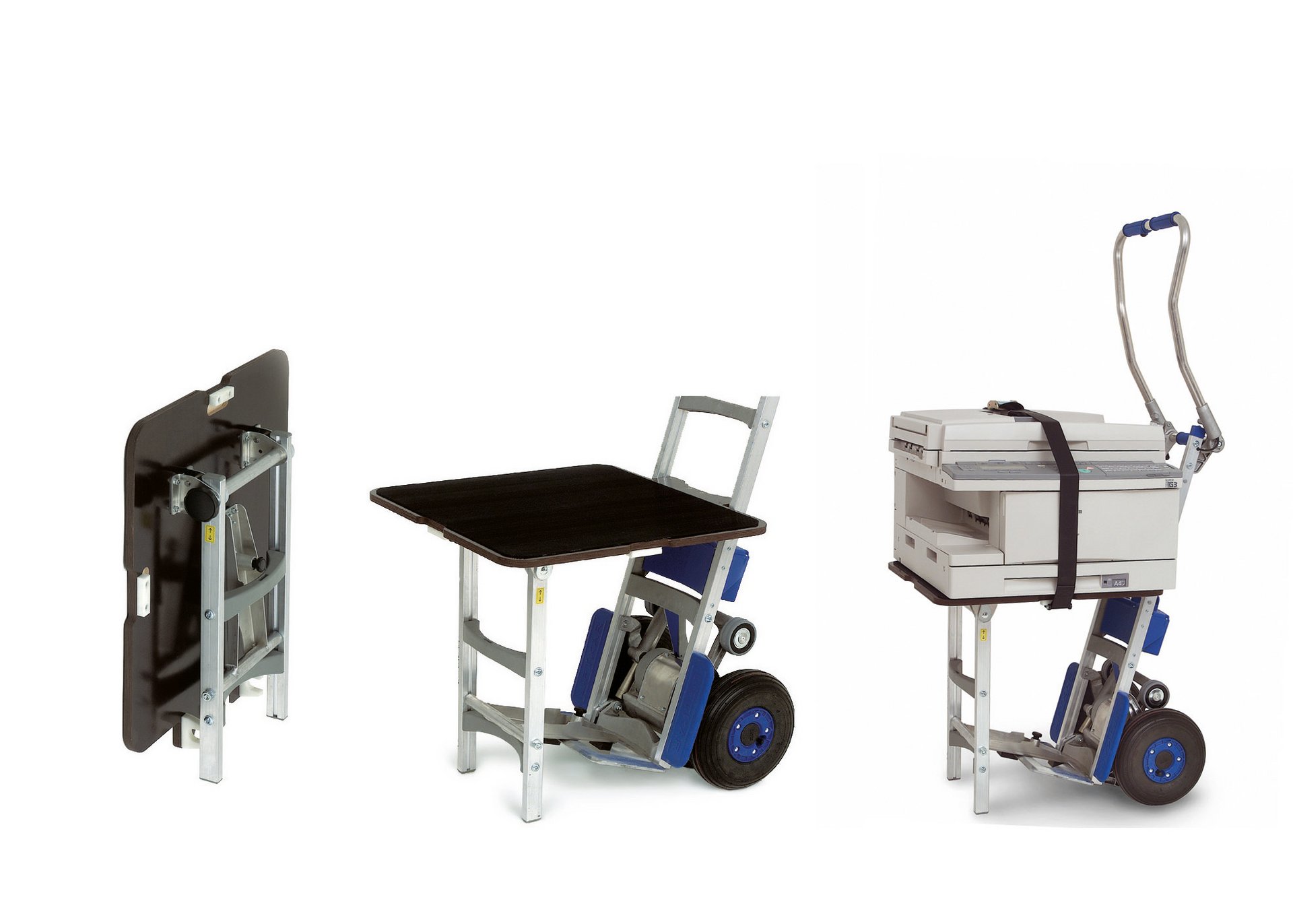

Platform 600 x 590 mm, height 600 mm, incl. mounting pins, to be used with WL and XWL toe plates, hinged or fixed

Art. no. 930 129

i

Table platform

Optionally available

Art. nr. 930 108

i

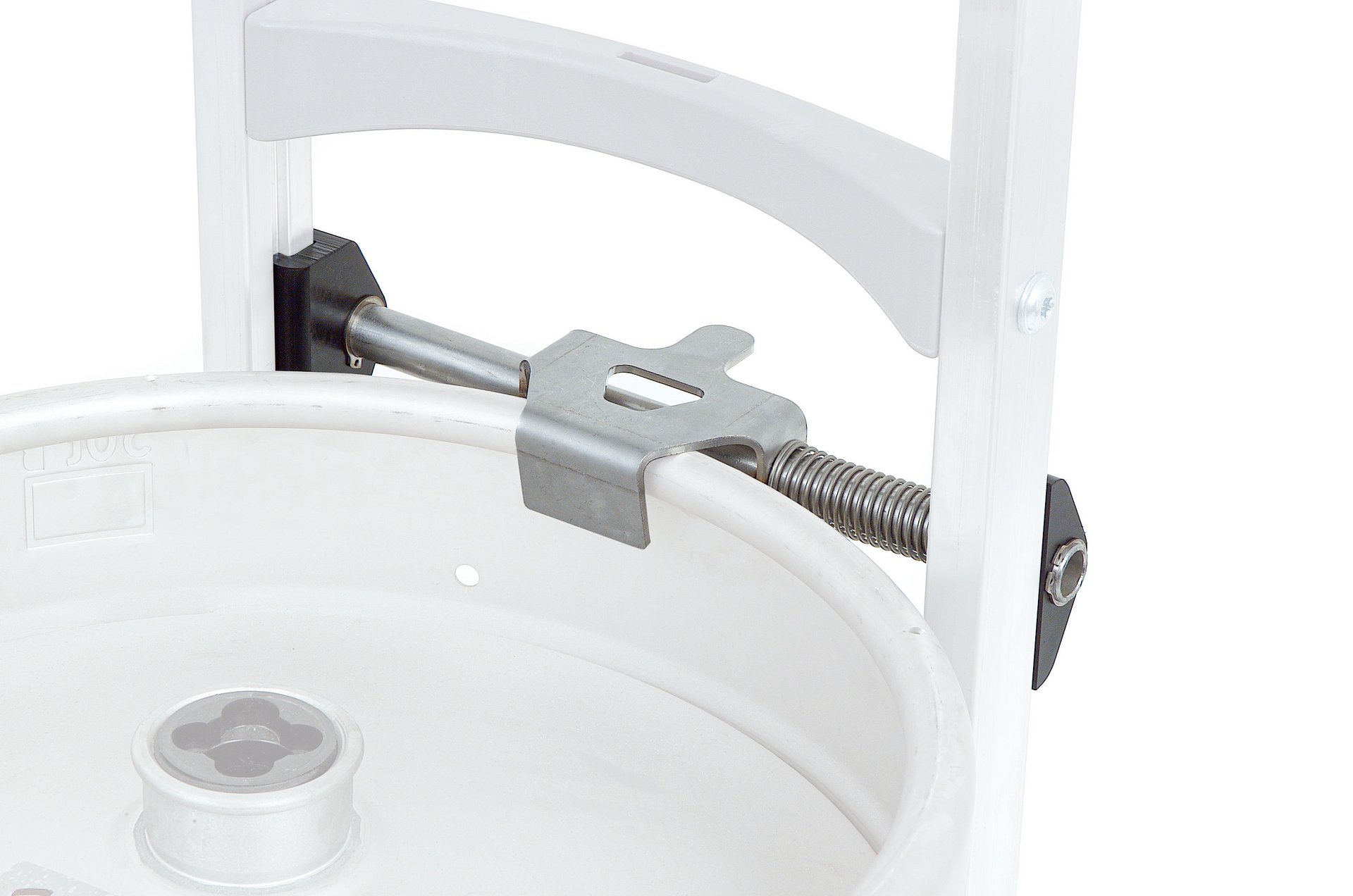

Keg hook

Optionally available

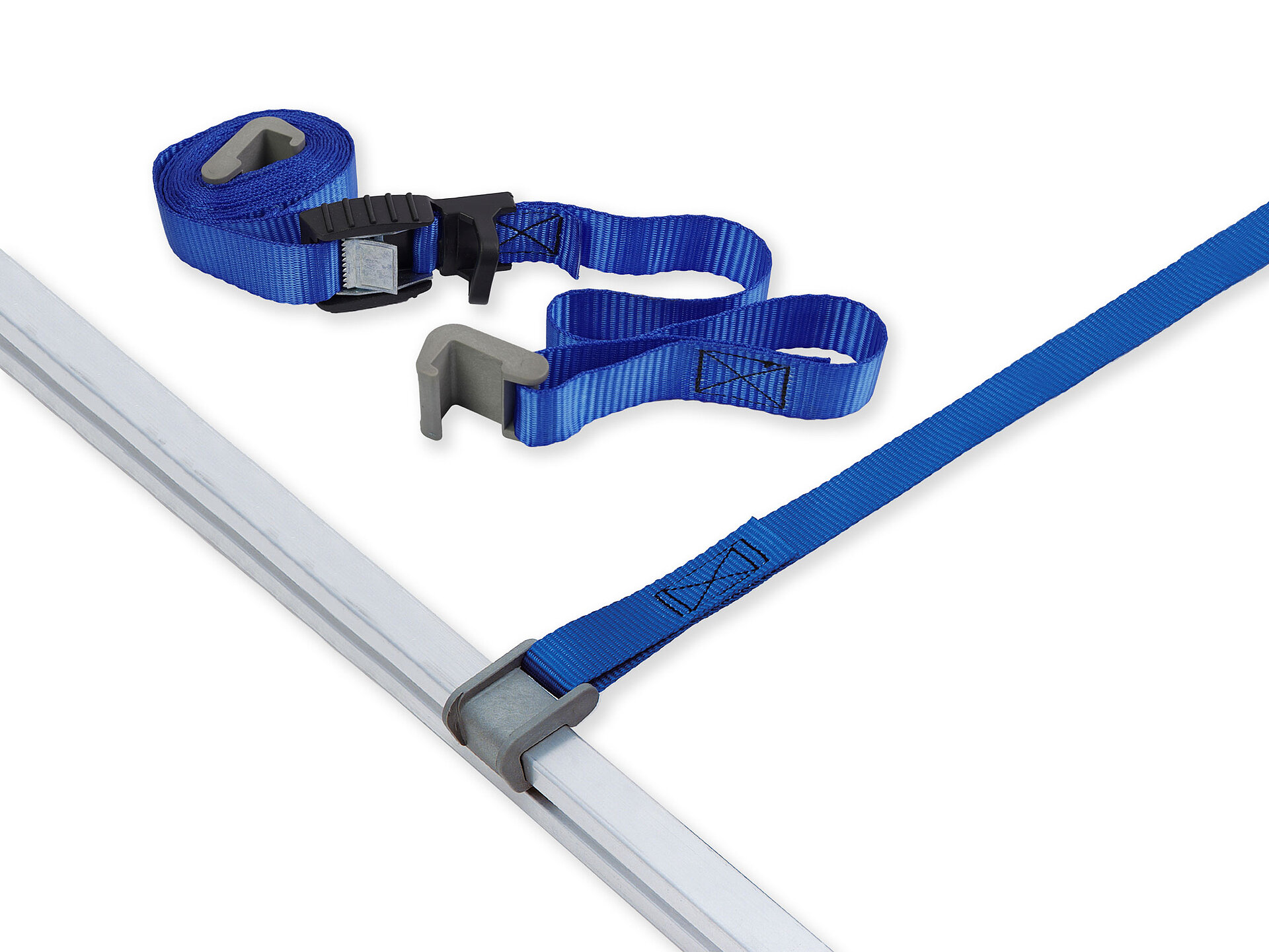

Fixation belt 1,40 m / 25 mm
Art. no. 930 006

i

Fixation belt 1,40 m / 25 mm

Optionally available

fixation belt 3,5 m / 50 mm

With special hooks for optimum load fixation and robust metal lashing buckle.


Art. no. 930 123

i

Fixation belt 3,5 m / 50 mm

Optionally available

Art. no. 930 107

i

Twin bottle holder

Optionally available

Fixation belt 4,20 m / 50 mm

With special hooks for optimum load fixation and robust metal lashing buckle.

Art. no. 930 156

i

Fixation belt 4,20 m / 50 mm

Optionally available

Bag incl. holder, blue

for belt, charger, and much more

Art. no. 935 140



Bag incl. holder, red

for belt, charger, and much more

Art. no. 935 146

i

Bag incl. holder

Optionally available

Ratched strap with roll-up mechanism instead of standard belt for door and panel holder for SAL
Art. no. 930 196

i

Ratched belt with roll-up mechanism

Optionally available

for your company logo

Art. no. 935100

i

Advertising panel

Optionally available

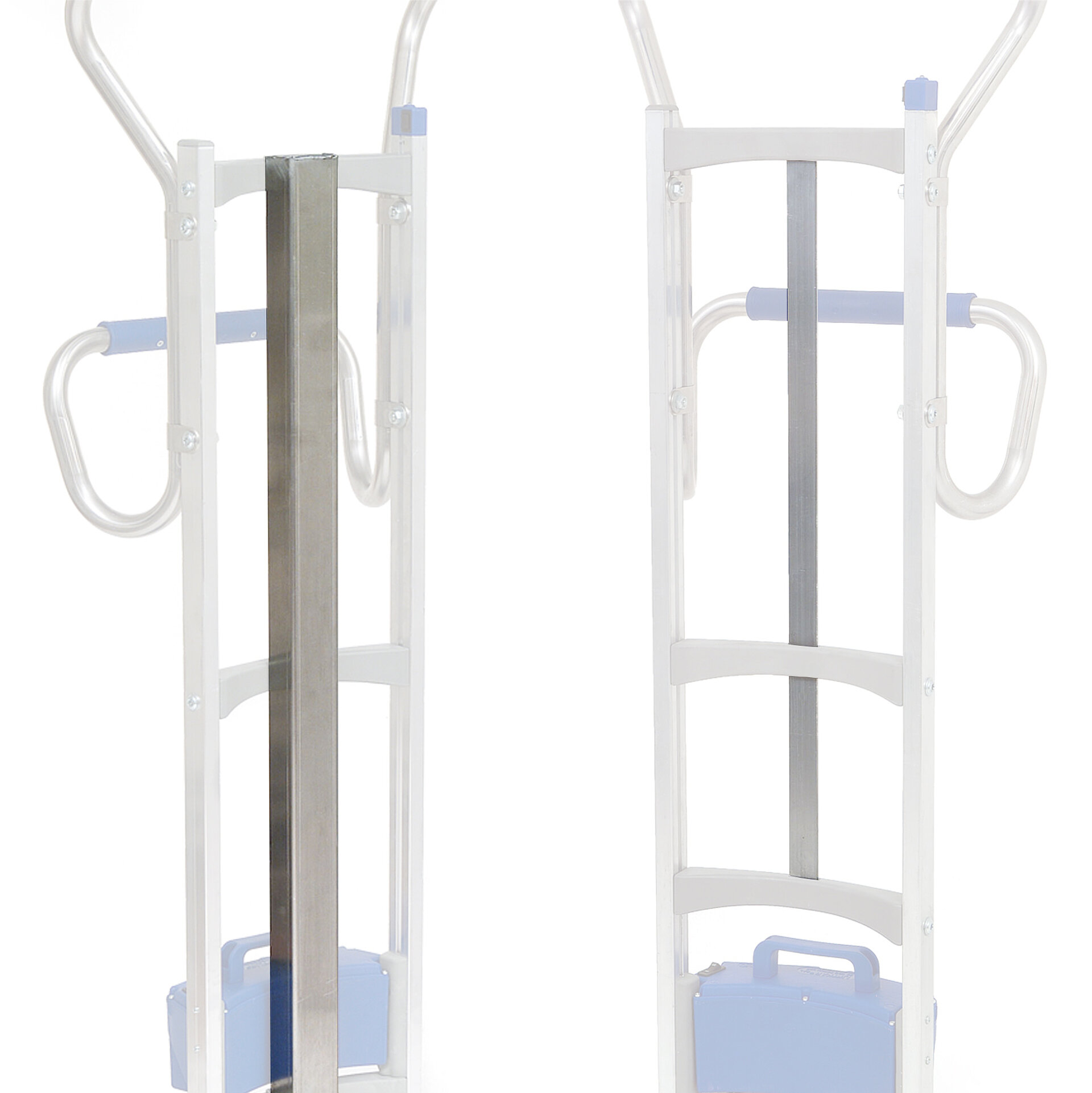

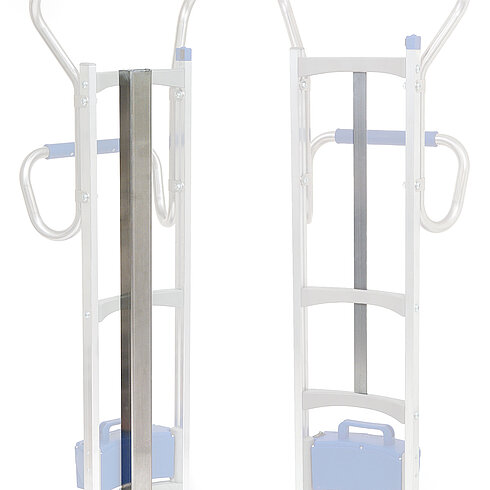

Bar, center support
flat support surface
Art. no. 930 133

Centre bar
with addit. rung
Art. no. 930 105


Fits to: LiftKar SAL UNI, ERGO

i

Bar, center support / Centre bar

Optionally available

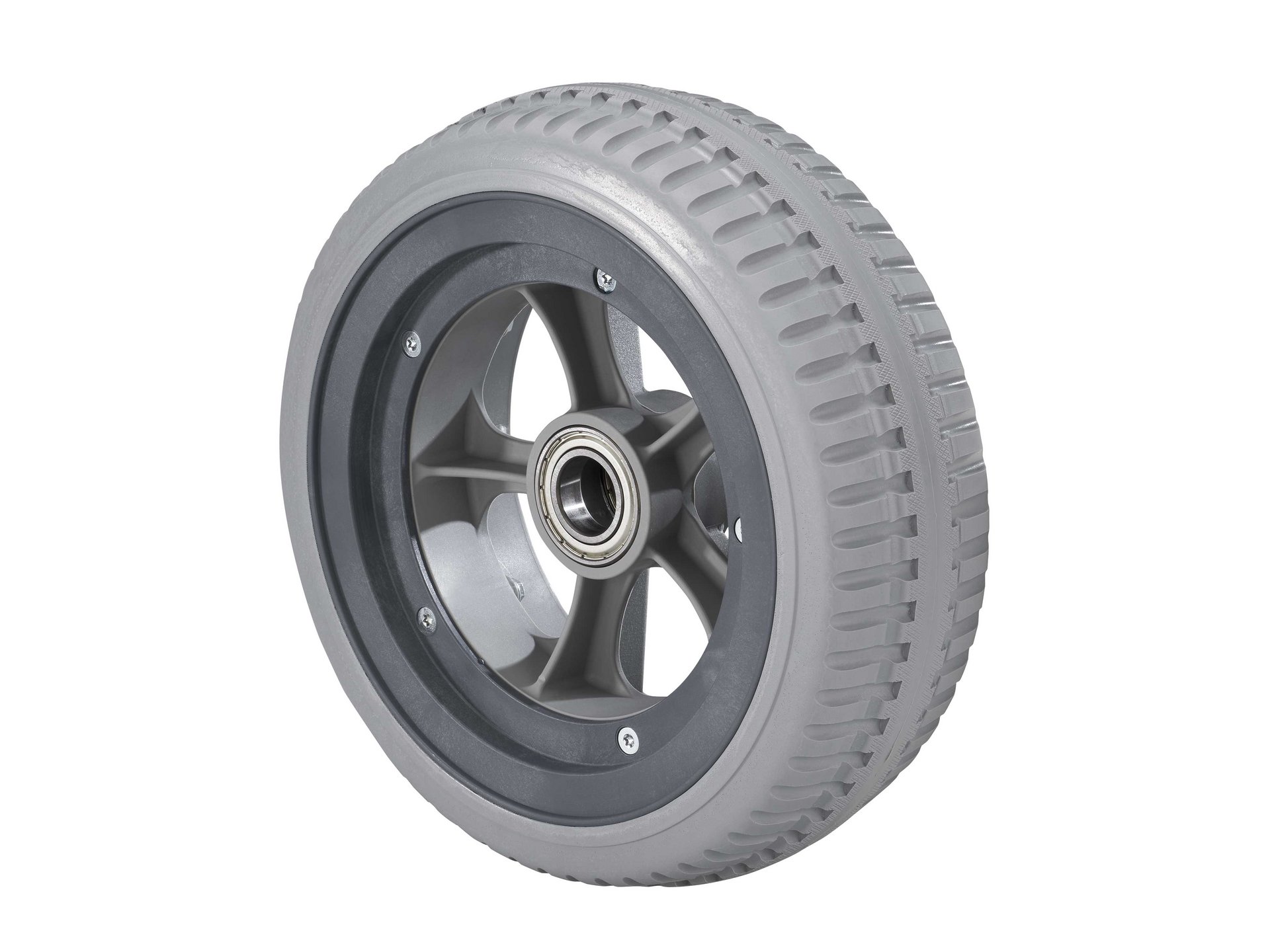

Puncture-proof tyres

grey, per pair

Art. no. 930 119



Main wheel grey

non-marking, per pair

Art. no. 930 109

i

Tyres

Optionally available

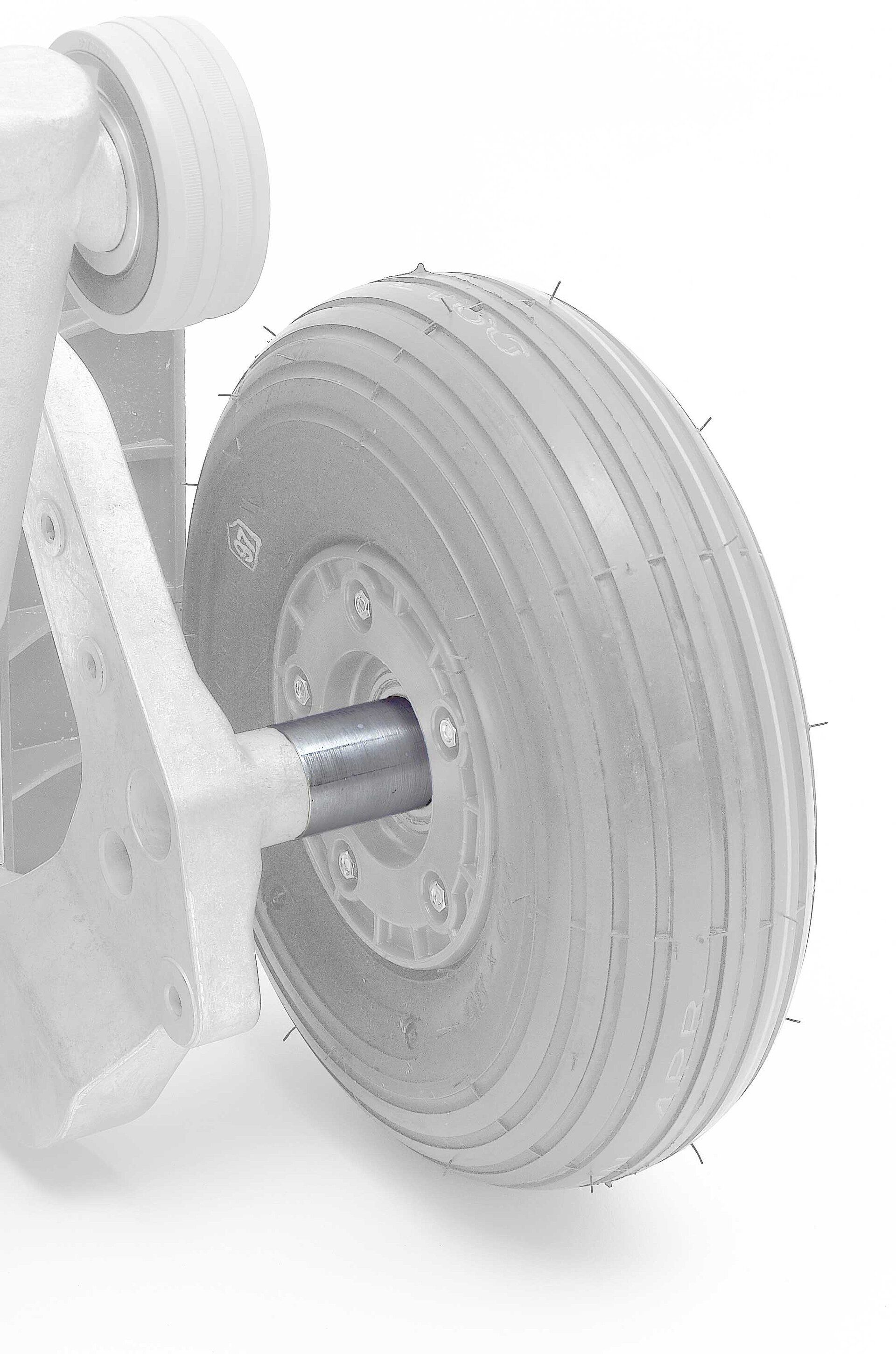

Wheel base extension 80 mm
80 mm wider, per pair
Art. no. 930 111

i

Wheel base extension

Optionally available

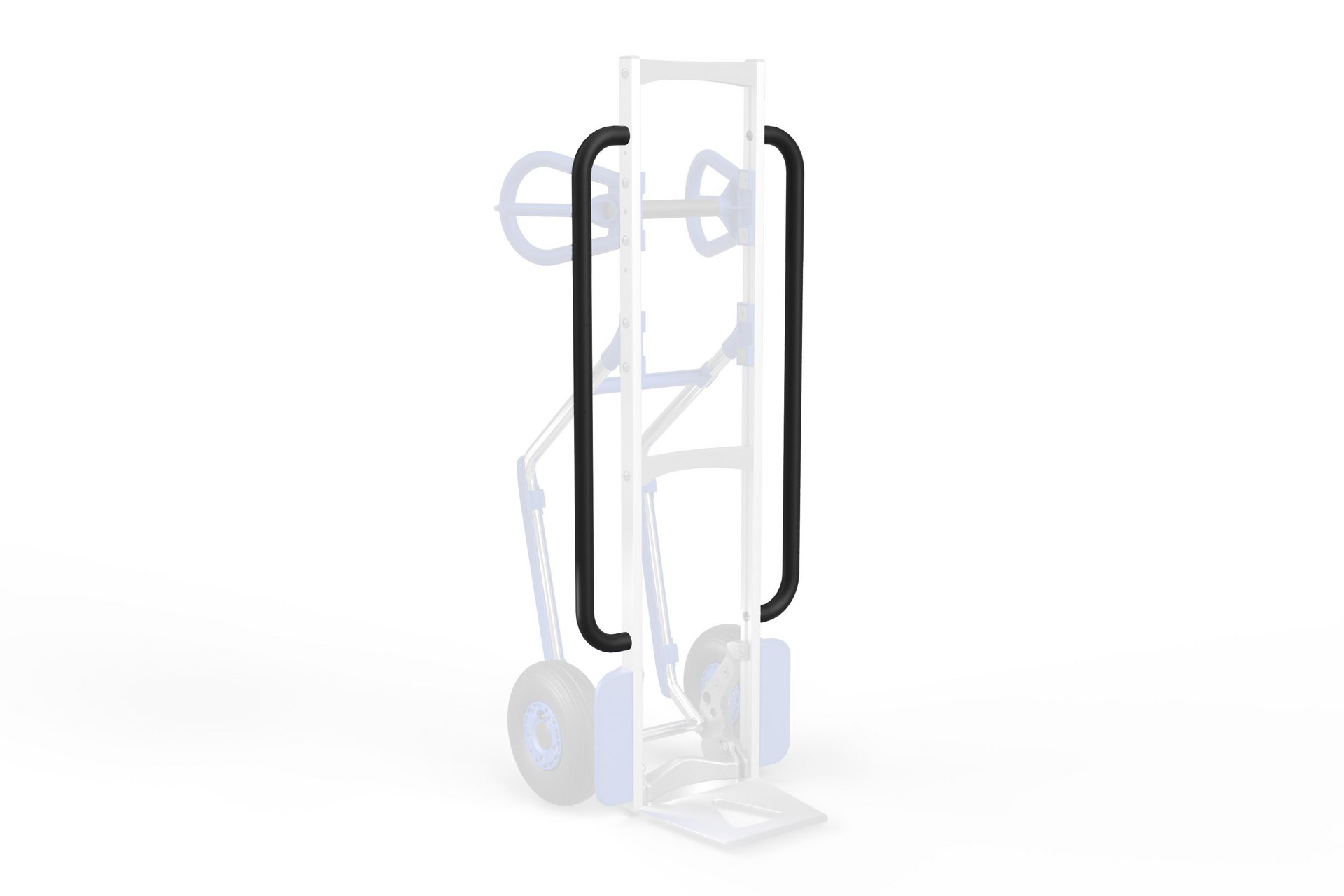

Short
length: 334 mm  /  13.1", per pair for LiftKar SAL FOLD
Art. no. 930 126

Long
length: 840 mm  /  33", per pair for NEO LiftKar SAL ERGO, FOLD-L, UNI
and LiftKar SAL ERGO, FOLD-L, UNI
Art. no. 930 131

i

Wings for white goods - SAL

Optionally available

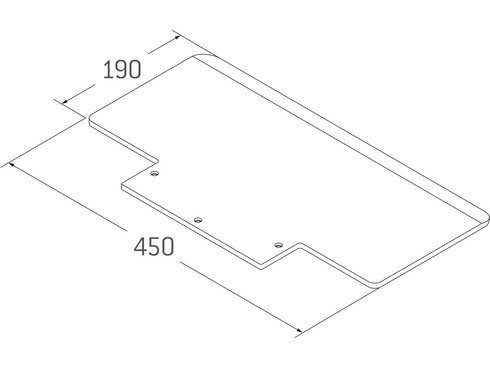

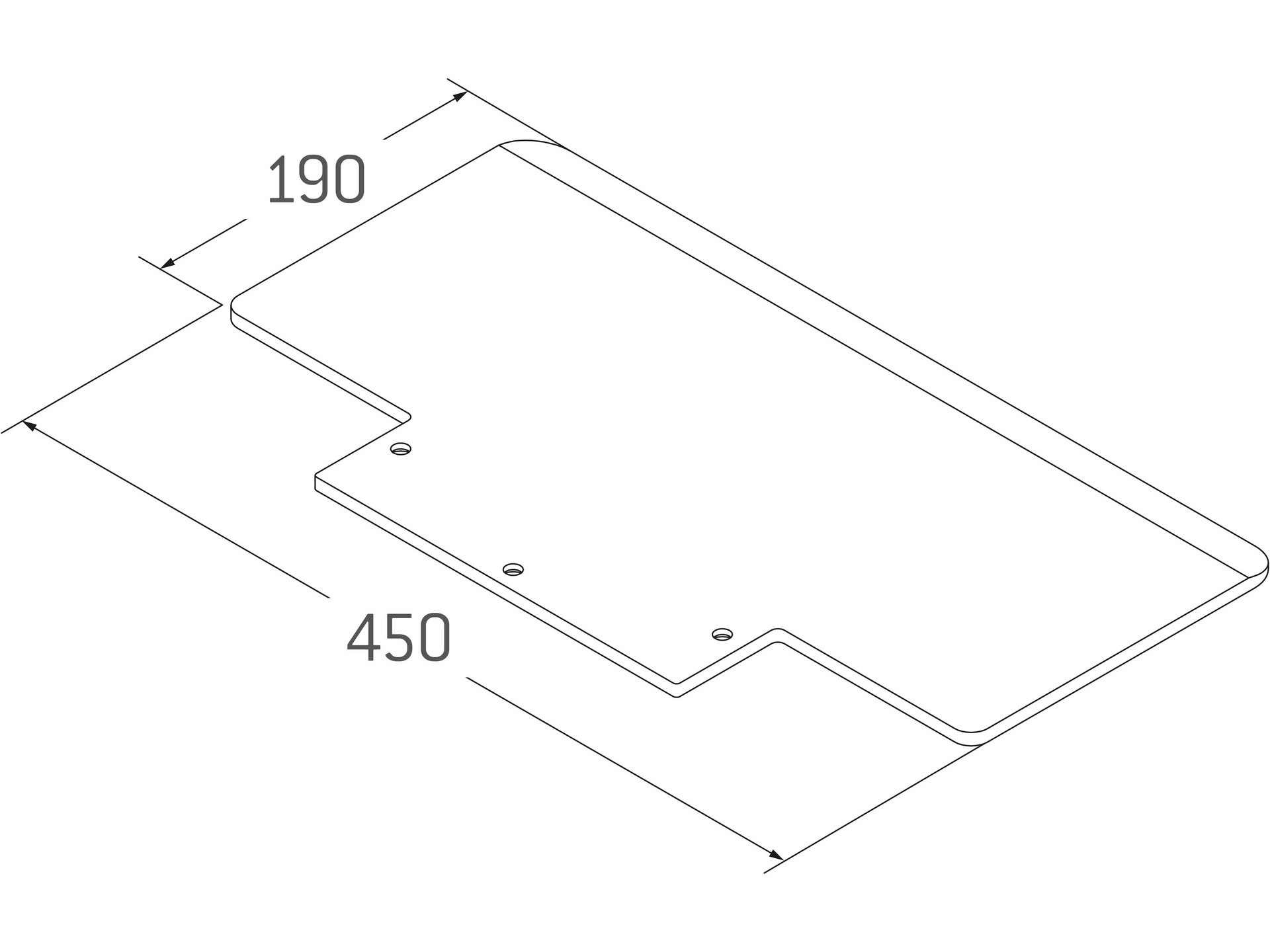

450x190x7 mm
also for packages
Art. no. 930 085

i

Toe plate DS-NG

Optionally available

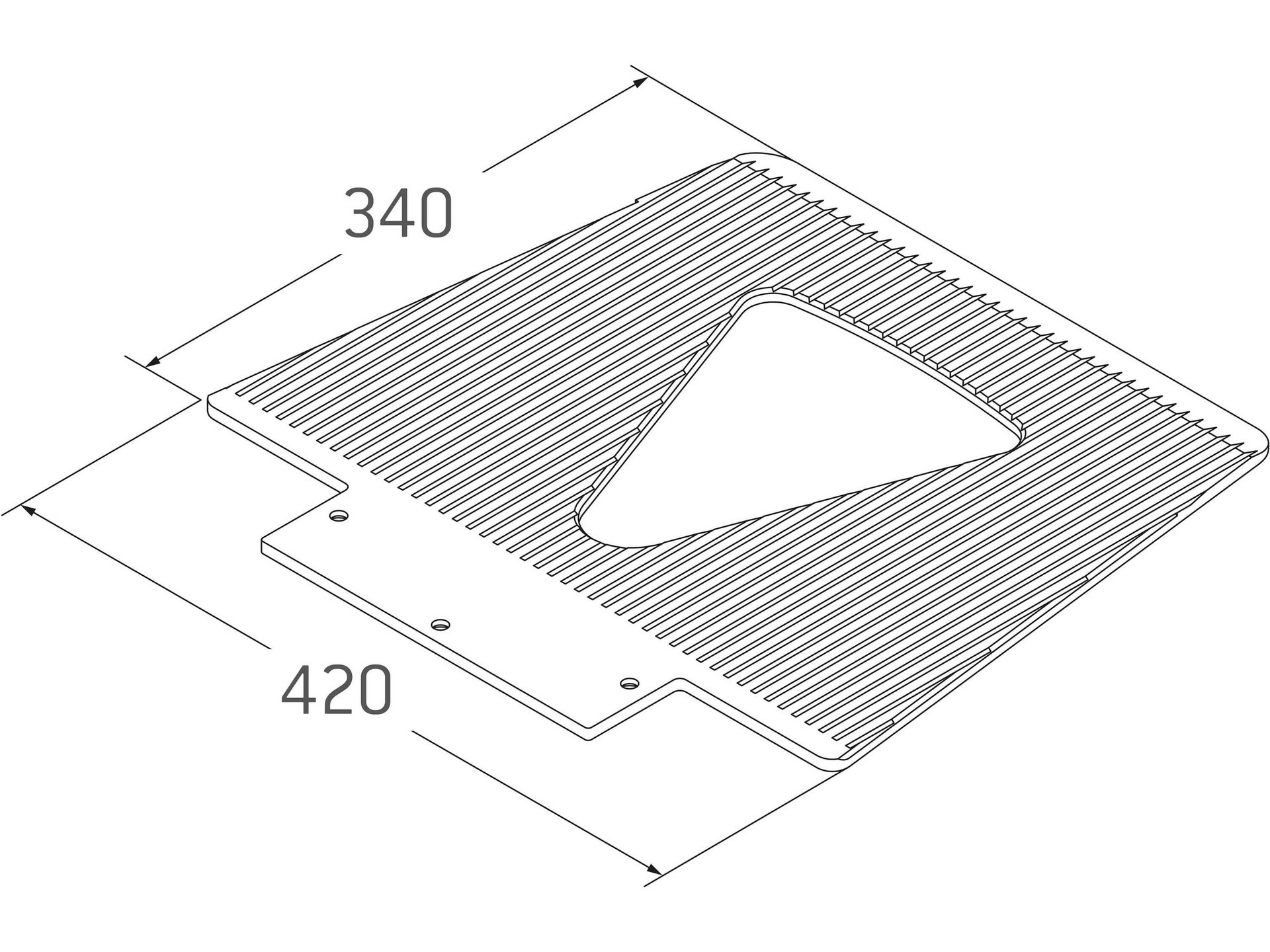

420x340x7 mm
for large packages
Art. no. 930 003

i

Toe plate G

Optionally available

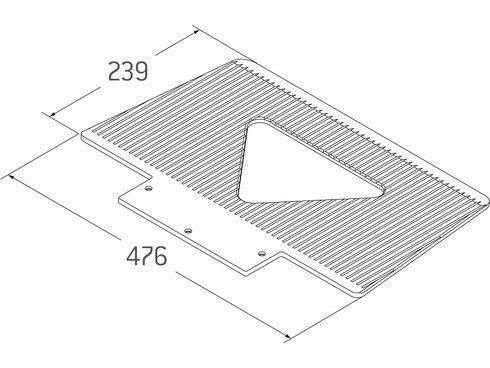

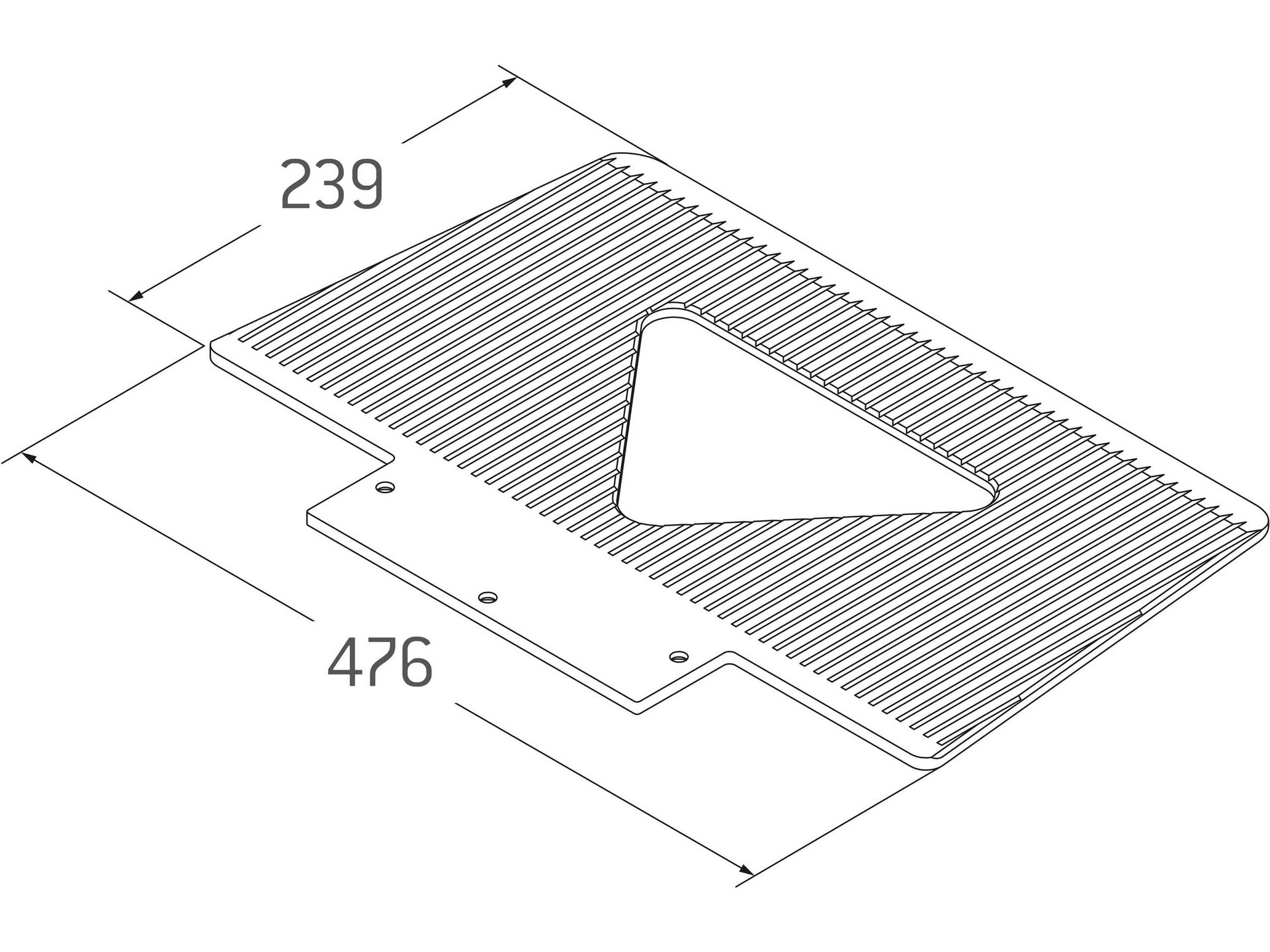

476x239x7 mm
as used in the beverages industry; wide enough for safe transport
of kegs and crates - no straps required
Art. no. 930 030

i

Toe plate GS

Optionally available

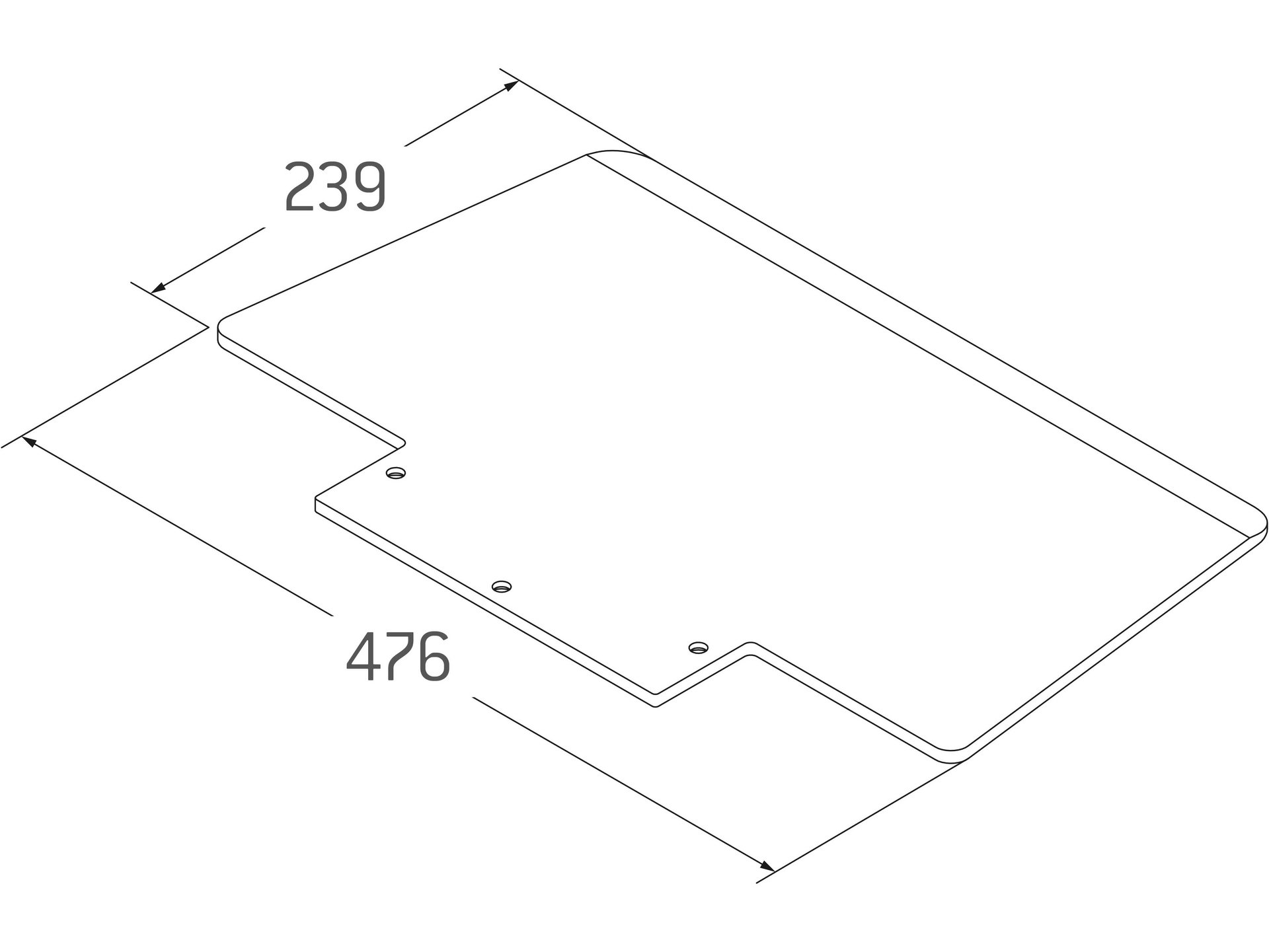

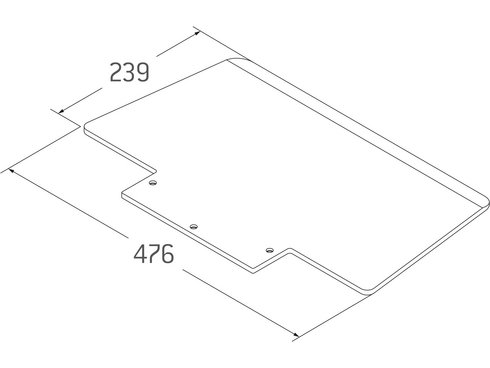

476x239x7 mm
for packages (e.g.: beverage cans)
Art. no. 930 084

i

Toe plate GS-NG

Optionally available

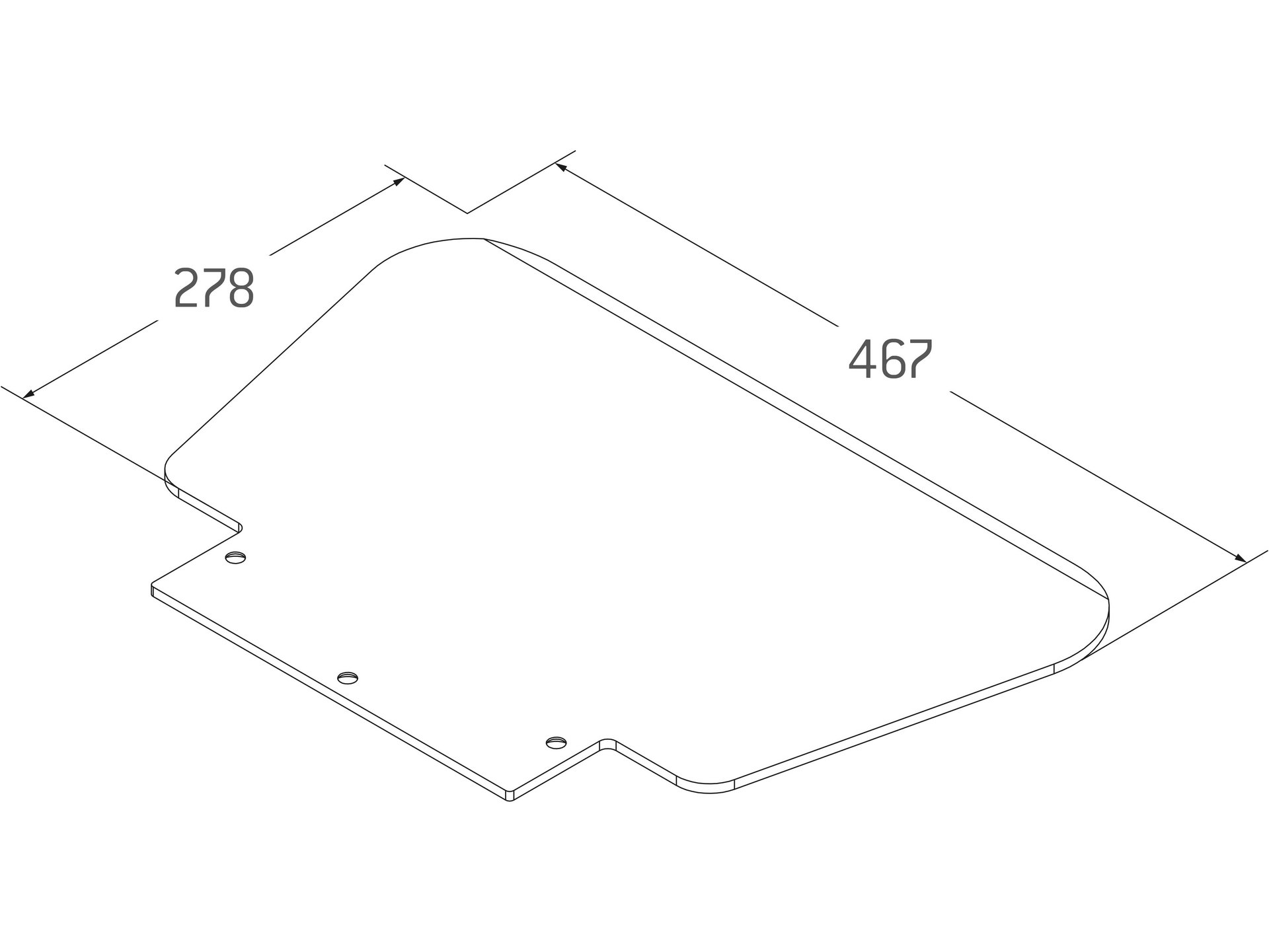

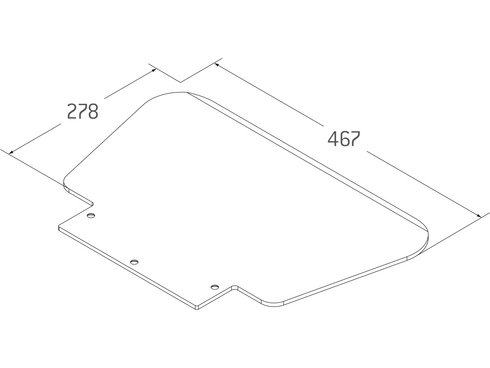

467x278x5 mm
same as toe plate V but larger
Art. no. 930 002

i

Toe plate LH

Optionally available

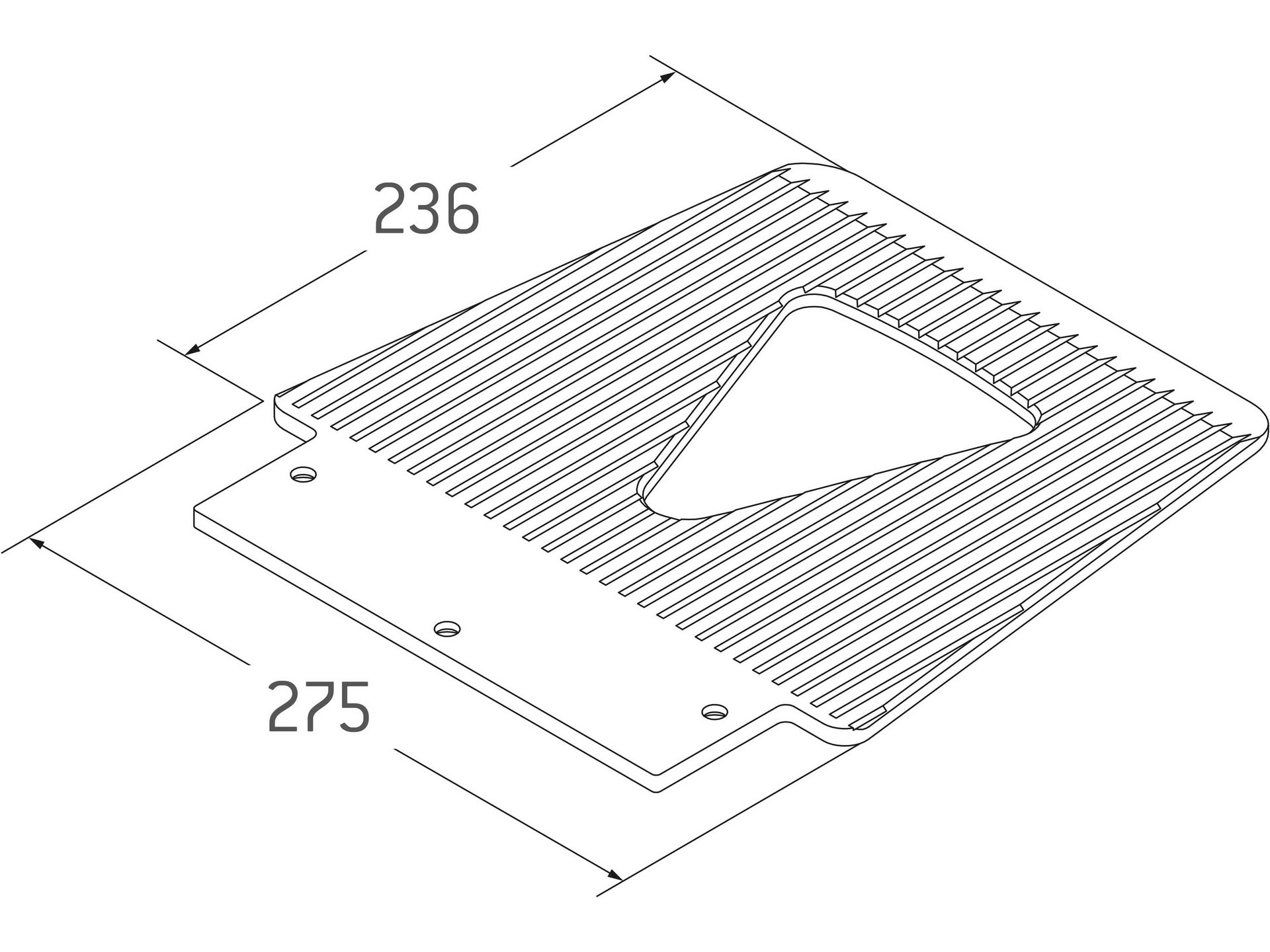

275x236x7 mm
with grooves to prevent load slipping sideways
Art. no. 030 025

i

Toe plate Standard

Optionally available

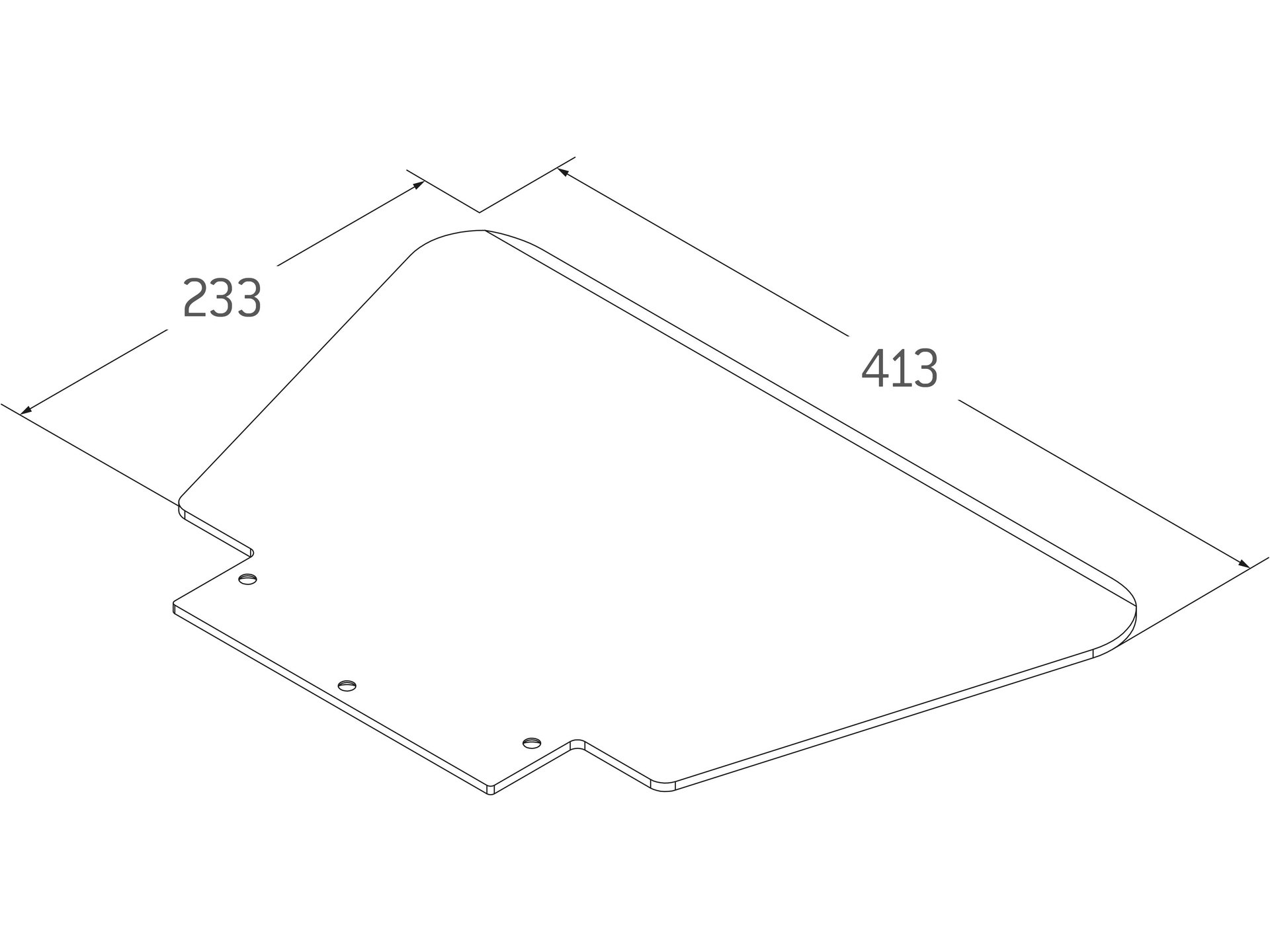

413x233x5 mm
toe plate for transporting oxygen cylinders, etc.
Art. no. 930 001

i

Toe plate V

Optionally available

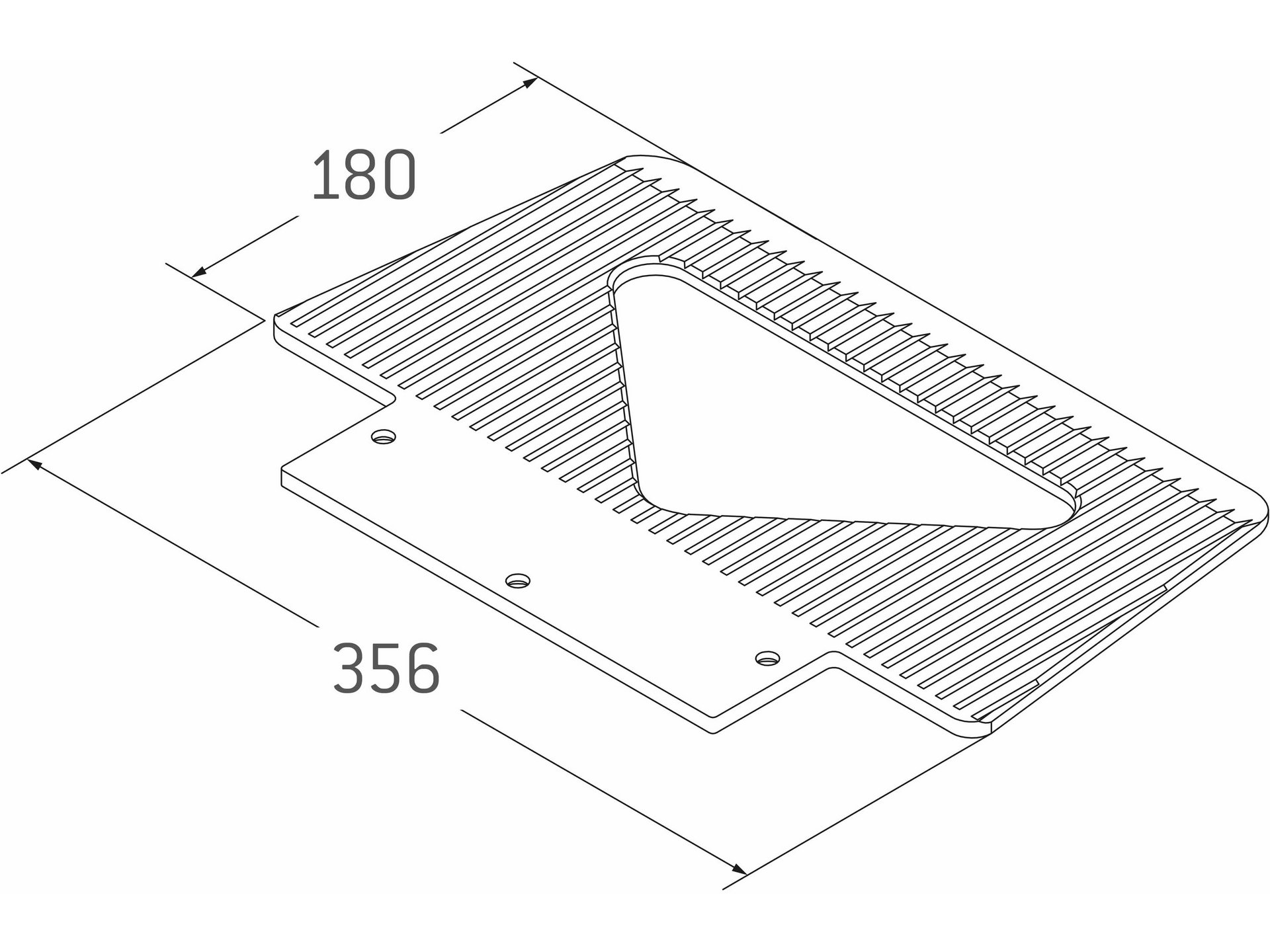

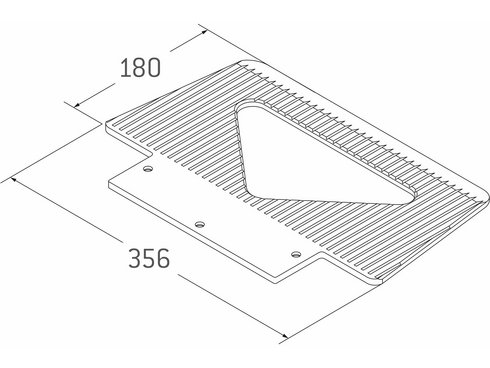

356x180x7 mm
for white goods, refilling vending machines etc.
Art. no. 930 018

i

Toe plate WL

Optionally available

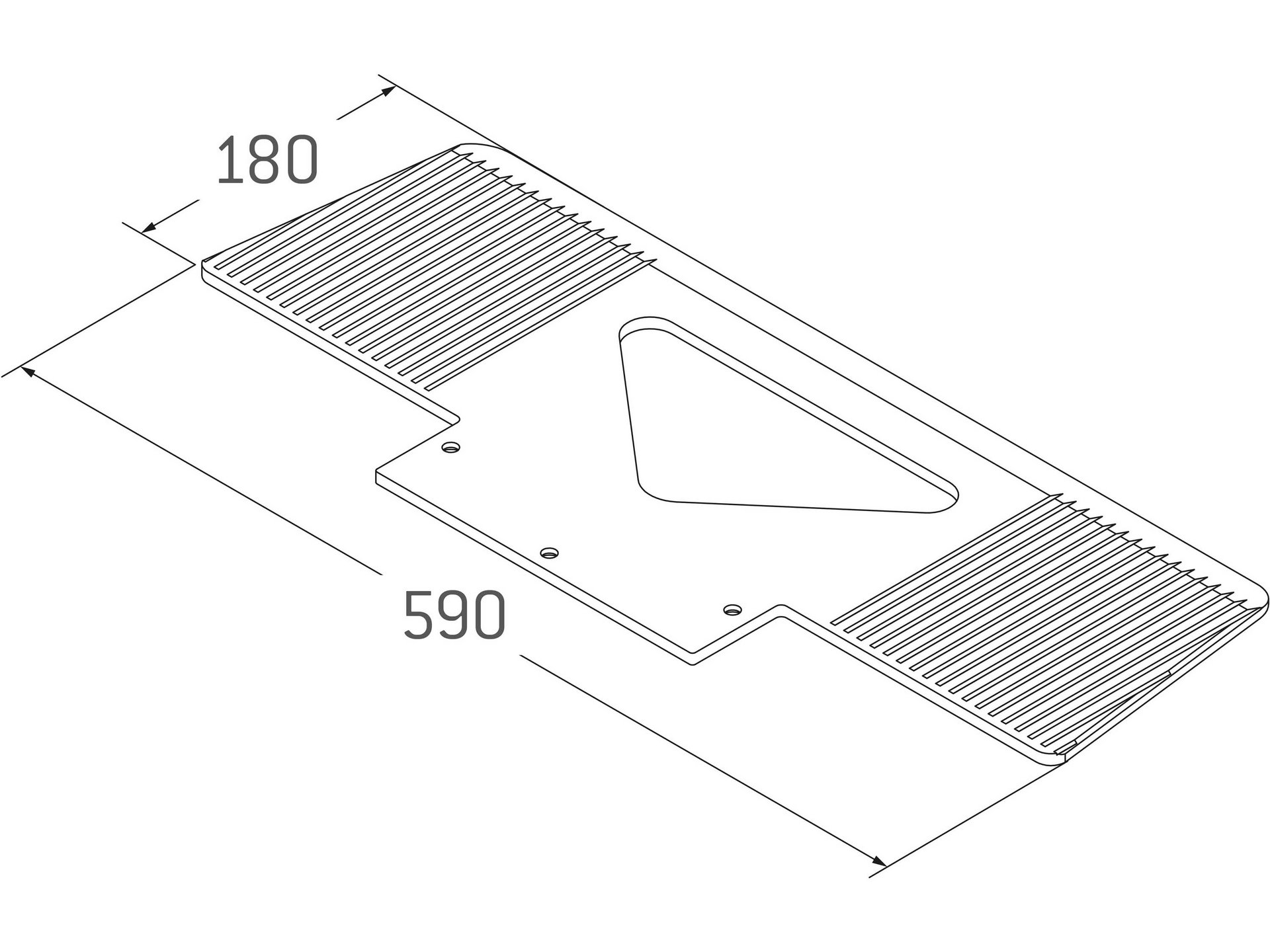

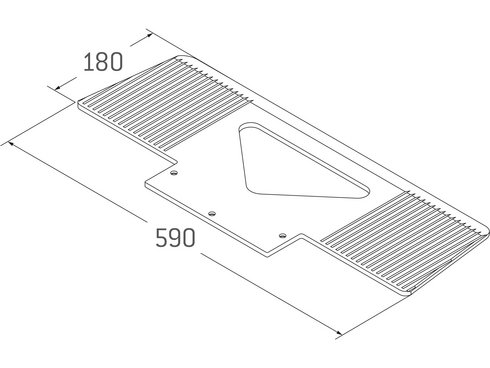

590x180x7 mm
also for white goods, feet stand on toe plate
Art. no. 930 074

i

Toe plate XWL

Optionally available
