Description

LiftKar HD Pro
The heavy duty transporter
for loads up to 800 lbs

The LiftKar HD Pro enables fast and secure transportation of heavy loads up and down stairs.

Say goodbye to back and joint strain, as well as the risk of accidents. With the LiftKar HD Pro, you can safe and ergonomically manage heavy transportation challenges in no time. Ideal for transport and logistic companies, retail, commercial, industrial sectors and many more.

The core of the LiftKar HD Pro is it´s perfectly balanced climbing unit, offering two climbing speeds and a single- and mutli step mode.
Thanks to innovative step-edge braking system, we ensure the highest level of safety in every operation.

The LiftKar HD Pro is an investment that pays off quickly. Instead of difficult work for two or more people, a single person can now effortlessly handle the transportation.
With minimal effort, high reliability, and significantly faster execution.

intuitive user panel

step light

lithium battery

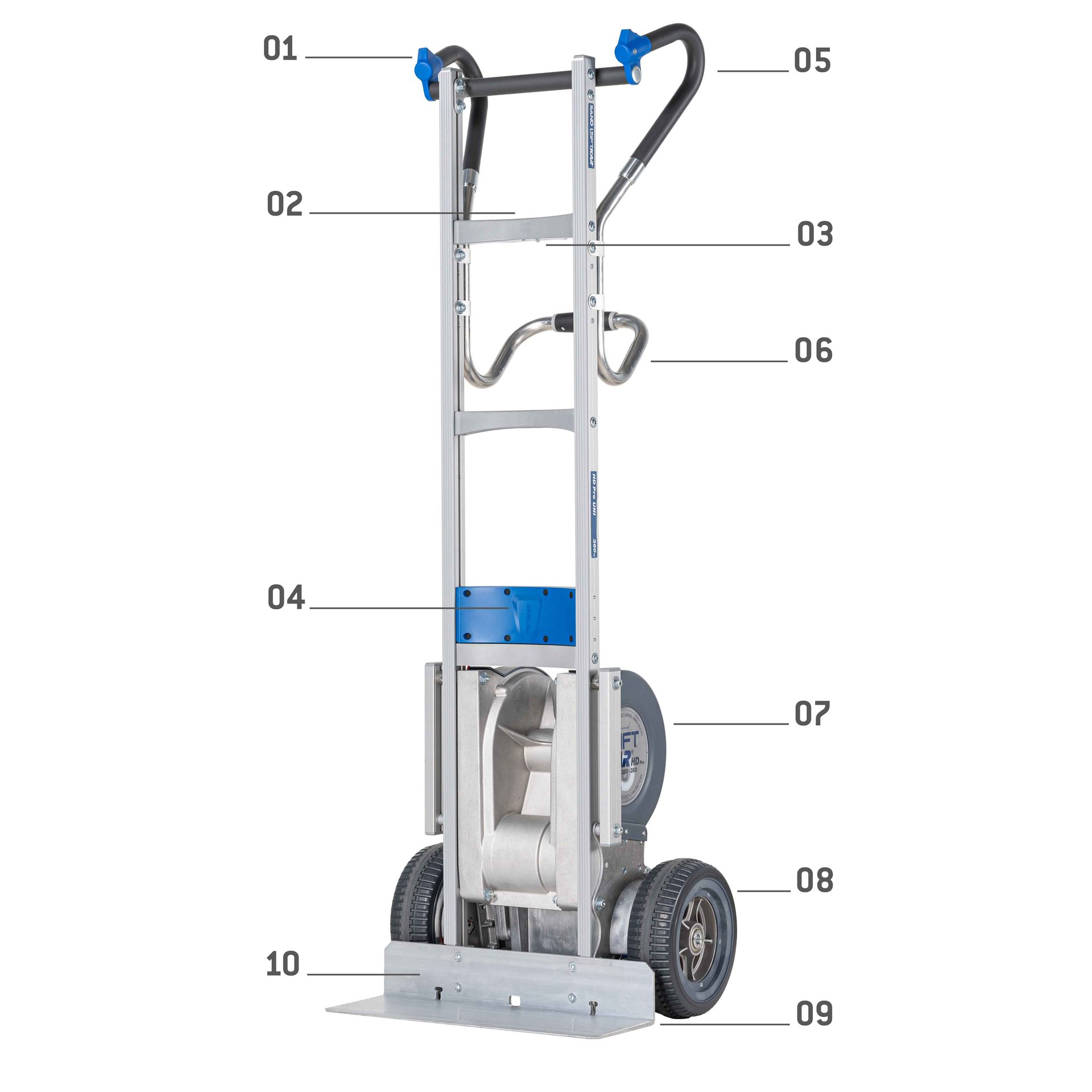

Features

LiftKar HD Pro

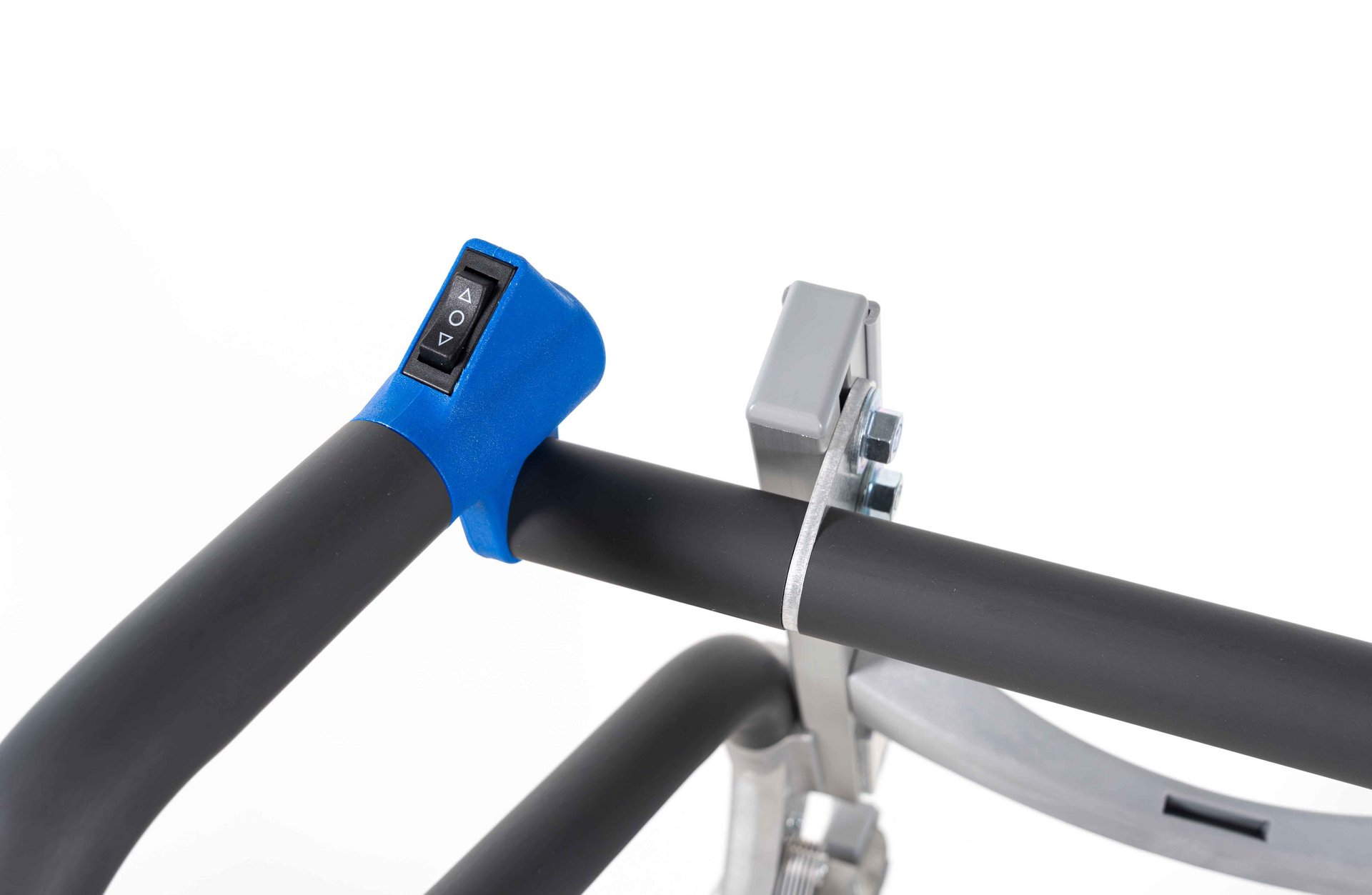

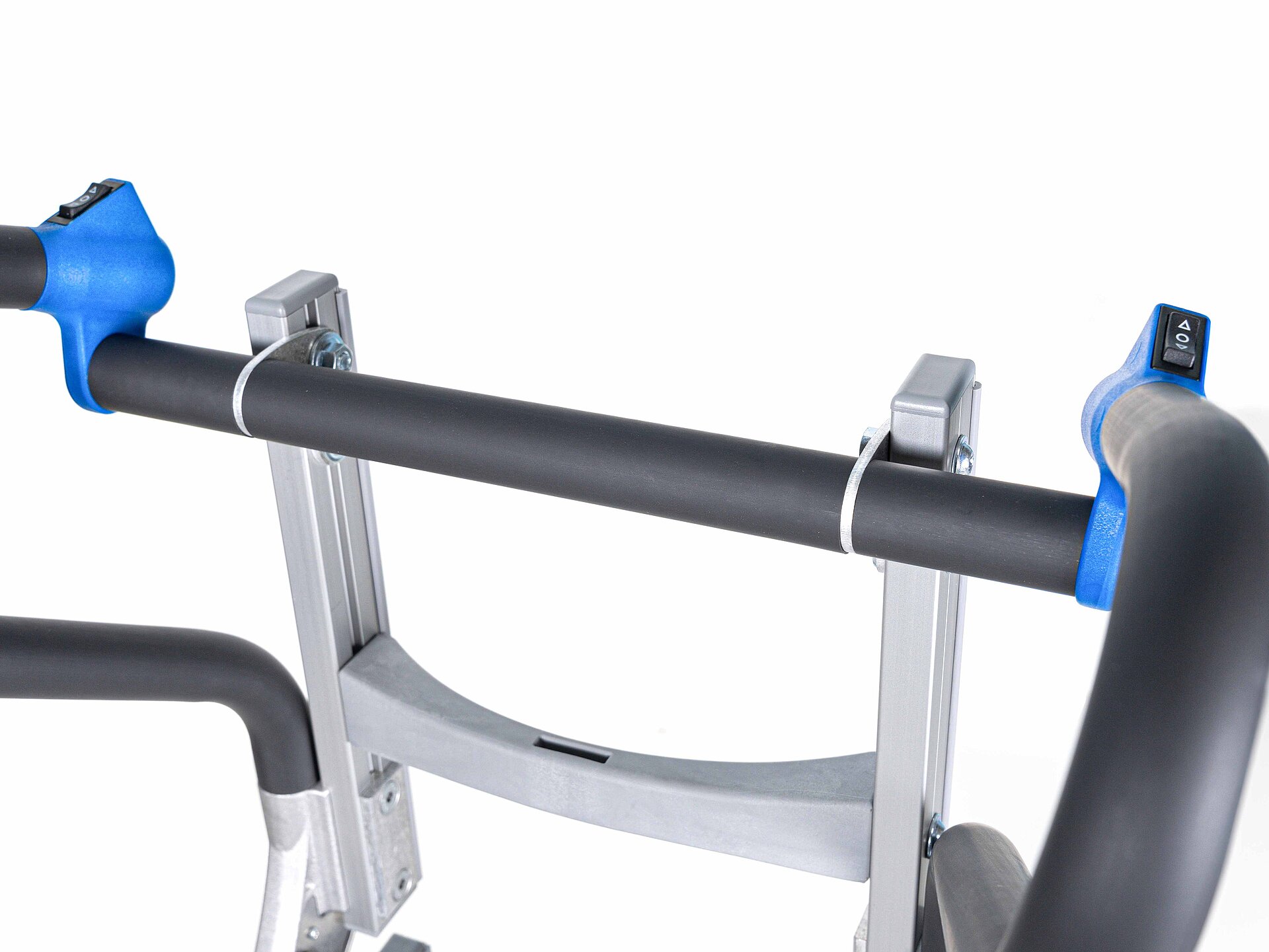

UP/DOWN buttons (left and right side)

UP/DOWN switch on both sides for left- and right-handed operators

LiftKar HD Pro

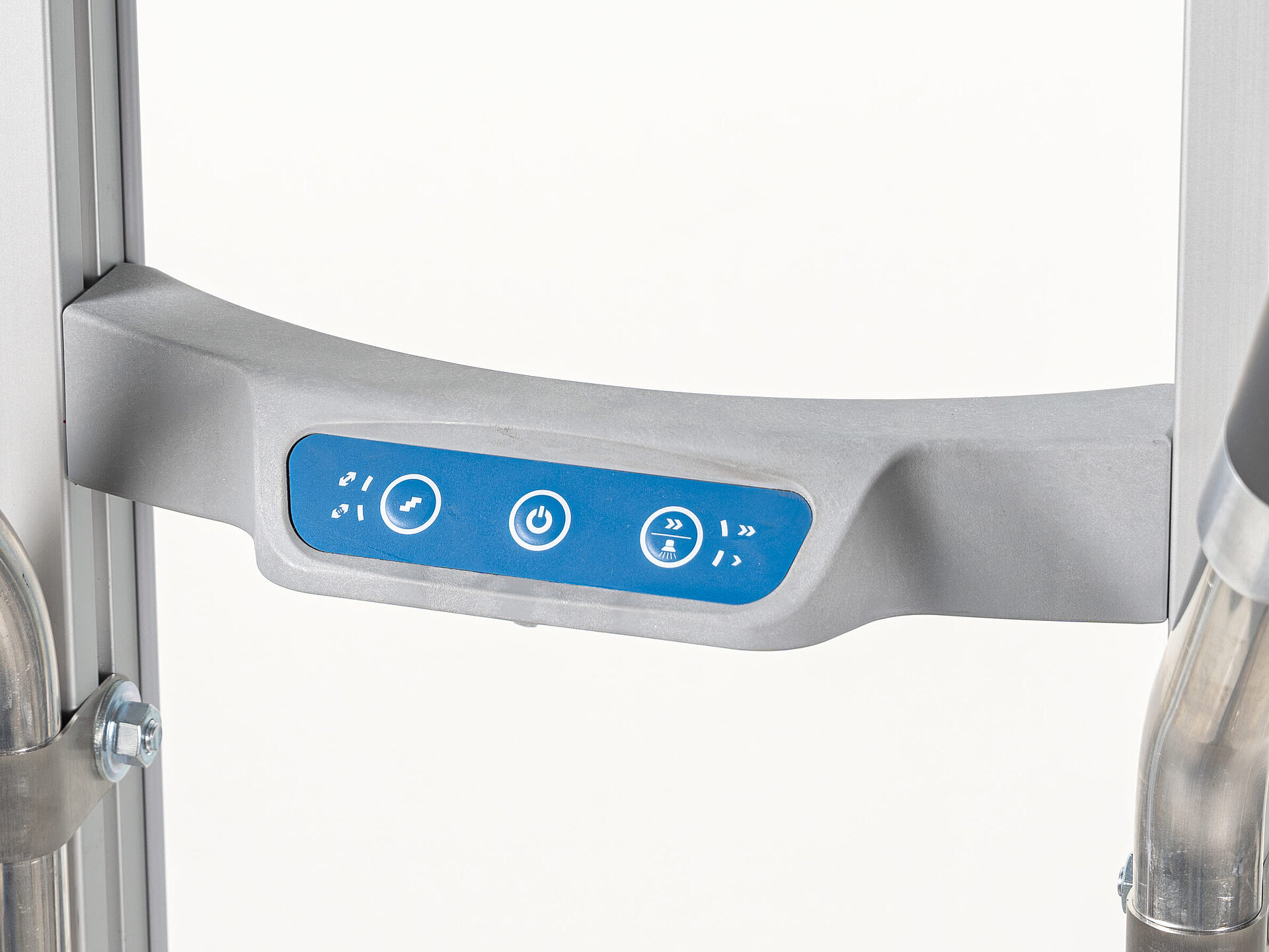

control unit

Clear, robust touchpad - intuitive for user-friendly and easy operation.

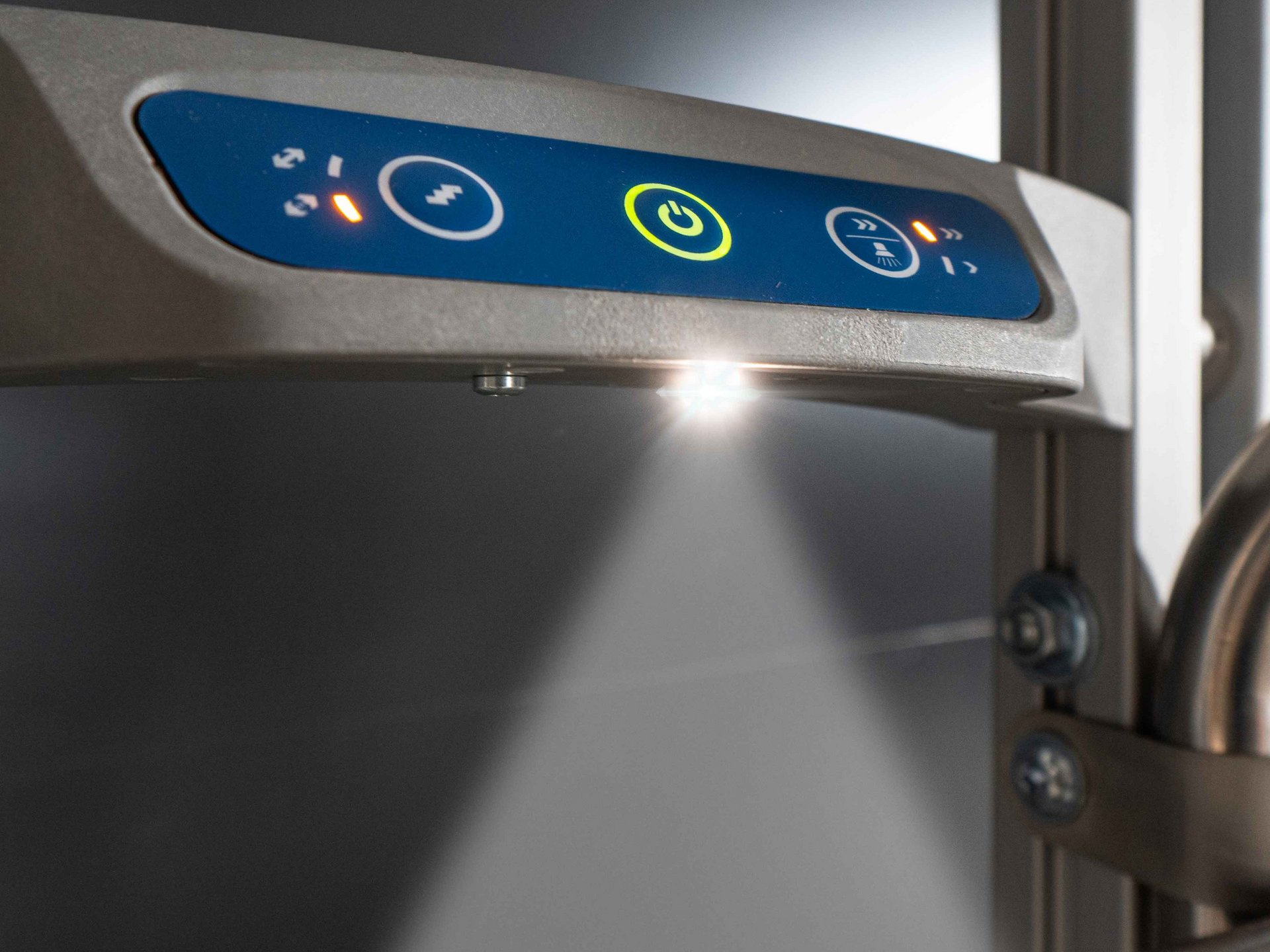

LiftKar HD Pro

step light

For optimal lighting when visibility is poor or in dark stairwells. Easily switchable.

LiftKar HD Pro

Lithium battery

High-performance battery with state-of-charge indicator for up to 700 steps (depending on the model), particularly safe due to the double-walled plastic housing.

Weight 3.5 lbs

LiftKar HD Pro

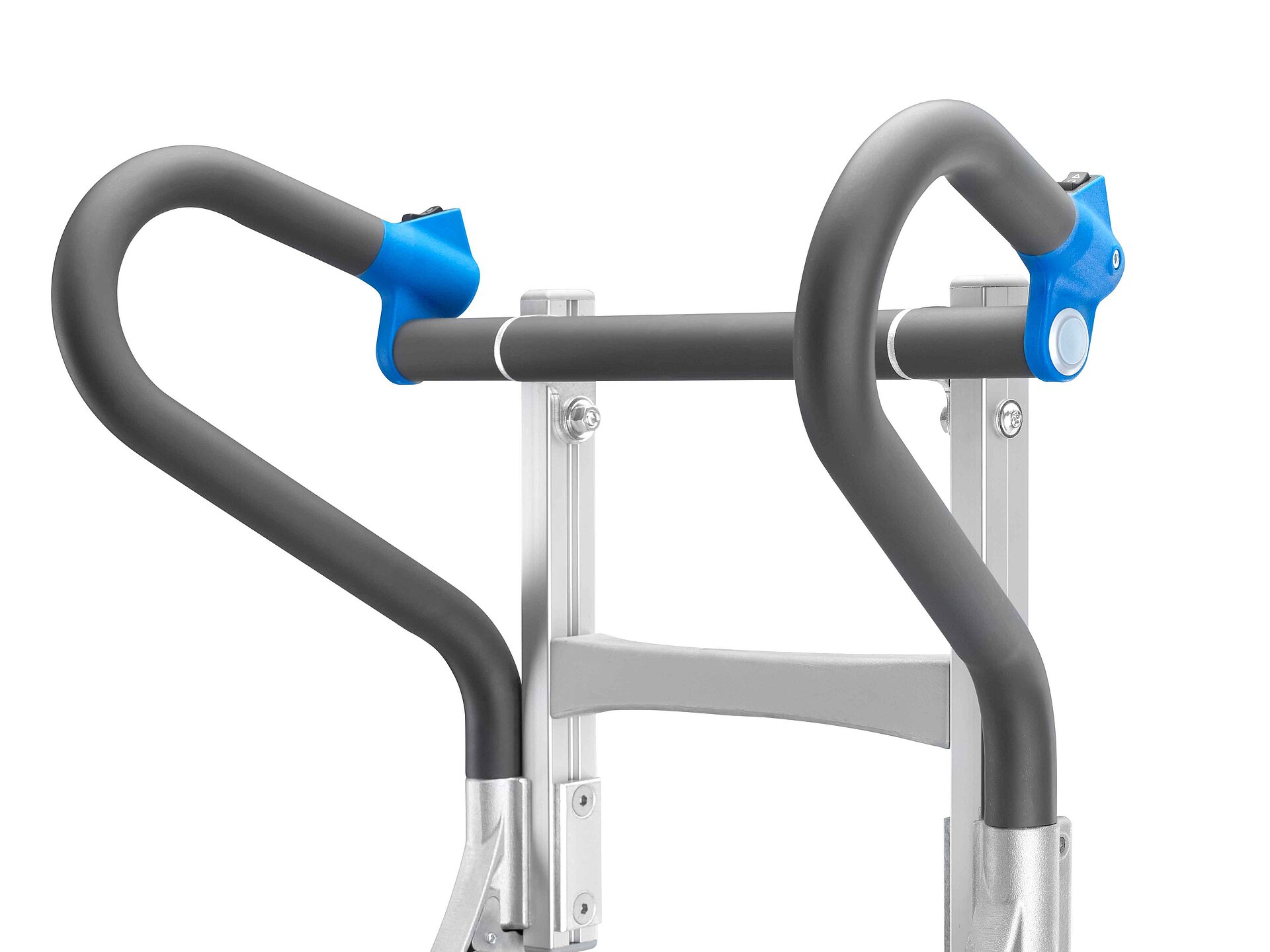

Upper handle

with special rubber coating

LiftKar HD Pro

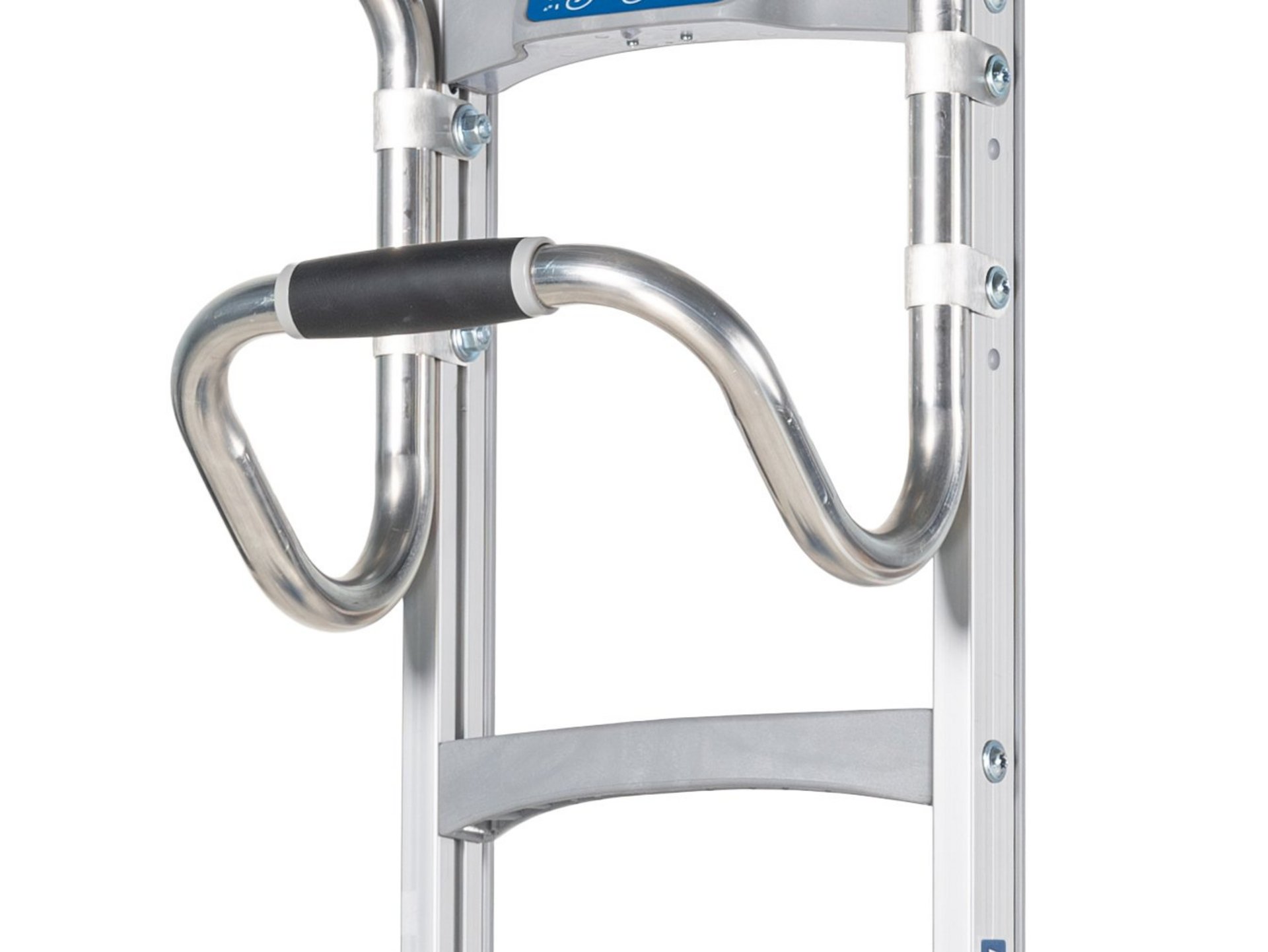

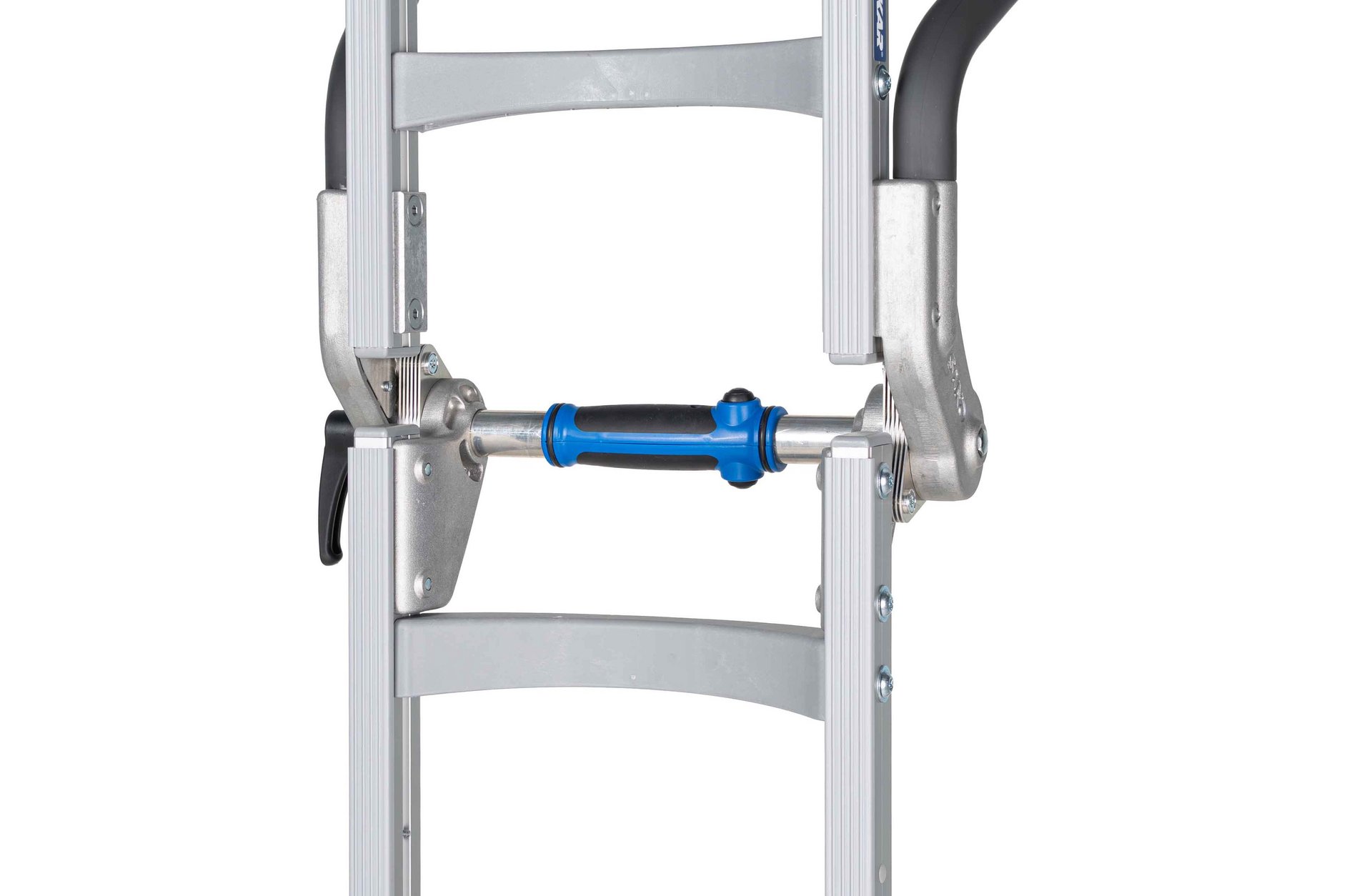

Lower handle

Versatility of handling

LiftKar HD Pro

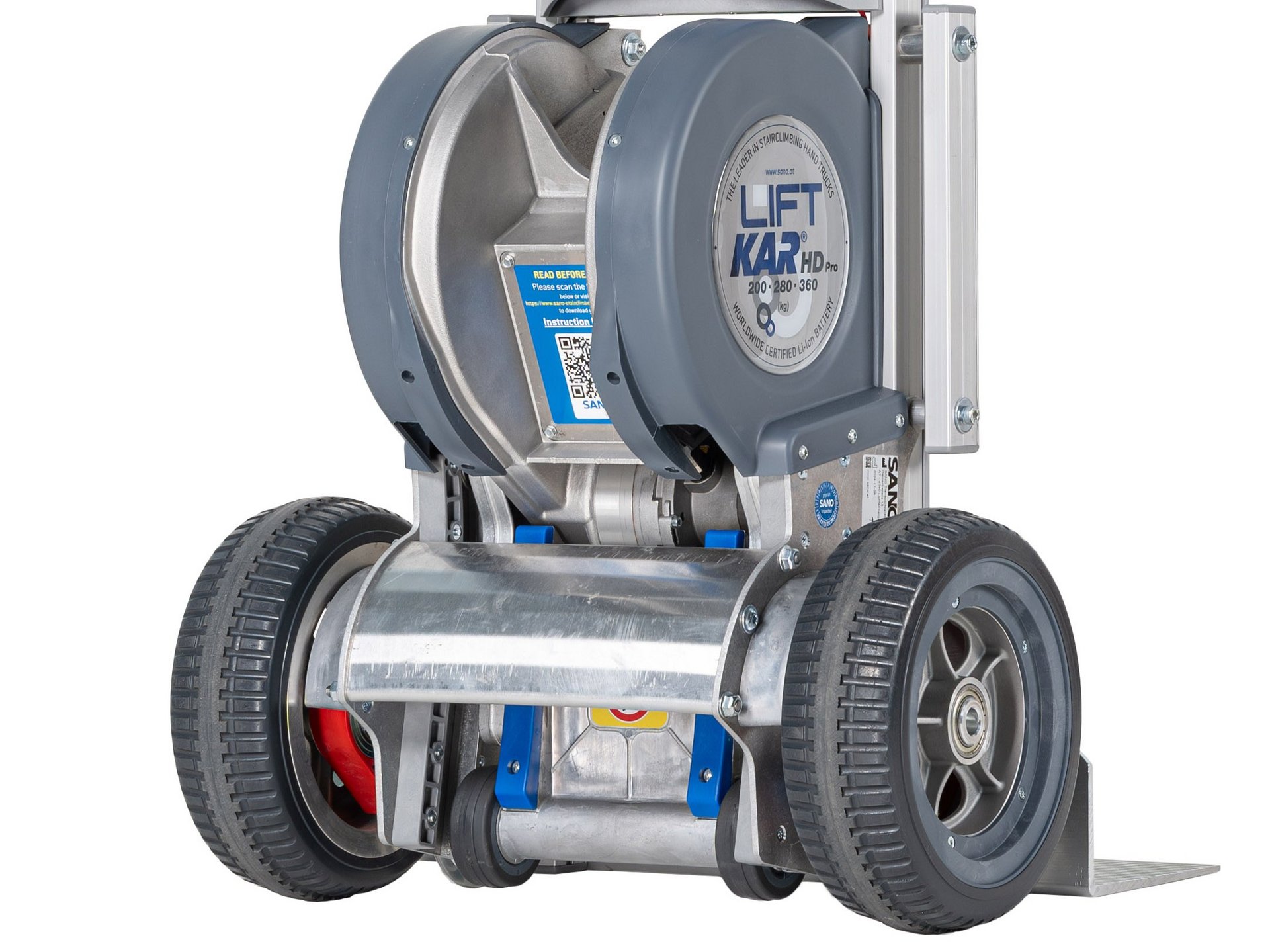

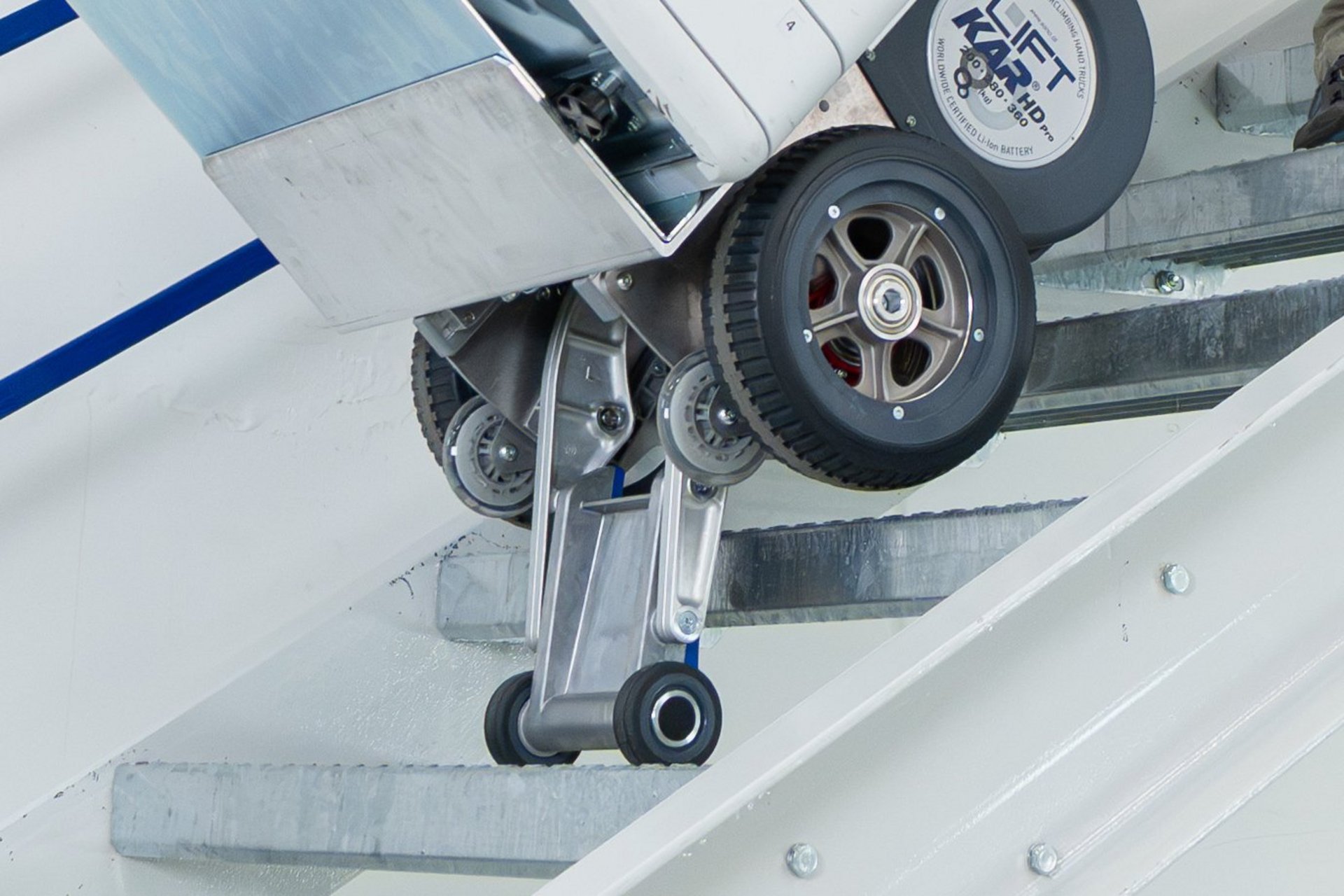

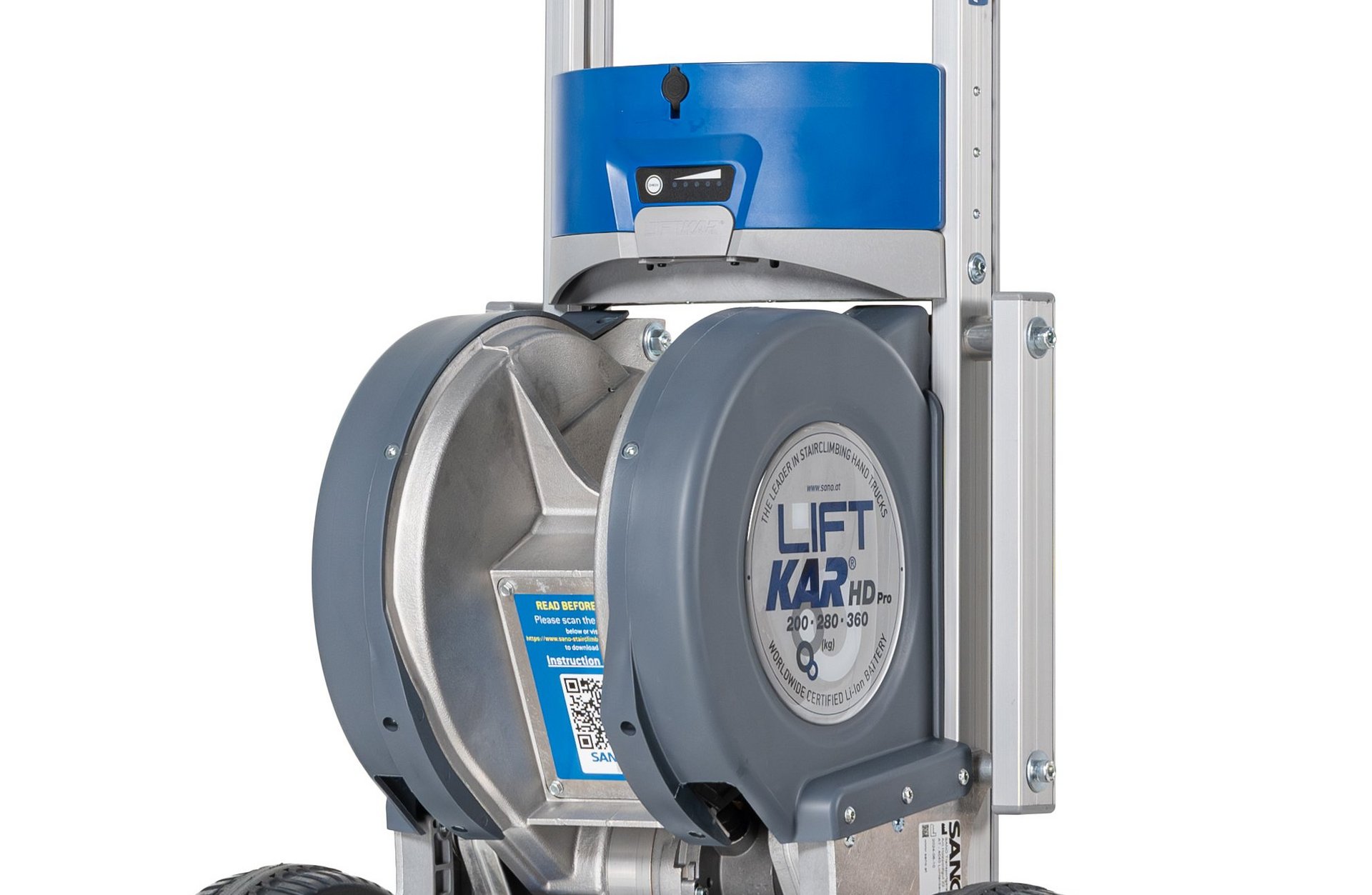

Powerful lifting unit

The powerful lifting unit on the LiftKar HD Pro stairclimbers

LiftKar HD Pro

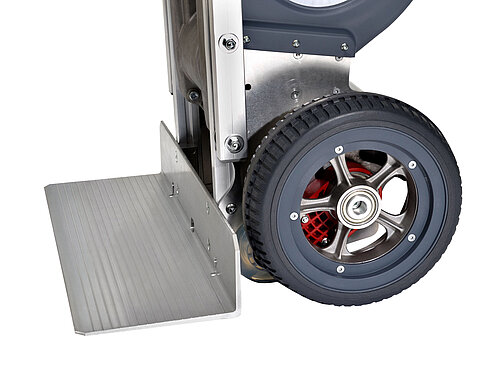

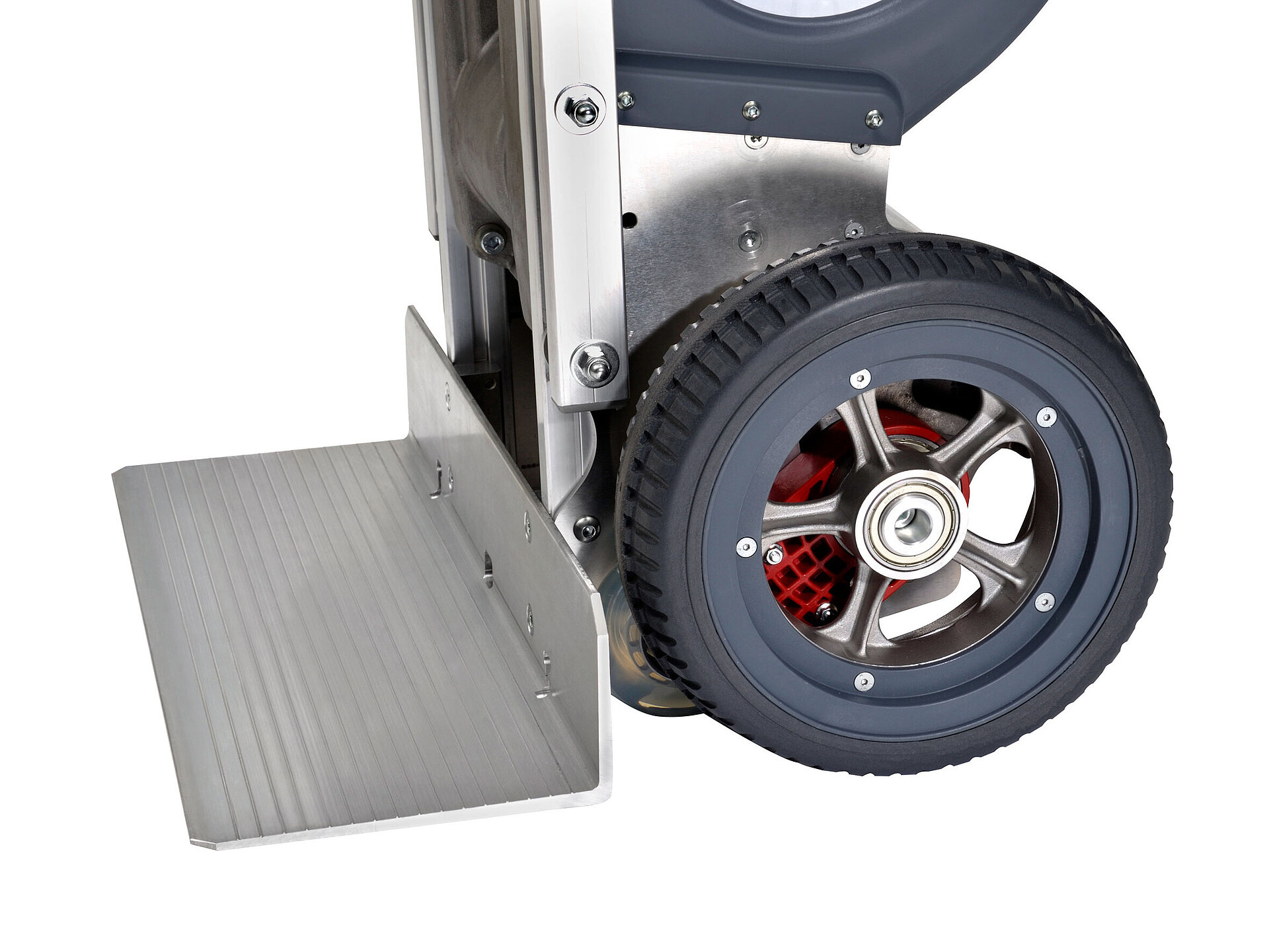

Puncture-proof tyres

The LiftKar HD Pro stairclimber’s main wheels

LiftKar HD Pro

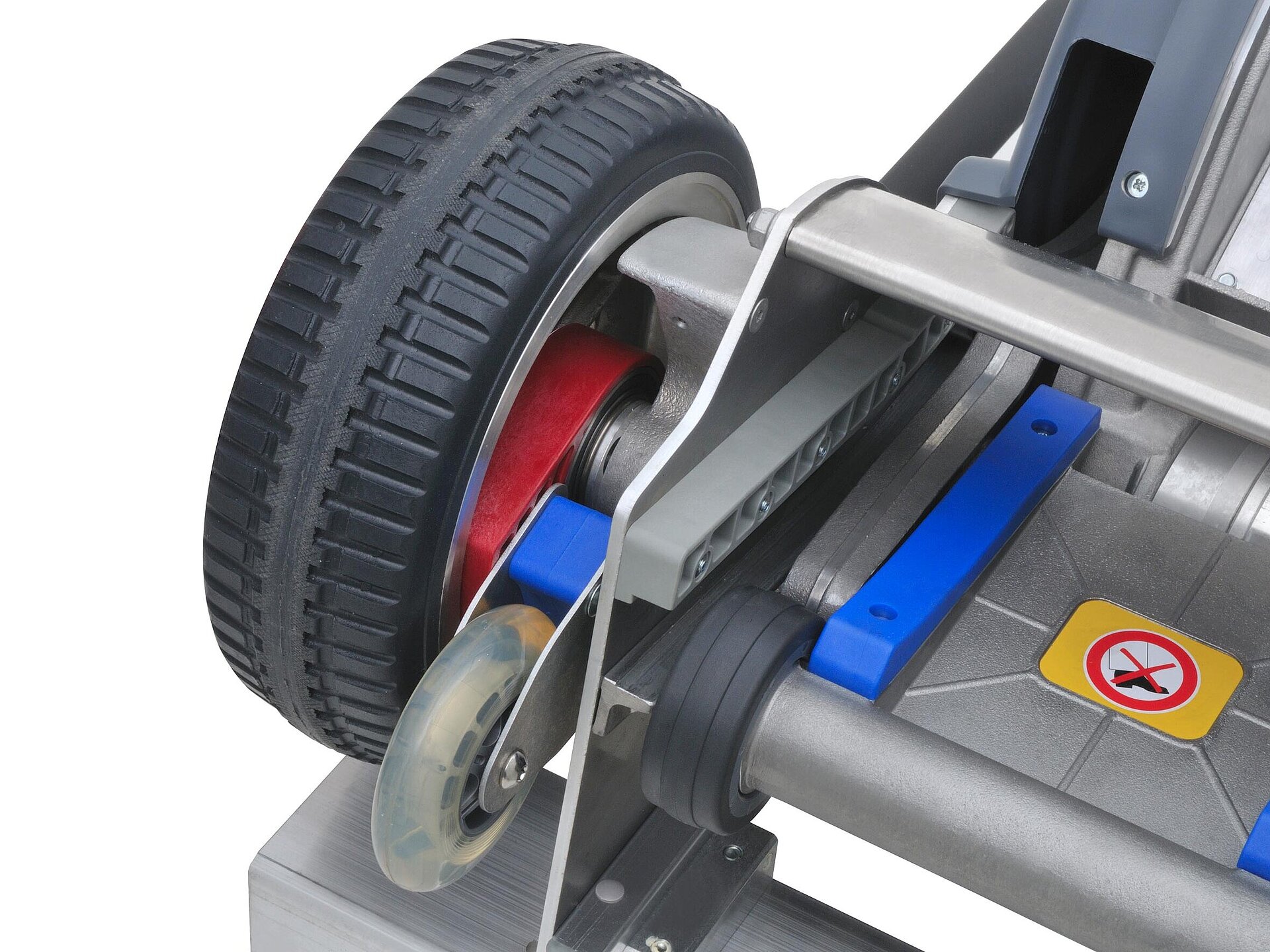

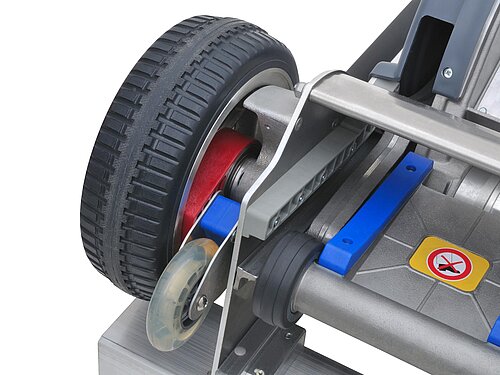

Automatic step-edge brake

Step-edge braking system specially protected in the rim.
Activates automatically when the device is switched on.

LiftKar HD Pro

Toe plate

Standard toeplate

Details
Advantages

15 Unmatched Advantages setting
SANO Handtrucks apart from the others

  1. intuitive user panel
  2. powerful lithium battery: autonomy up to 700 steps up and down (depending on the model)
  3. long battery life, with state of charger indicator, only 3.5 lbs
  4. for loads up to 360 kg (depending on the model)
  5. up/ down button for left- and right-handed users
  6. 2 drive modes (single / continuous step)
  7. 2 climbing speeds
  1. rugged frame with SANO patented aluminum-profiles
  2. step light for poor light conditions
  3. innovative integrated step edge braking system
  4. automatic shut off system
  5. friction clutch and electronic overload protection
  6. for all types of staircases, even on spiral staircases and narrow landings
  7. puncture-proof tyres
  8. foldable (depending on the model)

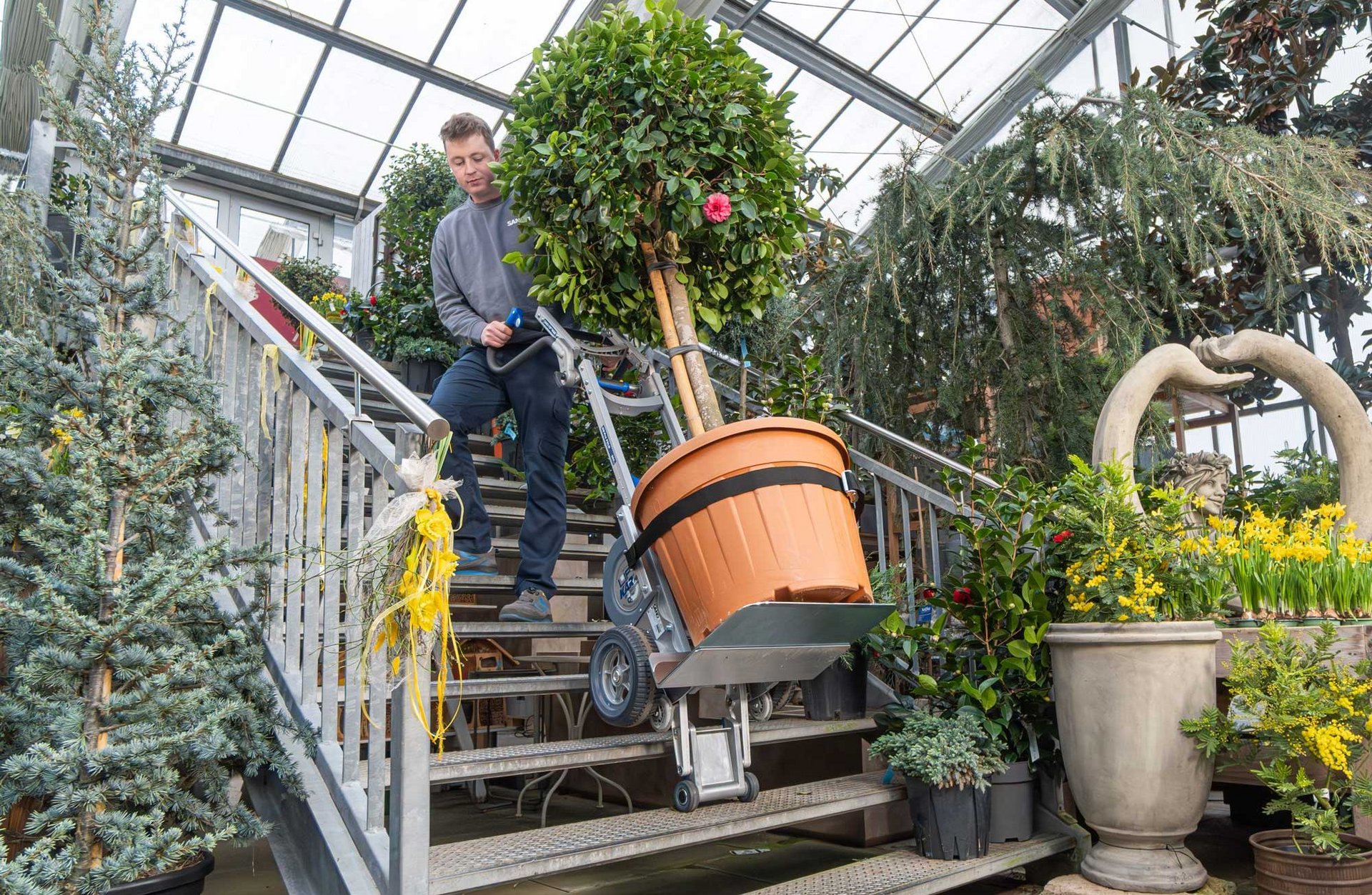

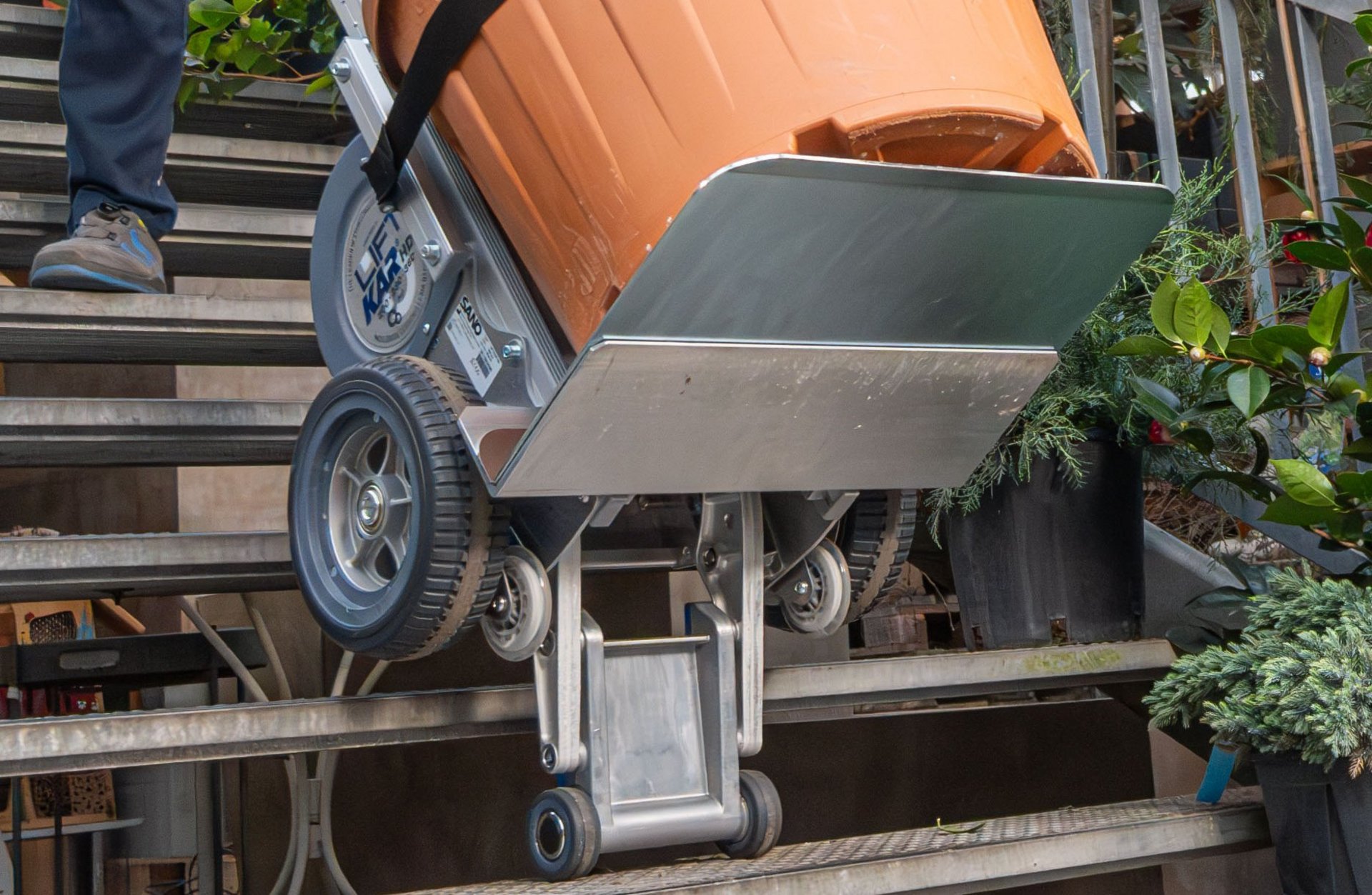

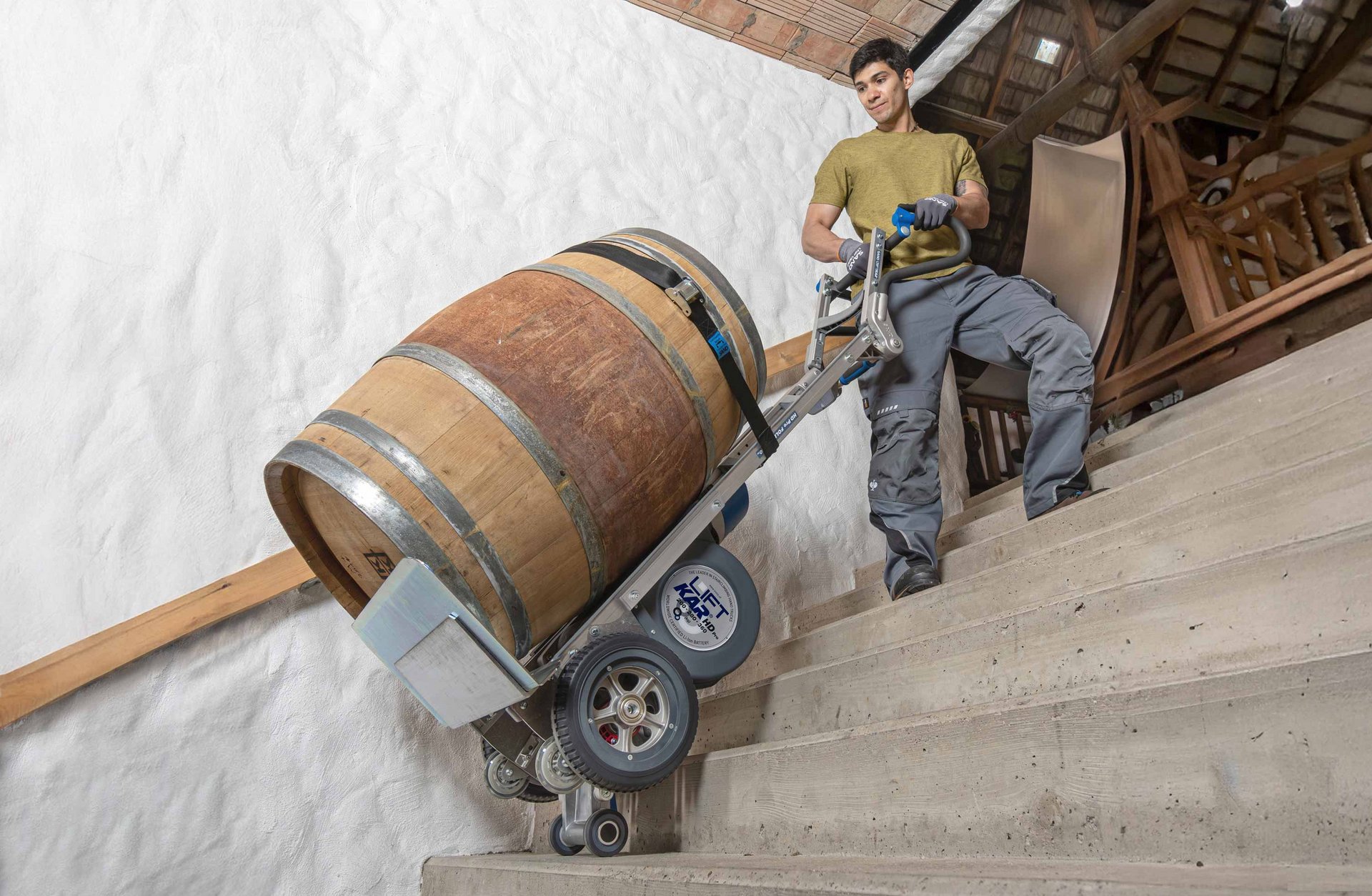

Applications

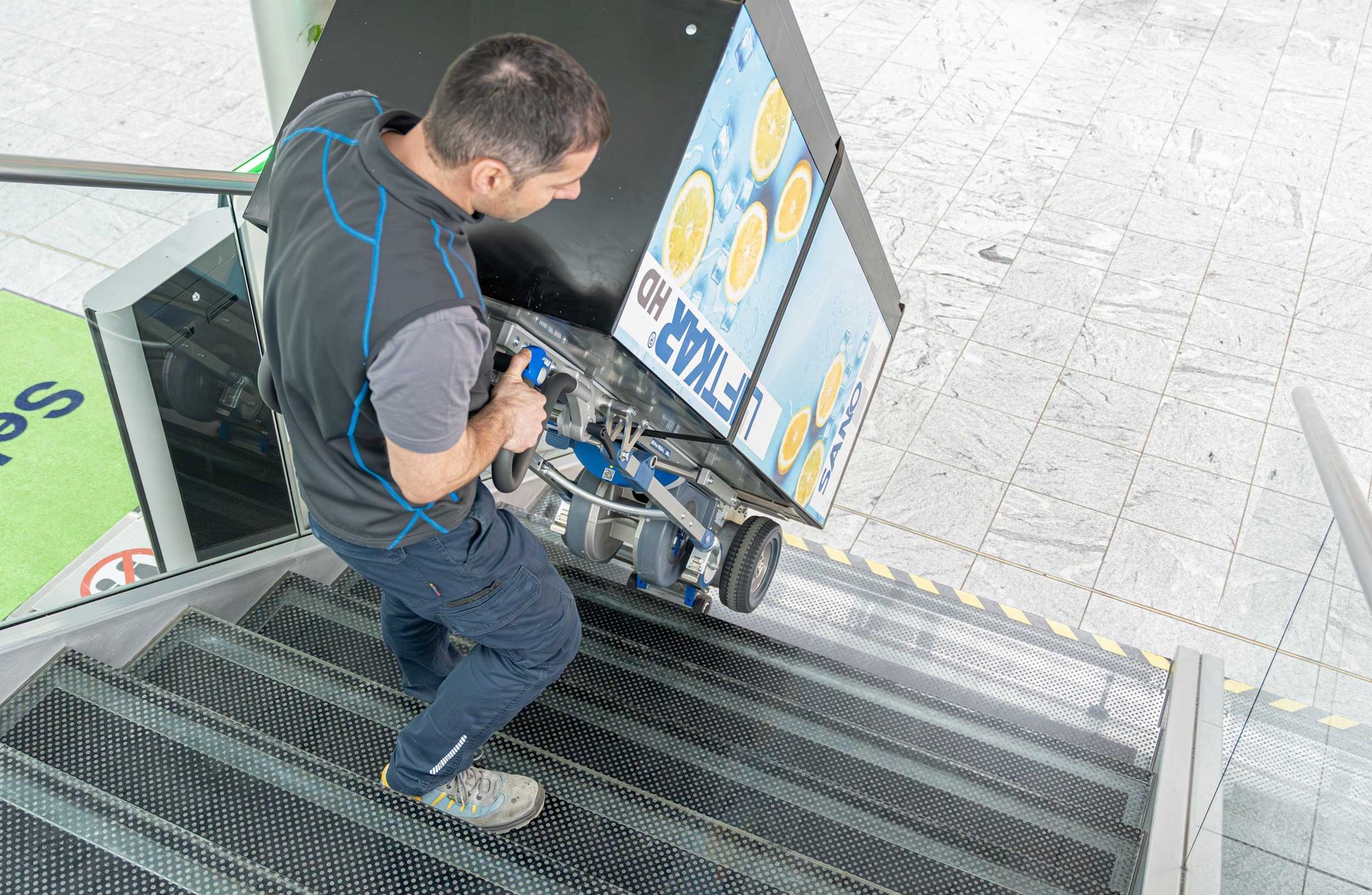

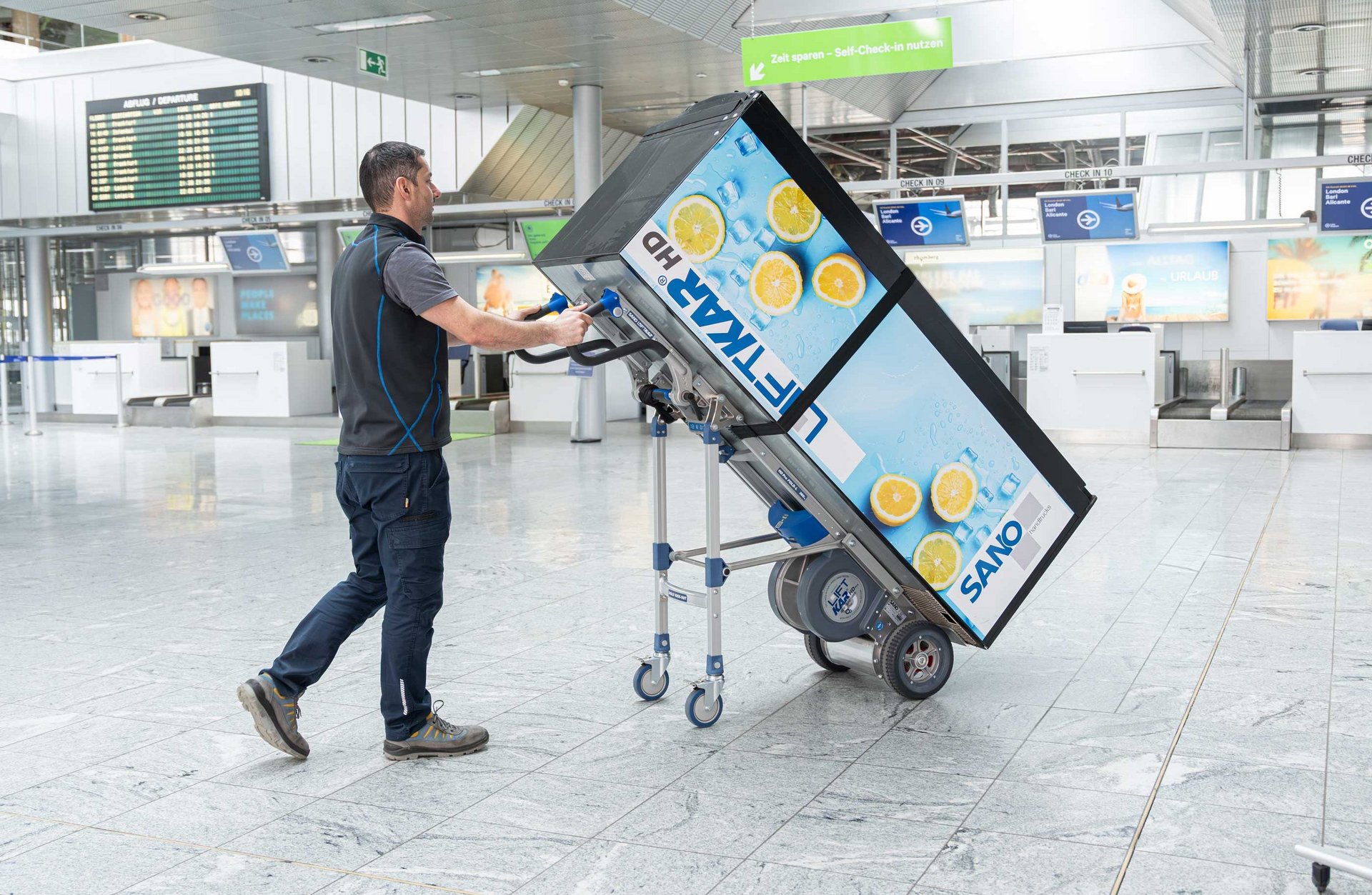

The LiftKar HD Pro stairclimbers
in daily situations

Models

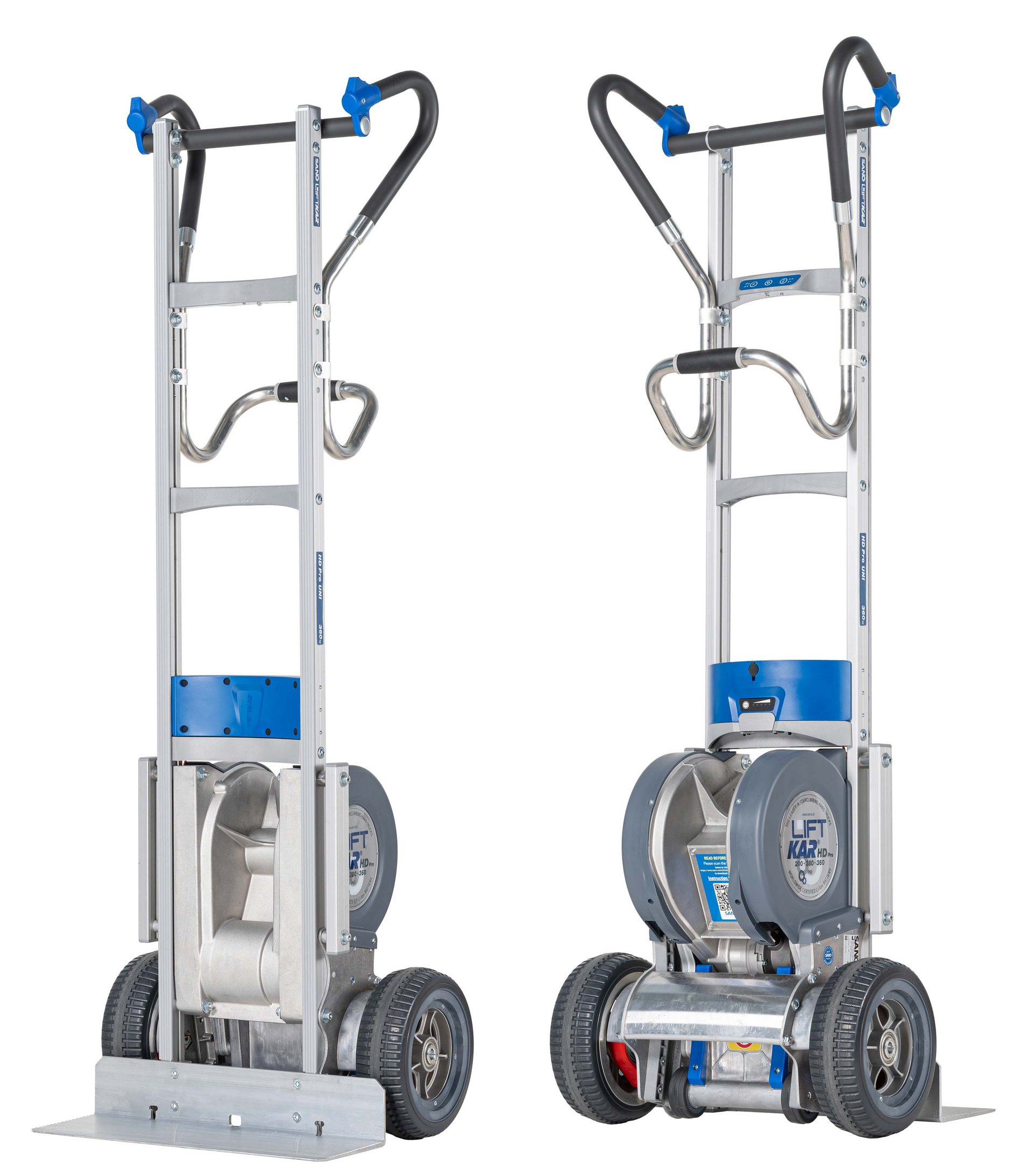

The problem-solver

Not only is the LiftKar HD Pro UNI easy to use, building on SANO´s well approved stairclimber technology, it’s also the answer to your everyday challenges. One person can transport bulky machines the size of drink dispensers or gaming machines up and down stairs at up to 15 steps a minute*. Steep, narrow, winding staircases aren’t a problem; the LiftKar HD Pro UNI gives you full access to all levels. The Li-Ion Lithium battery technology extends your range up to 700 steps* on a single charge for further autonomy.

*Depending on the model

The Compact One!

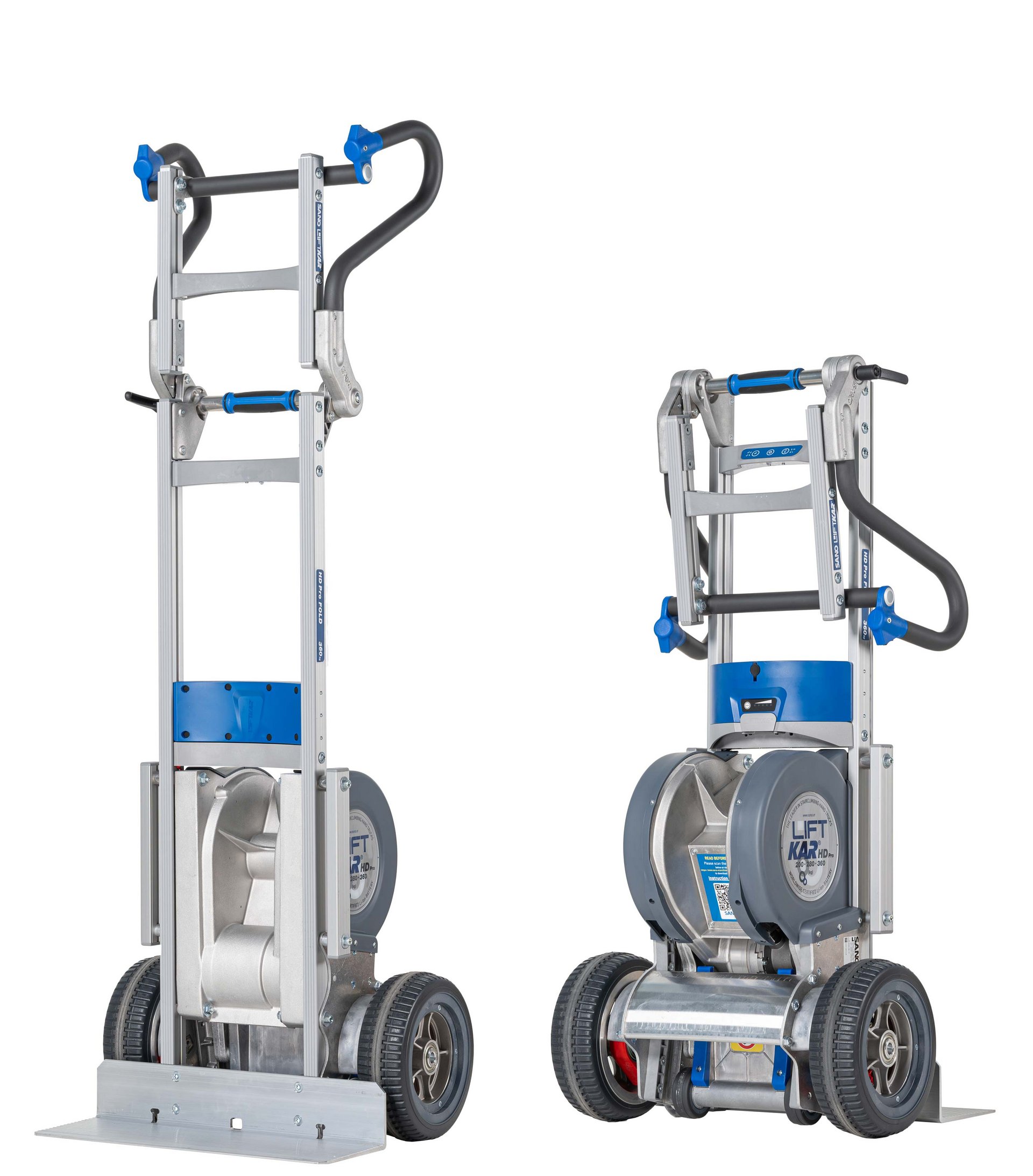

The LiftKar HD Pro FOLD is a compact stairclimber for handling heavy, high density workloads. It folds conveniently so that it takes up less space when stowed between jobs and delivers extended performance during operation. The latest Li-Ion lithium battery technology extends your range even further up to 700 steps* on a single charge. Rely on the LiftKar HD Pro FOLD to handle copiers, cast-iron stoves, boilers, lift motors and more!

*Depending on the model

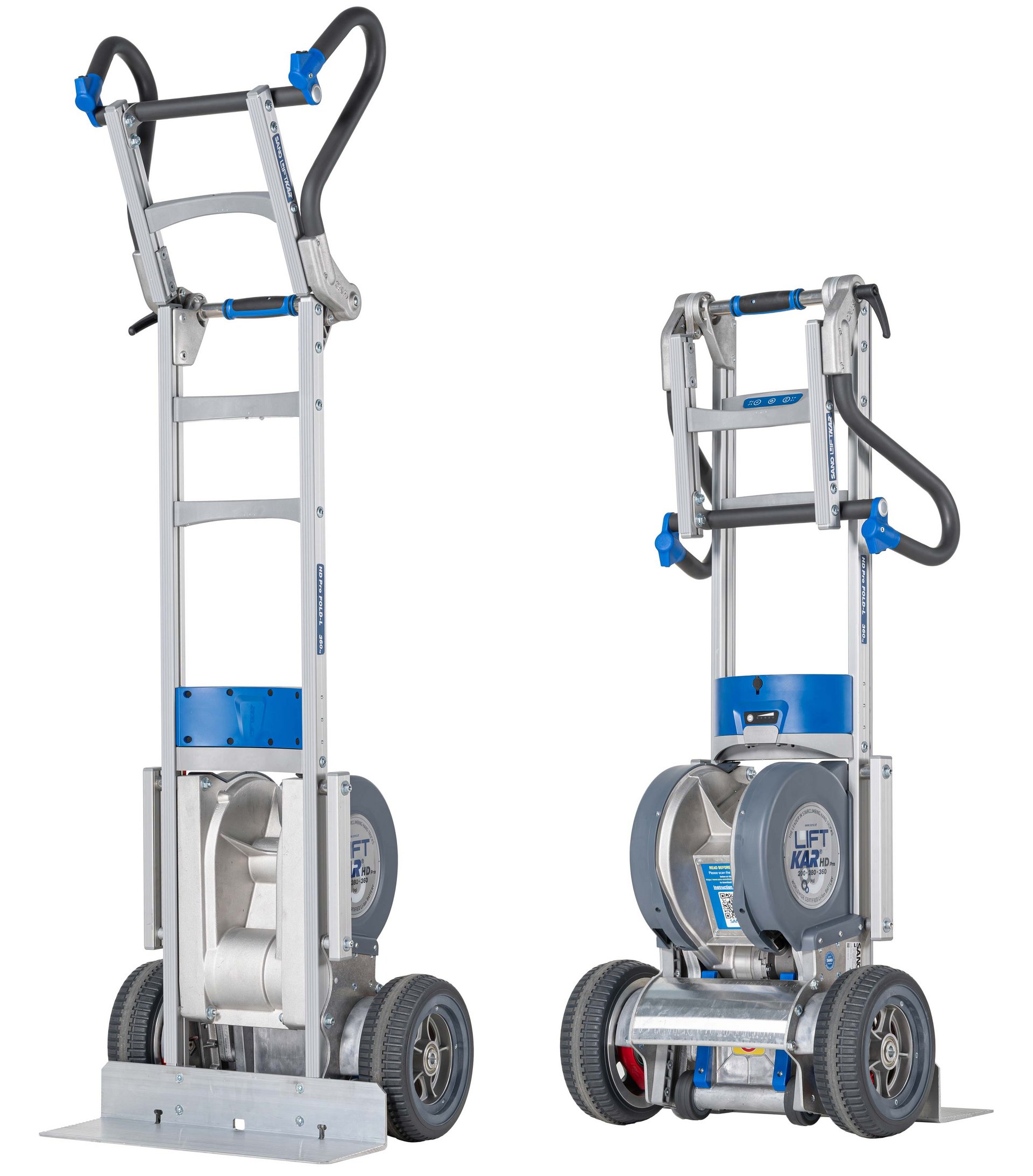

The Extended Version

Equipped with the latest Li-Ion lithium batteries, this stairclimber guarantees exceptional range, allowing up to 700 steps* on a single battery charge. Whether it’s heavy copiers, cast iron stoves, heating boilers, or elevator motors – the LiftKar HD Pro FOLD-L stands for reliability and strength. Compatible with the DOLLY KICK-OUT system, the LiftKar HD Pro FOLD-L offers a solution to almost any challenge. Rely on this robust and powerful tool to move your heaviest loads safely and efficiently.

*Depending on the model

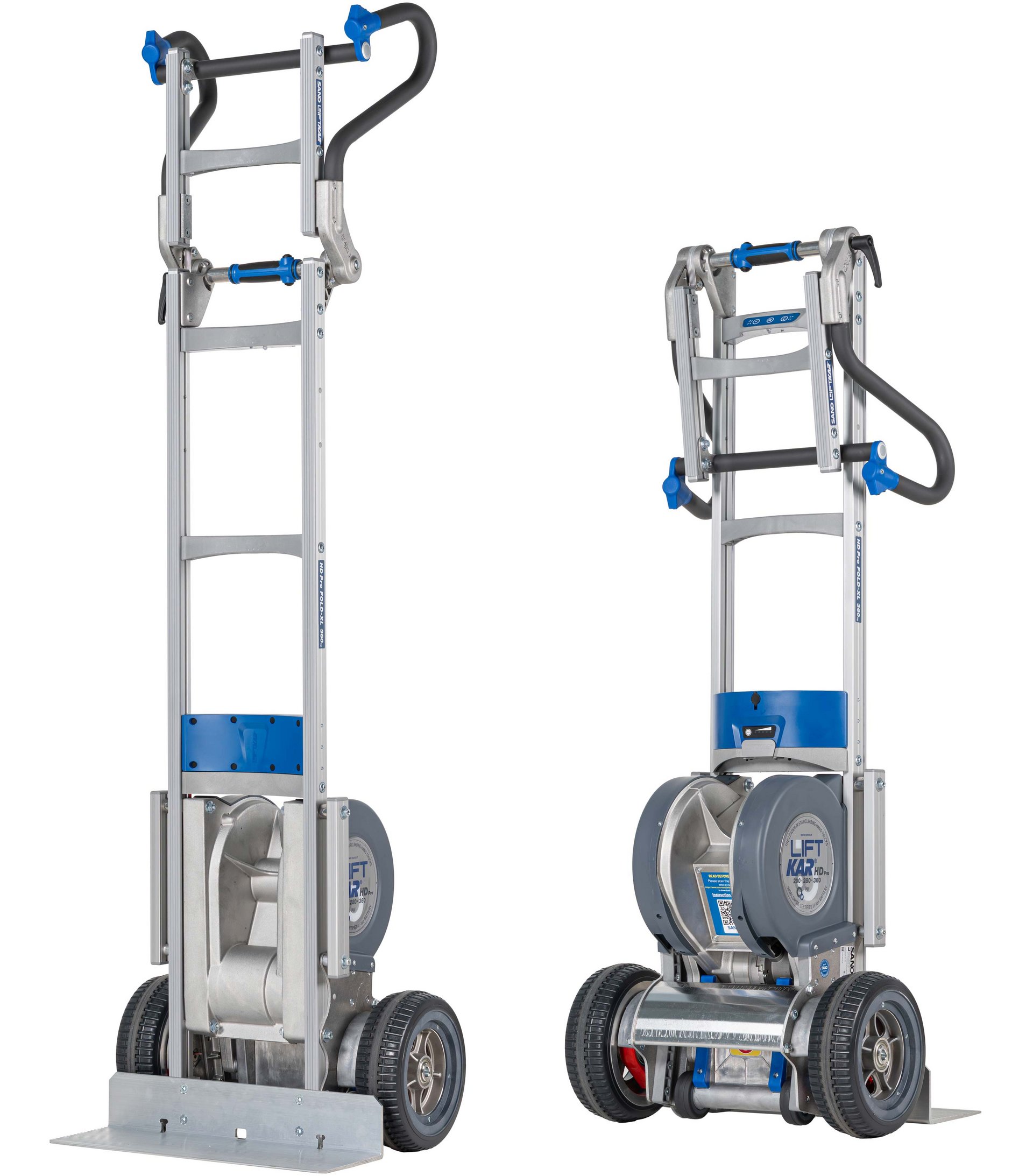

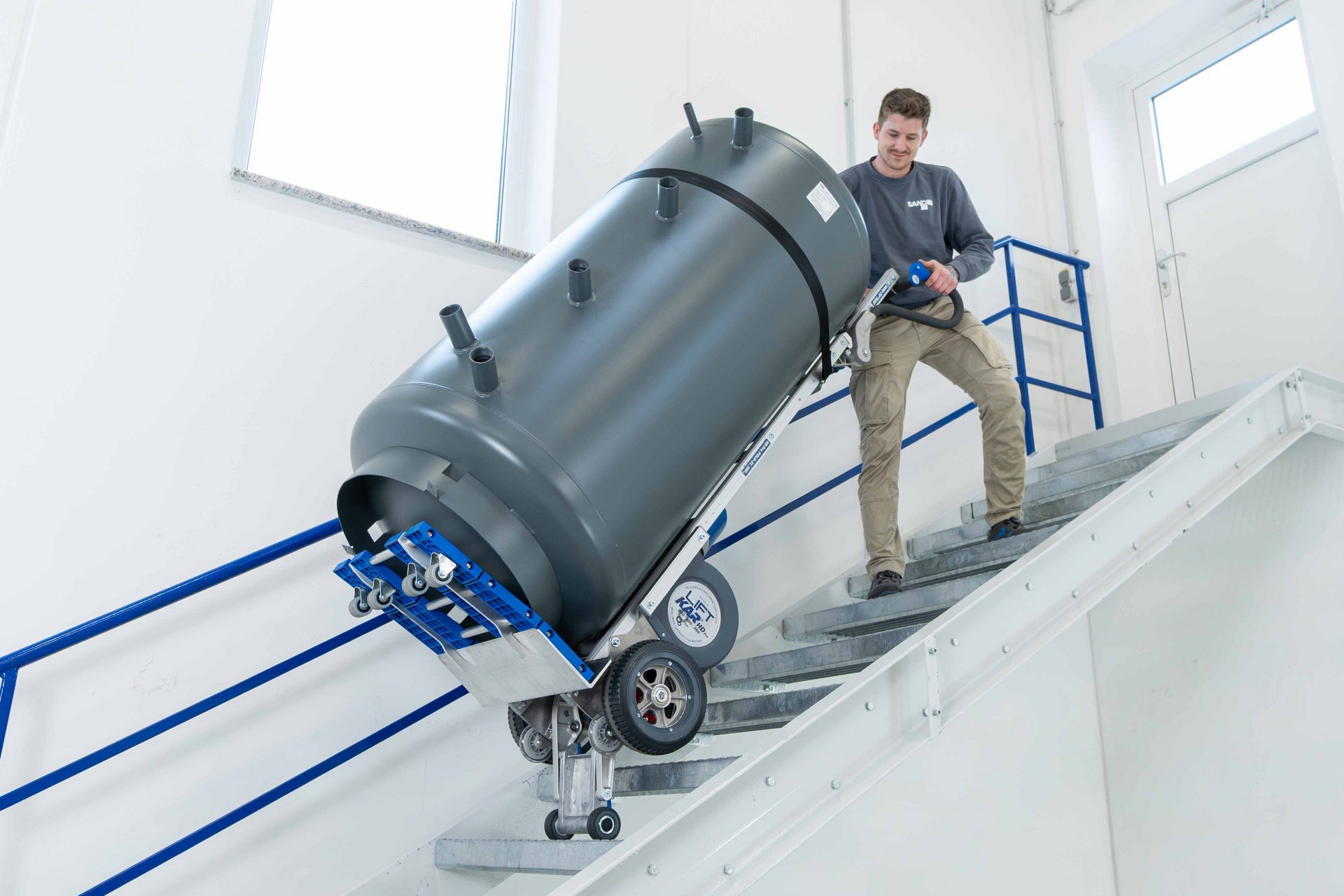

Long and agile

The LiftKar HD Pro FOLD-XL model extends the capabilities of the standard device with additional length, allowing for the transportation of even the largest and most cumbersome loads that would typically challenge a standard workforce. The LiftKar HD Pro FOLD-XL masters such tasks with ease, offering extra stability and safety during transport over difficult terrain and especially over steep stairs. The LiftKar HD Pro FOLD-XL is equipped with the latest Li-Ion lithium battery technology, enabling a range of up to 700 steps* per battery charge. Whether for commercial purposes or demanding industrial applications, the LiftKar HD Pro FOLD-XL ensures you achieve your transport goals efficiently and without physical strain.

*Depending on the model
Extras & Accessories

Additional options
matching your needs

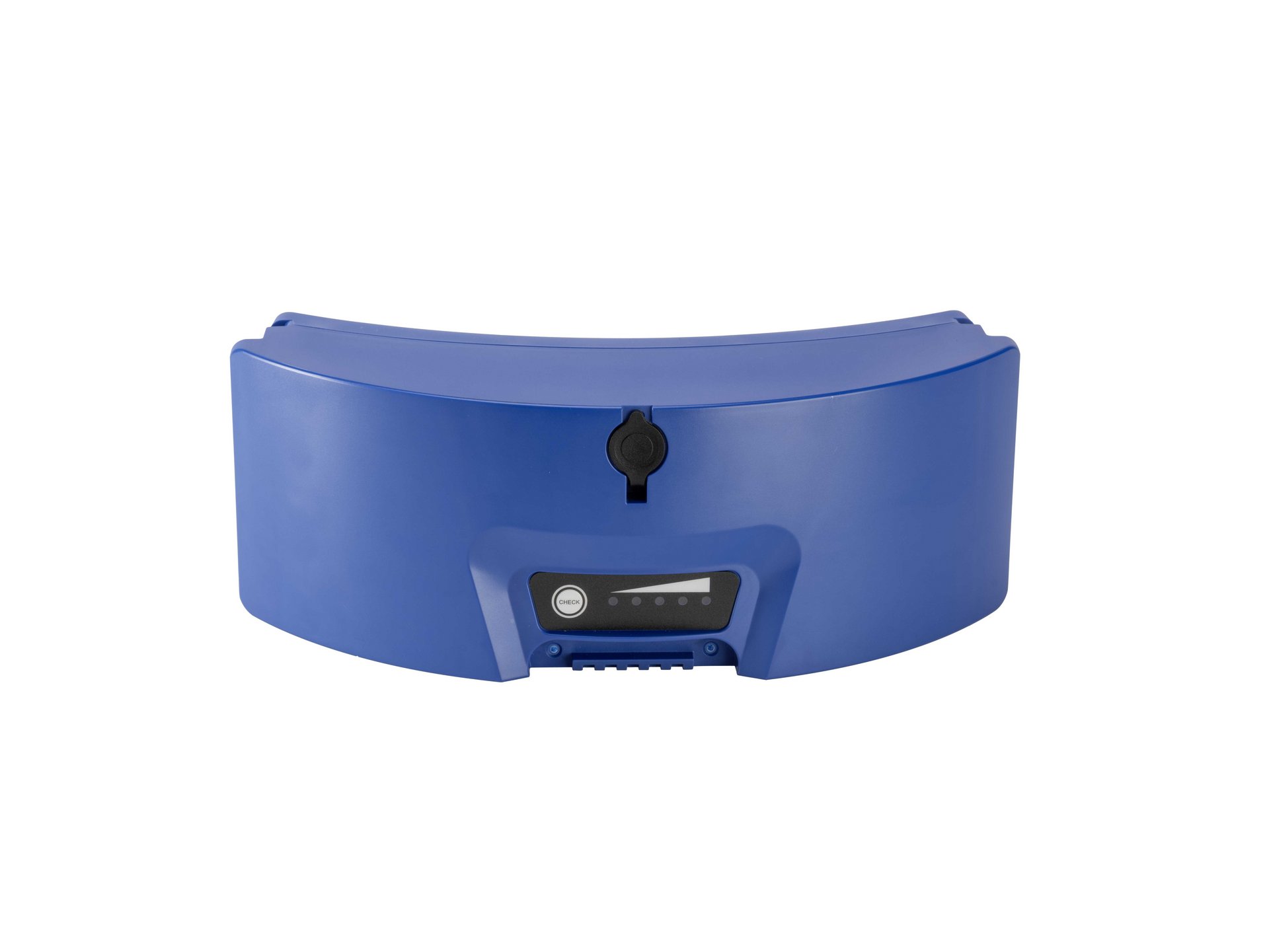

(7.2 Ah) with charge indicator

Art. no. 035 100

i

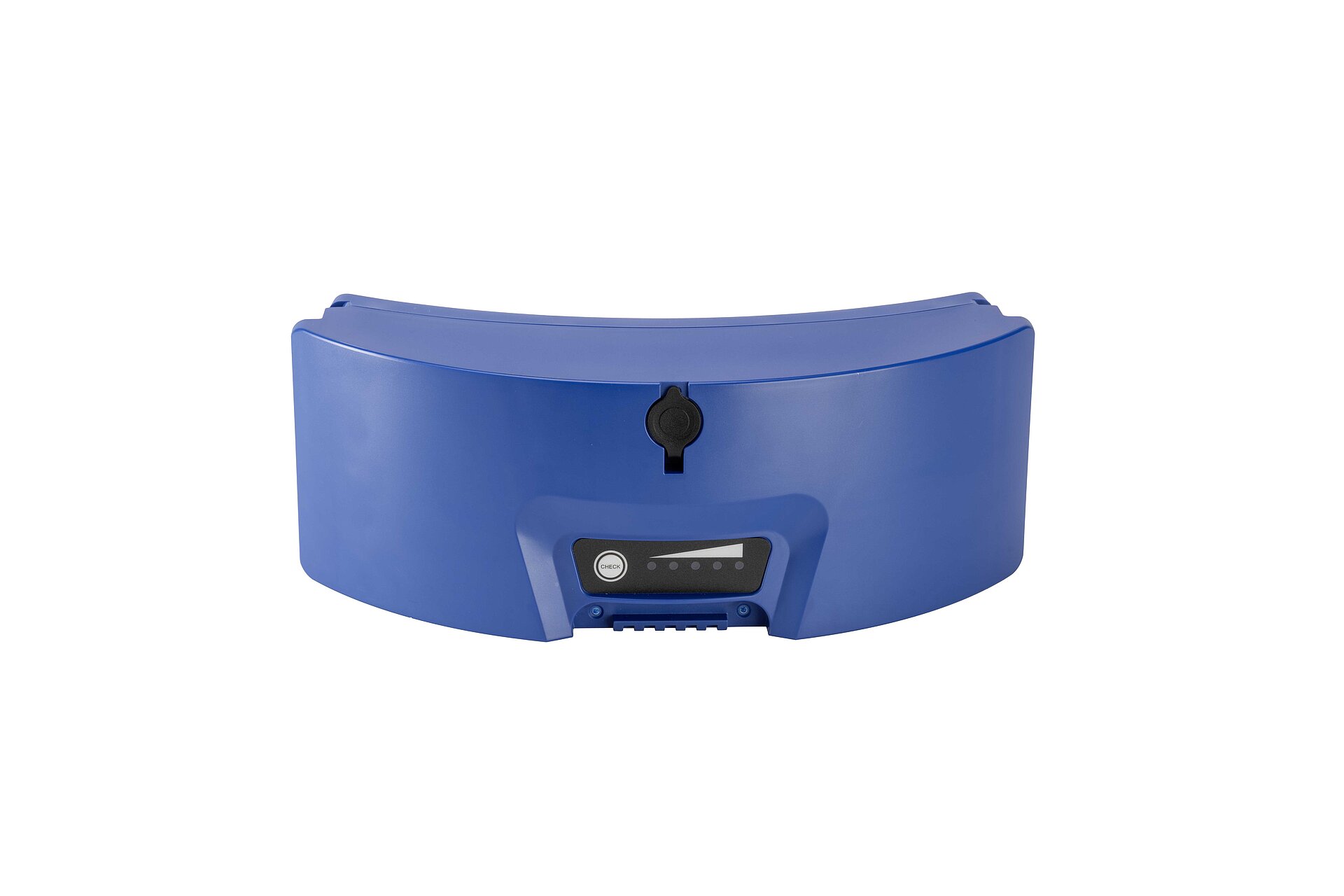

Quick-change battery LI-ION

Standard equipment

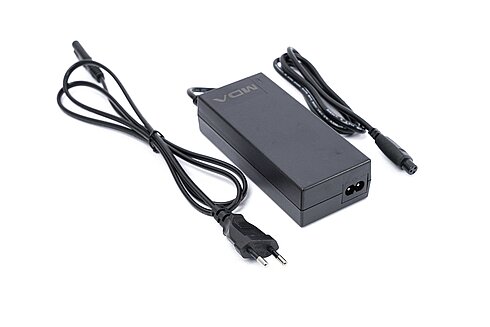

LI-ION BC 100-240 VAC mains charger (EURO plug) Art. no. 035600

LI-ION BC 100-240 VAC mains charger (UK plug) Art. no. 035601

LI-ION BC 100-240 VAC mains charger (USA plug) Art. no. 035602

LI-ION BC 100-240 VAC mains charger (AUS plug) Art. no. 035603

i

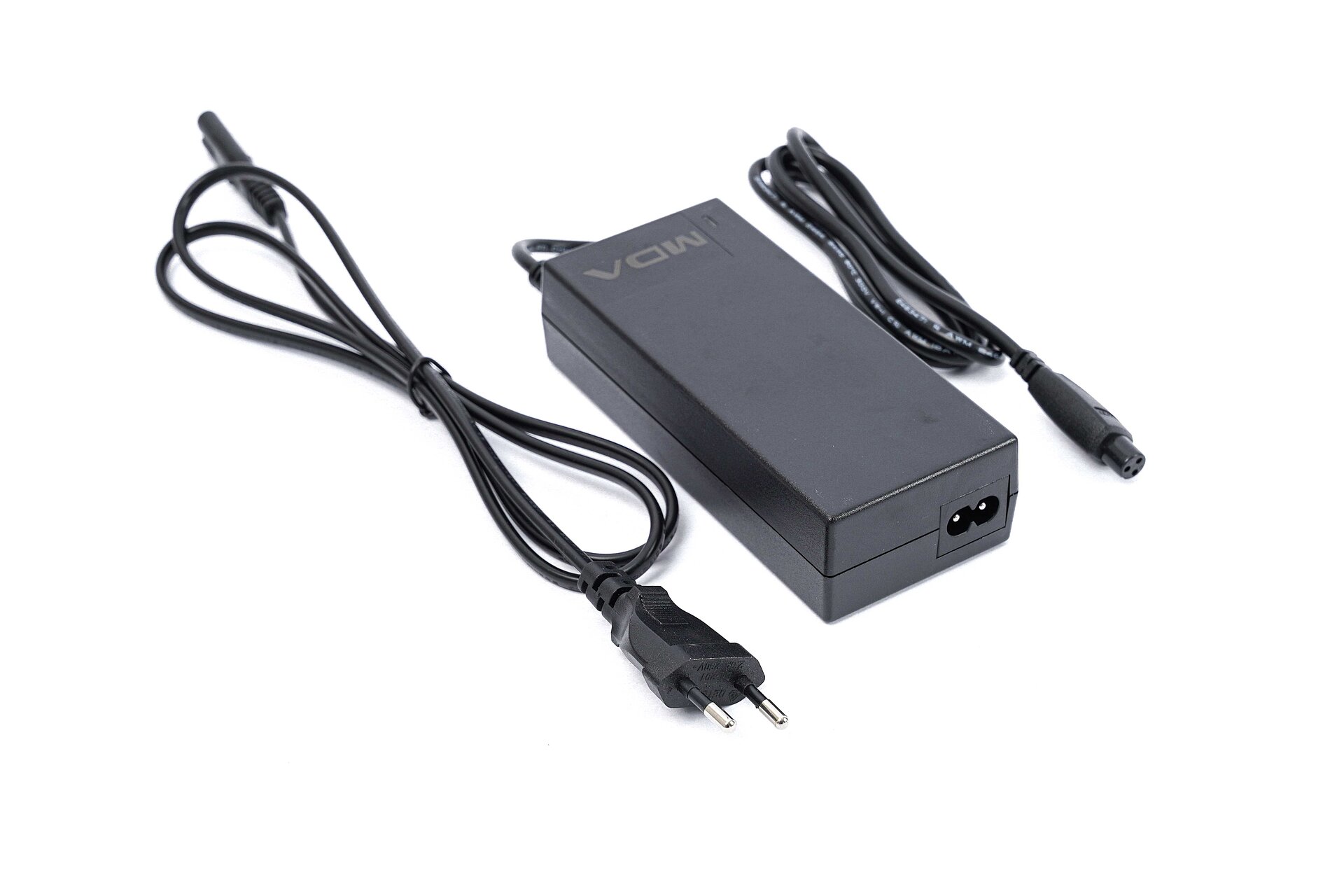

Battery charger LI-ION

Standard equipment

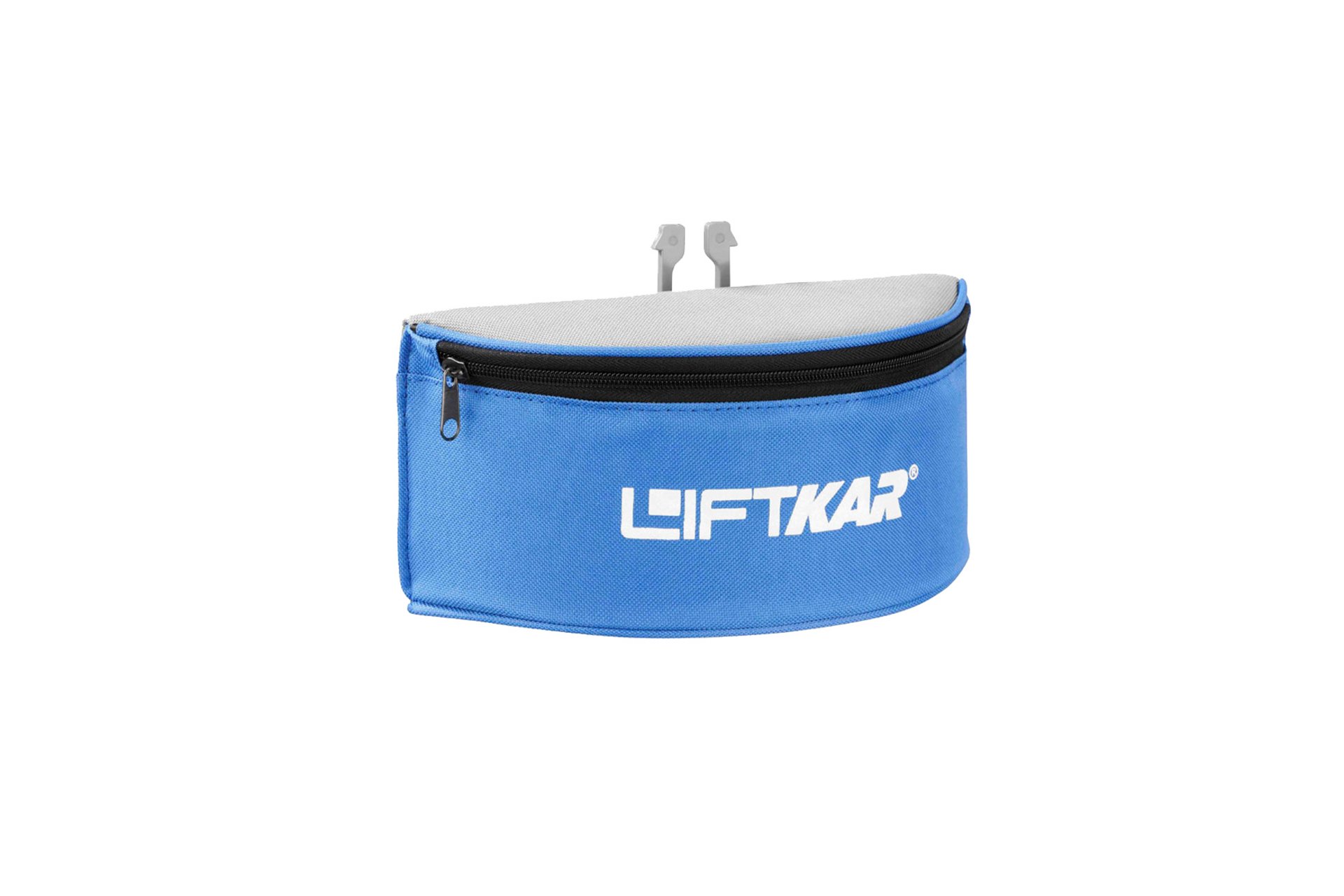

for belt, charger, and much more

Art. no. 935 140

i

Bag incl. holder

Optionally available

fixation belt 3,5 m / 50 mm

With special hooks for optimum load fixation and robust metal lashing buckle.


Art. no. 930 123

i

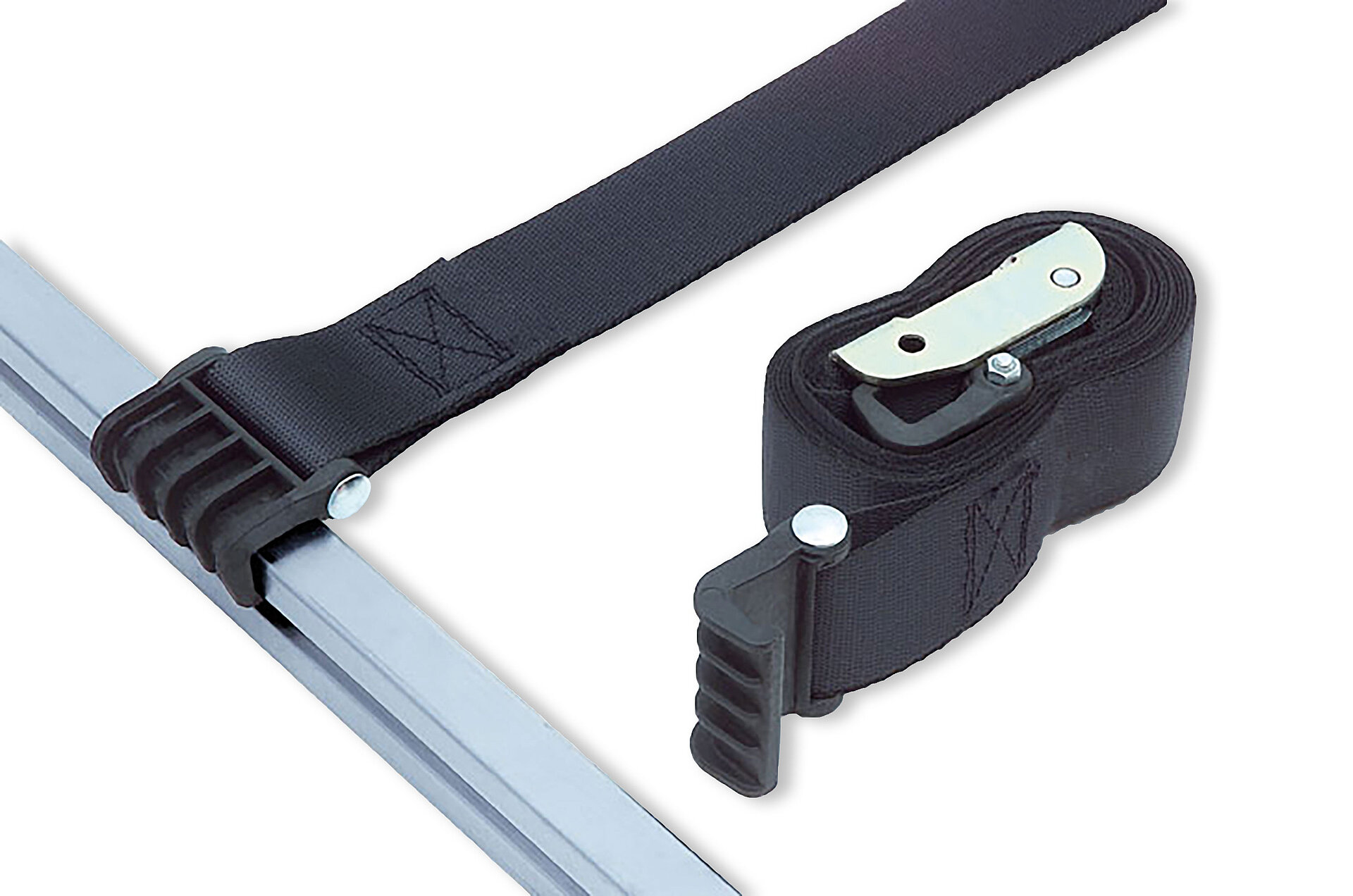

Fixation belt 3,5 m / 50 mm

Optionally available

Fixation belt 4,20 m / 50 mm

With special hooks for optimum load fixation and robust metal lashing buckle.

Art. no. 930 156

i

Fixation belt 4,20 m / 50 mm

Optionally available

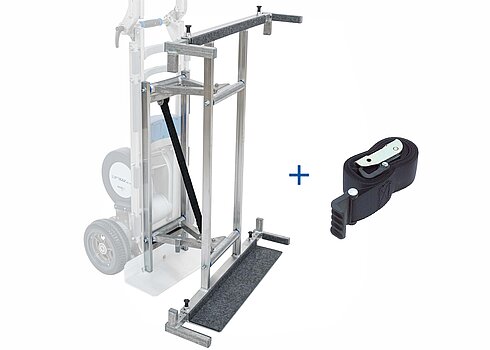

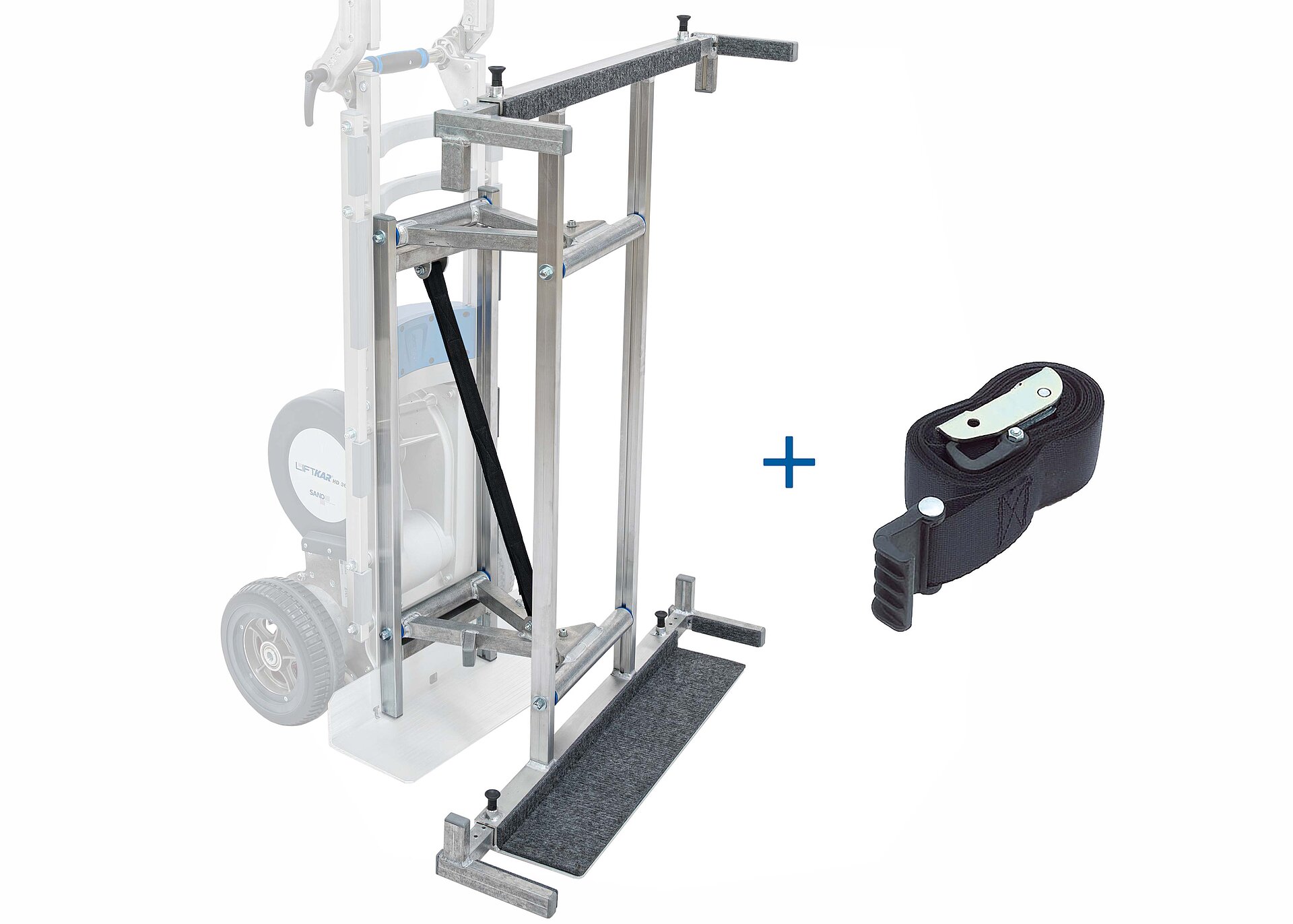

for loads up to 150 kg
Art. no. 930 153

(incl. fixation belt 3,5 m / 50 mm
Art. no. 930 123)


i

Door and panel holder HD

Optionally available

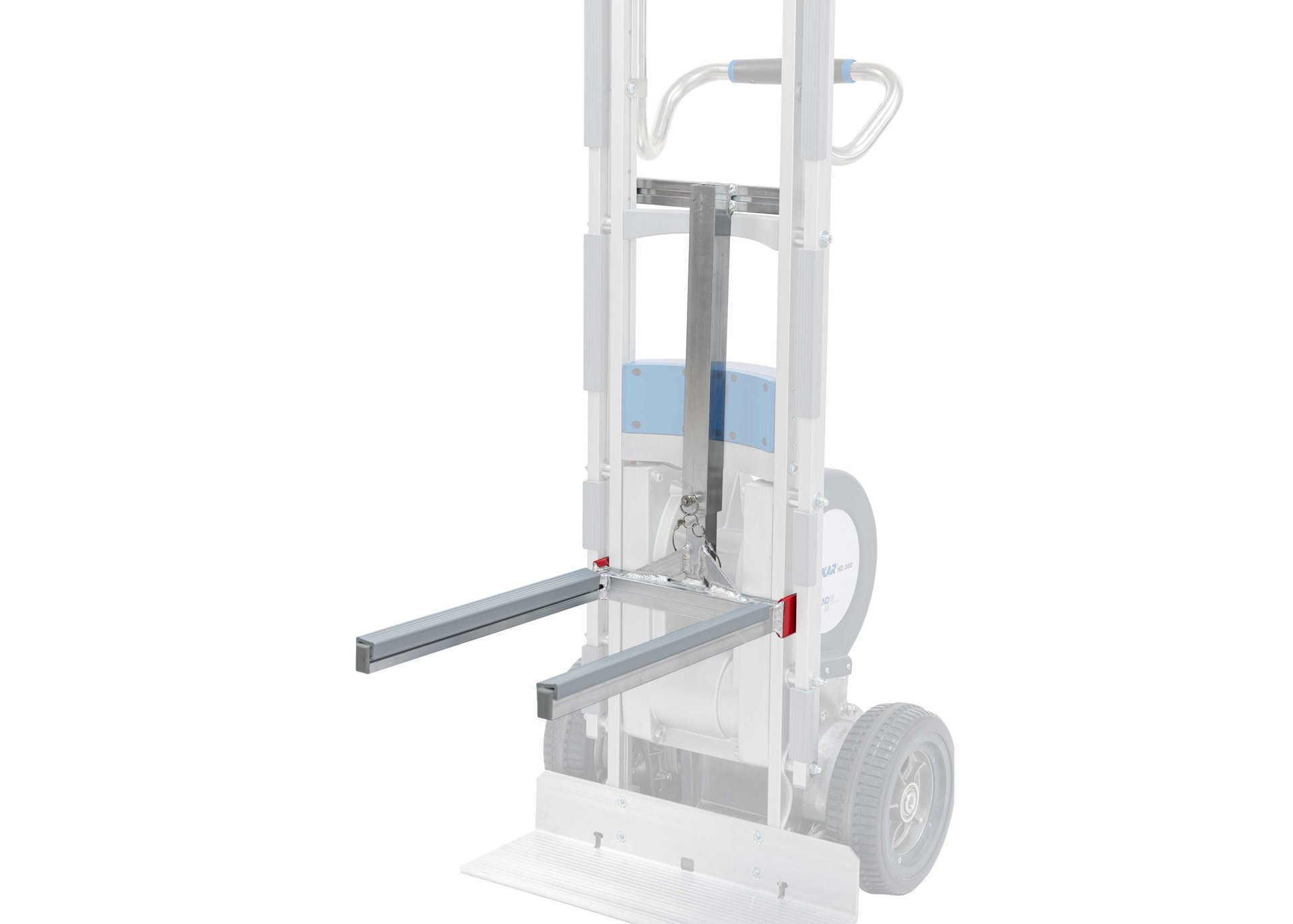

max. load capacity 80 kg - 176 lbs, or about 15 chairs

Art. no. 930 183

i

Chair holder HD

Optionally available

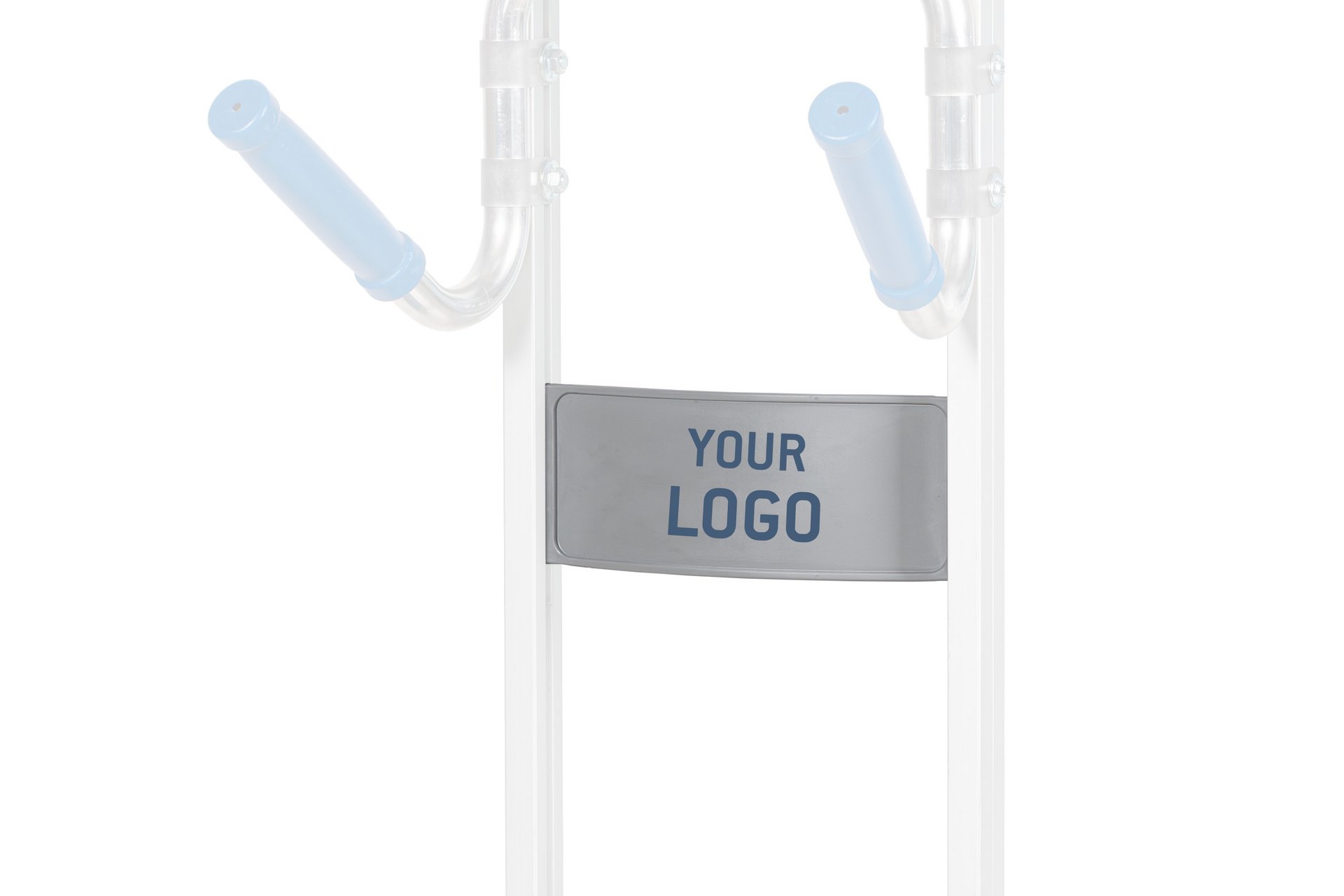

for your company logo

Art. no. 936 067

i

Advertising panel

Optionally available

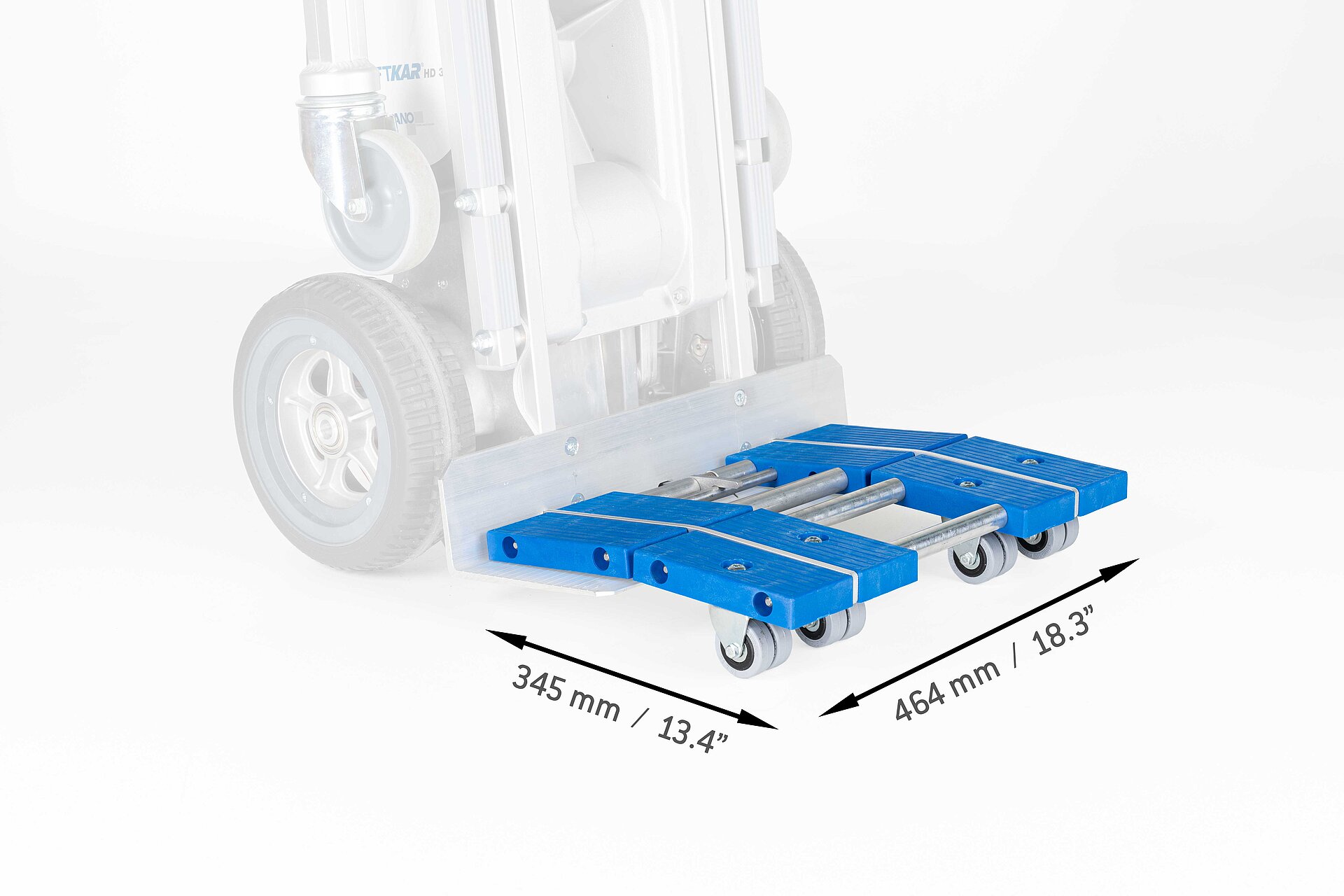

equipped with four double castors.
width 464 mm x depth 345 mm  /  w. 18.3" x d. 13.6"

Art. no. 960 101

i

Toe plate attachment HD - Narrow

Optionally available

equipped with four double castors.
width 535 x depth 345 mm  /  w. 21" x d. 13.4"

Art. no. 960 105

i

Toe plate attachment HD - Wide

Optionally available

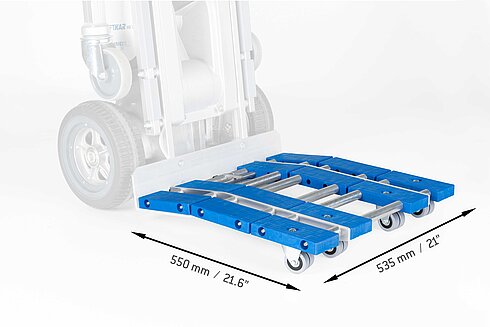

equipped with four double castors.
width 535 x depth 550 mm  /  w. 21" x d. 21.6"

Art. no. 960 139

i

Toe plate attachment HD - XL

Optionally available

equipped with four double castors.
width 464 mm x depth 550 mm  /  w. 18.3" x d. 21.6"

Art. no. 960 144

i

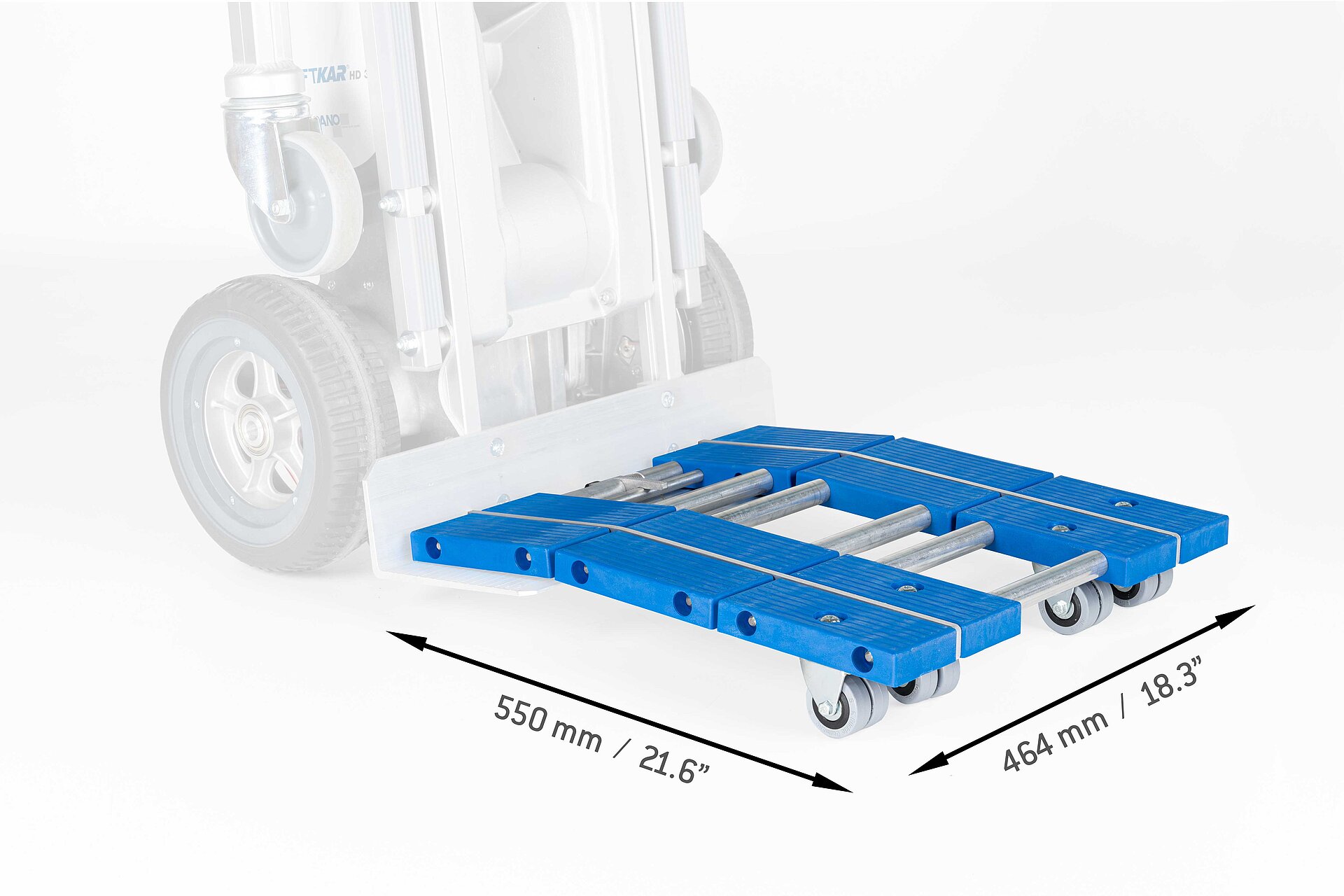

Toe plate attachment HD - XL Narrow

Optionally available

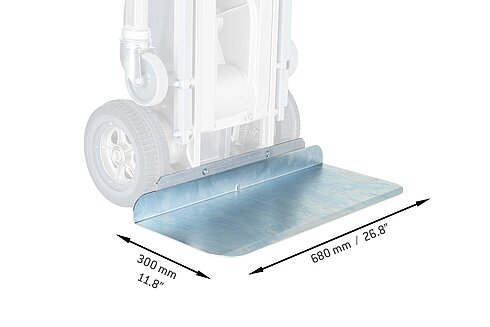

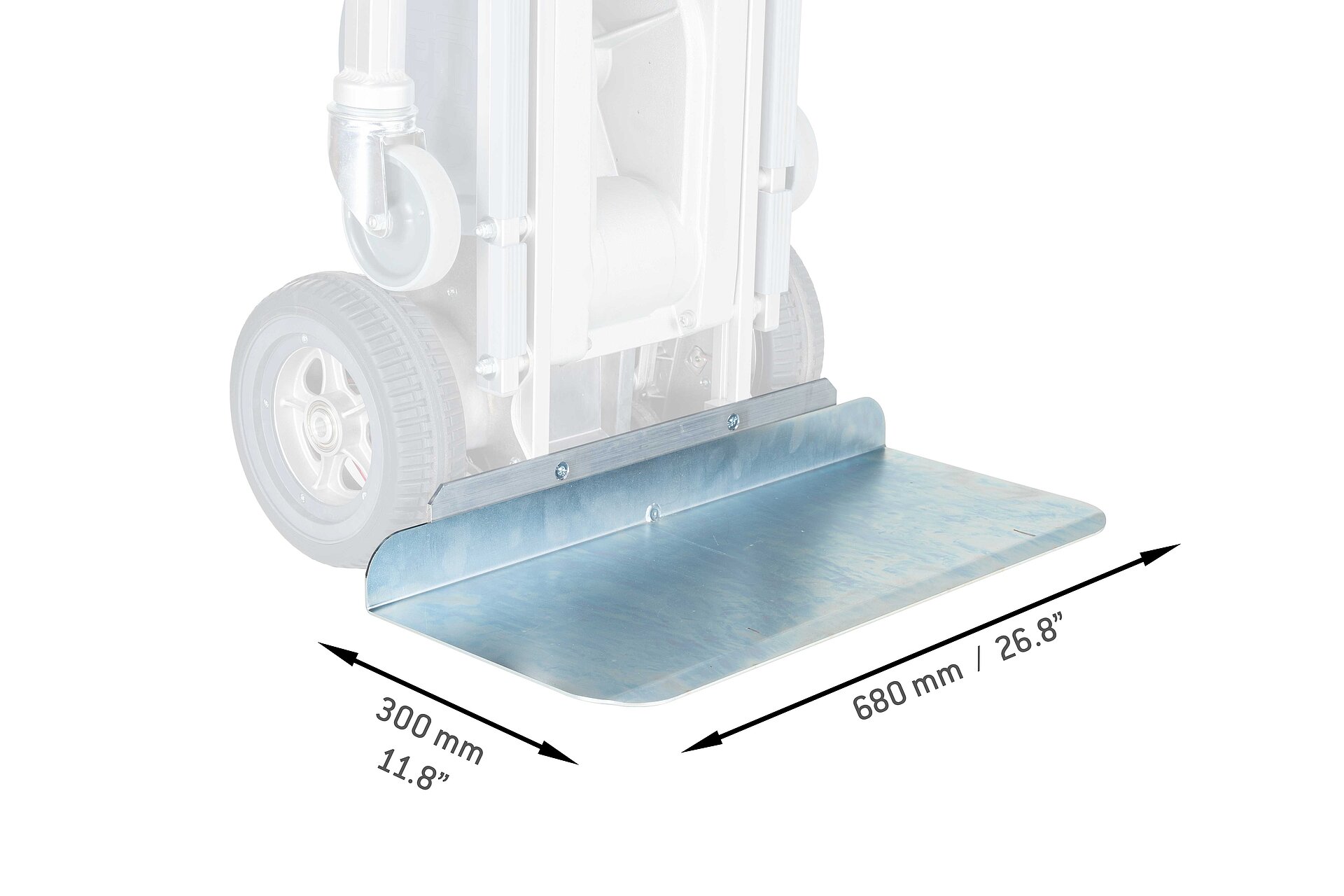

680 mm x 300 mm  /  26.8" x 11.8"

Art. no. 960 108

i

Attachable toe plate HD 680 x 300

Optionally available

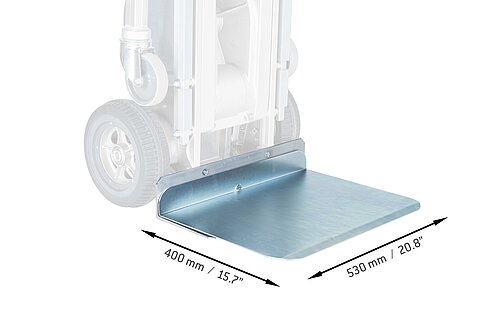

530 mm x 400 mm  /  20.9" x 15.7"

Art. no. 960 109

i

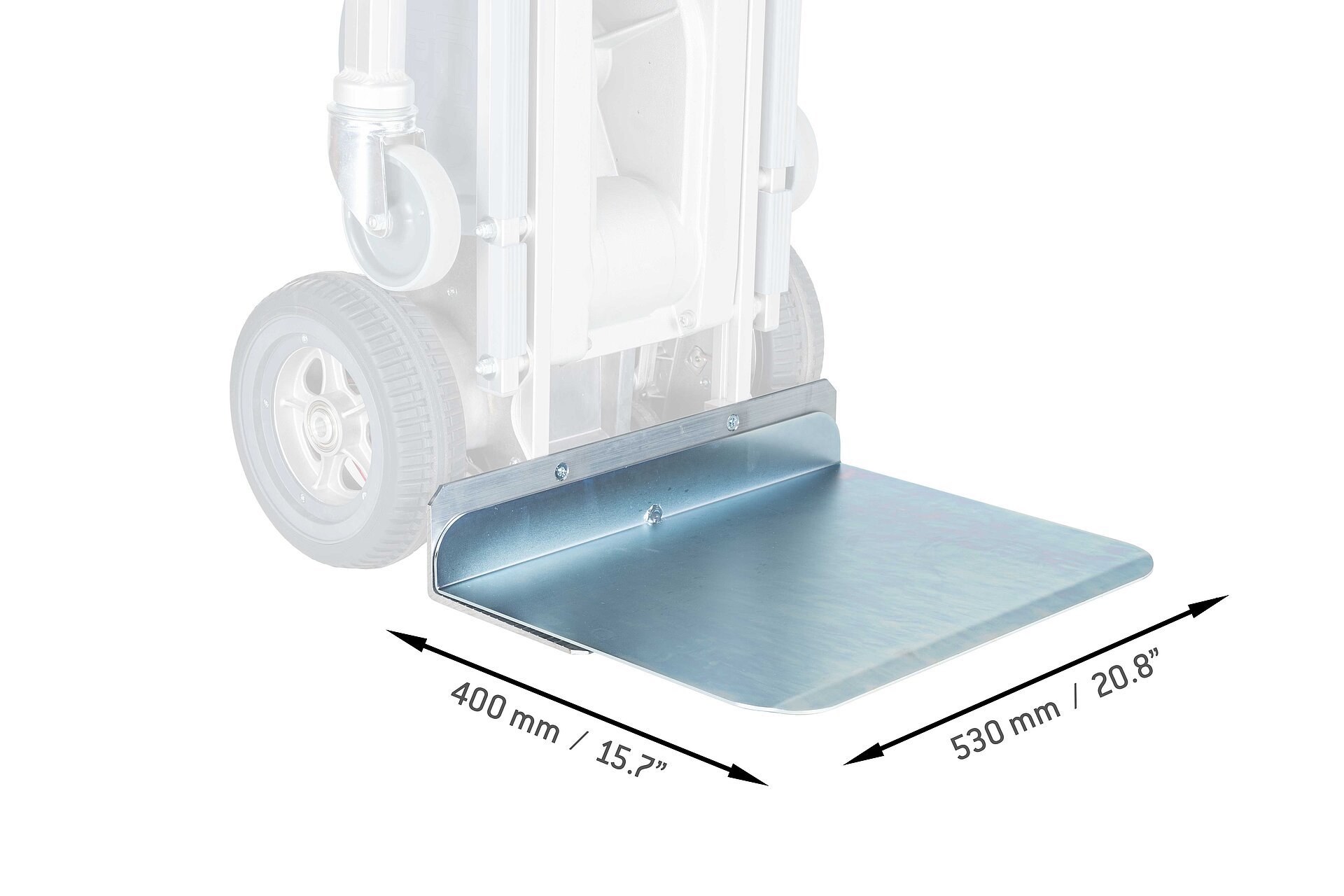

Attachable toe plate HD 530 x 400

Optionally available

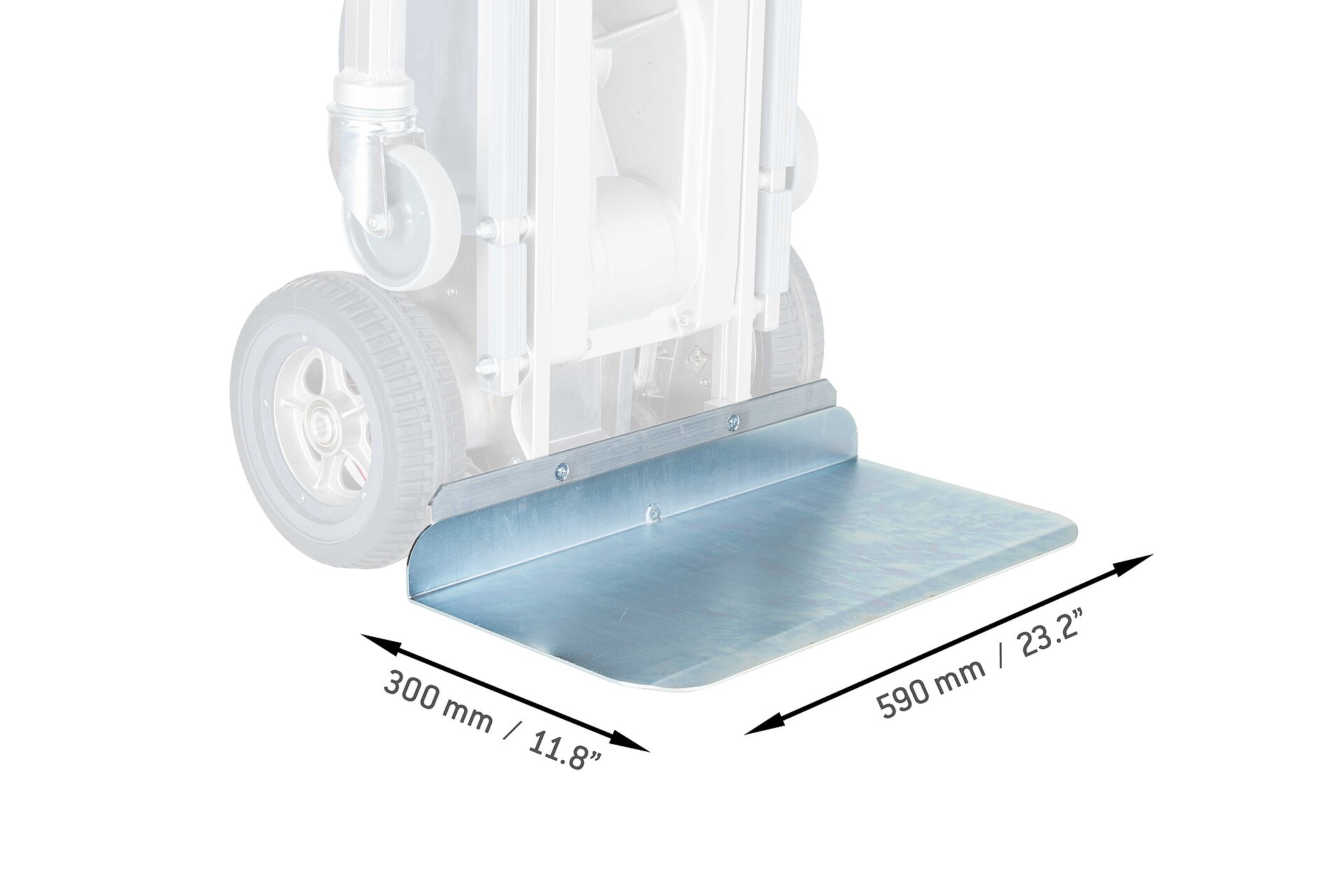

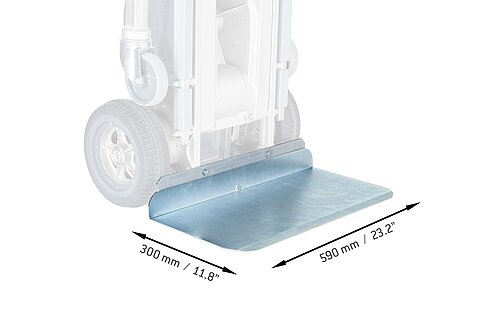

590 mm x 300 mm  /  23.2" x 11.8"

Art. no. 960 110

i

Attachable toe plate HD 590 x 300

Optionally available

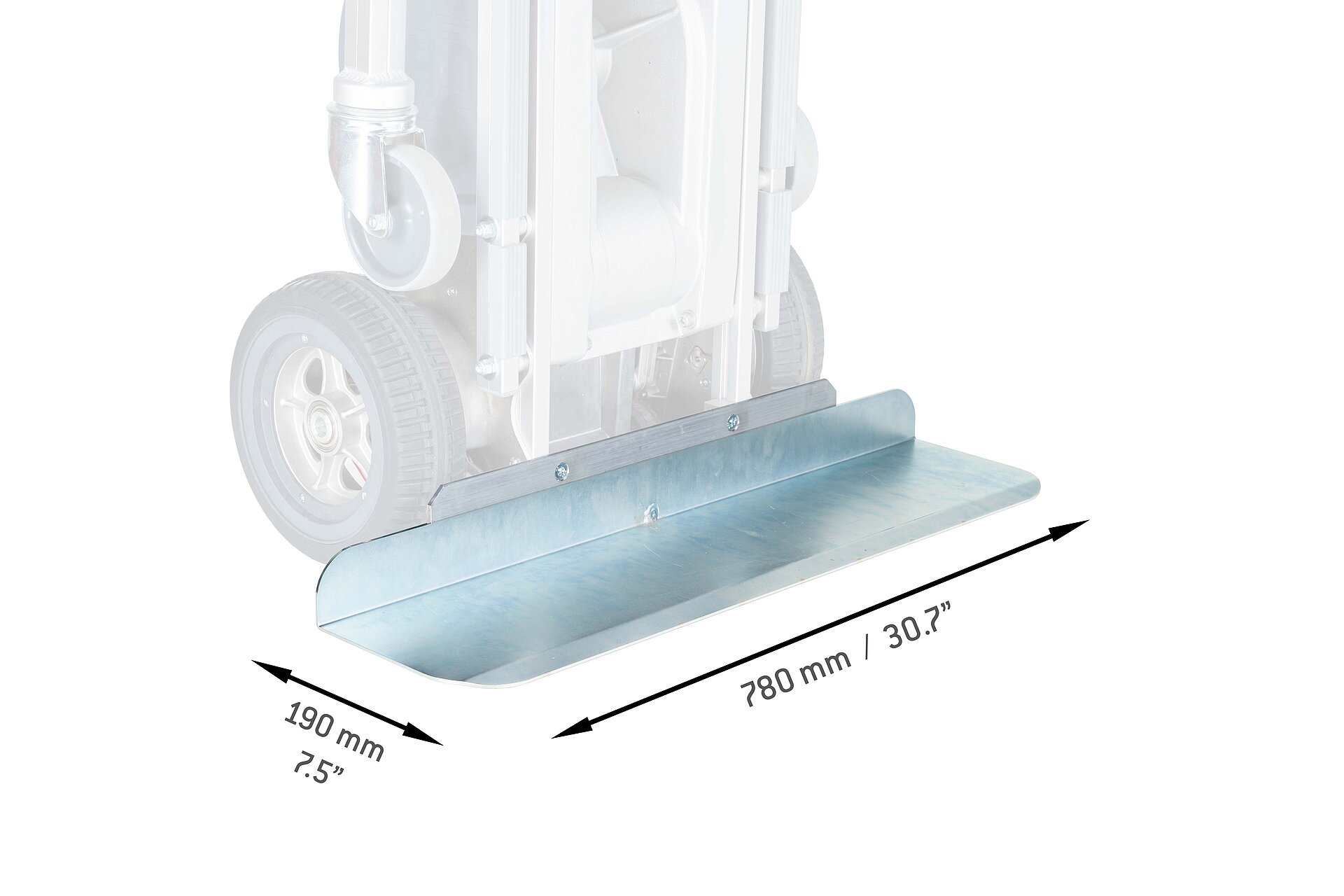

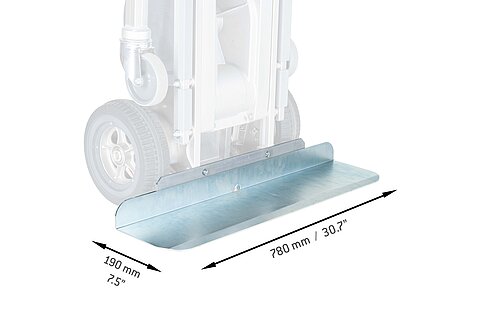

780 mm x 190 mm  /  30.7" x 7.5"

Art. no. 960 111

i

Attachable toe plate HD 780 x 190

Optionally available

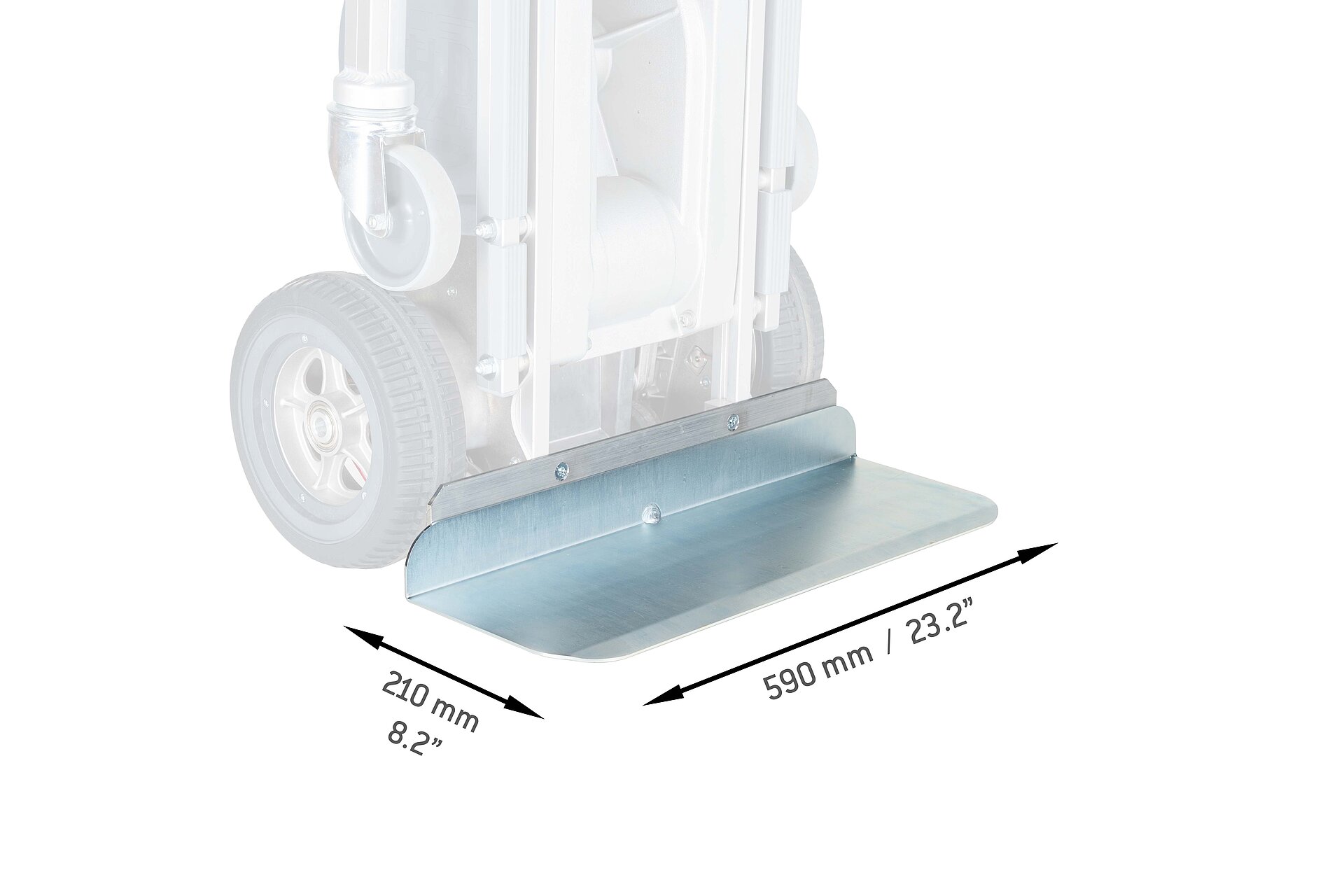

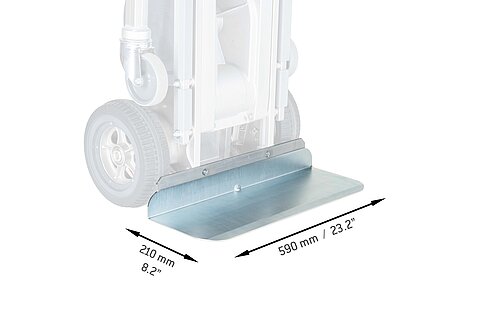

590 mm x 210 mm  /  23.2" x 8.3"

Art. no. 960 112

i

Attachable toe plate HD 590 x 210

Optionally available

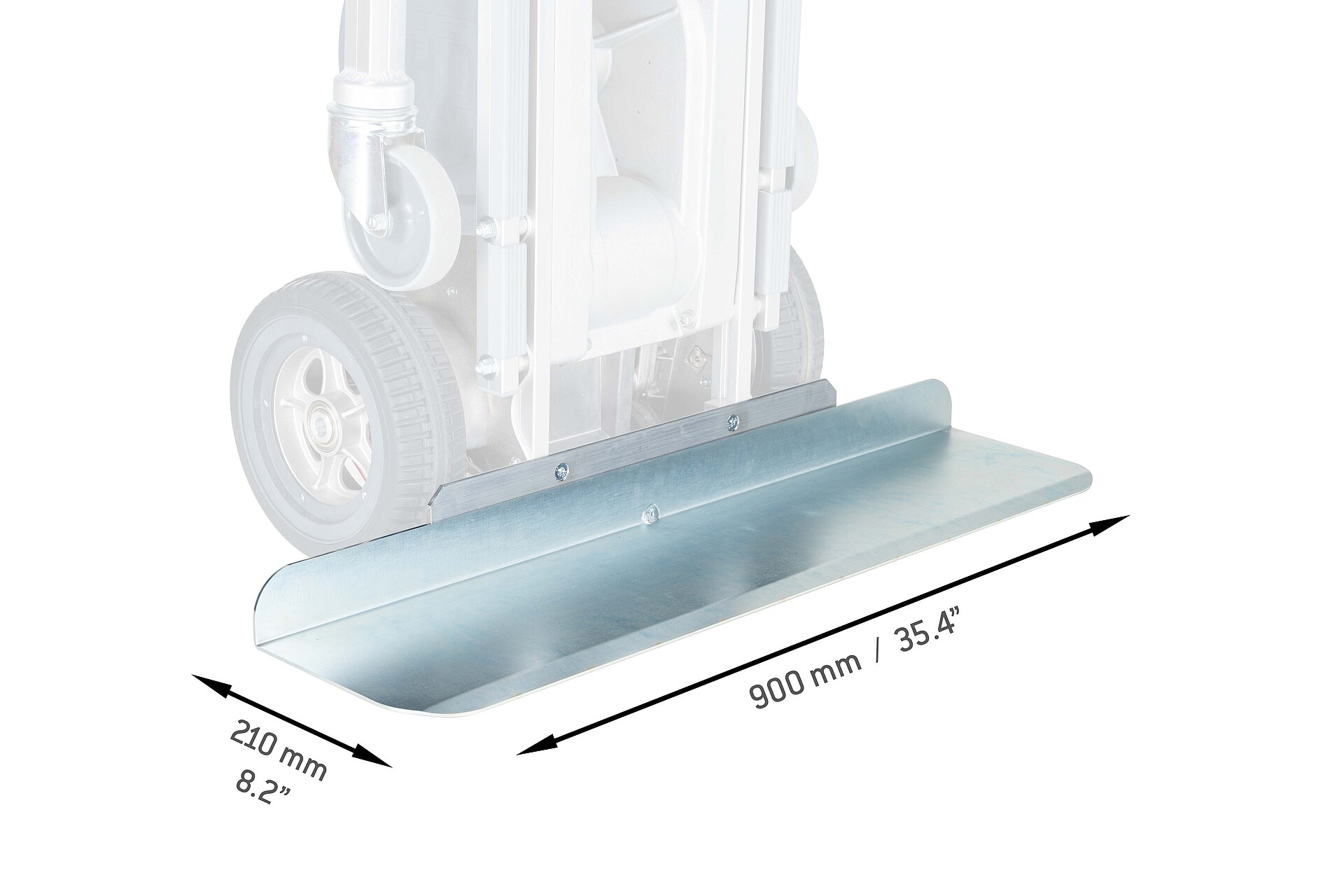

900 mm x 210 mm  /  35.4" x 8.3"

Art. no. 960 113

i

Attachable toe plate HD 900 x 210

Optionally available

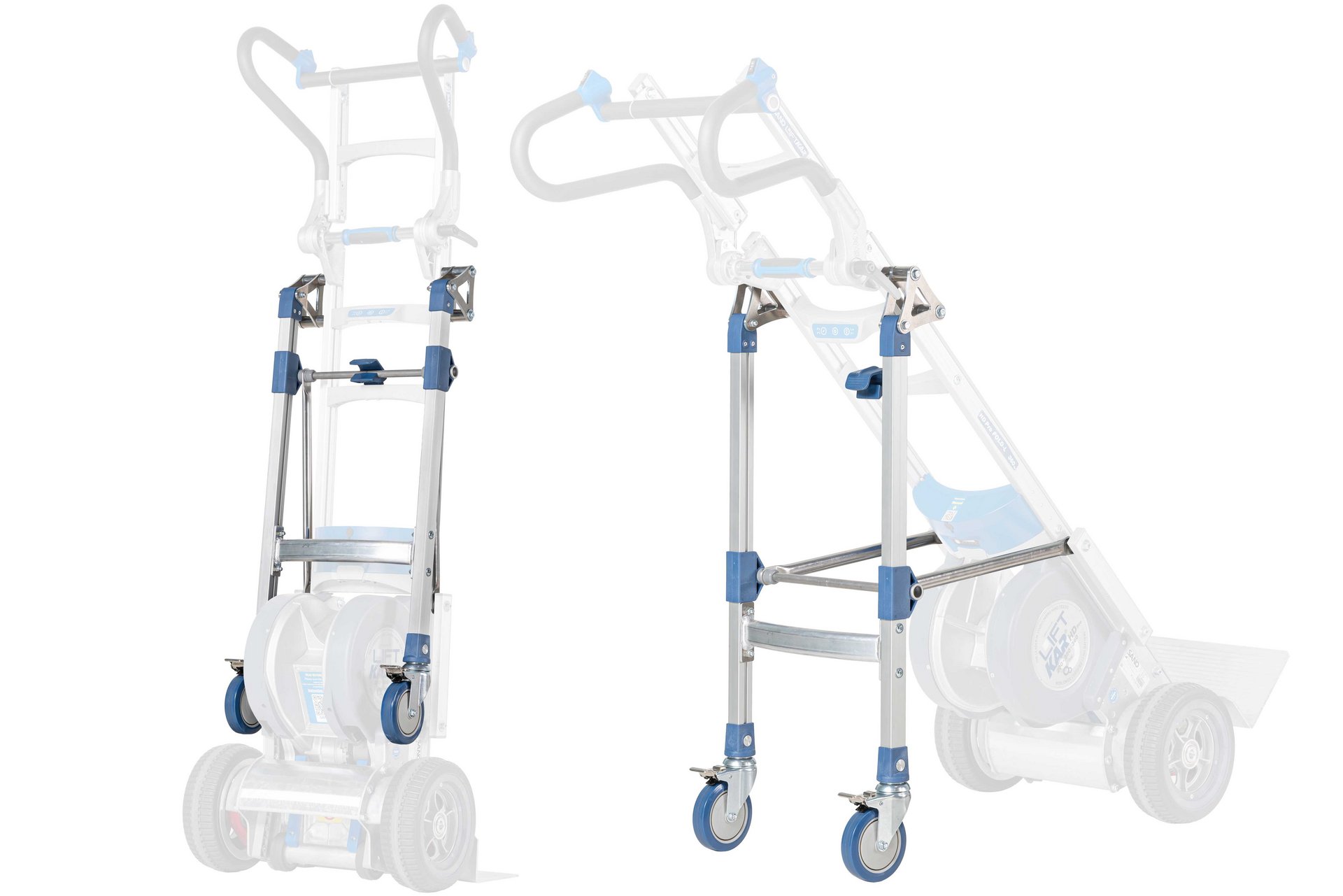

Fits to: LiftKar HD Pro UNI, FOLD-L and FOLD-XL models
incl. mounting parts
Art. no. 068 113

i

Dolly Kick-Out System HD Pro

Optionally available

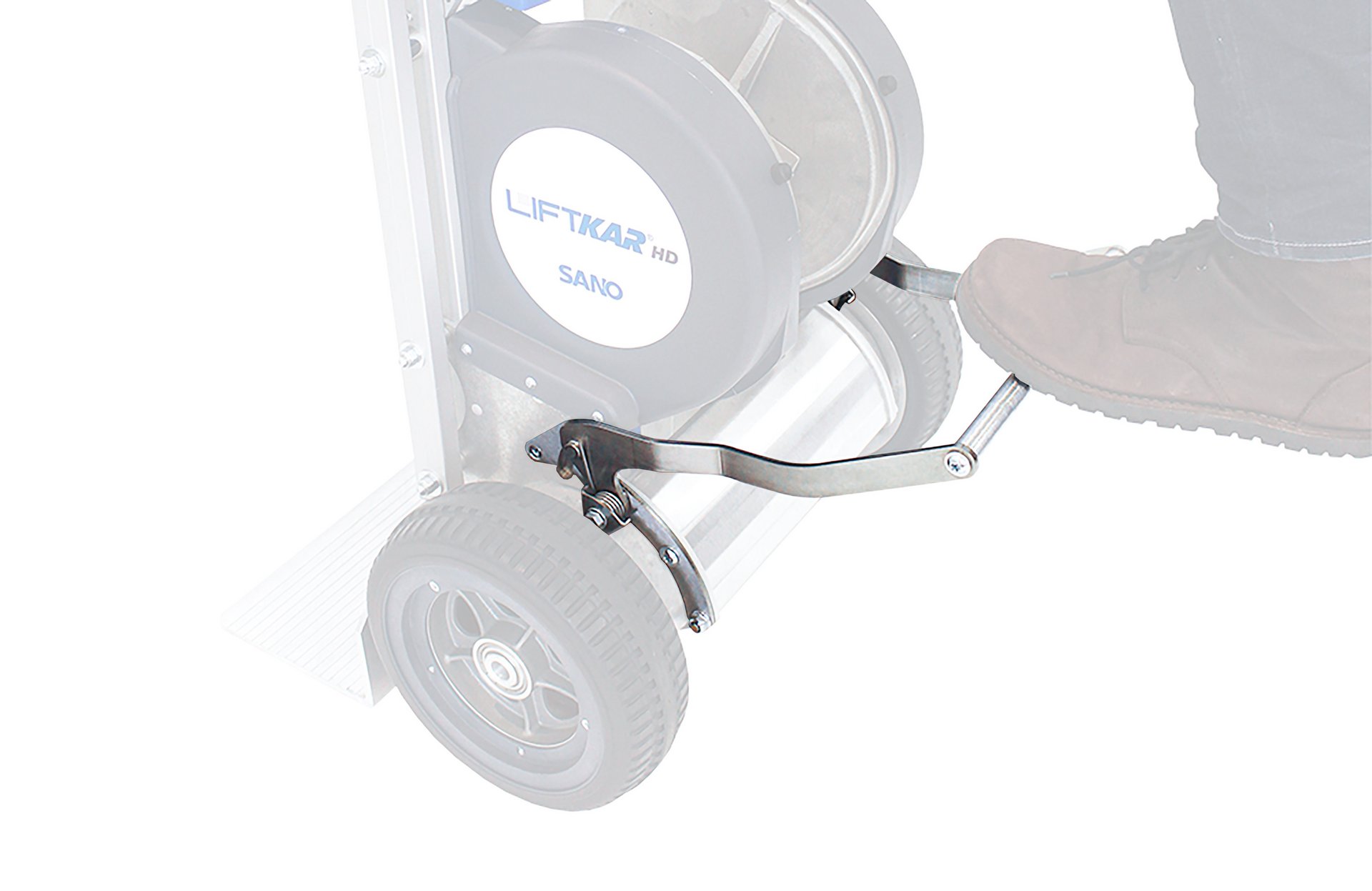

Ideal for simplifying the tipping of the load

Art. no. 960 128

i

Tilting lever HD complete

Optionally available

Art. no. 960 114

i

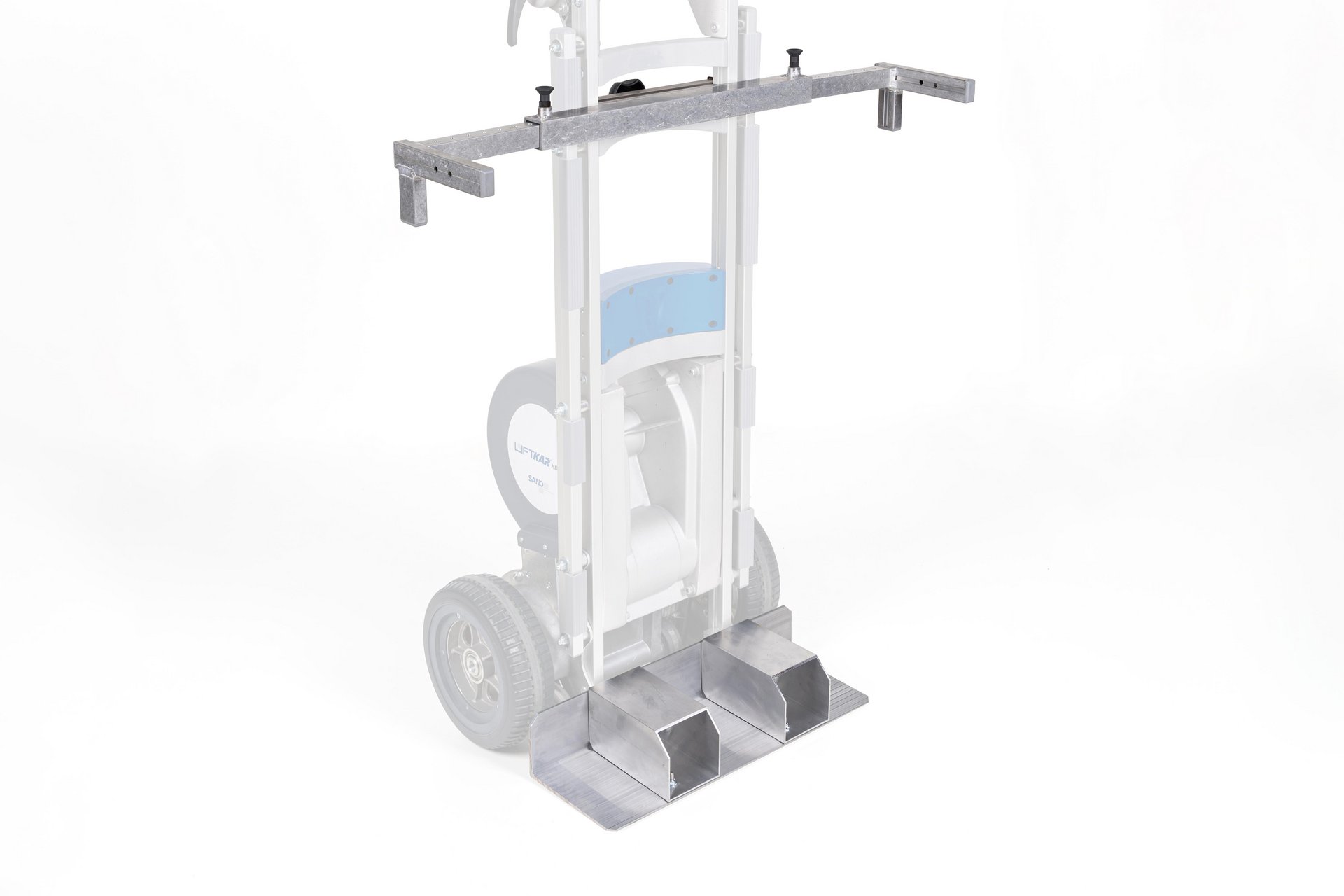

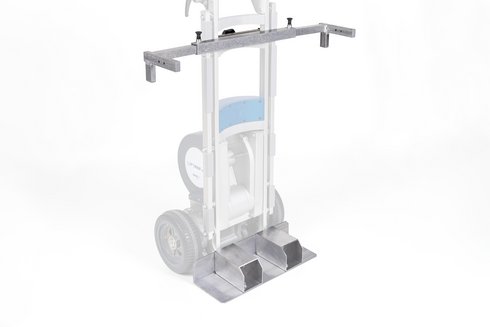

Transportation device HD for laundry containers

Optionally available

Art. no. 960 147

i

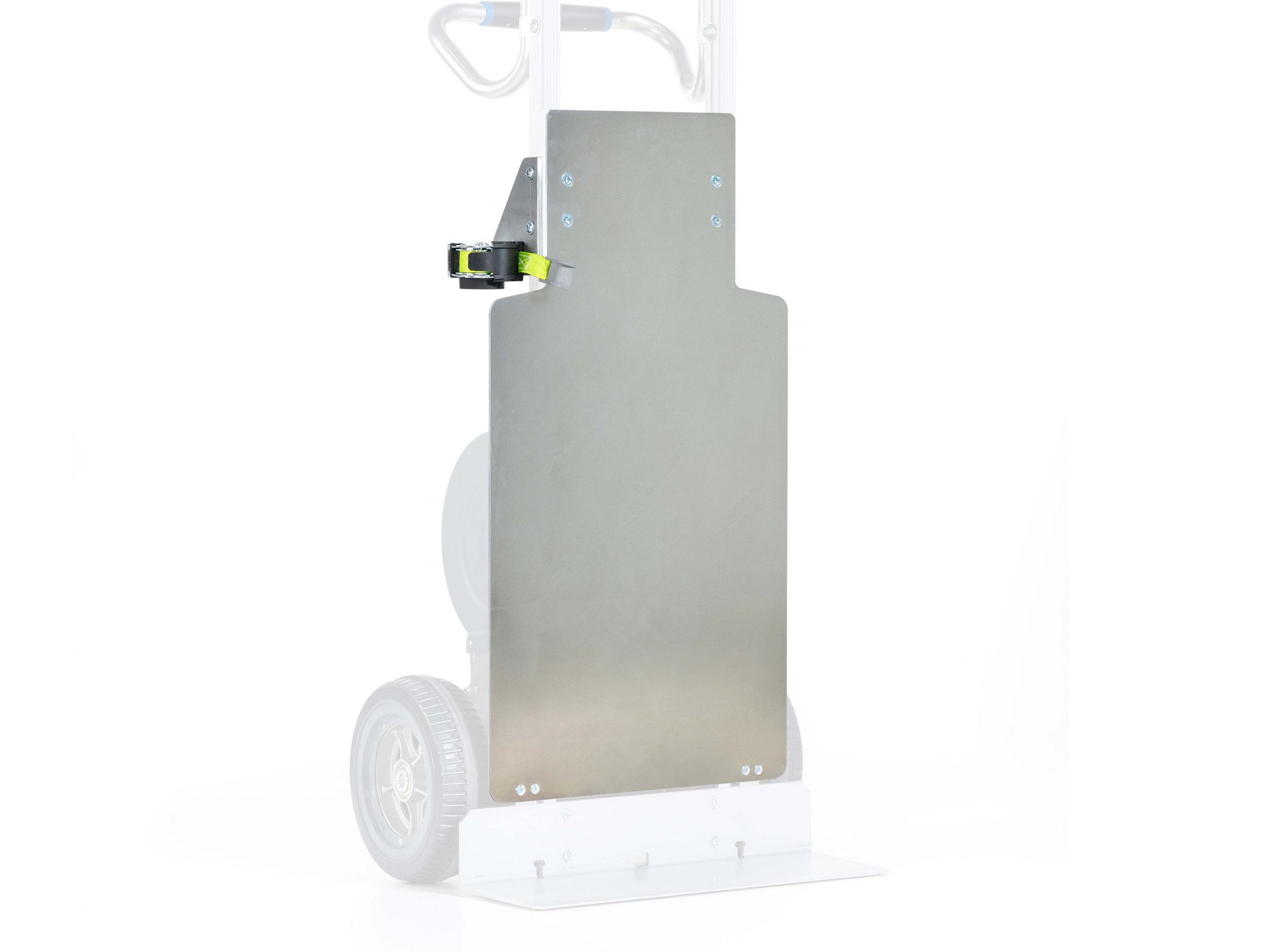

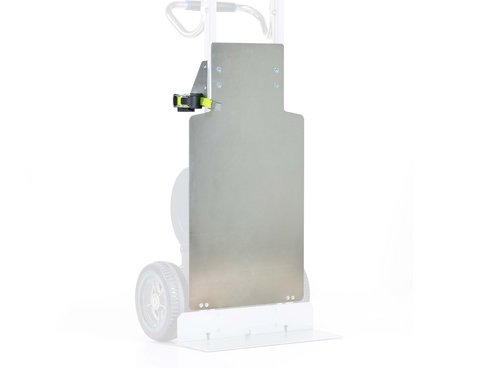

Adaption for Transport of beds for HD 200 UNI

Optionally available

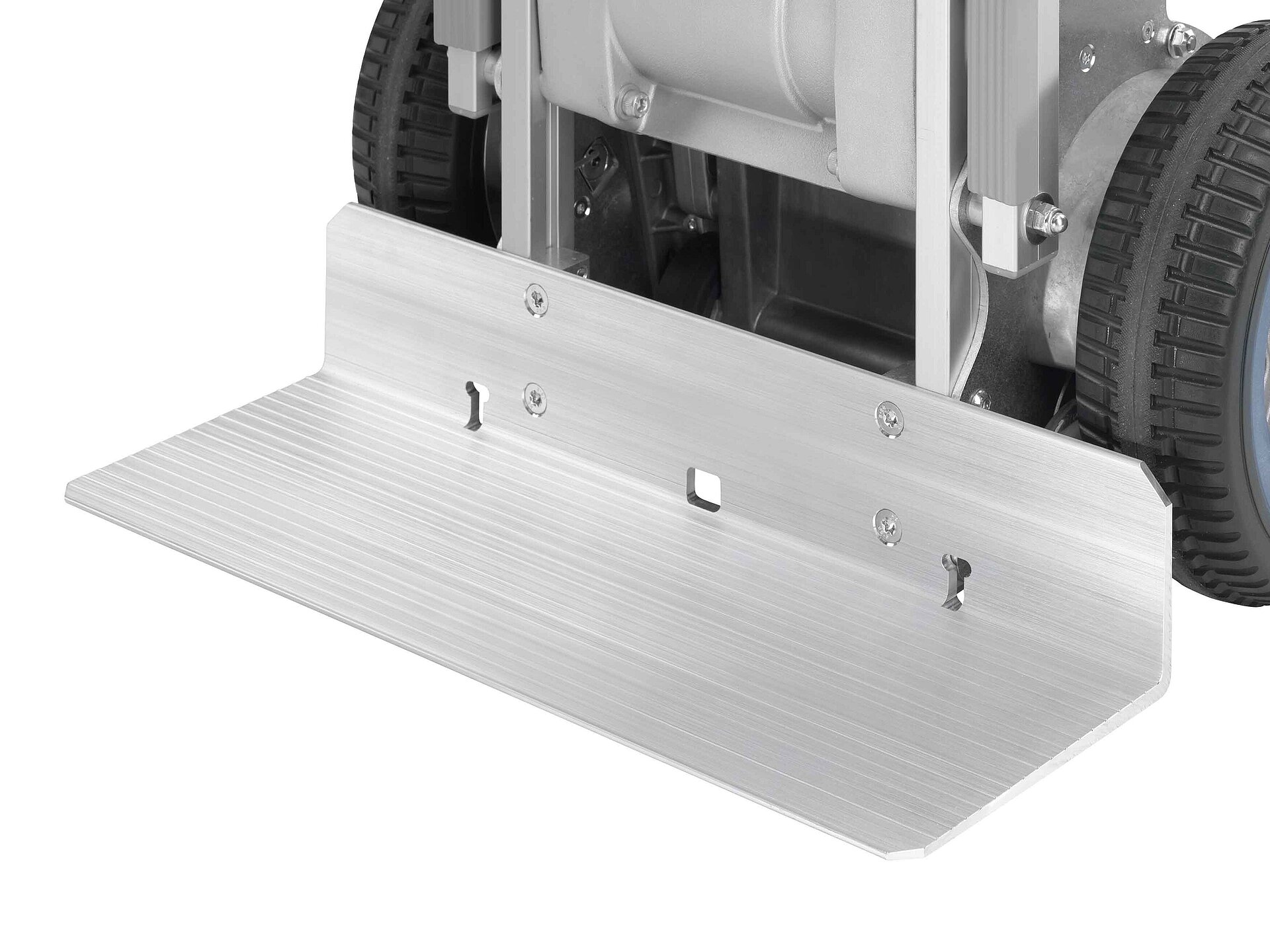

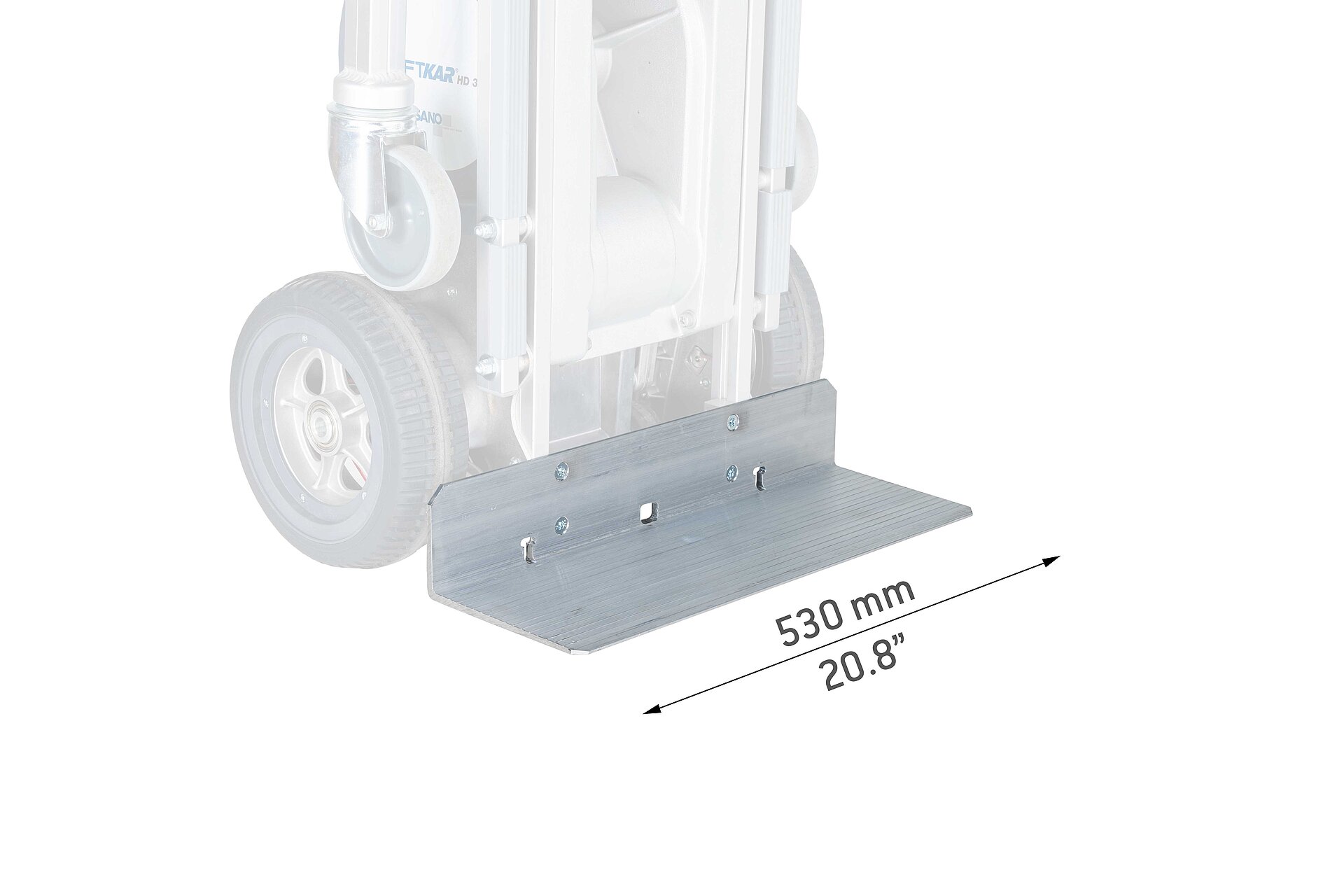

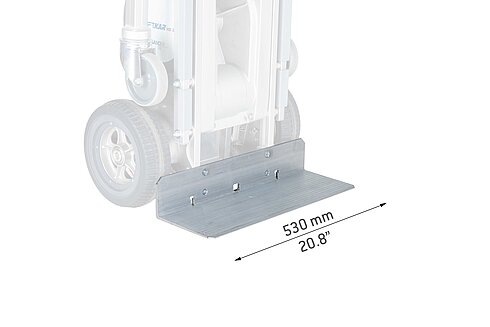

The standard toe plate.

Art. no. 065 025

i

Toe plate HD 530 - standard

Standard equipment

Technical data

The LiftKar HD Pro stairclimbers
in figures and facts

Article Number
Description

Load capacity

Load capacity | Pounds

Weight base unit without battery
Weight base unit without battery | Pounds
Battery weight
Battery weight | Pounds
Autonomy (max.)
Climbing speed (steps / min.)
For use on steep and narrow spiral staircases
Foldable
Transportation over stairs
Transportation on flat surfaces
Maximum step height

Dimensions (height/width/depth)

Dimensions (height/width/depth) | Inch

HD Pro UNI
068 701 / 068 721 / 068 731
Der Problemlöser



200 / 280 / 360 kg





440.9 / 617.3 / 793.7 lbs





35,8 kg





78.9 lbs





1,6 kg





3.5 lbs



700 / 600 / 500 Stufen
9-15 / 7-13 / 6-10 [Stufen/Min.]
-
210 mm

1675 / 560 / 485 mm

66" / 22" / 19.1"

HD Pro FOLD
068 700 / 068 720 / 068 730
The Compact One



200 / 280 / 360  kg









440.9 / 617.3 / 793.7 lbs





36,3 kg





80 lbs





1,6 kg





3.5 lbs



700 / 600 / 500 steps
9-15 / 7-13 / 6-10 [steps/min.]
210 mm

1615 / 560 / 485 mm
(folded 1195 / 560 / 560 mm)

63.6" / 22" / 19.1"
(folded 47" / 22" / 22")

HD Pro FOLD-L
068 702 / 068 722 / 068 732
The Extended Version



200 / 280 / 360 kg





440.9 / 617.3 / 793.7 lbs





37,2 kg





82 lbs





1,6 kg





3.5 lbs



700 / 600 / 500 steps
9-15 / 7-13 / 6-10 [steps/min.]
210 mm

1780 / 560 / 485 mm
(folded 1360 / 560 / 560 mm)

70.2" / 22" / 19.1"
(folded 53.5" / 22" / 22")

HD Pro FOLD-XL
068 703 / 068 723 / 068 733
Long and agile



200 / 280 / 360 kg





440.9 / 617.3 / 793.7 lbs





37,6 kg





82.8 lbs





1,6 kg





3.5 lbs



700 / 600 / 500 steps
9-15 / 7-13 / 6-10 [steps/min.]
-
210 mm

1915 / 560 / 485 mm
(folded 1495 / 560 / 560 mm)

75.4" / 22" / 19.1"
(folded 58.9" / 22" / 22")

Article Number
Description
Ideal for

Load capacity

Load capacity | Pounds

Weight base unit without battery
Weight base unit without battery | Pounds
Battery weight
Battery weight | Pounds
Autonomy (max.)
Climbing speed (steps / min.)
For use on steep and narrow spiral staircases
Foldable
Transportation over stairs
Transportation on flat surfaces
Maximum step height

Dimensions (height/width/depth)

Dimensions (height/width/depth) | Inch

HD Pro UNI
068 701 / 068 721 / 068 731
The Problem-solver
e.g. drinks dispensers, gaming machines



200 / 280 / 360 kg





440.9 / 617.3 / 793.7 lbs





35,8 kg





78.9 lbs





1,6 kg





3.5 lbs



700 / 600 / 500 steps
9-15 / 7-13 / 6-10 [steps/min.]
-
210 mm

1675 / 560 / 485 mm

66" / 22" / 19.1"

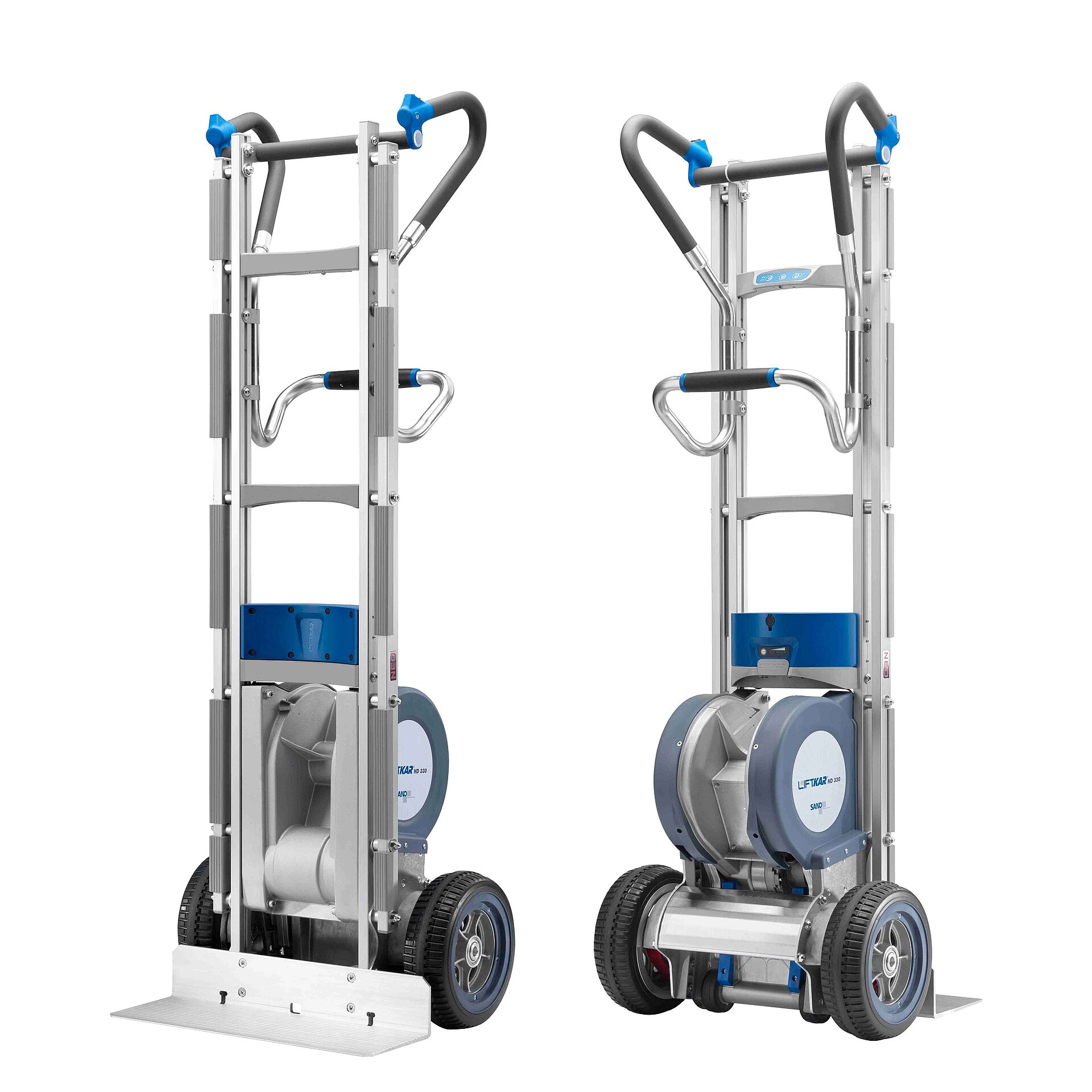

NEO Liftkar HD UNI
067 703 / 067 701 / 067 730
fully strong for high and heavy loads
Control cabinets, beverage vending machines, gaming machines, large boilers, solar storage tanks, heavy linoleum rolls.



220 kg / 330 kg / 360 kg





485 lbs / 727.5 lbs / 793.6 lbs





35,5 kg





78.2 lbs





1,6 kg





3.5 lbs



700 / 500 / 500 steps
10-15 / 6-10 / 6-10 [steps/min.]
-
210 mm

1615 / 560 / 485 mm

63.6" / 22" / 19.1"

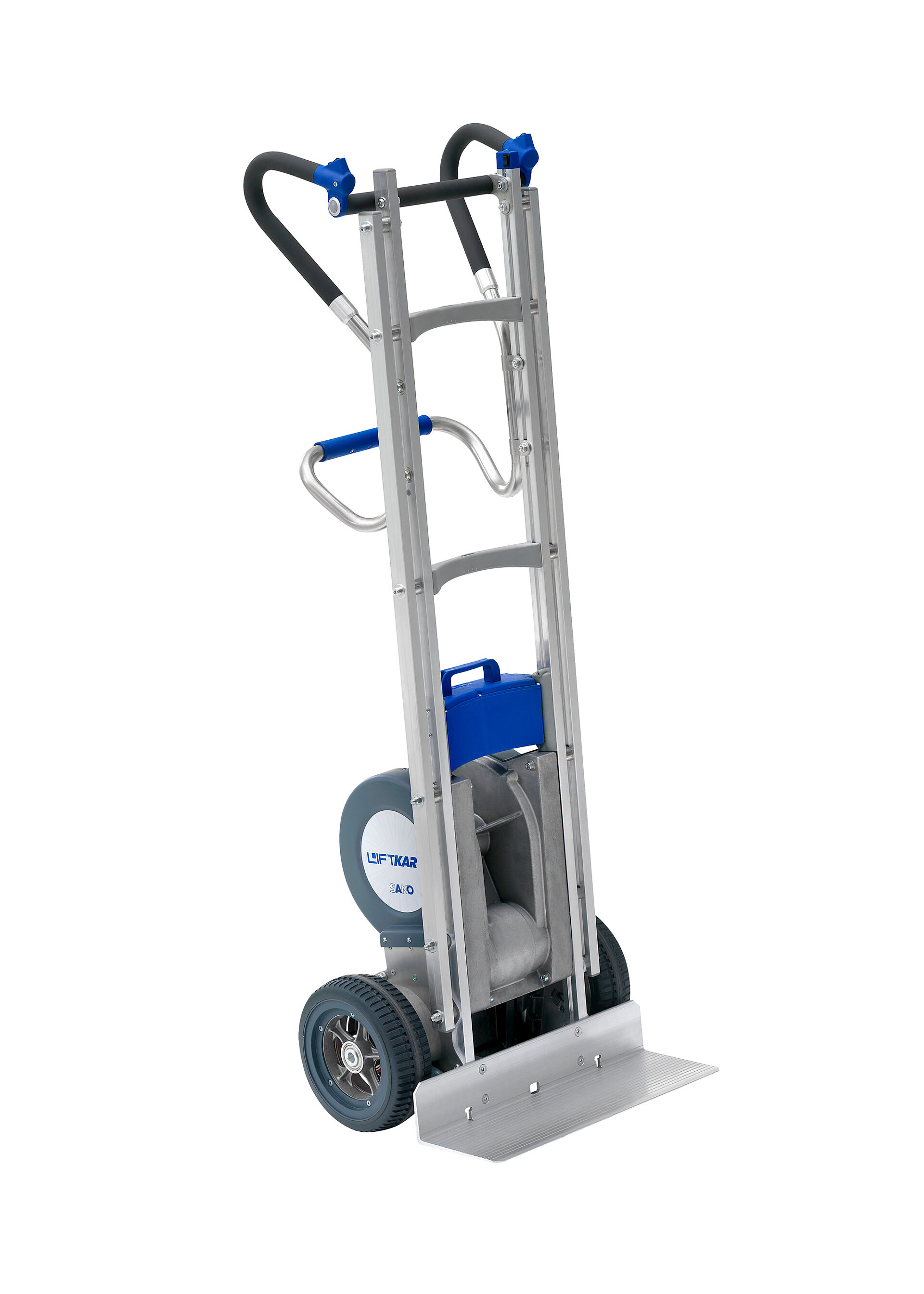

LiftKar HD UNI
060 703 / 060 701 / 060 730
full power for high and heavy loads
electrical enclosures, drink dispensers, gaming machines, large boilers, solar heating vessels, heavy rolls of linoleum...



220 kg / 330 kg / 360 kg





485 lbs / 727.5 lbs / 793.6 lbs





34 kg





74.9 lbs





4 kg





8.8 lbs



220 / 120 / 90 steps
9-15 / 6-10 / 6-10 [steps/min.]
-
210 mm

1615 / 560 / 485 mm


63.6" / 22" / 19.1"
