Description

LiftKar SAL
The extremely fast and light-powered
stairclimber for loads up to 375 lbs

Sounds familiar? Just carry the packs of tiles or crates of drinks one at a time up the stairs quickly, instead of doing a professional job from the beginning: with the LiftKar SAL. With the powered stairclimber from SANO the job is finished sooner and easier, and takes the strain off your back. The LiftKar SAL is as easy to use as a handtruck. Going up, the LiftKar SAL climbs onto the next step efficiently and precisely, all by itself. Going down, the motor acts like an eddy current brake. The load glides down smoothly, softly and safely - no need to press any buttons. Your back is protected and the risk of accidents is minimised.

The LiftKar SAL is available in four versions. This choice of models makes it ideal for applications in industry, retail and business as well as in schools, hospitals, commercial kitchens, office blocks and many more. Whatever your transport needs, the LiftKar SAL is available with the right equipment options.

3 different motor sizes are available that guarantee an optimum climbing performance of up to 48 steps per minute depending on the weight to be transported (up to 375 lbs).



Downloads Product Registration
extremely lightweight and fast

very wide range of applications

extended battery life

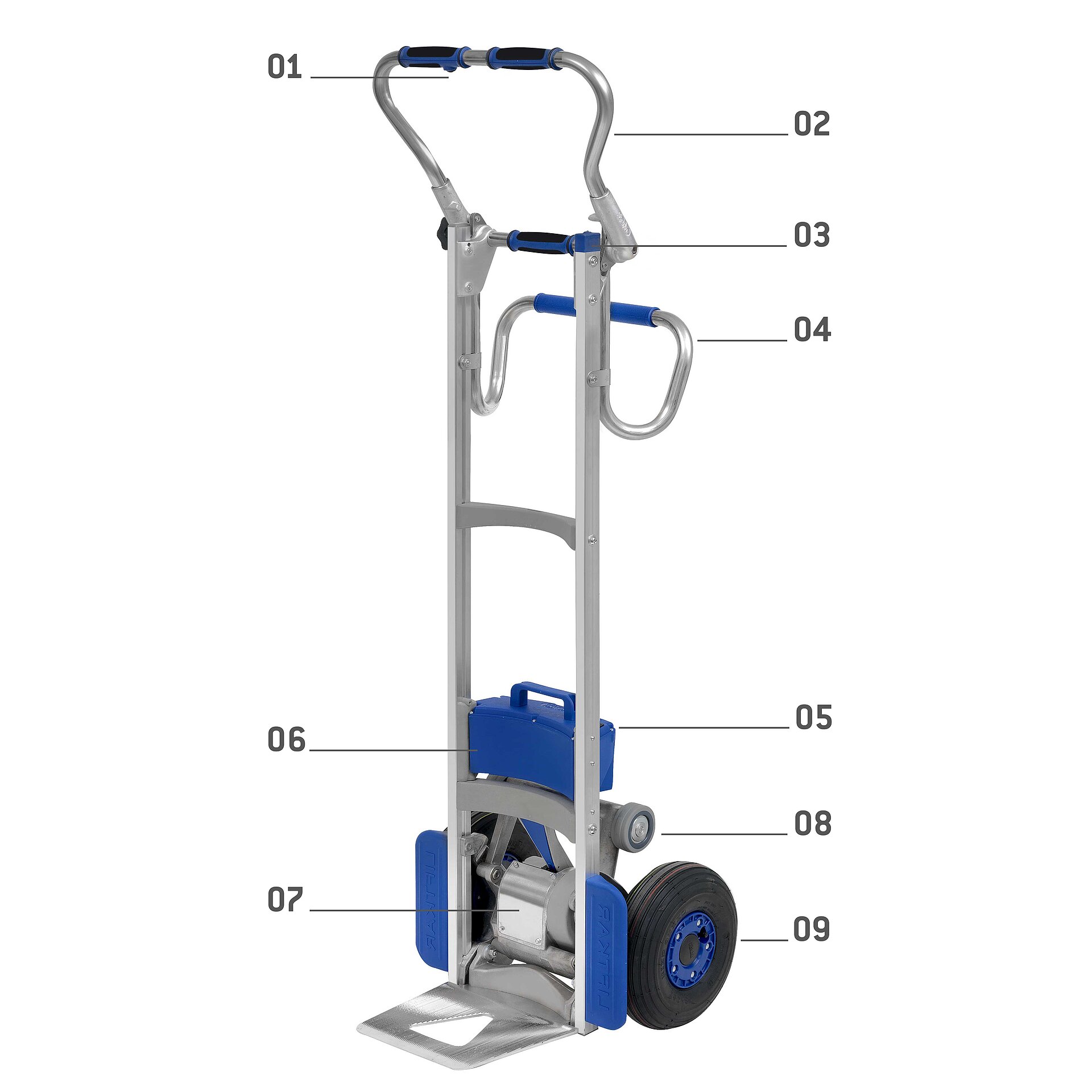

Features

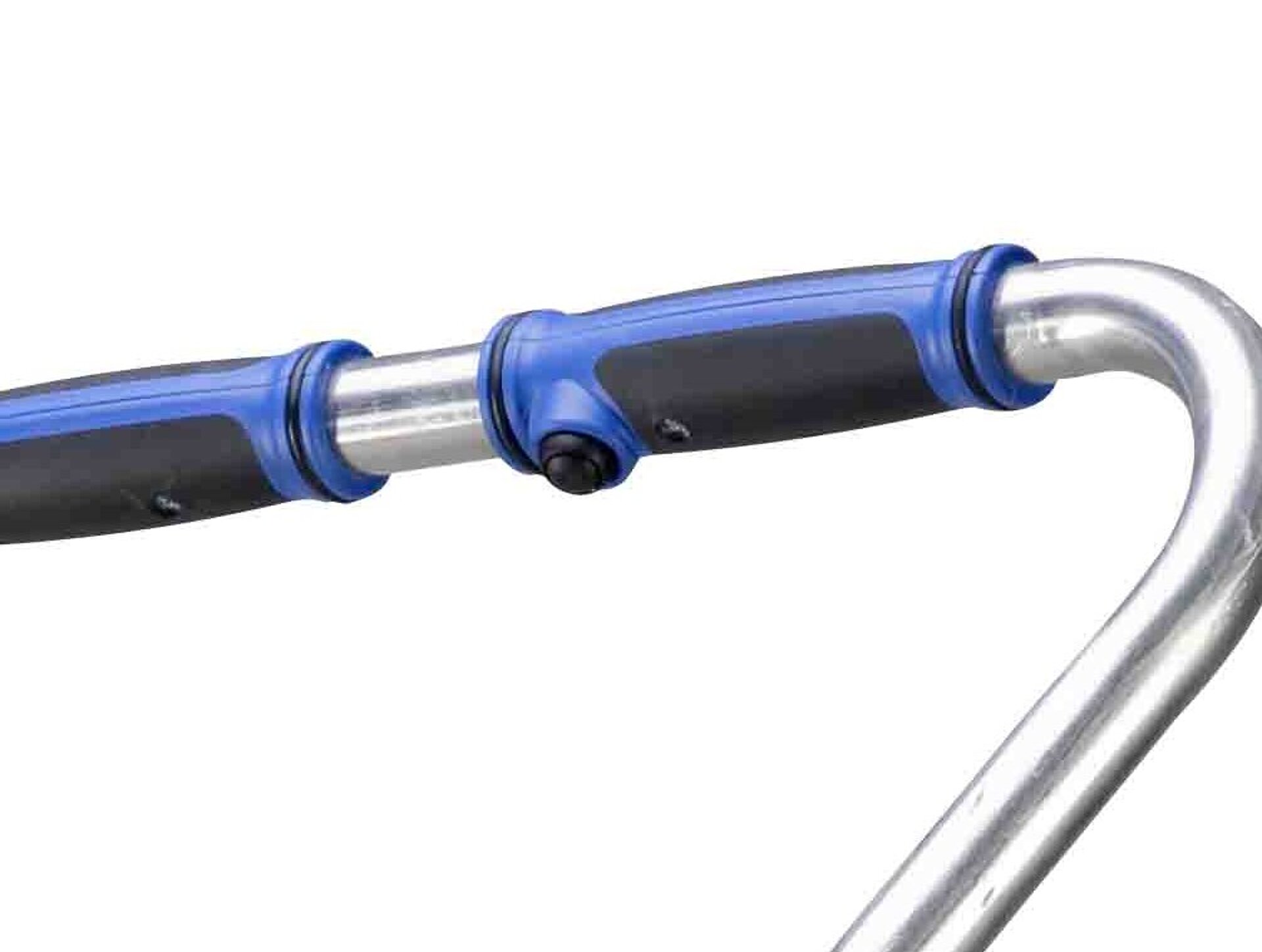

01up button

LiftKar SAL

up button

The LiftKar SAL stairclimber up button

02upper handle

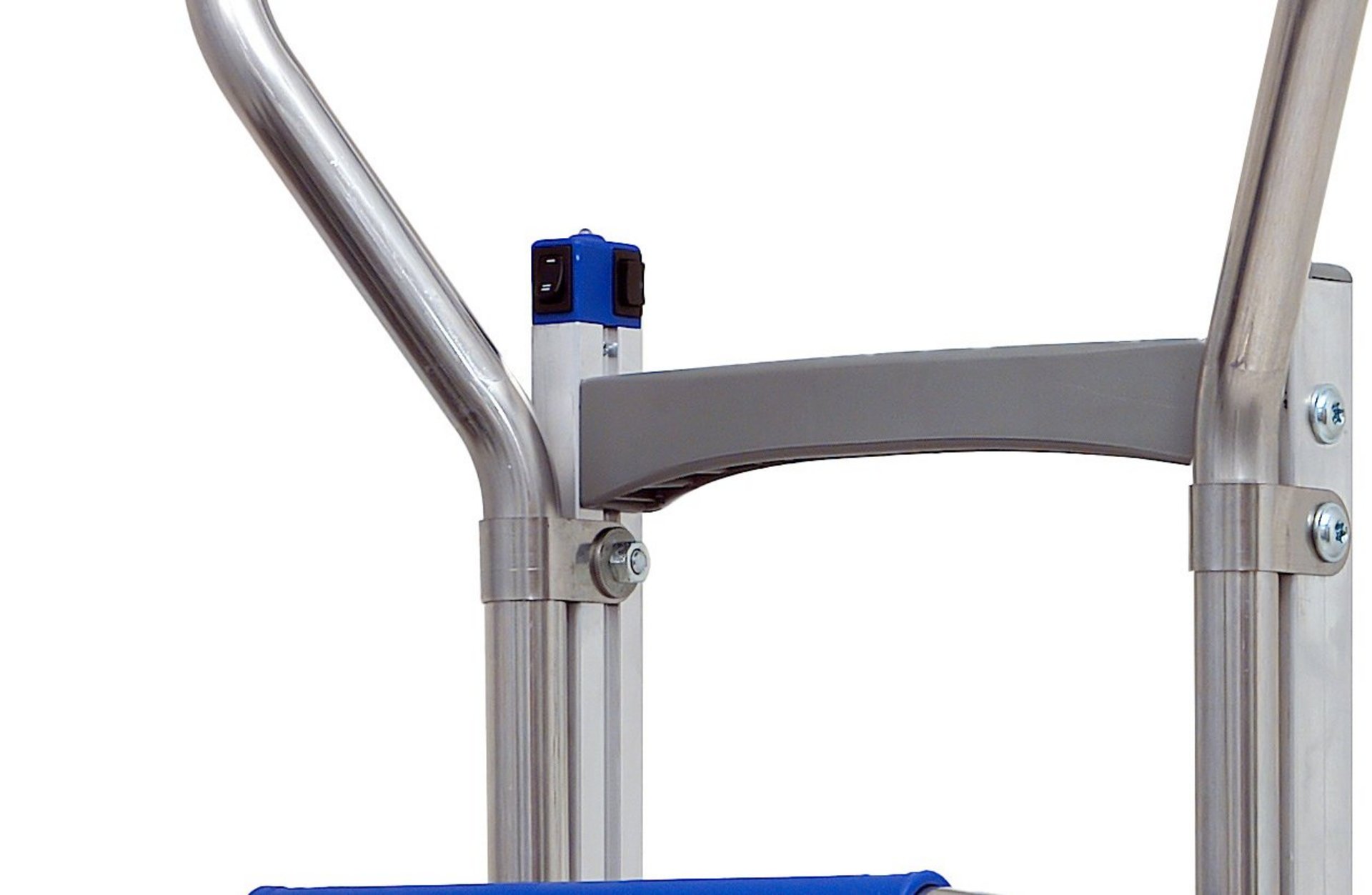

03control button

LiftKar SAL

control button

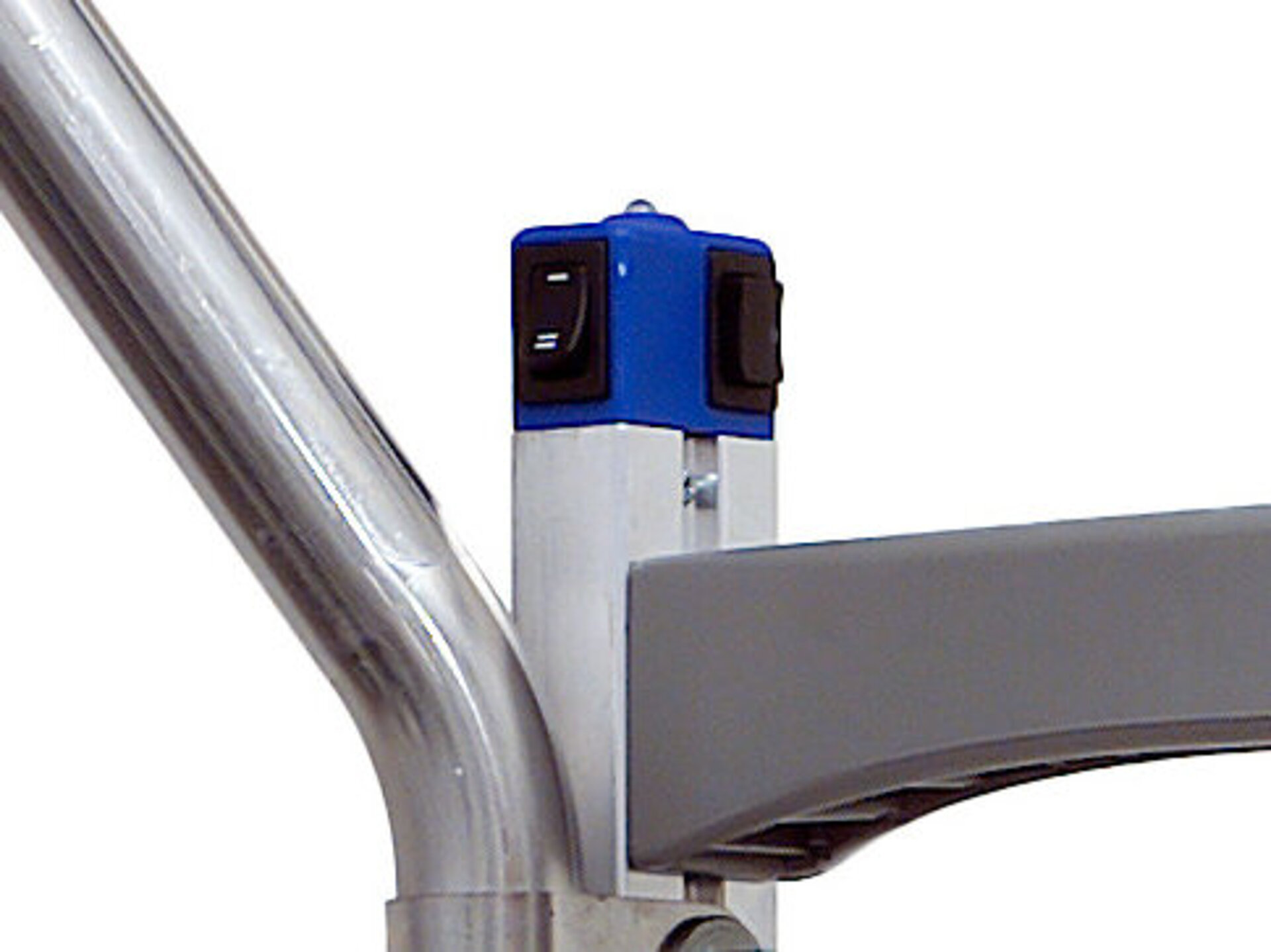

The LiftKar SAL stairclimber control button

04lower handle

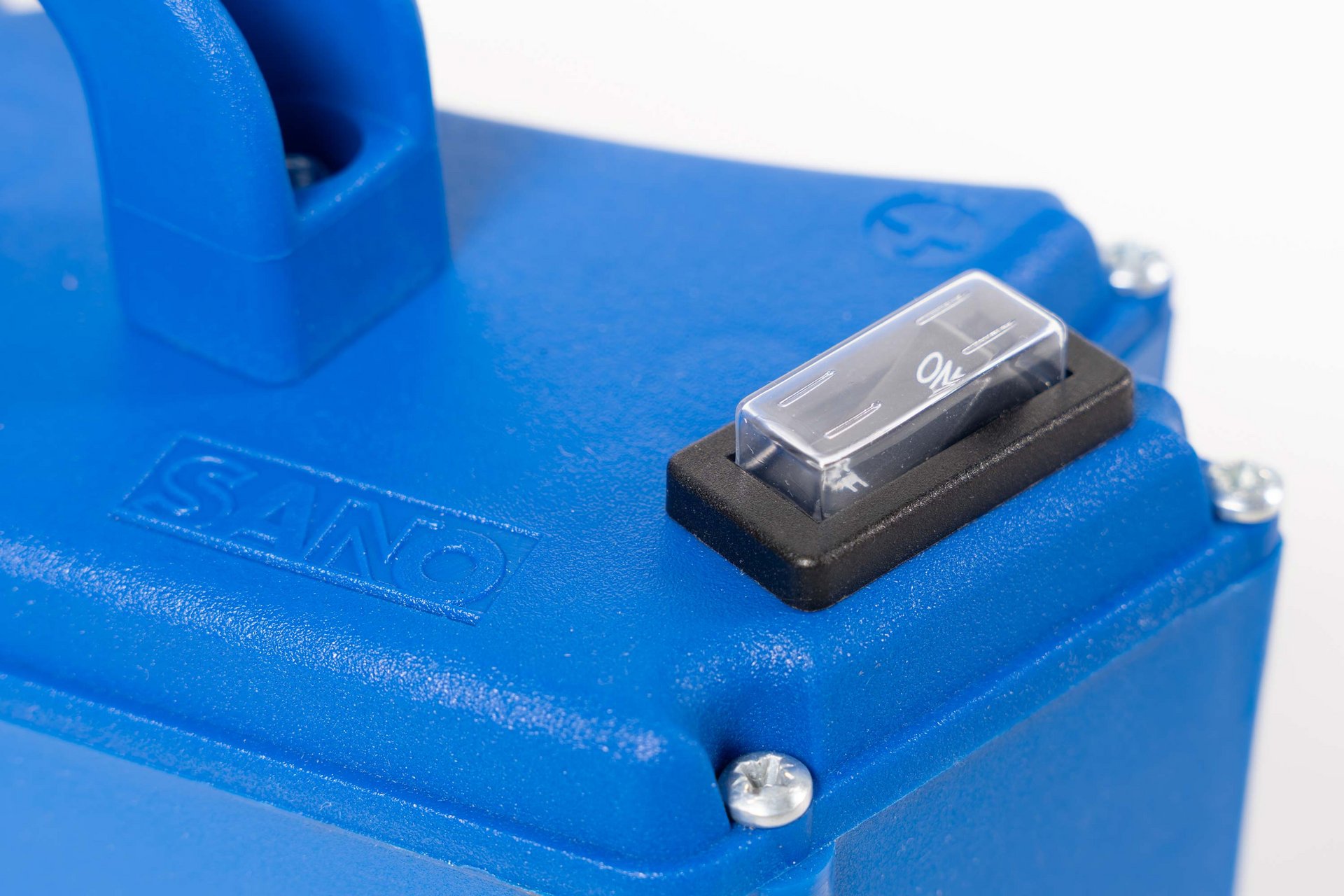

05main switch

LiftKar SAL

main switch

ON / OFF button

06quick-change battery pack

LiftKar SAL

quick-change battery pack

The LiftKar SAL stairclimber quick-change battery pack.

Weight of 8.8 lbs.

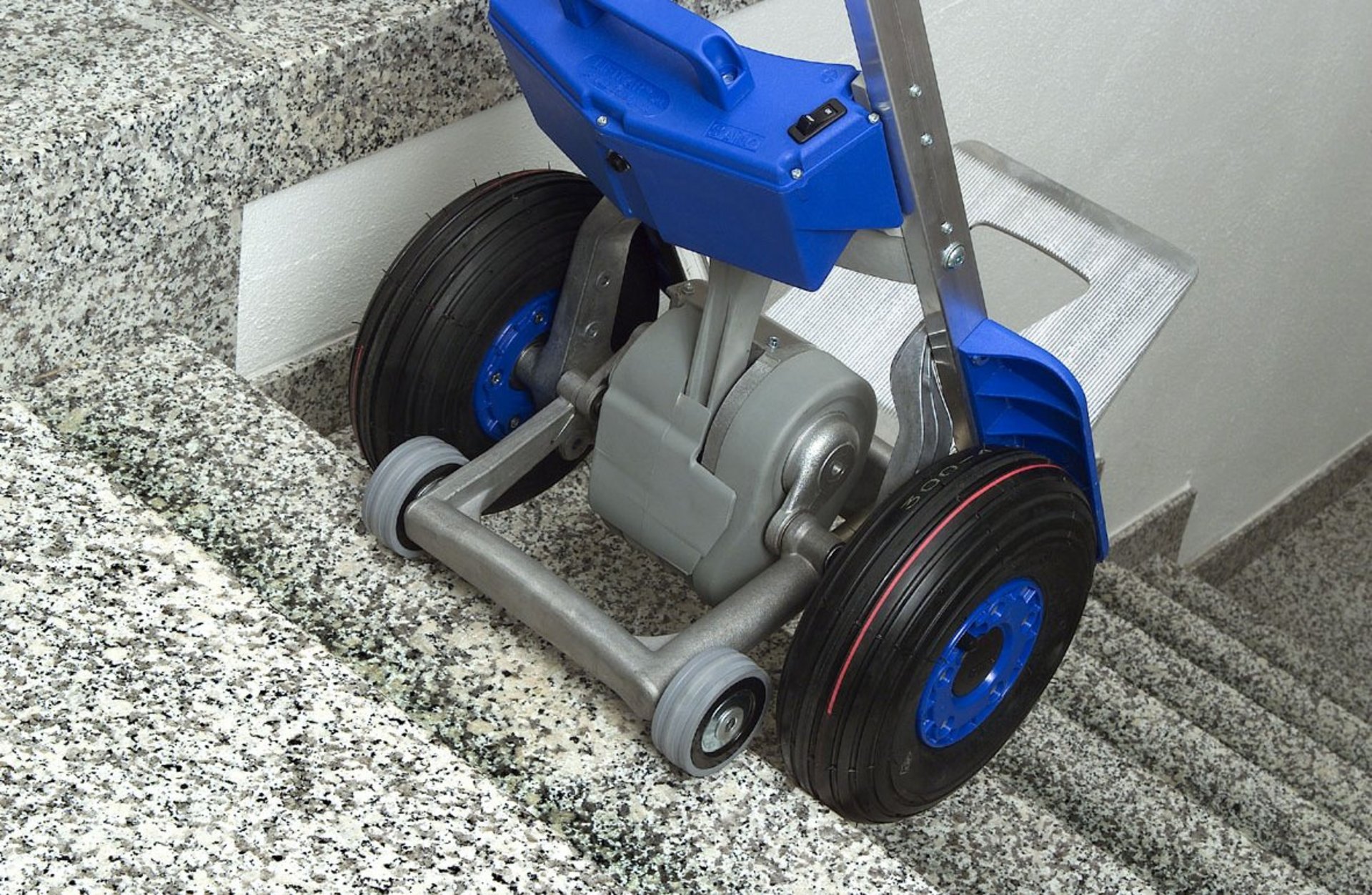

07drive unit with safety flap
08pivot arm with braked support wheels

LiftKar SAL

pivot arm with braked support wheels

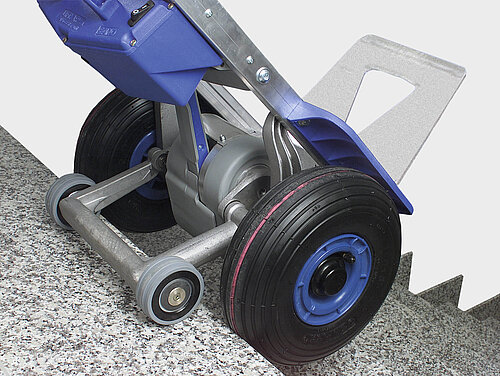

LiftKar SAL stairclimber pivot arm with forward-braked support wheels.

09main wheels
Details
Advantages

12 unbeatable advantages
to convince you

  1. extremely lightweight - 44 lbs incl. quick exchange battery (depending on the model)
  2. extremely fast - up to 48 steps/minute (depending on model)
  3. Two climbing speeds
  4. intelligent lifting unit starts automatically when going down stairs
  5. hinged toe plate mounting - fixed version also available
  6. friction clutch and electronic overload protection
  1. maneuverable like a handtruck
  2. confident on all stairs, even spiral staircases and landings where space is restricted
  3. large pneumatic tires, puncture-proof available as an alternative
  4. second battery pack and in-transit charger for constant 24-hour use
  5. high-strength aluminum toe plate
  6. Foldable - fits most vehicle trunks/ back ends (depending on model)
Models

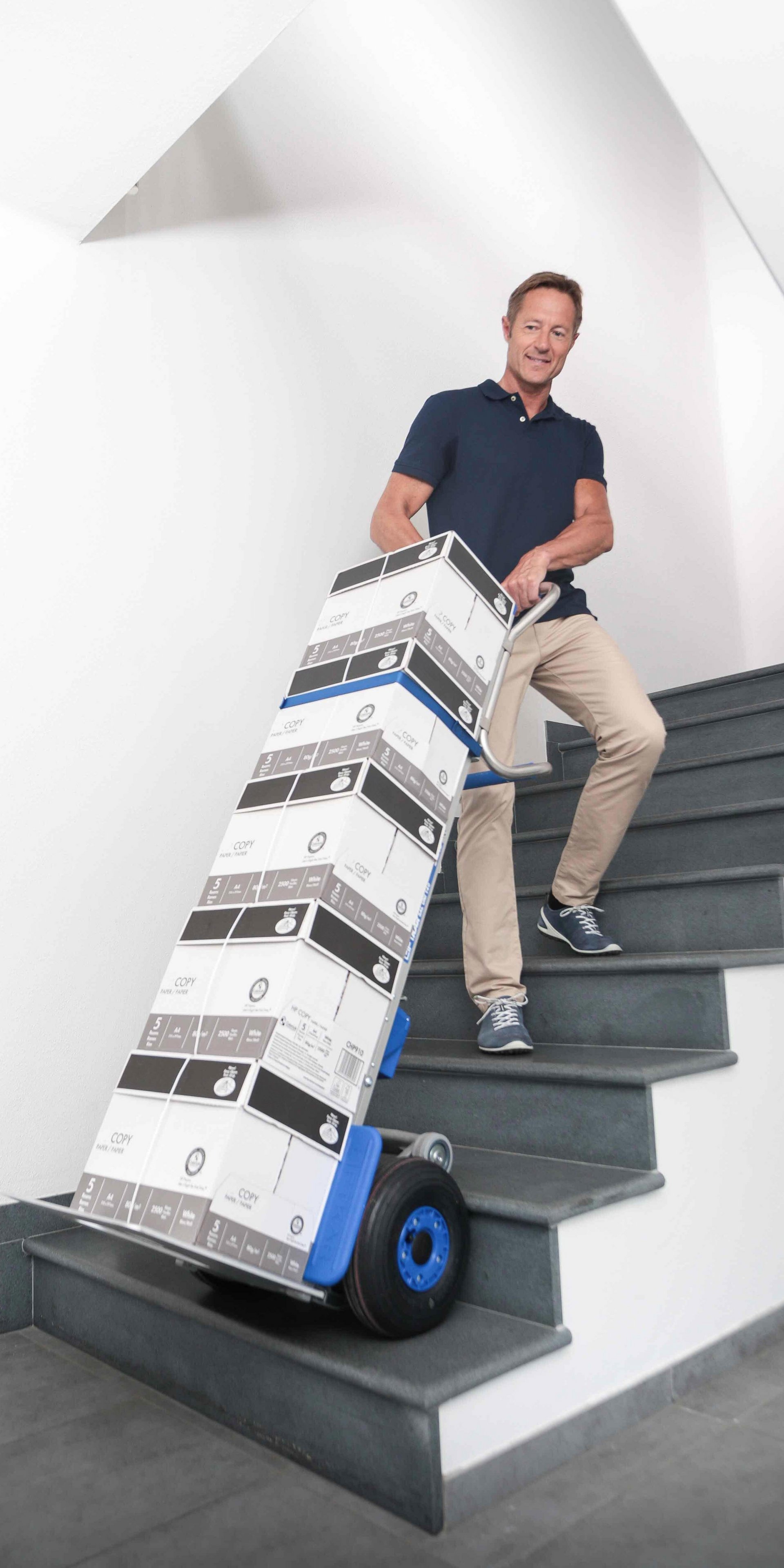

Water bottles, crates of drinks or copy paper - the lightweight all-rounder with speed.

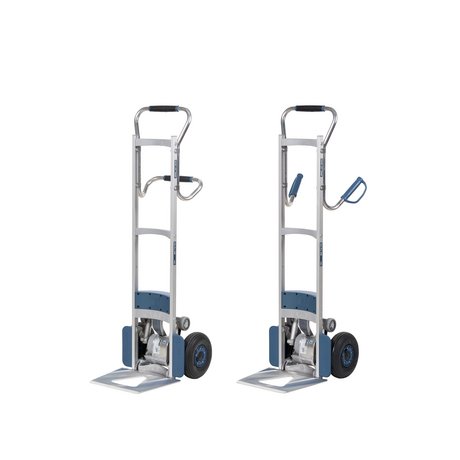

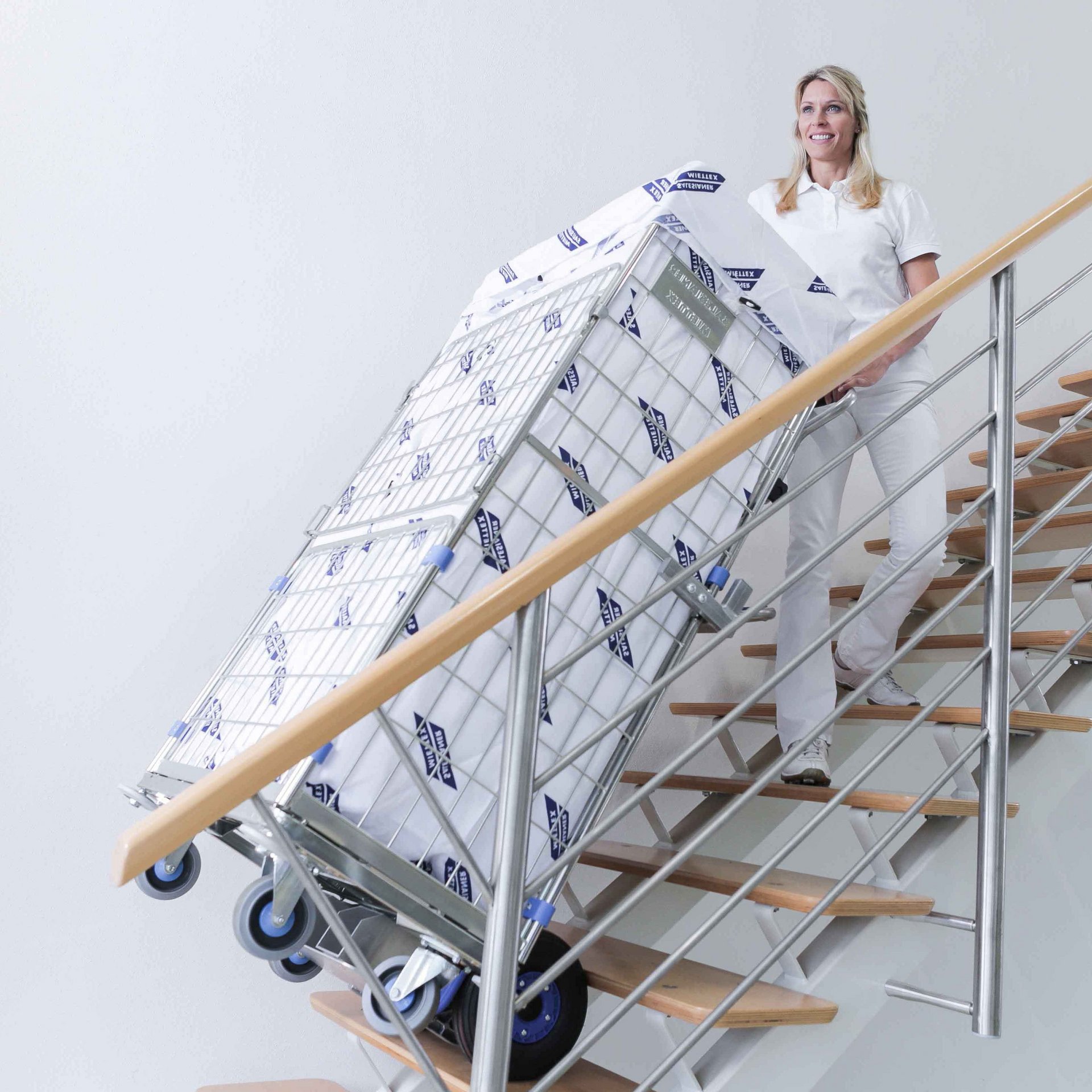

The LiftKar SAL UNI model corresponds to the classic handtruck and is particularly suitable for transporting water bottles, drinks crates, copy paper or folders.

The entire LiftKar SAL UNI range is characterized by its light weight of 44 lbs. This makes transport even easier and quicker. The LiftKar SAL UNI is also easy to maneuver outdoors, especially on bumpy building site surfaces. Different tires adapt the device to the operating conditions. Two handle variants are available (loop or pistol grip).

The LiftKar SAL UNI is available in three weight classes: 242 lbs, 308 lbs, and 375 lbs

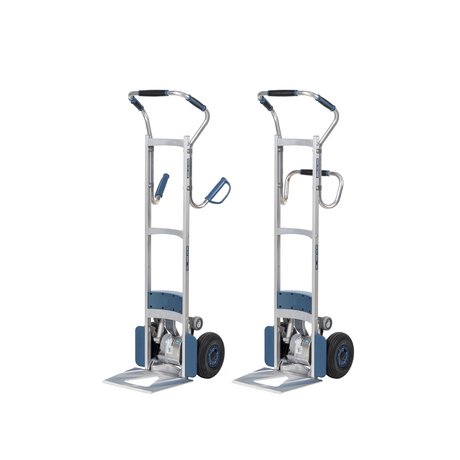

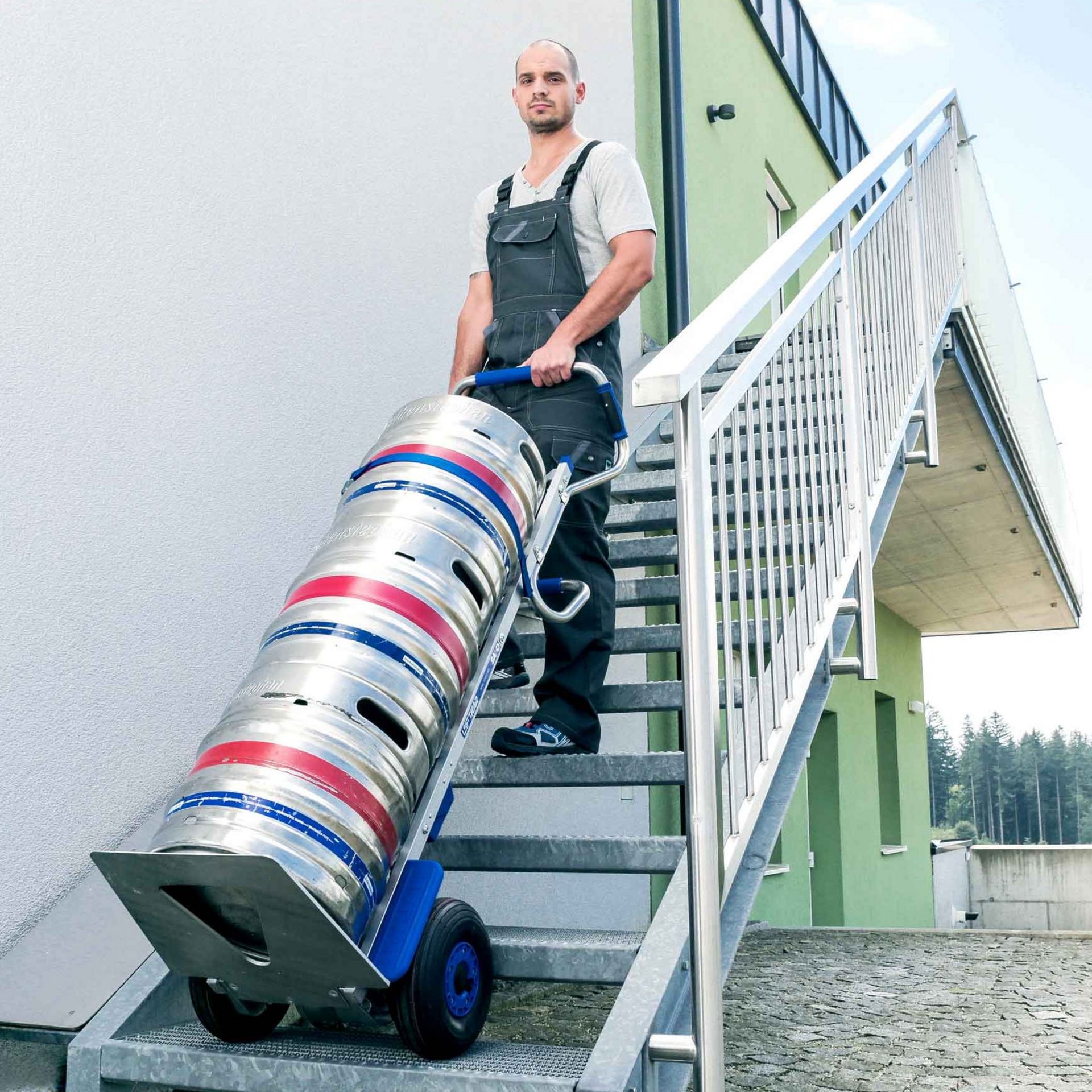

Upright posture and maximum control. Ideal for beer kegs, stacks of tyres, etc.

Thanks to the exceptionally ergonomic handle, the LiftKar SAL ERGO model allows you to maintain an upright posture on the stairs and keep maximum control over the goods being transported. Ideal for beer kegs, stacks of tires, etc.

The whole LiftKar SAL ERGO range is characterized by its low weight of 44 lbs. As a result you can handle transport jobs even easier and faster. The LiftKar SAL ERGO even assists you with a smoother ride outside, especially on bumpy construction sites. Different tires can be fitted to match the unit to its operating conditions. Two handle variants available (loop or pistol grip).

The LiftKar SAL ERGO is available in three weight classes: 242 lbs, 308 lbs and 375 lbs.

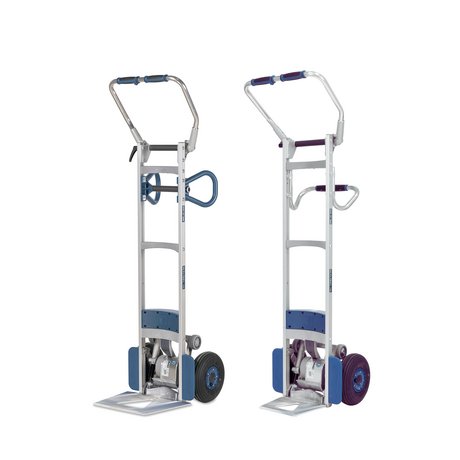

Transport tall loads and keep them perfectly balanced.

Whether it's fridges, tall oxygen cylinders, or bulky stacks of armchairs - with the LiftKar SAL FOLD-L model, you can balance the load with ease. This means that even difficult loads can be transported safely, in an upright position, and without straining your back.

The LiftKar SAL FOLD-L is ideally suited to transporting somewhat heavier loads in a perfectly balanced manner. Despite its low weight of 46 lbs, the LiftKar SAL FOLD-L can also handle heavy loads. Two handle variants available (loop or pistol grip).

The LiftKar SAL FOLD-L is available in three weight classes: 242 lbs, 308 lbs, and 375 lbs..

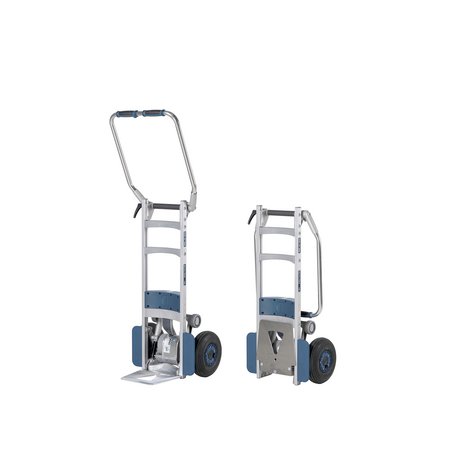

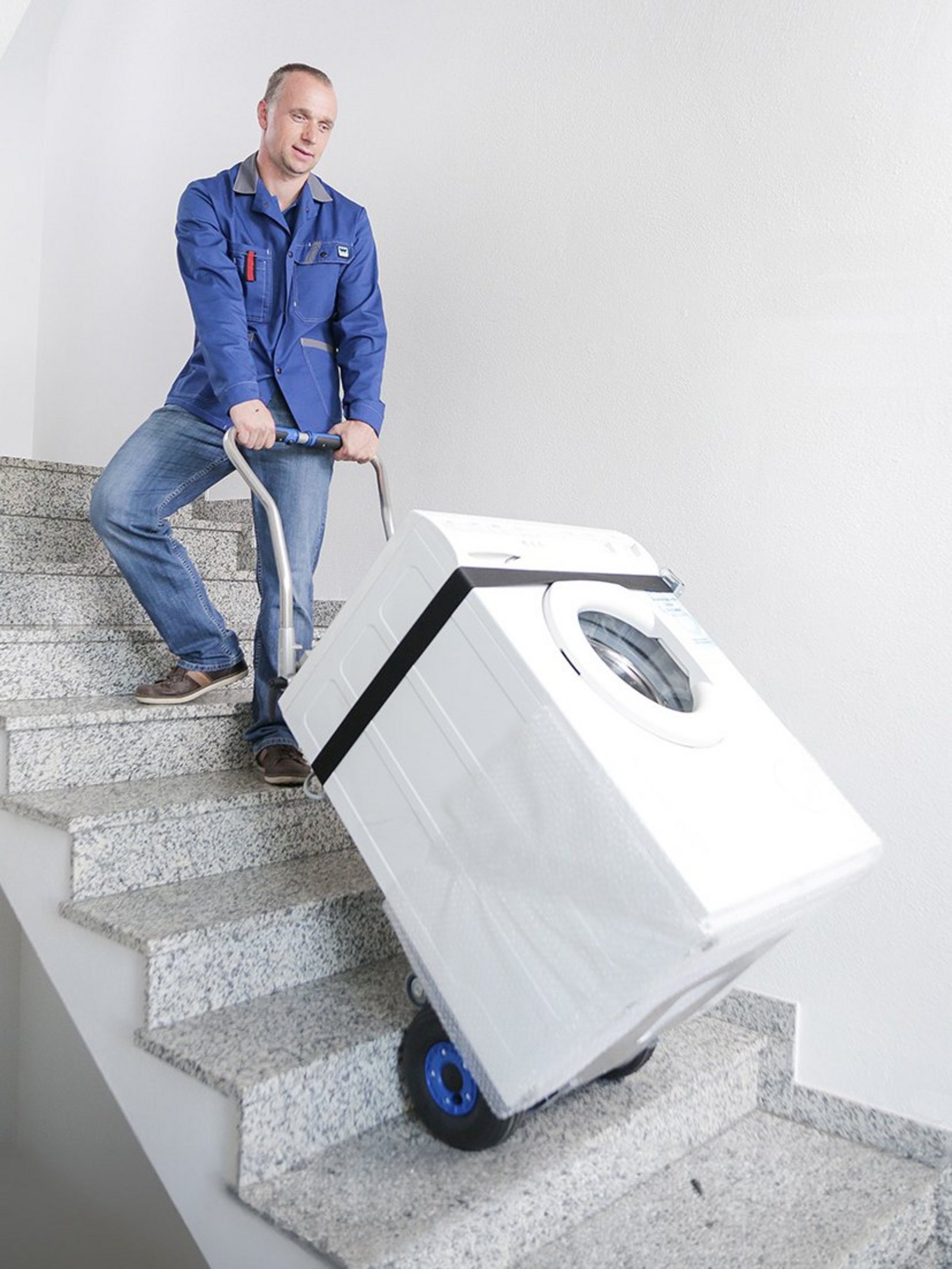

Ideal for transporting white goods up and down stairs.

Whether compact floor grinders, oxygen cylinders, or dishwashers - with the LiftKar SAL FOLD model, you can balance the load with ease. This means that even difficult loads can be transported safely, in an upright position, and without straining your back.

The LiftKar SAL FOLD is ideal for transporting appliances up and down stairs. The patented folding mechanism allows the handlebar to be optimally adjusted to the load. Despite its low weight of 44 lbs, the LiftKar SAL FOLD can also handle heavy loads.

The LiftKar SAL FOLD is available in three weight classes: 242 lbs, 308 lbs, and 375 lbs.

Applications

The LIFTKAR SAL stairclimbers
in daily situations

Extras & Accessories

Additional options
matching your needs

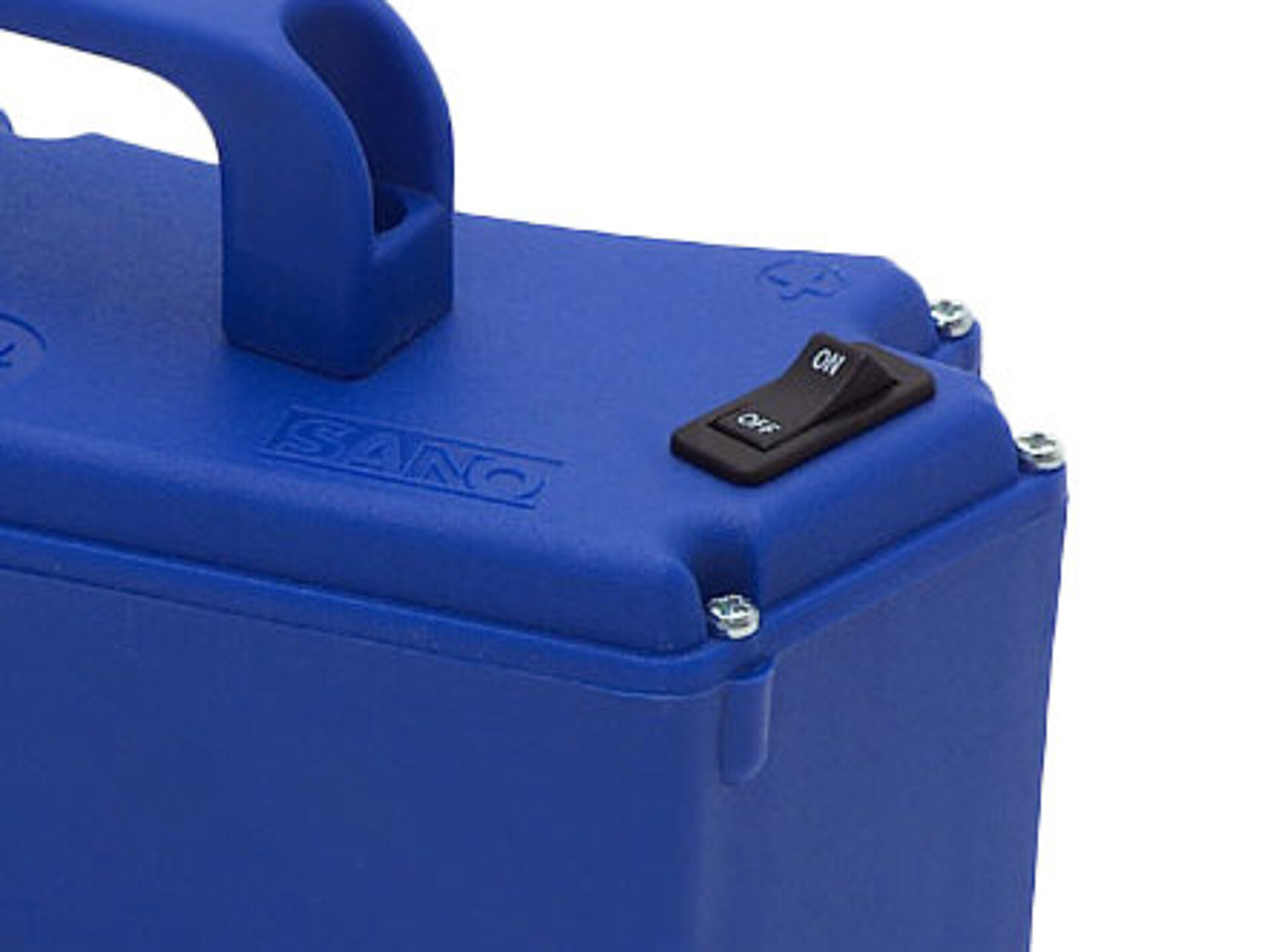

Quick-change battery unit BU-SAL/HD
24 VDC, 5 Ah

Art. no. 004 110

i

Battery unit BU-SAL/HD

Standard equipment

100-230 VAC

Art. no. 045141

i

Battery charger PT/SAL/HD

Standard equipment

Art. no. 930 600

i

In-transit charger BC 10-30 VDC

Optionally available

including in-transit battery charger BC 10-30 VDC-SAL
Art. no. 930 114

i

Battery holder with in-transit charger

Optionally available

Keeps the battery securely in place on bumpy ground.
Art. no. 930 140

i

Battery-blocker

Optionally available

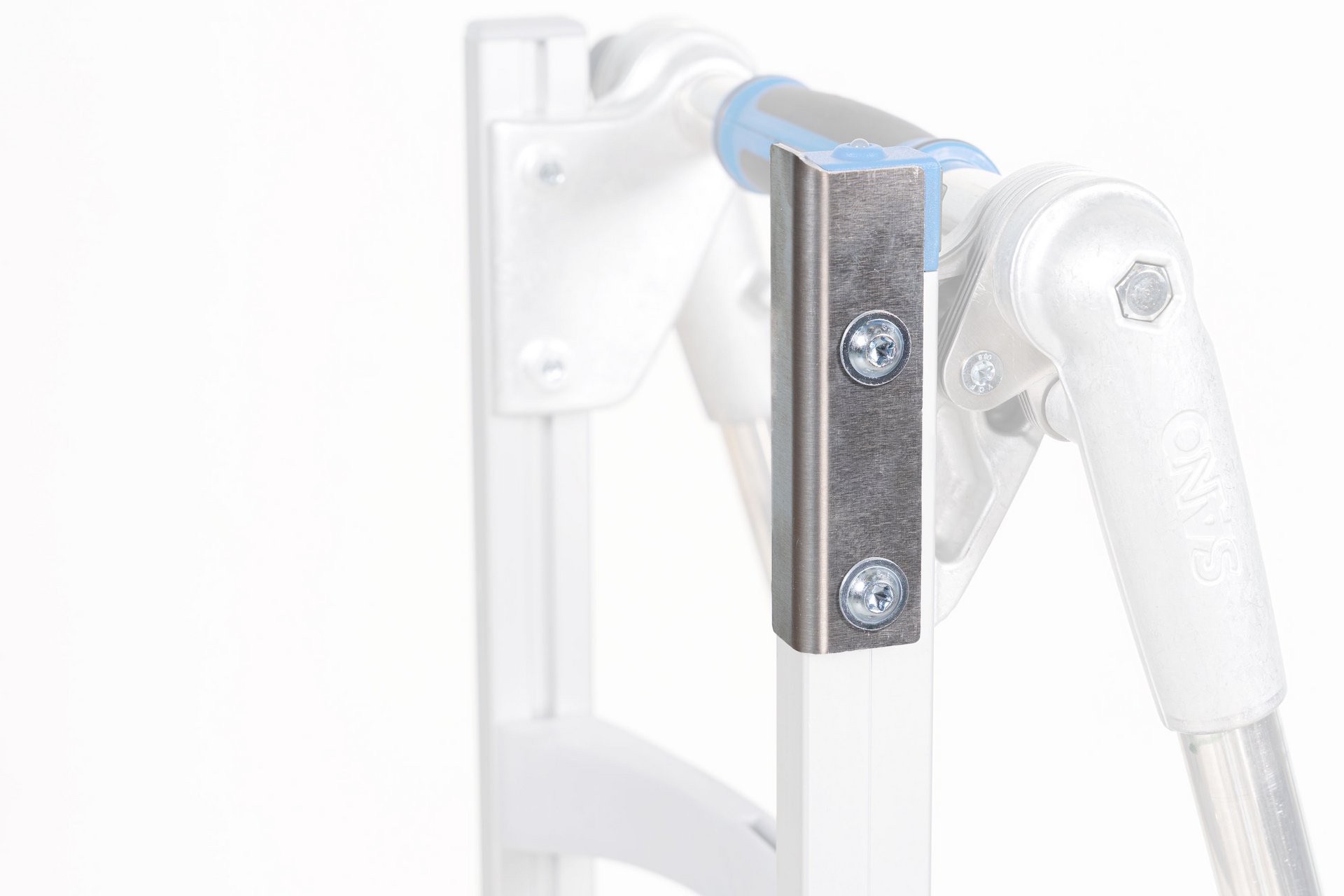

Protection plate for LiftKar SAL UNI, ERGO, FOLD-L
for NEO LiftKar SAL ERGO, UNI, FOLD-L
Art. no. 930 181

Protection plate for LiftKar SAL FOLD
for NEO LiftKar SAL FOLD
Art. no. 930 182

i

Protection plate

Optionally available

Art. nr. 930 108

i

Keg hook

Optionally available

fixation belt 3,5 m / 50 mm

With special hooks for optimum load fixation and robust metal lashing buckle.


Art. no. 930 123

i

Fixation belt 3,5 m / 50 mm

Optionally available

Fixation belt 1,40 m / 25 mm
Art. no. 930 006

i

Fixation belt 1,40 m / 25 mm

Optionally available

Art. no. 930 107

i

Twin bottle holder

Optionally available

Platform 600 x 590 mm, height 600 mm, incl. mounting pins, to be used with WL and XWL toe plates, hinged or fixed

Art. no. 930 129

i

Table platform

Optionally available

Lifting system 900 mm
for loads up to 120 kg (folding shovel available as option)
Art. no. 930 173


Lifting system 1100 mm
for loads up to 120 kg (folding shovel available as option)
Art. no. 930 184

Fits to: NEO LiftKar SAL ERGO, FOLD-L, UNI
and LiftKar SAL ERGO, FOLD-L, UNI


i

Lifting system

Optionally available

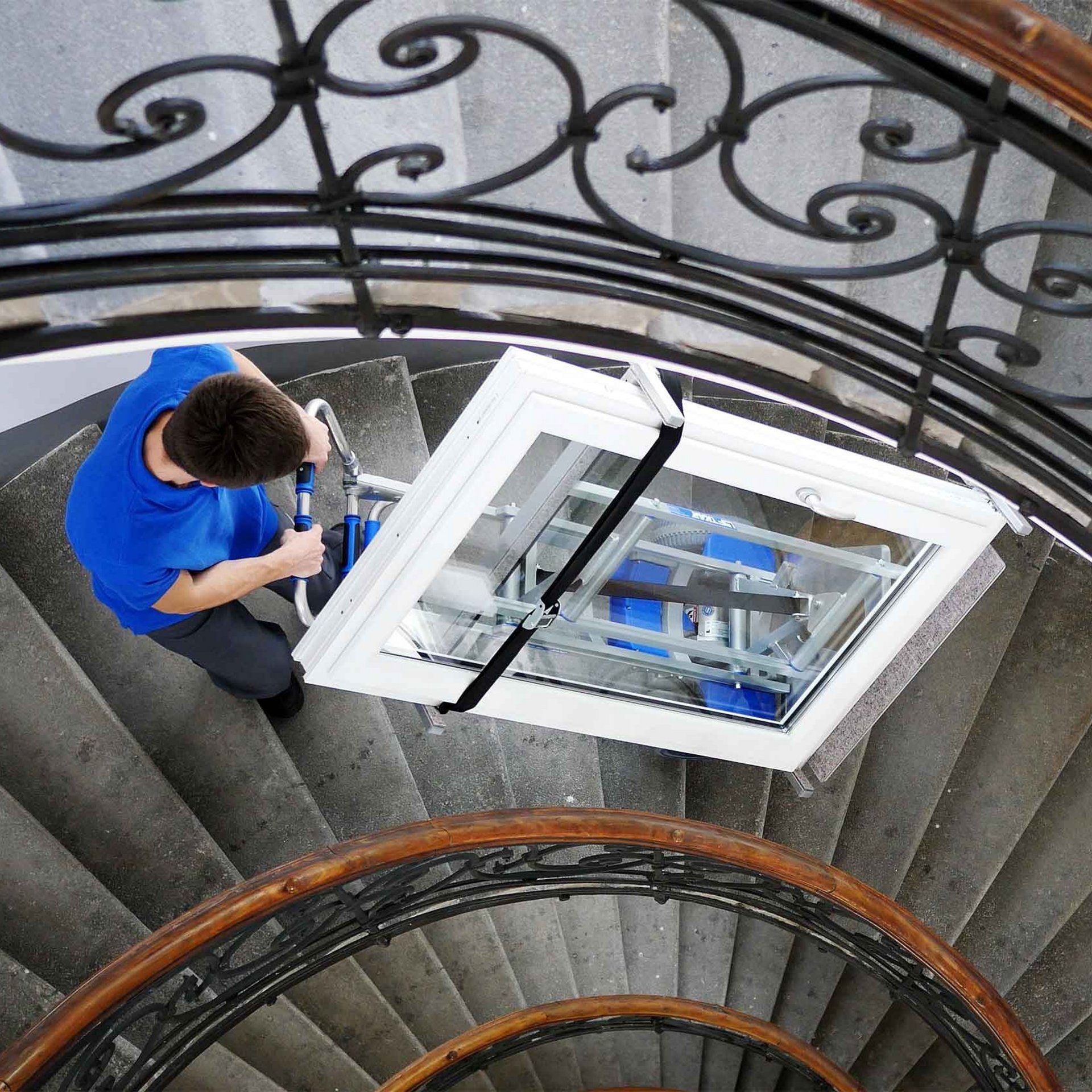

Door and panel holder for NEO LiftKar SAL UNI, ERGO, FOLD-L
and for LiftKar SAL UNI, ERGO, FOLD-L

for loads up to 150 kg
Art. no. 930 153

(incl. fixation belt 3,5 m / 50 mm
Art. no. 930 123)

i

Door and panel holder

Optionally available

Ratched strap with roll-up mechanism instead of standard belt for door and panel holder for SAL
Art. no. 930 196

i

Ratched belt with roll-up mechanism

Optionally available

Capacity 80 kg, max. number of chairs approx. 15 pieces

Art. no. 930 183

i

Chair holder

Optionally available

Bag incl. holder, blue

for belt, charger, and much more

Art. no. 935 140



Bag incl. holder, red

for belt, charger, and much more

Art. no. 935 146

i

Bag incl. holder

Optionally available

for your company logo

Art. no. 935100

i

Advertising panel

Optionally available

for 6 bottles, fixed toe plate for 2 bottles or cooler/stacked goods and 4 hinged bottle carriers
Art. no. 930 132

Fits to: NEO LiftKar SAL ERGO, UNI
and LiftKar SAL ERGO, UNI

i

Water bottle attachment

Optionally available

instead of hinged
Art. no. 930 103

i

Fixed toe plate, assembled

Optionally available

Puncture-proof tyres

grey, per pair

Art. no. 930 119



Main wheel grey

non-marking, per pair

Art. no. 930 109

i

Tyres

Optionally available

Short
length: 334 mm  /  13.1", per pair for LiftKar SAL FOLD
Art. no. 930 126

Long
length: 840 mm  /  33", per pair for NEO LiftKar SAL ERGO, FOLD-L, UNI
and LiftKar SAL ERGO, FOLD-L, UNI
Art. no. 930 131

i

Wings for white goods - SAL

Optionally available

Bar, center support
flat support surface
Art. no. 930 133

Centre bar
with addit. rung
Art. no. 930 105


Fits to: LiftKar SAL UNI, ERGO

i

Bar, center support / Centre bar

Optionally available

Wheel base extension 80 mm
80 mm wider, per pair
Art. no. 930 111

i

Wheel base extension

Optionally available

for LiftKar SAL
Art. no. 930 193

i

Ratched belt with roll-up mechanism - complete

Optionally available

450x190x7 mm
also for packages
Art. no. 930 085

i

Toe plate DS-NG

Optionally available

420x340x7 mm
for large packages
Art. no. 930 003

i

Toe plate G

Optionally available

476x239x7 mm
as used in the beverages industry; wide enough for safe transport
of kegs and crates - no straps required
Art. no. 930 030

i

Toe plate GS

Optionally available

476x239x7 mm
for packages (e.g.: beverage cans)
Art. no. 930 084

i

Toe plate GS-NG

Optionally available

467x278x5 mm
same as toe plate V but larger
Art. no. 930 002

i

Toe plate LH

Optionally available

275x236x7 mm
with grooves to prevent load slipping sideways
Art. no. 030 025

i

Toe plate Standard

Optionally available

413x233x5 mm
toe plate for transporting oxygen cylinders, etc.
Art. no. 930 001

i

Toe plate V

Optionally available

356x180x7 mm
for white goods, refilling vending machines etc.
Art. no. 930 018

i

Toe plate WL

Optionally available

590x180x7 mm
also for white goods, feet stand on toe plate
Art. no. 930 074

i

Toe plate XWL

Optionally available

Technical data

The LIFTKAR SAL stairclimbers
in figures and facts

Description

Load capacity

Load capacity | Pounds

Weight base unit without battery
Weight base unit without battery | Pounds
Battery weight
Battery weight | Pounds
Autonomy (max.)
Climbing speed (steps / min.)
For use on steep and narrow spiral staircases
Foldable
Transportation over stairs
Transportation on flat surfaces
Maximum step height

Dimensions (height/width/depth)

Dimensions (height/width/depth) | Inch

LiftKar SAL FOLD
folding model, fits in any car boot



110 kg / 140 kg / 170 kg





242.5 lbs / 308.6 lbs / 374.8 lbs





16 kg





35.2 lbs





4 kg





8.8 lbs



300 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
✔
✔
✔
210 mm

1450 (folded 1000) / 480 / 280 mm

57.1" (39.3" folded) / 18.9" / 11"

LiftKar SAL UNI
The lightweight all-rounder for higer loads



110 kg / 140 kg / 170 kg





242.5 lbs / 308.6 lbs / 374.8 lbs





15,5 kg





34.1 lbs





4 kg





8.8 lbs



300 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
-
✔
✔
210 mm

1530 / 480 / 280 mm

60.2" / 18.9" / 11"

LiftKar SAL ERGO
upright posture and maximum control



110 kg / 140 kg / 170 kg





242.5 lbs / 308.6 lbs / 374.8 lbs





16 kg





35.2 lbs





4 kg





8.8 lbs



300 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
-
✔
✔
210 mm

1570 / 480 / 410 mm

61.8" / 18.9" / 16.1"

LiftKar SAL FOLD-L
folding model with higher base frame



110 kg / 140 kg / 170 kg






242.5 lbs / 308.6 lbs / 374.8 lbs





17 kg





37.4 lbs





4 kg





8.8 lbs



300 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
✔
✔
✔
210 mm

1630 (folded 1305) / 480 / 280 mm


64.1" (51.3" folded) / 18.9" / 11"

download as PDF
Description
Ideal for

Load capacity

Load capacity | Pounds

Weight base unit without battery
Weight base unit without battery | Pounds
Battery weight
Battery weight | Pounds
Autonomy (max.)
Climbing speed (steps / min.)
For use on steep and narrow spiral staircases
Foldable
Transportation over stairs
Transportation on flat surfaces
Maximum step height

Dimensions (height/width/depth)

Dimensions (height/width/depth) | Inch

LiftKar SAL UNI
The lightweight all-rounder for higer loads
Photocopy paper, laundry containers, cupboard, rolling goods



110 kg / 140 kg / 170 kg





242.5 lbs / 308.6 lbs / 374.8 lbs





15,5 kg





34.1 lbs





4 kg





8.8 lbs



300 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
-
✔
✔
210 mm

1530 / 480 / 280 mm

60.2" / 18.9" / 11"

to the model
NEO LiftKar SAL UNI
The professional for tall loads
copier paper, laundry containers, cupboards, rolled goods



110 kg / 140 kg / 170 kg





242.5 lb / 308.6 lb / 374.8 lb





15,5 kg





34.1 lbs





1,6 kg





3.5 lbs



approx. 2000 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
-
✔
✔
210 mm

1530 / 480 / 280 mm

60.2" / 18.9" / 11"

to the model
download as PDF
Description
Ideal for

Load capacity

Load capacity | Pounds

Weight base unit without battery
Weight base unit without battery | Pounds
Battery weight
Battery weight | Pounds
Autonomy (max.)
Climbing speed (steps / min.)
For use on steep and narrow spiral staircases
Foldable
Transportation over stairs
Transportation on flat surfaces
Maximum step height

Dimensions (height/width/depth)

Dimensions (height/width/depth) | Inch

LiftKar SAL ERGO
upright posture and maximum control
beer barrels, water bottles, drinks crates, stacks of tyres



110 kg / 140 kg / 170 kg





242.5 lbs / 308.6 lbs / 374.8 lbs





16 kg





35.2 lbs





4 kg





8.8 lbs



300 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
-
✔
✔
210 mm

1570 / 480 / 410 mm

61.8" / 18.9" / 16.1"

NEO LiftKar SAL ERGO
The specialist for stacked goods
beer kegs, water bottles, beverage crates, tyre stacks



110 kg / 140 kg / 170 kg






242.5 lbs / 308.6 lbs / 374.8 lbs





16,0 kg





35.2 lbs





1,6 kg





3.5 lbs



approx. 2000 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
-
✔
✔
210 mm

1600 / 480 / 410 mm


63" / 18.9" / 16.1"

download as PDF
Description
Ideal for

Load capacity

Load capacity | Pounds

Weight base unit without battery
Weight base unit without battery | Pounds
Battery weight
Battery weight | Pounds
Autonomy (max.)
Climbing speed (steps / min.)
For use on steep and narrow spiral staircases
Foldable
Transportation over stairs
Transportation on flat surfaces
Maximum step height

Dimensions (height/width/depth)

Dimensions (height/width/depth) | Inch

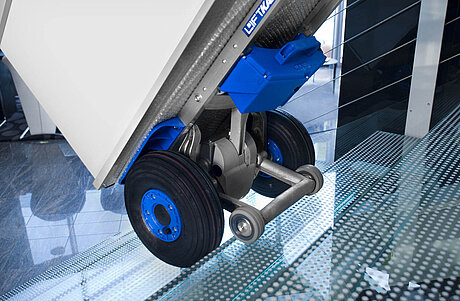

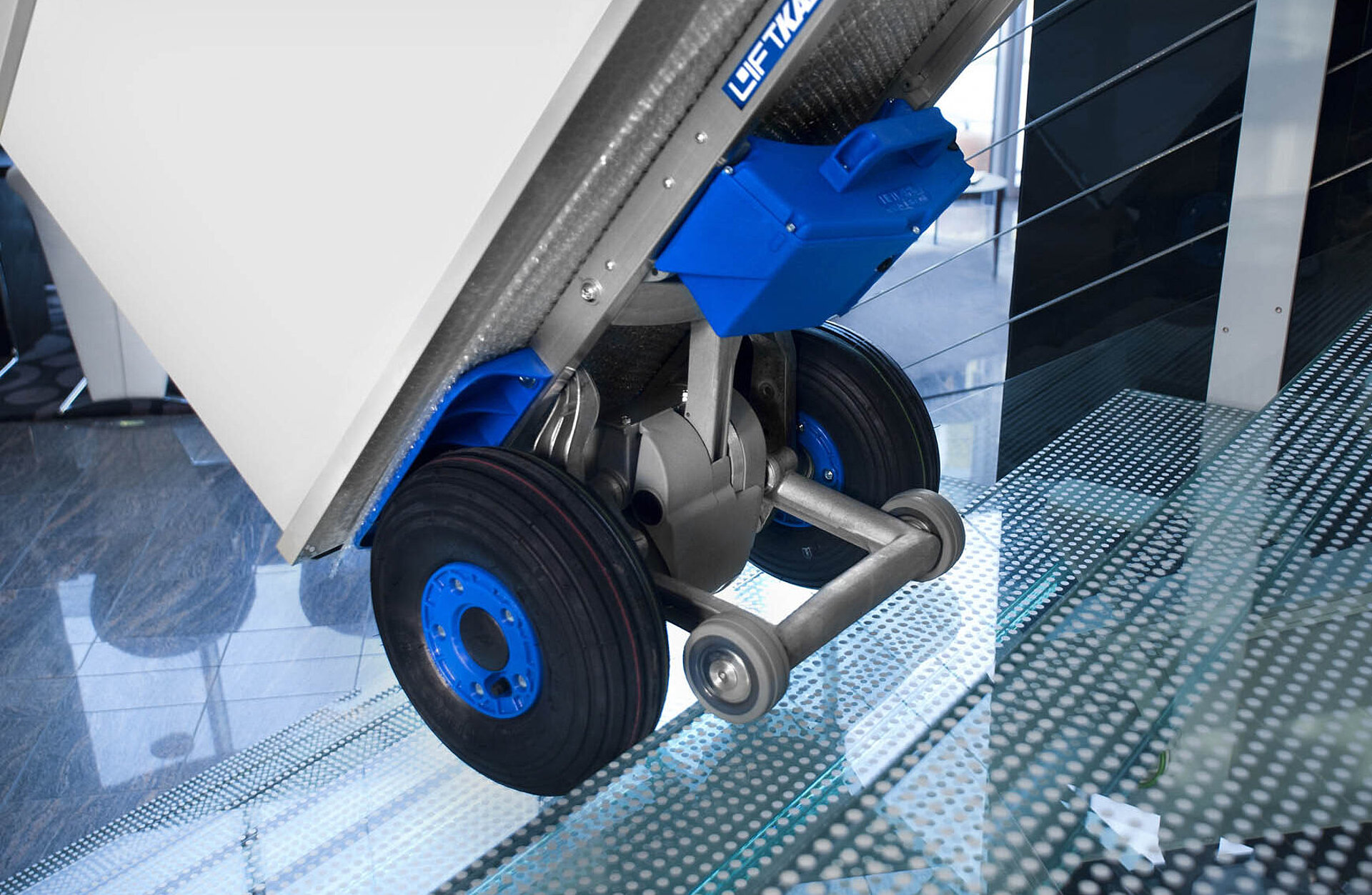

LiftKar SAL FOLD-L
folding model with higher base frame
large refrigerators, doors, windows, kitchen worktops, tiles



110 kg / 140 kg / 170 kg






242.5 lbs / 308.6 lbs / 374.8 lbs





17 kg





37.4 lbs





4 kg





8.8 lbs



300 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
✔
✔
✔
210 mm

1630 (folded 1305) / 480 / 280 mm


64.1" (51.3" folded) / 18.9" / 11"

NEO LiftKar SAL FOLD-L
The all-rounder, compact & stable
large refrigerators, doors, windows, furniture, kitchen worktops, tiles



110 kg / 140 kg / 170 kg






242.5 lbs / 308.6 lbs / 374.8 lbs





17,2 kg





37.9 lbs





1,6 kg





3.5 lbs



approx. 2000 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
✔
✔
✔
210 mm

1740 (folded 1350) / 480 / 280 mm

68.5" (53.1" folded) / 18.9" / 11"

download as PDF
Description
Ideal for

Load capacity

Load capacity | Pounds

Weight base unit without battery
Weight base unit without battery | Pounds
Battery weight
Battery weight | Pounds
Autonomy (max.)
Climbing speed (steps / min.)
For use on steep and narrow spiral staircases
Foldable
Transportation over stairs
Transportation on flat surfaces
Maximum step height

Dimensions (height/width/depth)

Dimensions (height/width/depth) | Inch

LiftKar SAL FOLD
folding model, fits in any car boot
washing machines, floor sanding machines, gas cylinders



110 kg / 140 kg / 170 kg





242.5 lbs / 308.6 lbs / 374.8 lbs





16 kg





35.2 lbs





4 kg





8.8 lbs



300 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
✔
✔
✔
210 mm

1450 (folded 1000) / 480 / 280 mm

57.1" (39.3" folded) / 18.9" / 11"

NEO LiftKar SAL FOLD
The compact one, easy to transport
washing machines, gas cylinders, floor grinders



110 kg / 140 kg / 170 kg






242.5 lbs / 308.6 lbs / 374.8 lbs





16,0 kg





35.2 lbs





1,6 kg





3.5 lbs



approx. 2000 steps (up and down)
48 / 35 / 29 (steps/min.)
✔
✔
✔
✔
210 mm

1550 (folded 1000) / 480 / 280 mm


61" (39.3" folded) / 18.9" / 11"

Downloads

All information in PDF format

Catalogue LiftKar SALDownload PDF
Repair sheetDownload PDF
Data sheetDownload PDF
Users ManualDownload PDF
