LiftKar HD
Powered stairclimbers
for loads up to 792 lbs
Fast and powerful stairclimbers for loads up to 800 lbs When it's time to get the job done, the LiftKar HD Pro series is here to handle heavy and bulky loads including fridges, vending machines, large commercial printers, and other similar loads with professional ease. Designed for maximum efficiency, safety, and ergonomics, SANO products help protect your back from unnecessary strain, ensuring a smoother, safer work experience.

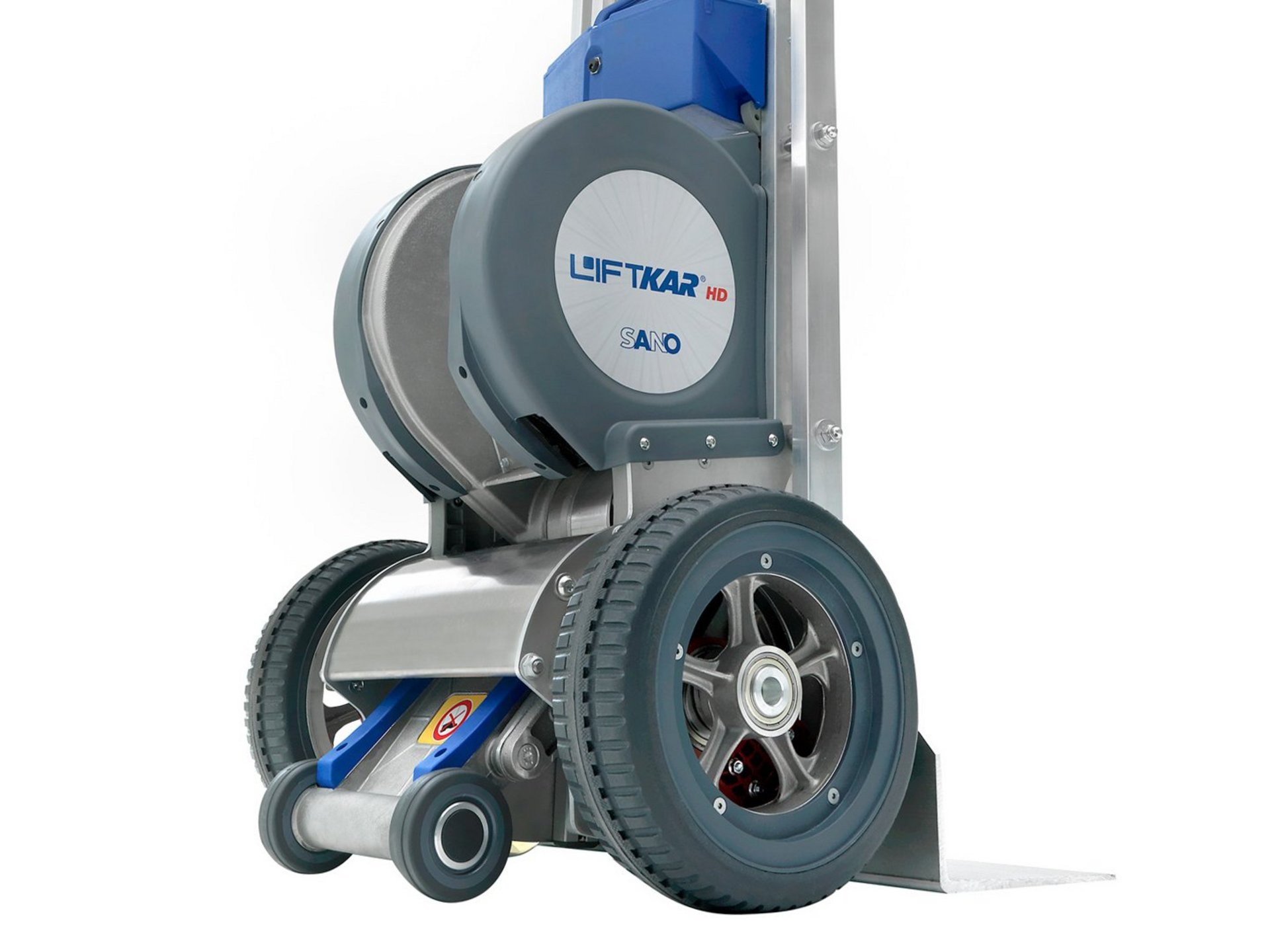

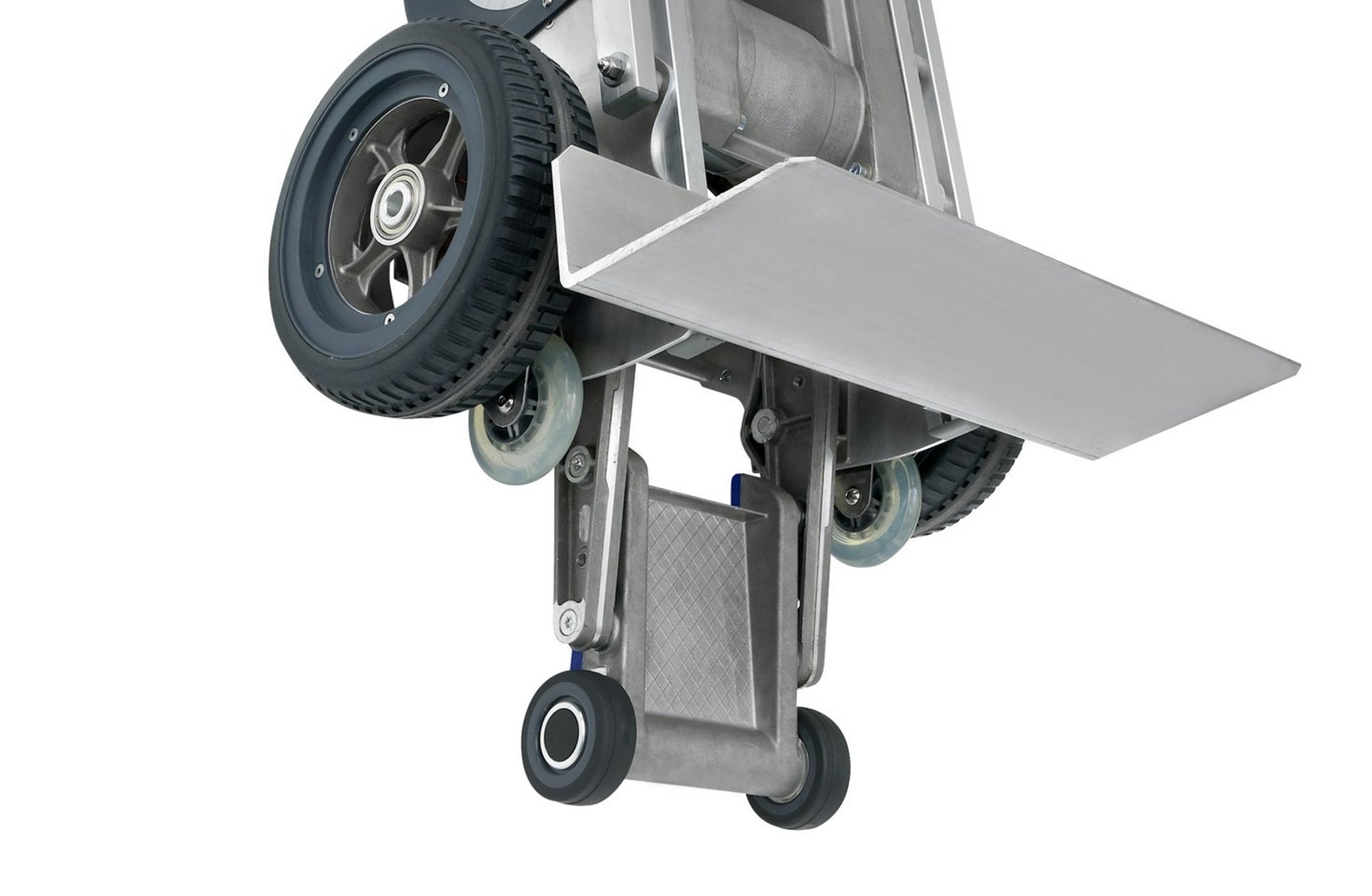

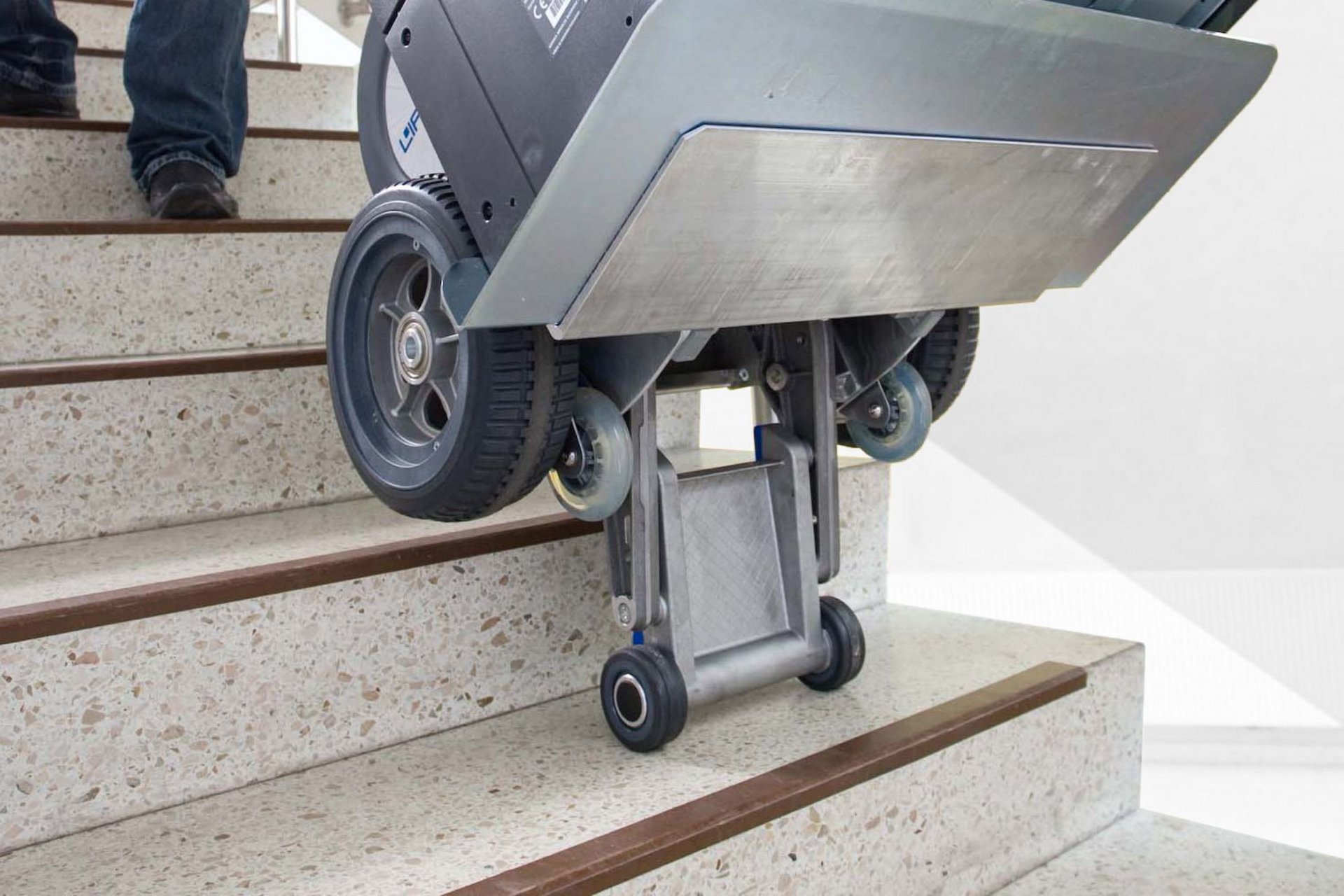

Universally Applicable The LiftKar HD Pro is as easy to use as a traditioanl handtruck. With the battery-powered climbing mechanism, the stairs can be climbed quickly and safely. The LiftKar HD Pro pushes itself up the stairs efficiently and precisely to the next step. Down steps, the motor acts like an eddy-current brake, enabling the load to descend at a safe smooth speed, with maximum controllability. The LiftKar HD Pro, has edge of step brake wheels which are engaged automatically when the machine is turned on. The HD Pro ensures that the user's backs are protected, and the risk of accidents is minimized.
Numerous Options to Fit Your Needs The LiftKar HD Pro has a lot of attachment options available which makes it ideal for any industry, trade and commerce, as well as in schools, hospitals, canteen kitchens, office buildings and much more. No matter what transport needs you have, the HD Pro is available in the right version. Many more options still to come!
modular lightweight construction

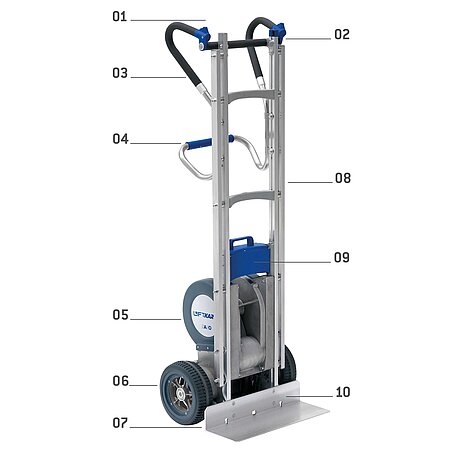

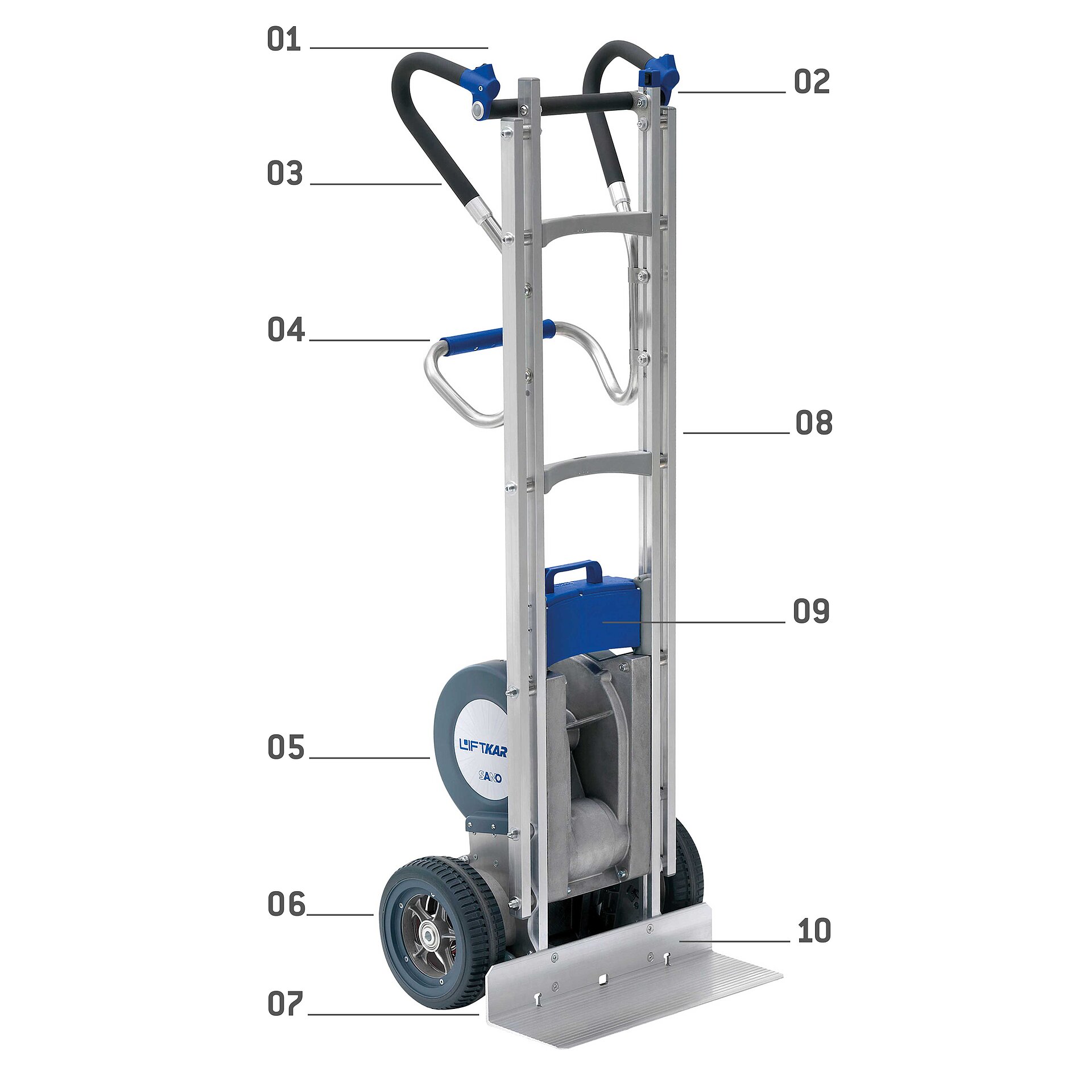

13 Unmatched Advantages setting
SANO Handtrucks apart from the others
- for loads up to 792 lbs
- for step heights up to 9 in
- two operating modes (single-step mode/continuous mode)
- modular lightweight construction

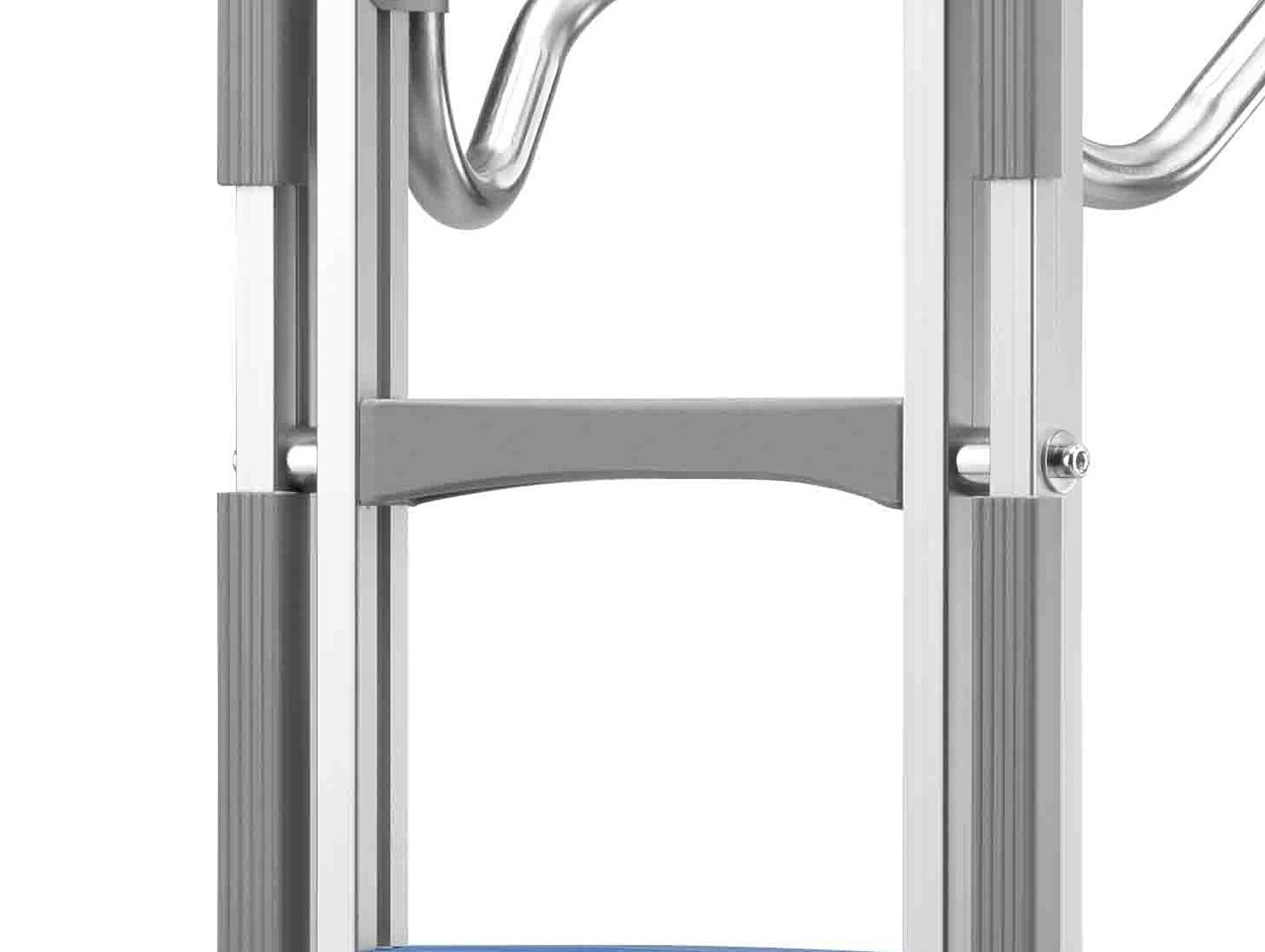

- rugged frame with patented SANO aluminium profiles

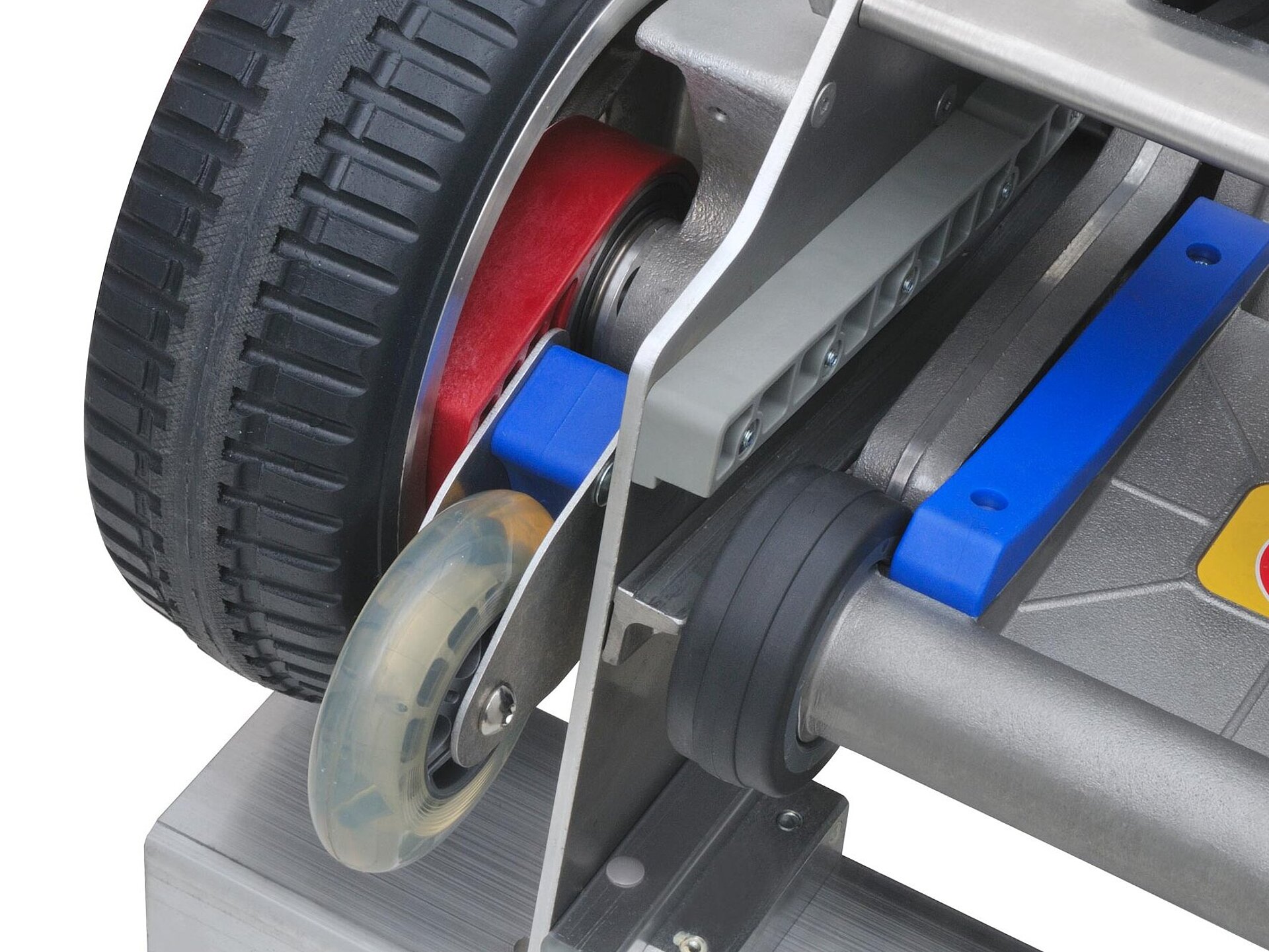

- innovative, integrated step step-edgeing system
- automatic shut-off mode
- ergonomic hand grips with non-slip rubber coating

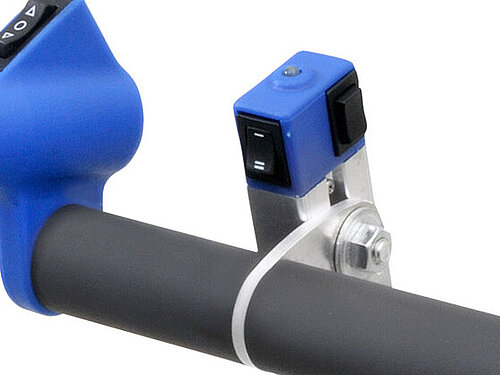

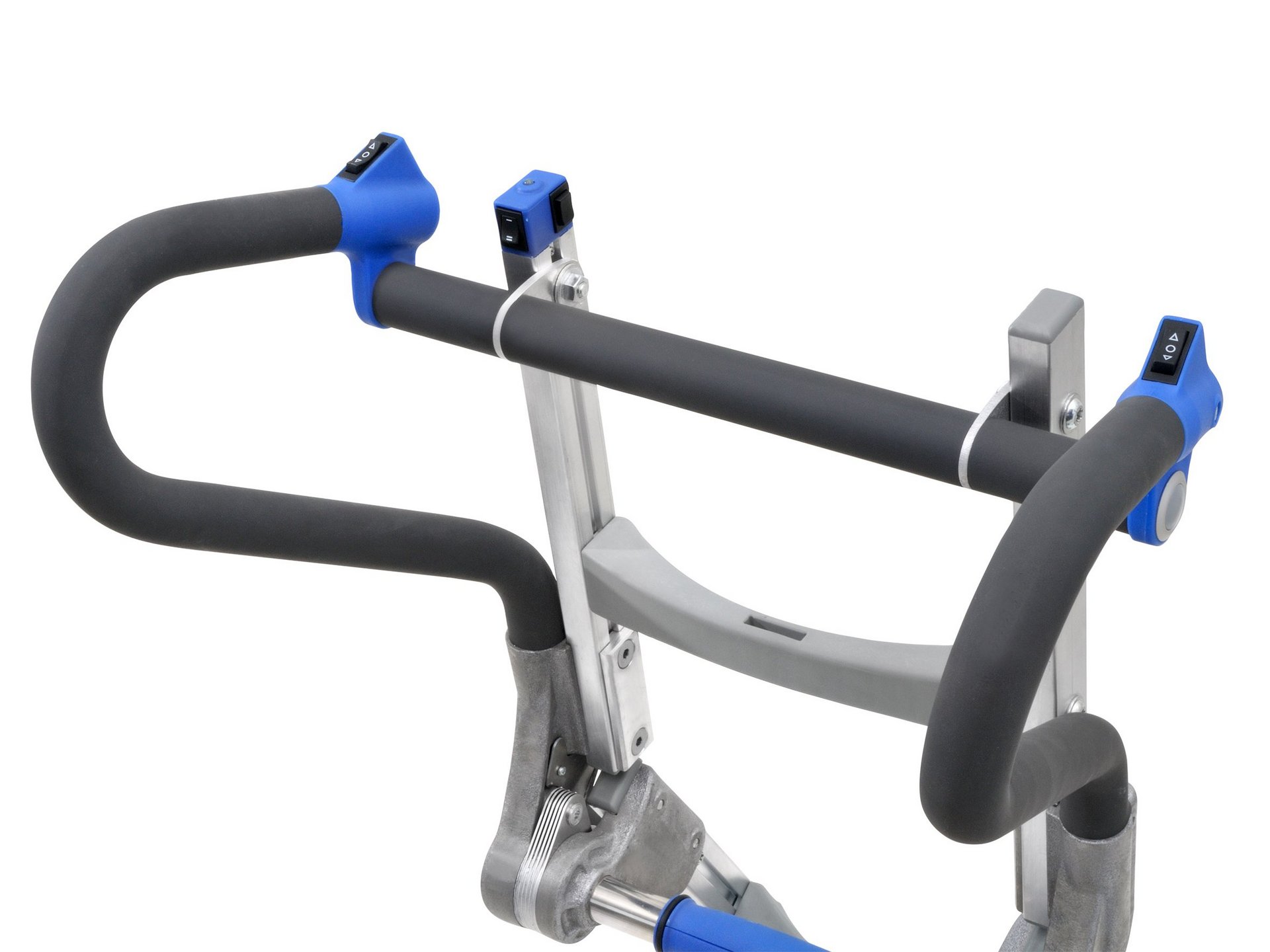

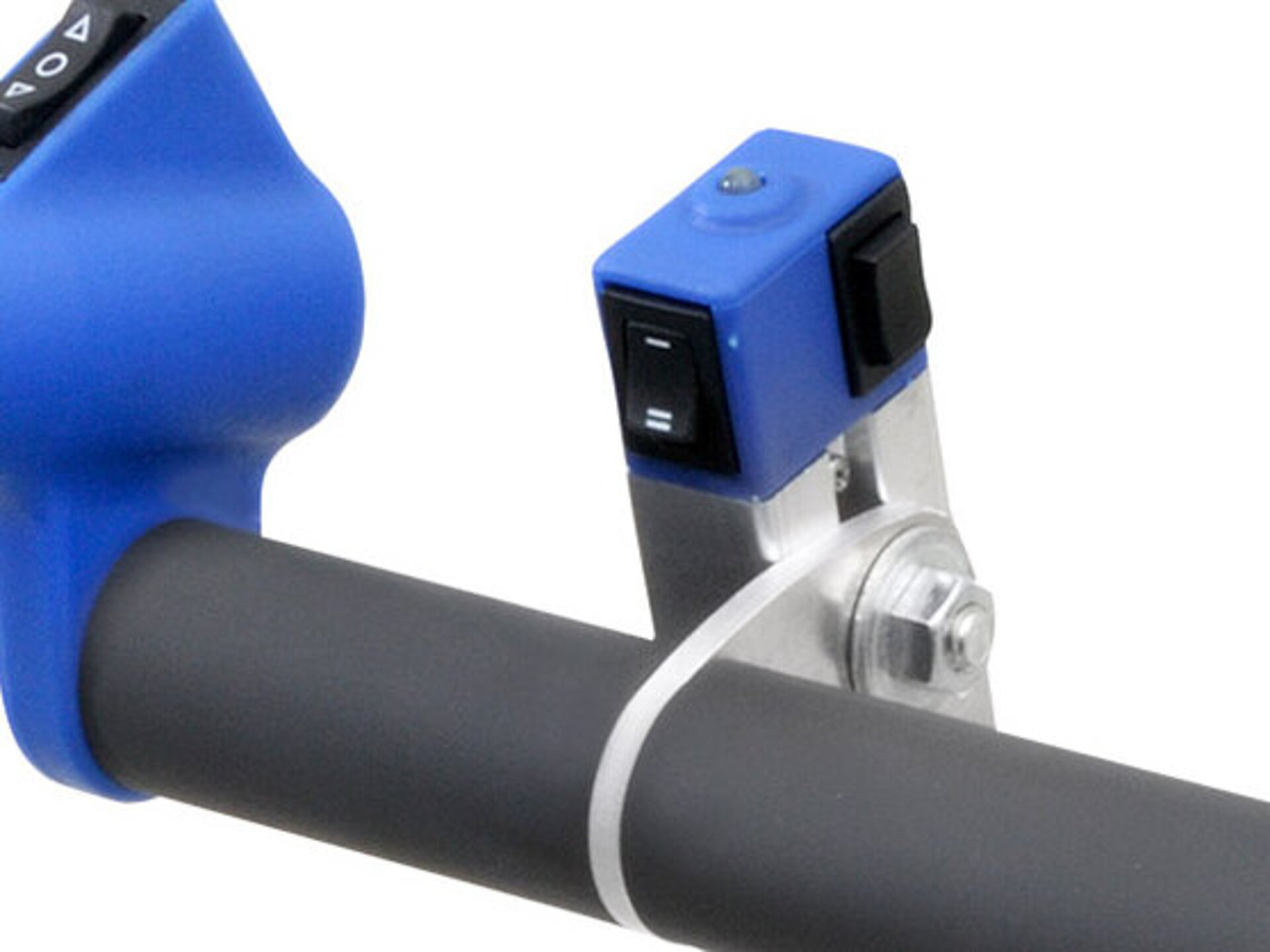

- UP/DOWN switch on both sides for left- and right-handed operators
- perfectly balanced climbing unit for safe operation on steps and stairs
- puncture-proof tires

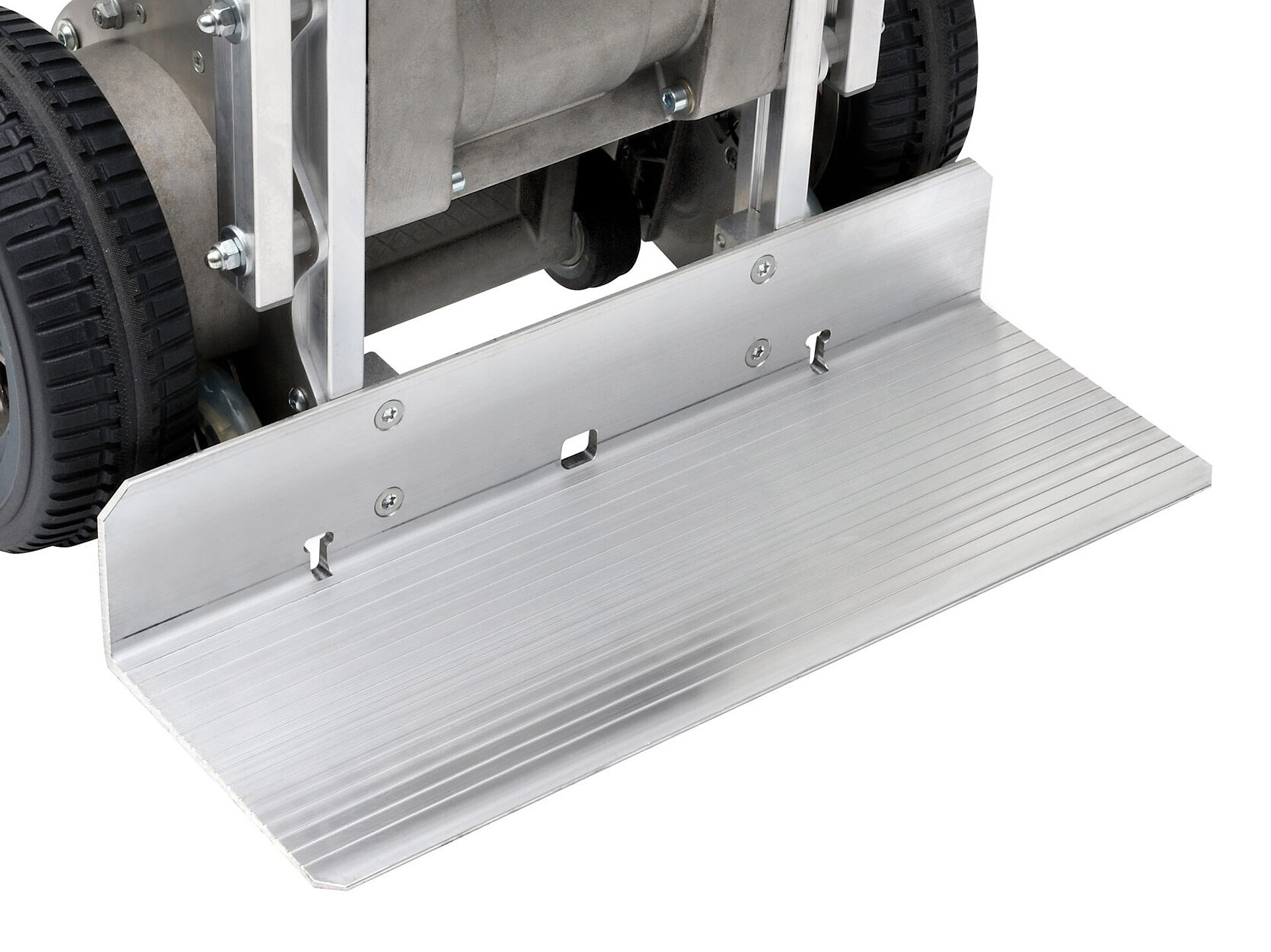

- high-strength aluminum toe plate

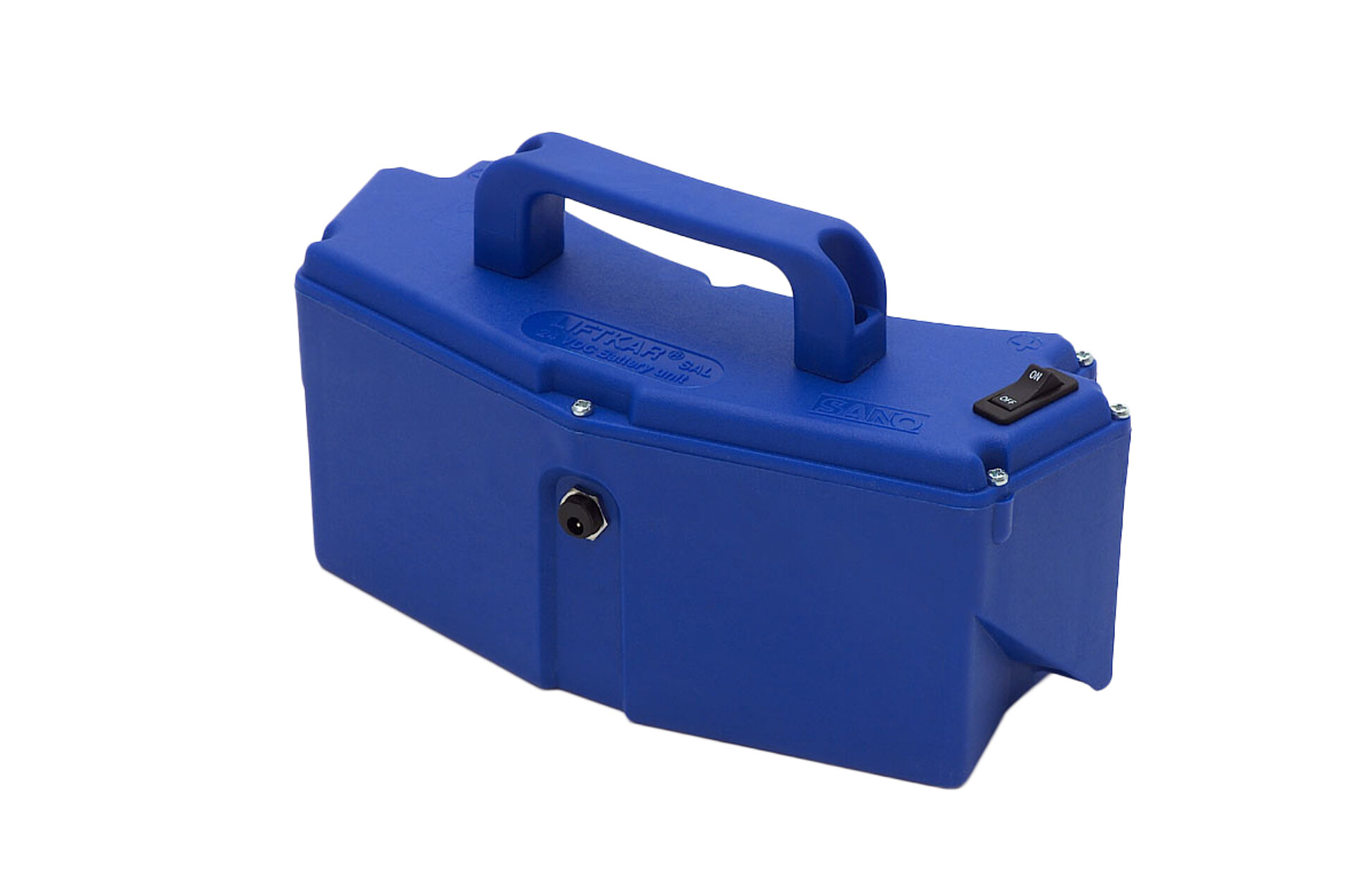

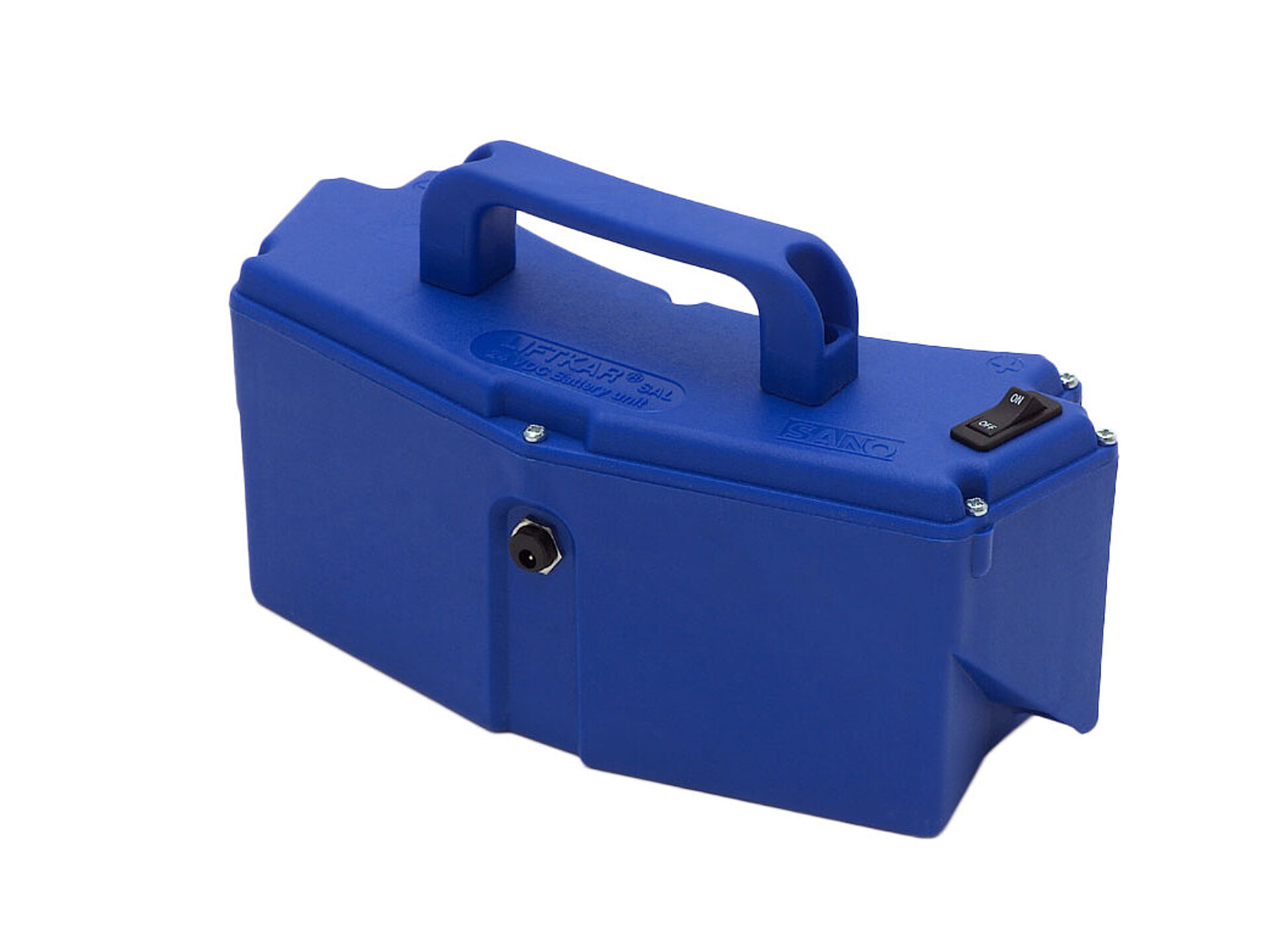

- 24-V quick-change battery unit
Full power for high and heavy loads.

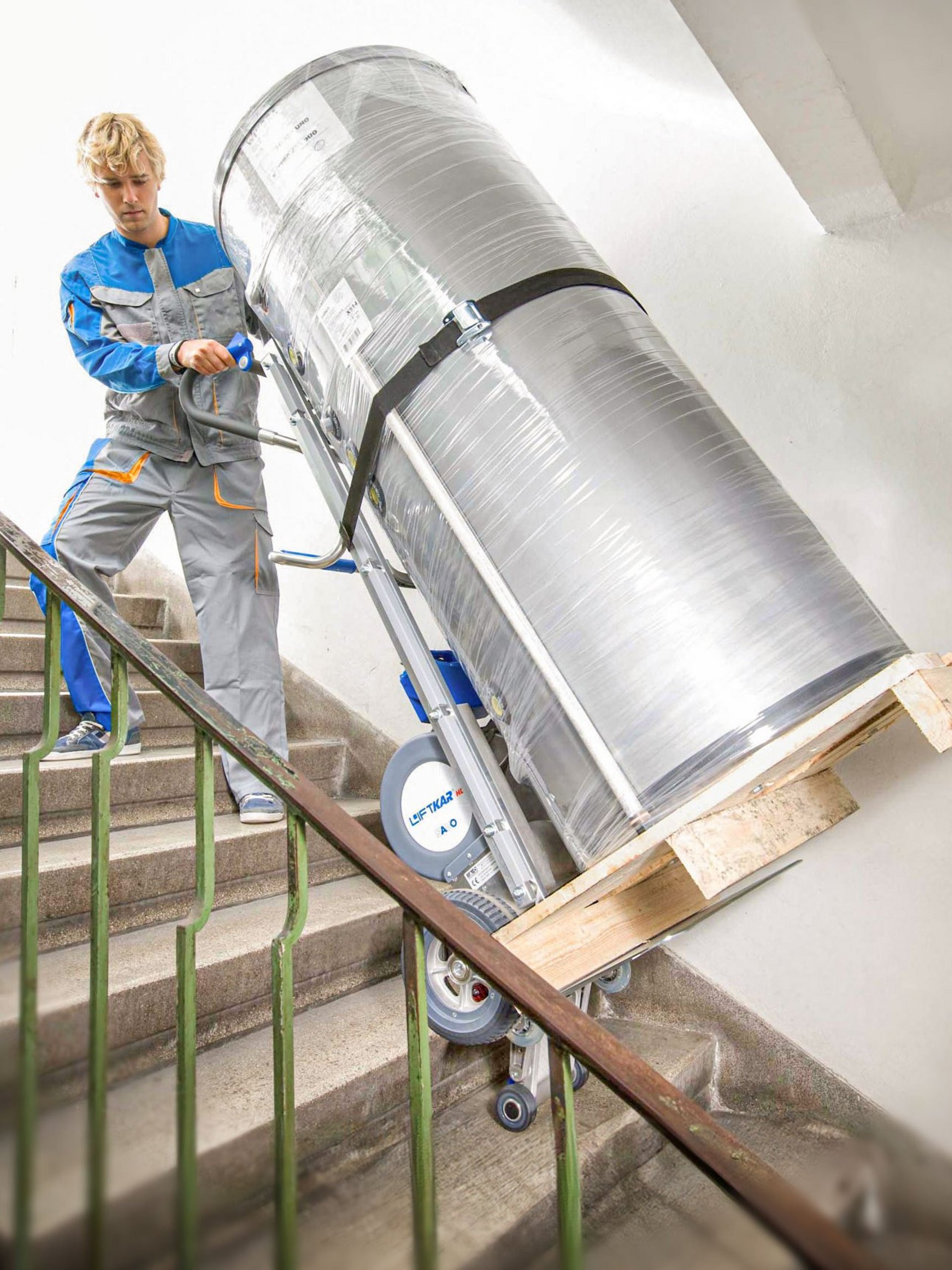

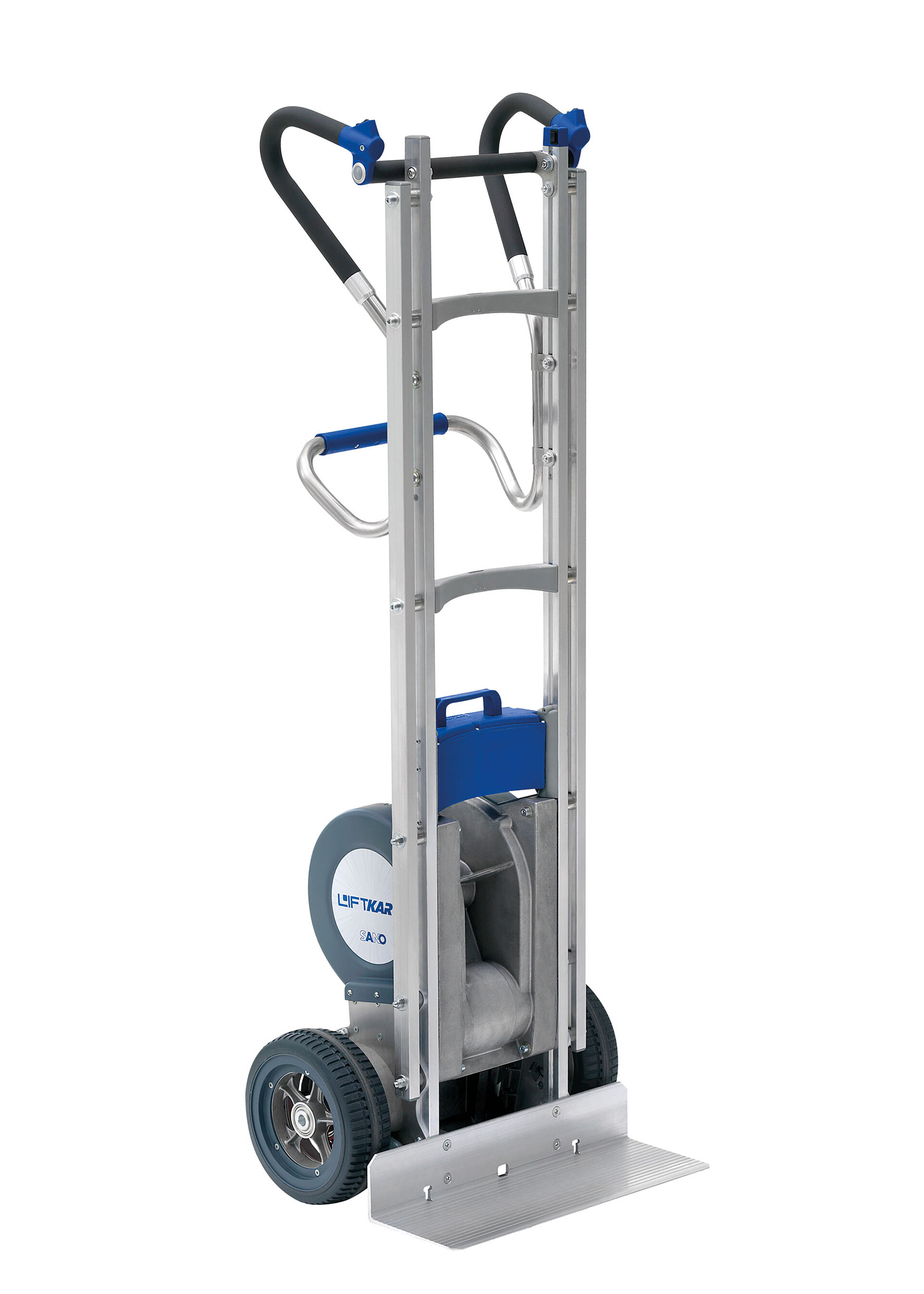

Whether electrical enclosures, drink dispensers, gaming machines, large boilers, solar heating vessels, heavy rolls of linoleum or stacks of crates, the LiftKar HD Universal has been specially designed to transport high and heavy loads over every kind of stairs.
If shifting high objects has usually been a balancing act, the LiftKar HD Universal manages these tasks effortlessly with its powerful motor. Thanks to its sleek design and innovative climbing technology, high and heavy objects can be transported safely and effortlessly up and down narrow staircases and even spiral stairs.

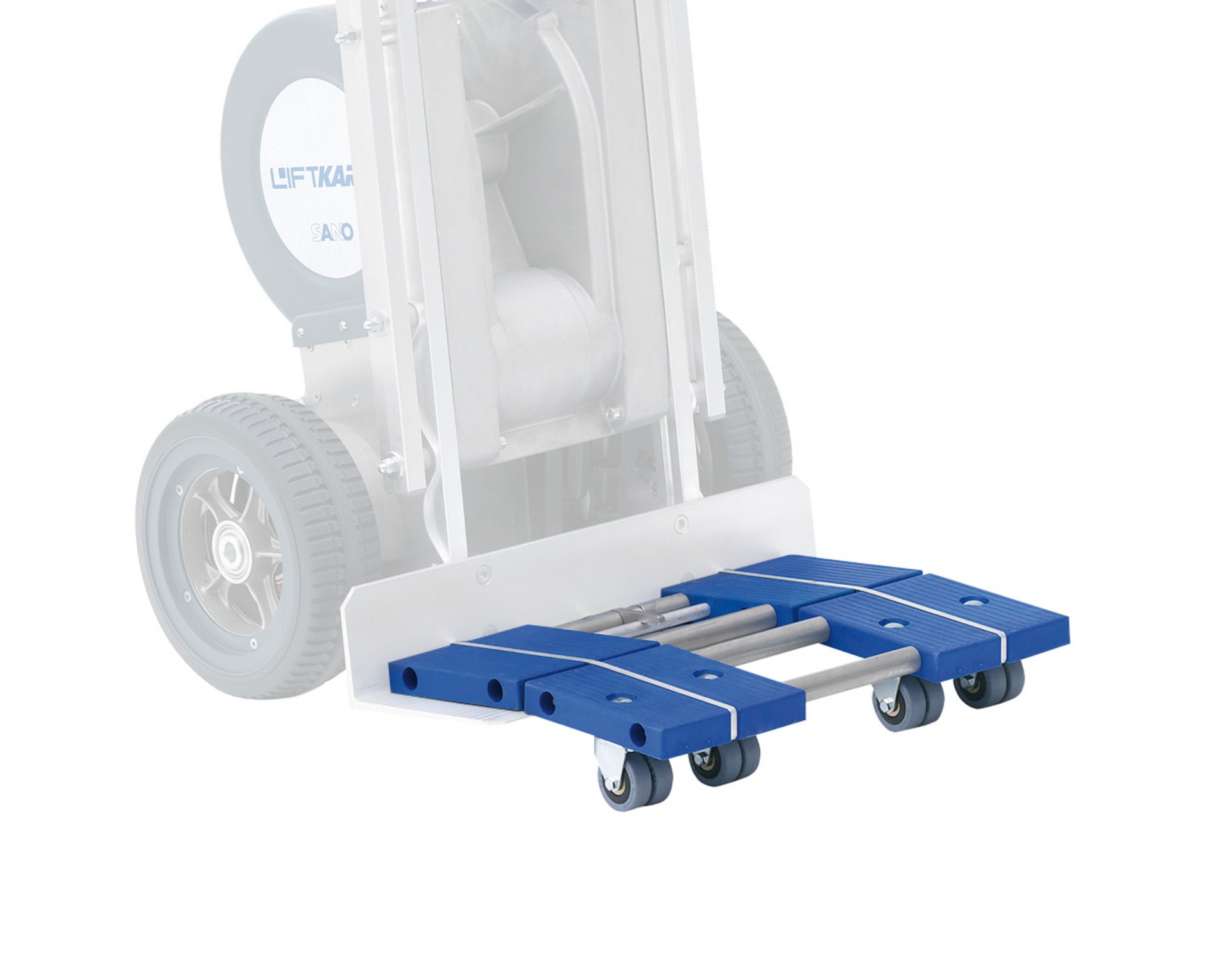

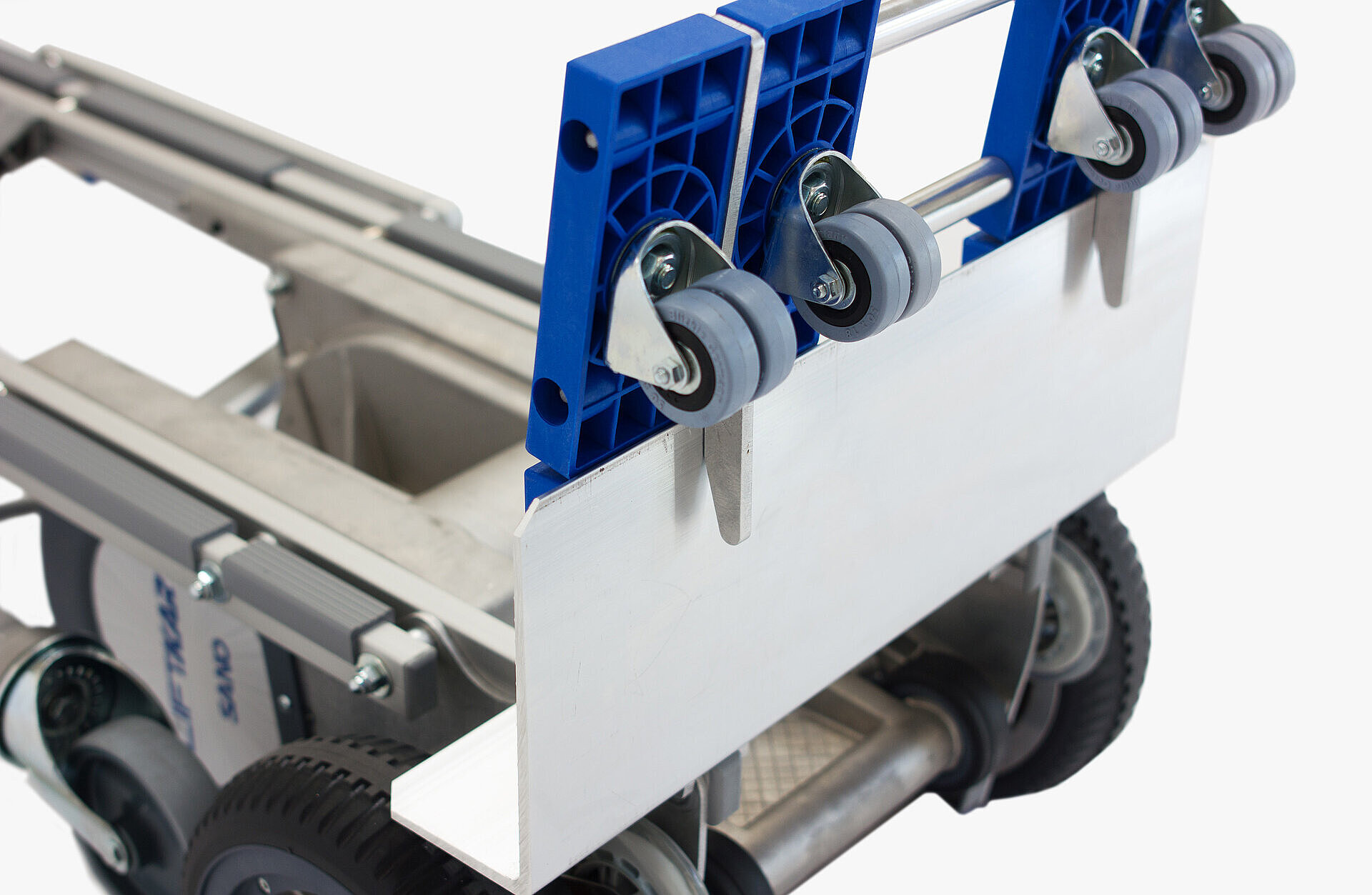

An add-on toe plate with four double castors is also available to make it even easier: now the LiftKar HD can be moved effortlessly on the level in an upright position without tipping over.
Available for the following maximum loads:
- LiftKar HD 220 Uni: for a maximum load of 484 lbs
- LiftKar HD 330 Uni: for a maximum load of 726 lbs
- LiftKar HD 360 Uni: for a maximum load of 792 lbs

Transport tall and heavy loads perfectly, also on the level.

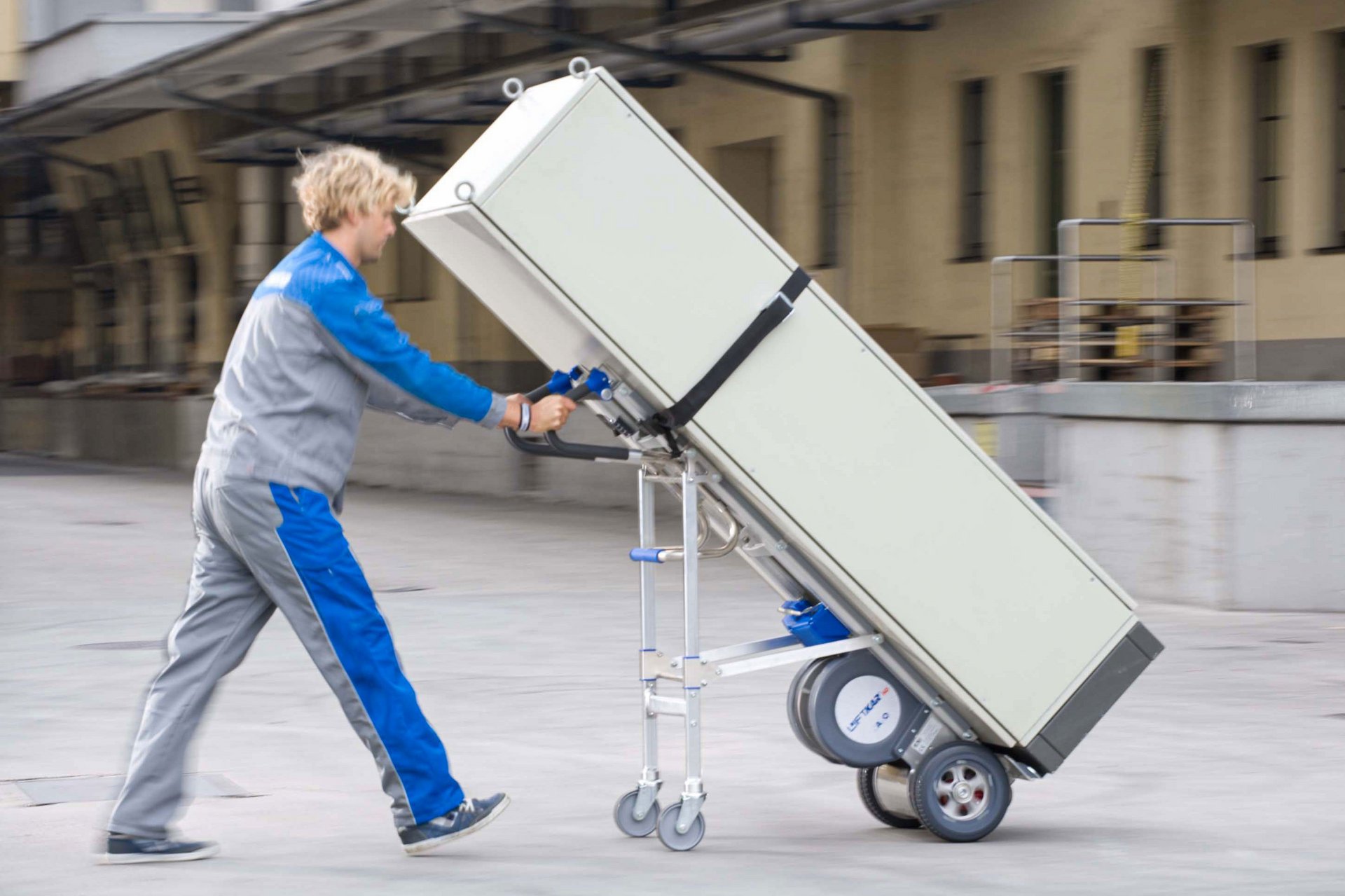

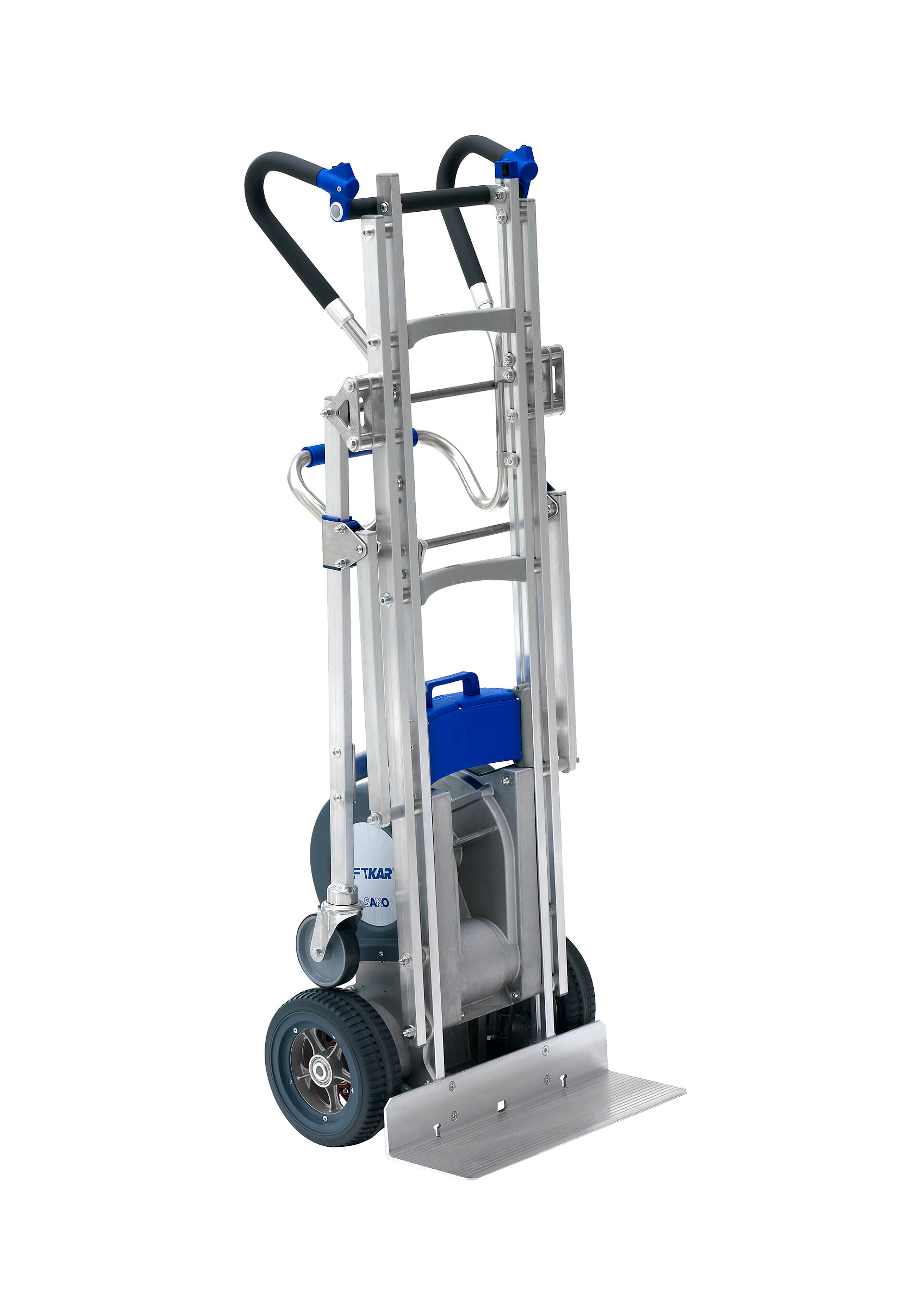

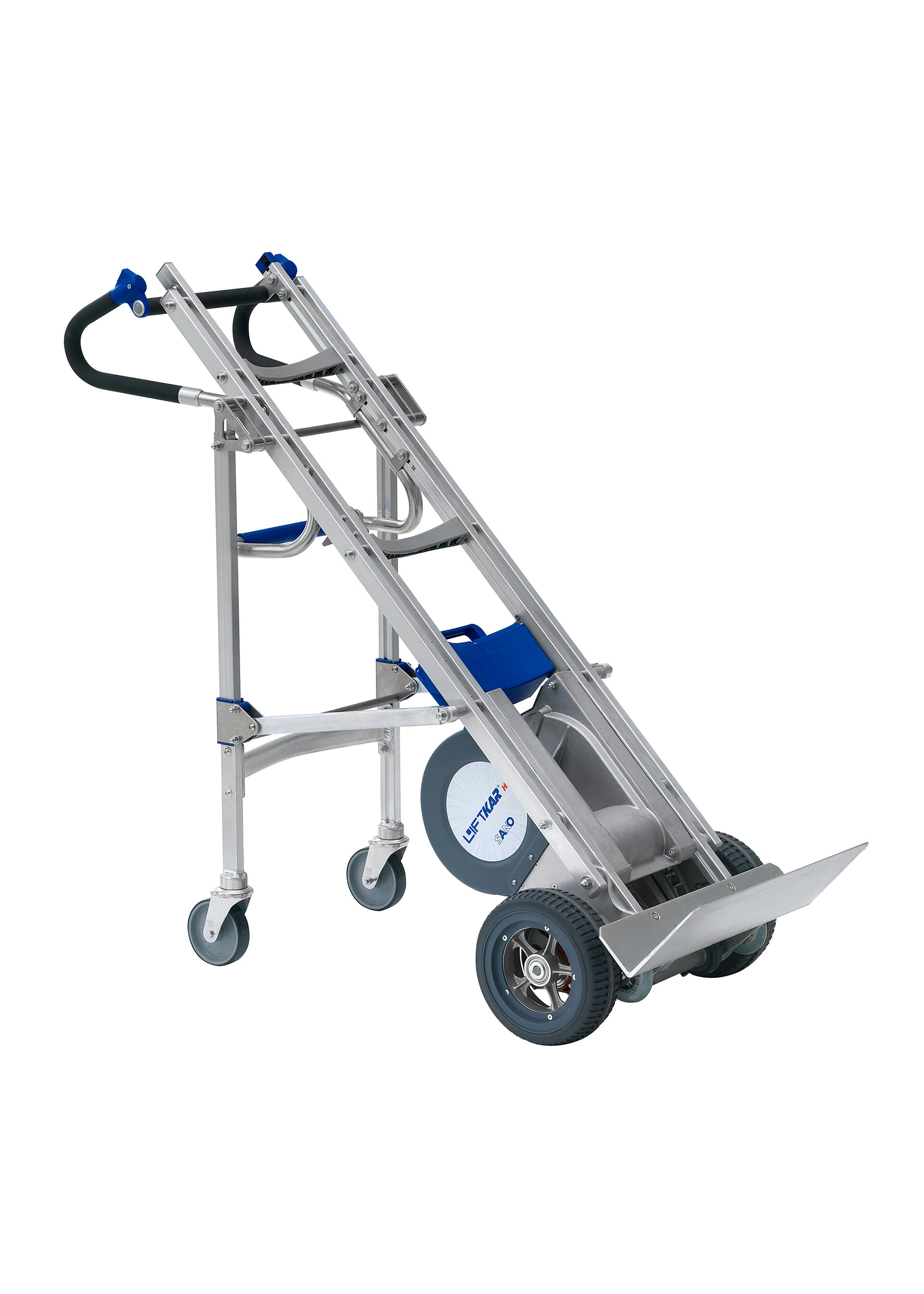

With the stairs behind us, we've still got level ground to cross. - With the LiftKar HD Dolly you can increase your speed on the flat as well. Once you've managed the stairs, the integrated Dolly system comes into play on level. It's not only about going up and down stairs. You'll often need to cross car parks and company premises too. With the Dolly system you can now do that a great deal faster. With the support wheels folded out, heavy loads can be pushed over level ground with the minimum of effort.

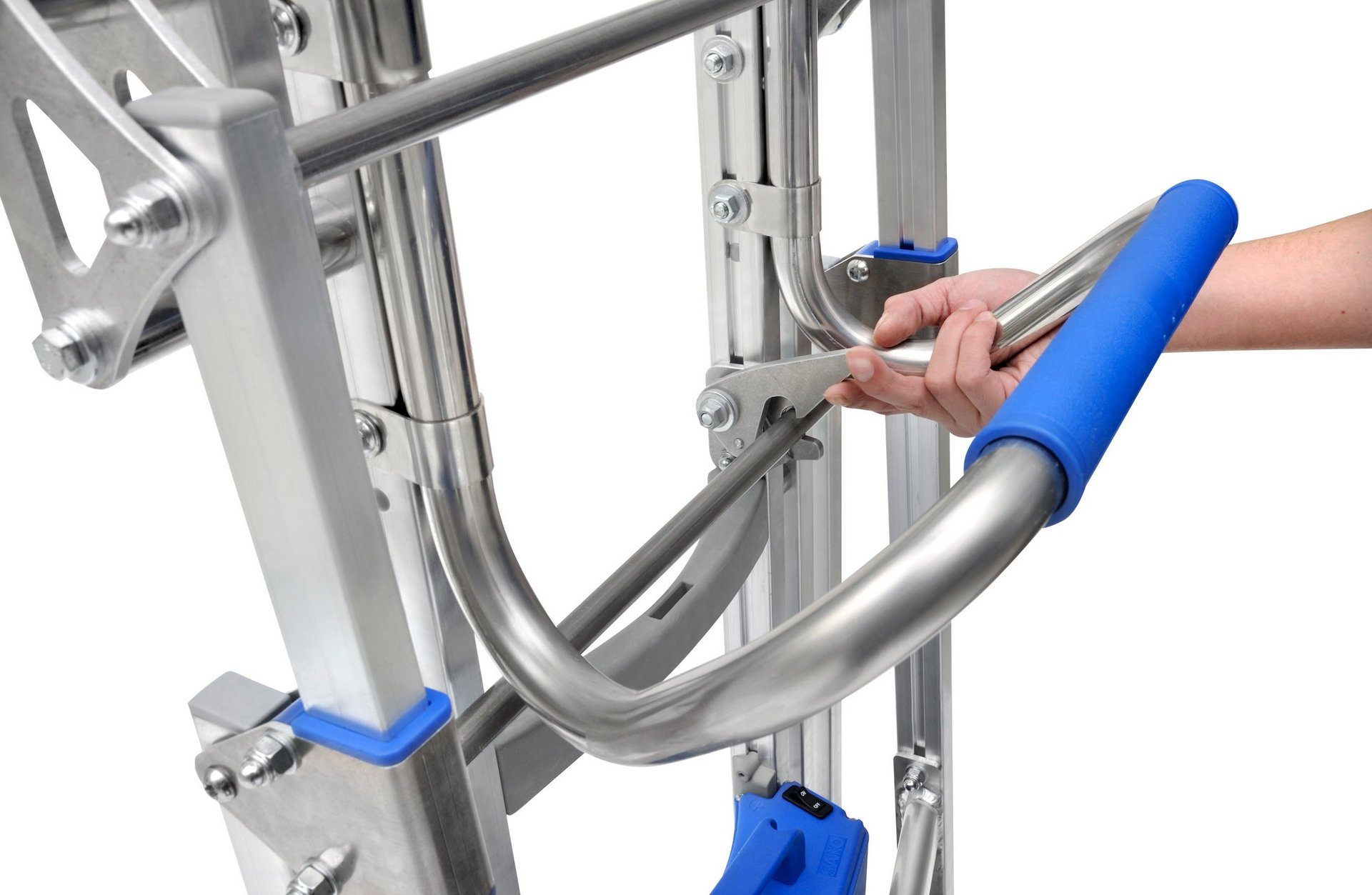

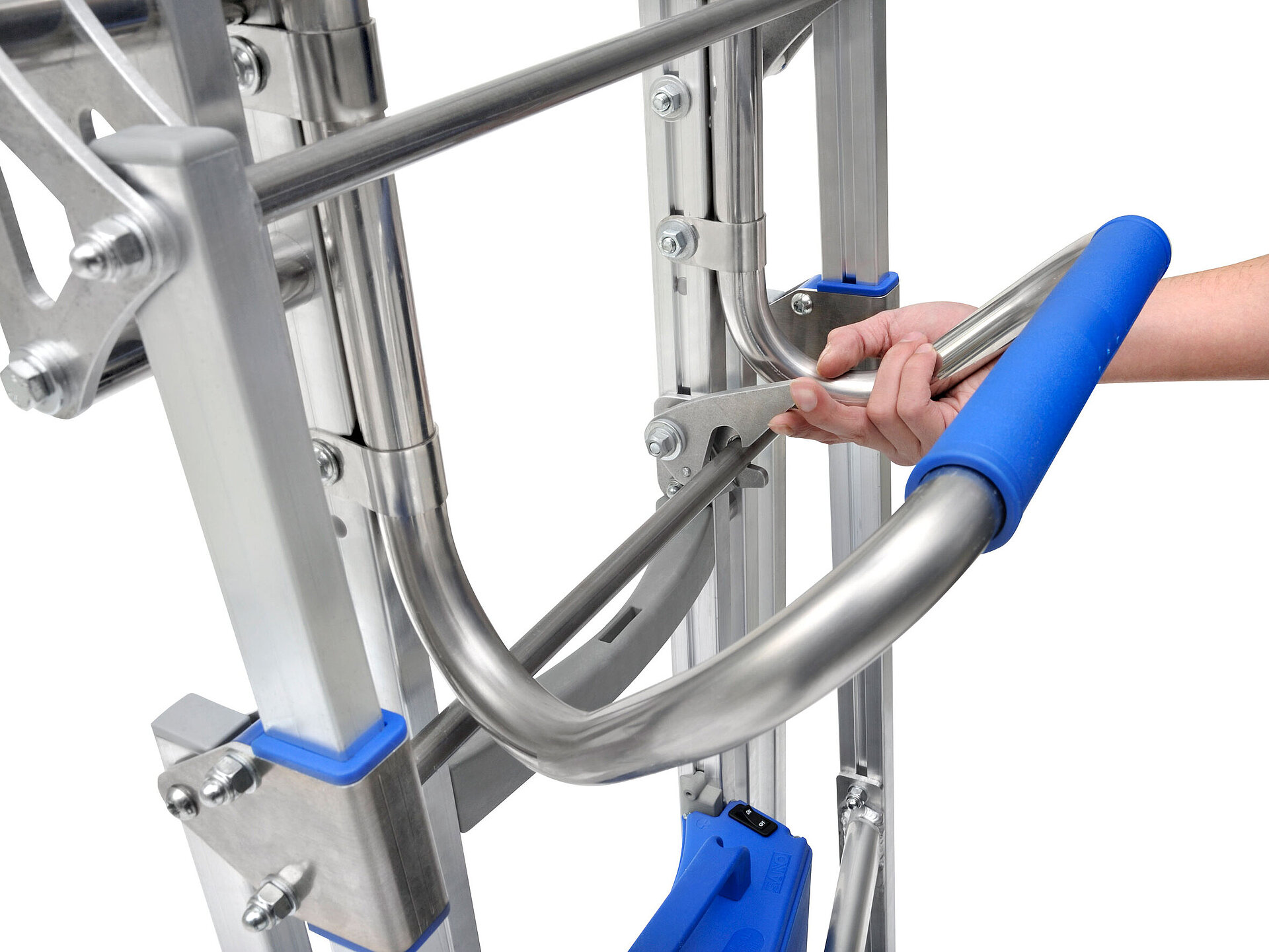

The system is activated in no time: simply lift the LiftKar HD, extend the Dolly and lock it into place. Transform in seconds from climbing stairs to rolling along on level ground. On level areas such as building sites and cobblestones, the puncture-proof tires with an elastic, profiled running surface are ideal. The dolly version is available for both the Universal model and Fold model.
Available for the following maximum loads:
- LiftKar HD 220 Dolly: for a maximum load of 484 lbs
- LiftKar HD 330 Dolly: for a maximum load of 726 lbs
- LiftKar HD 360 Dolly: for a maximum load of 792 lbs

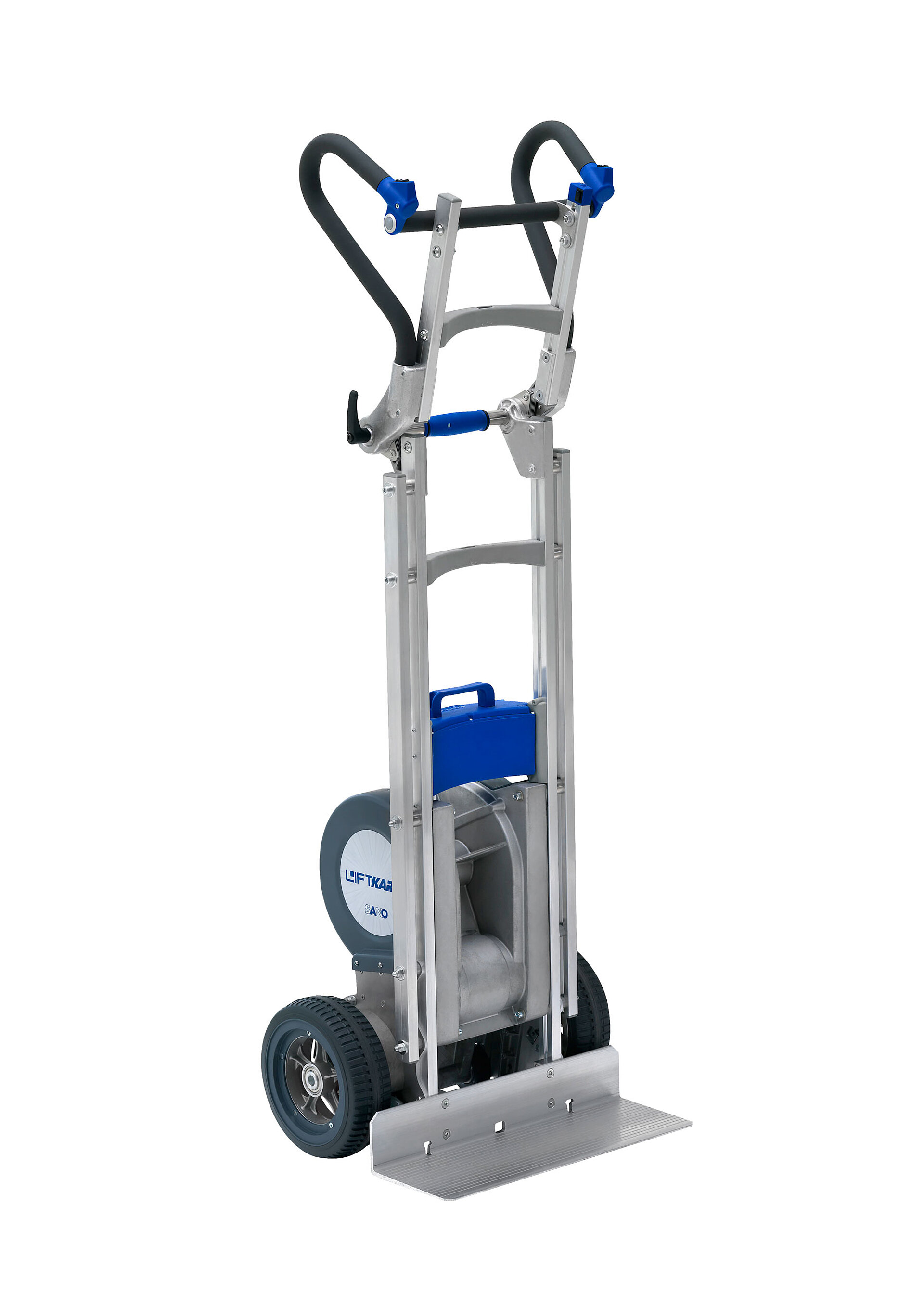

Adjustable grip angle - ideal for compact, heavy goods.

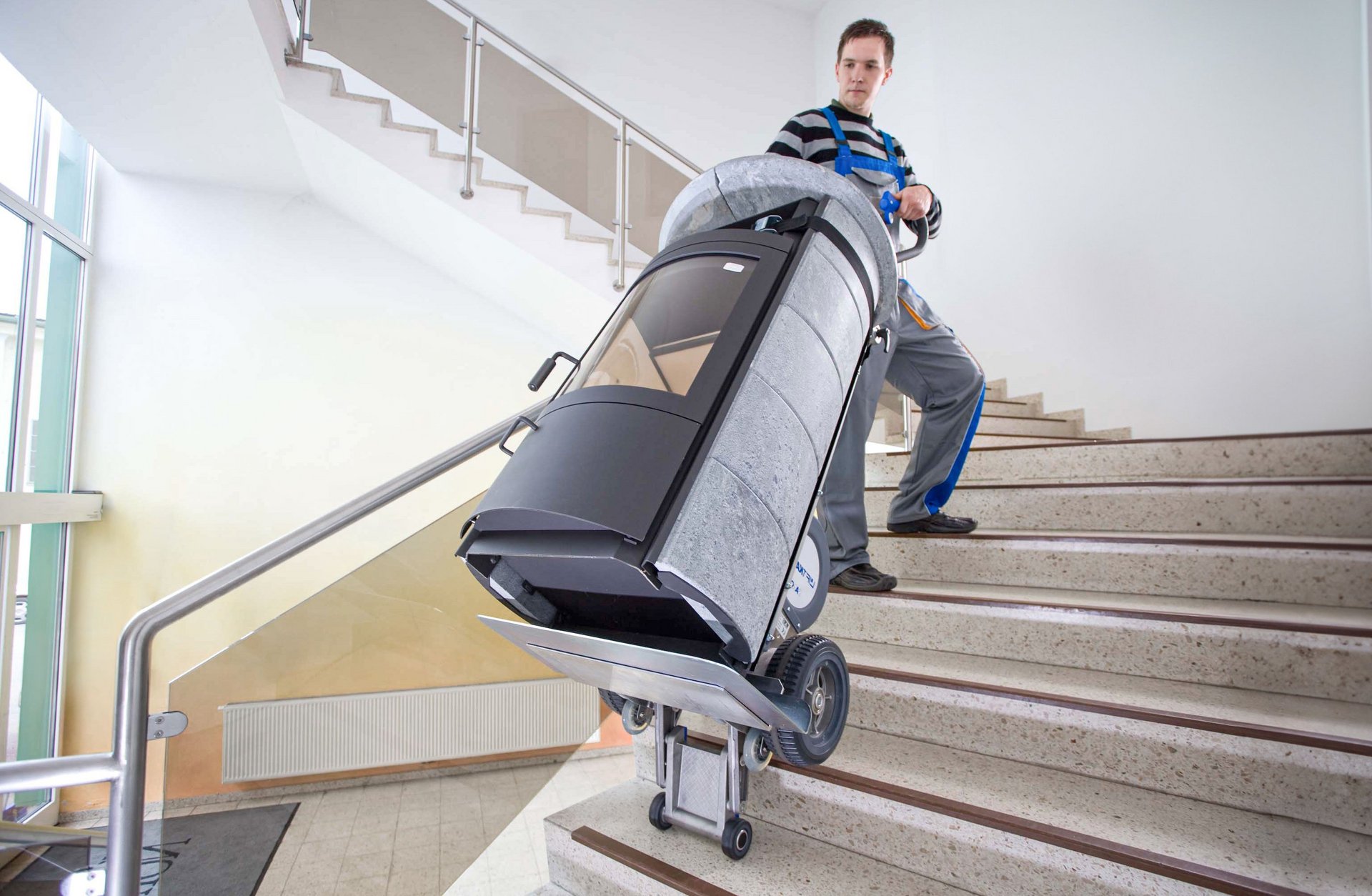

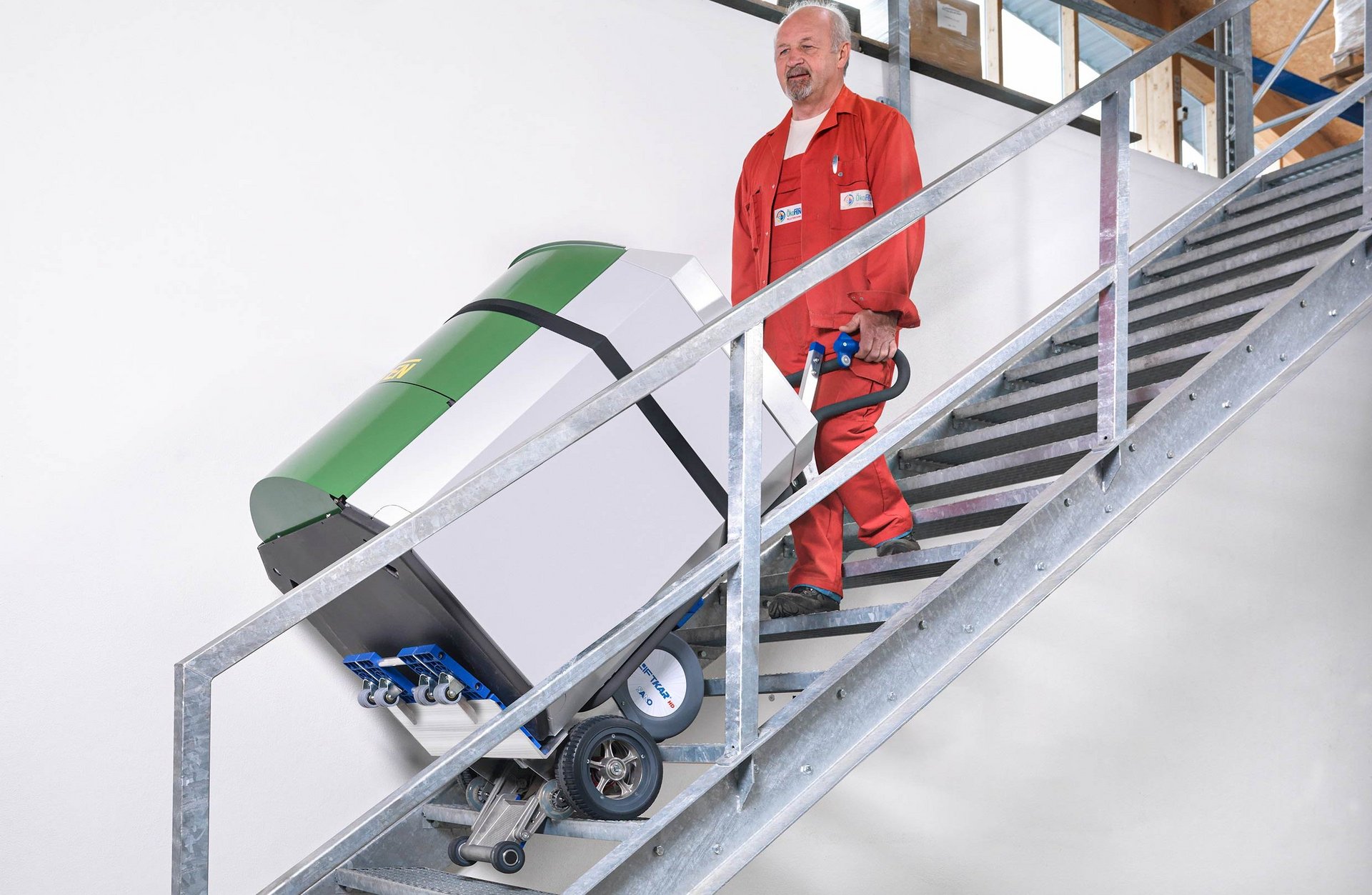

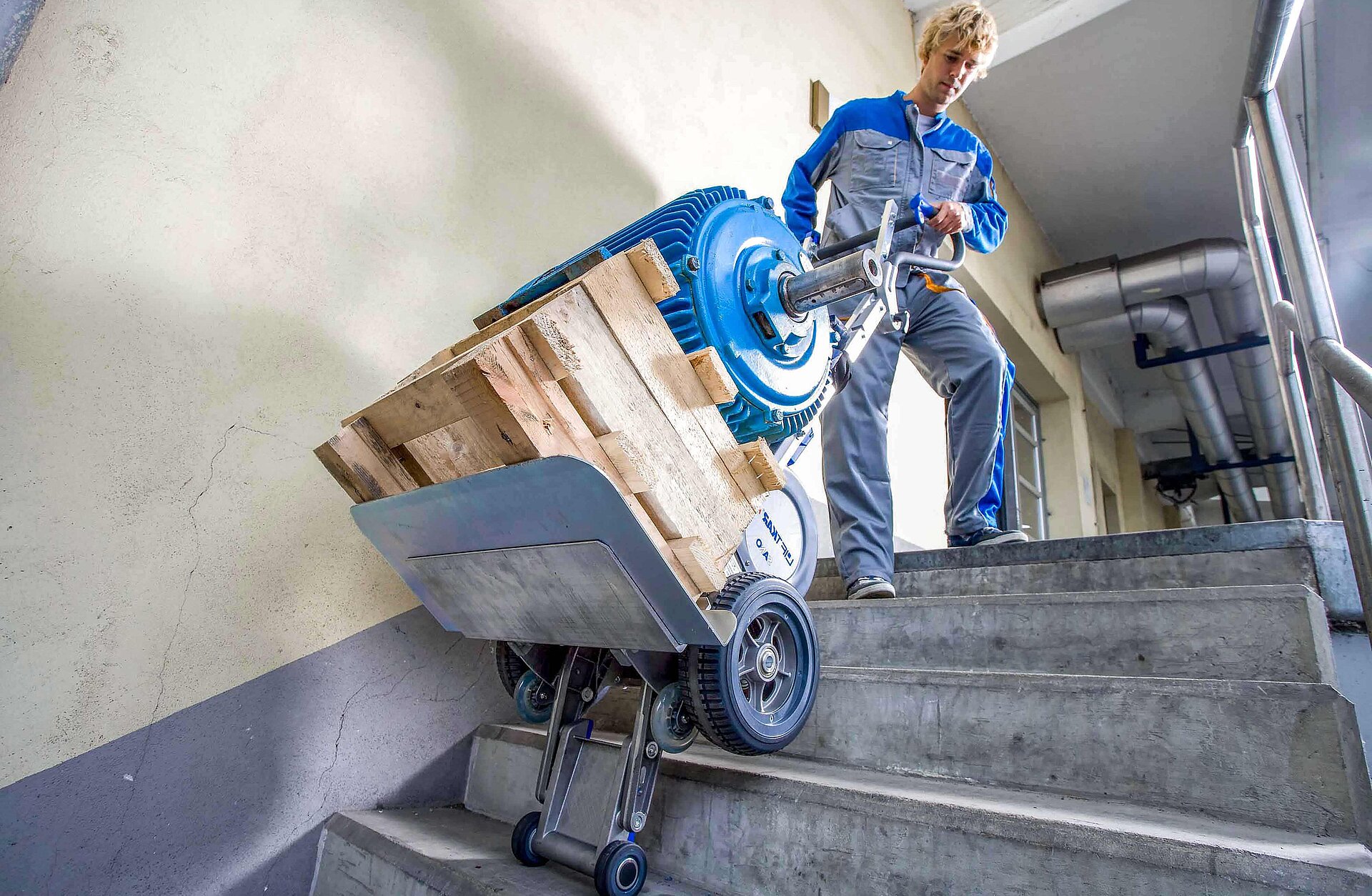

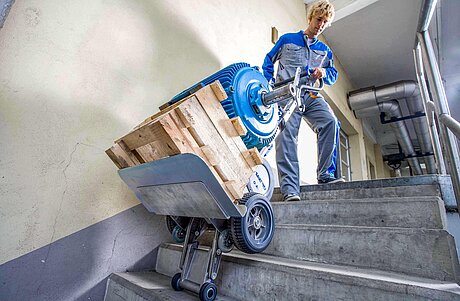

Copiers, cast-iron stoves, boilers, linen trucks, batteries for telephone systems, lift motors etc. all have one thing in common: they are compact and heavy. - If the object has a very low center of gravity then you really need to crouch down to hold your balance. And that really puts the strain on your back. - Unless you transport these loads using the LiftKar HD Fold.

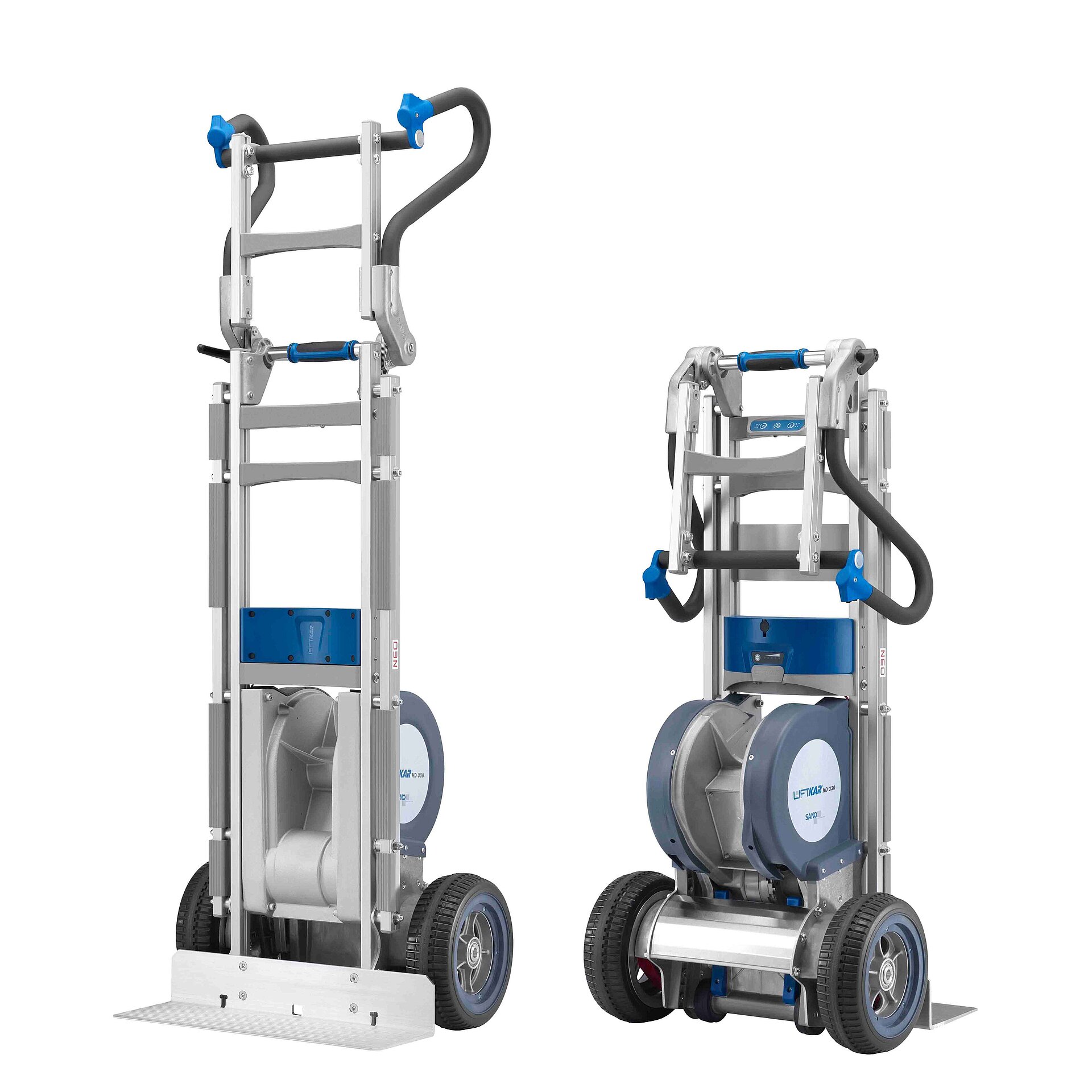

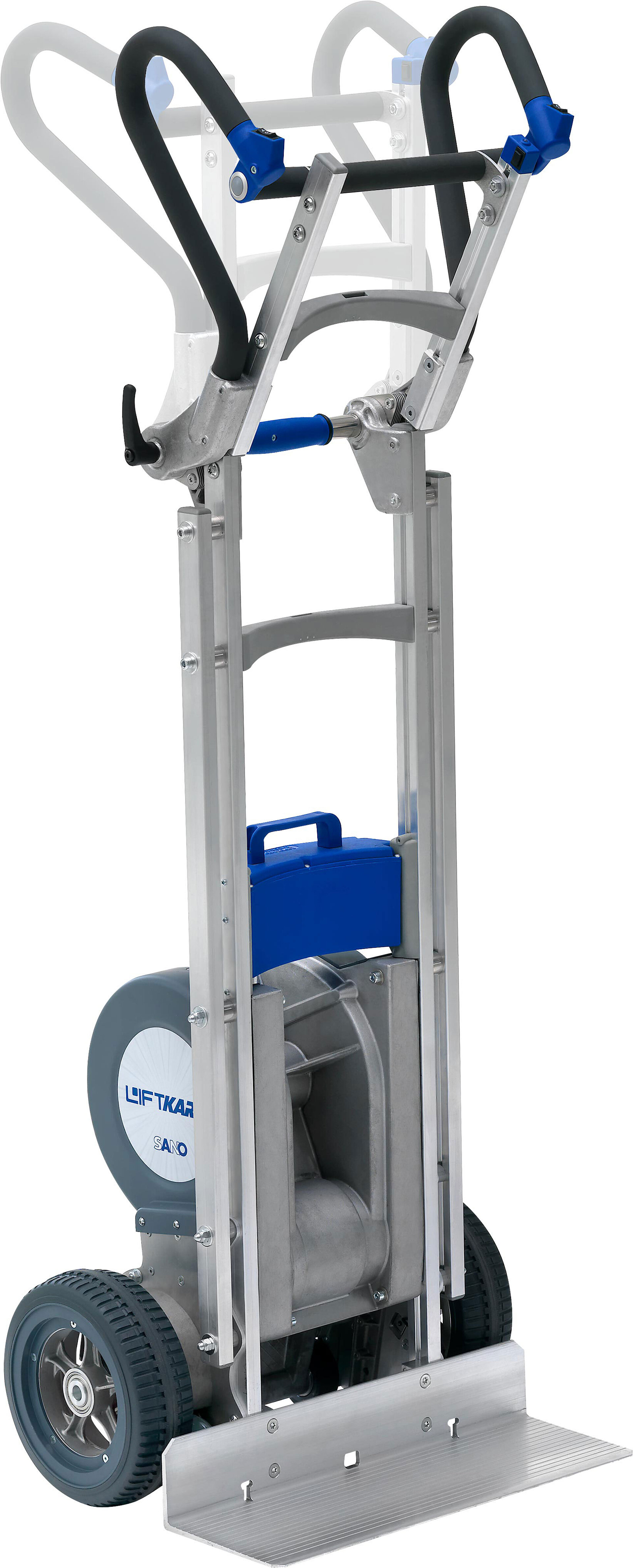

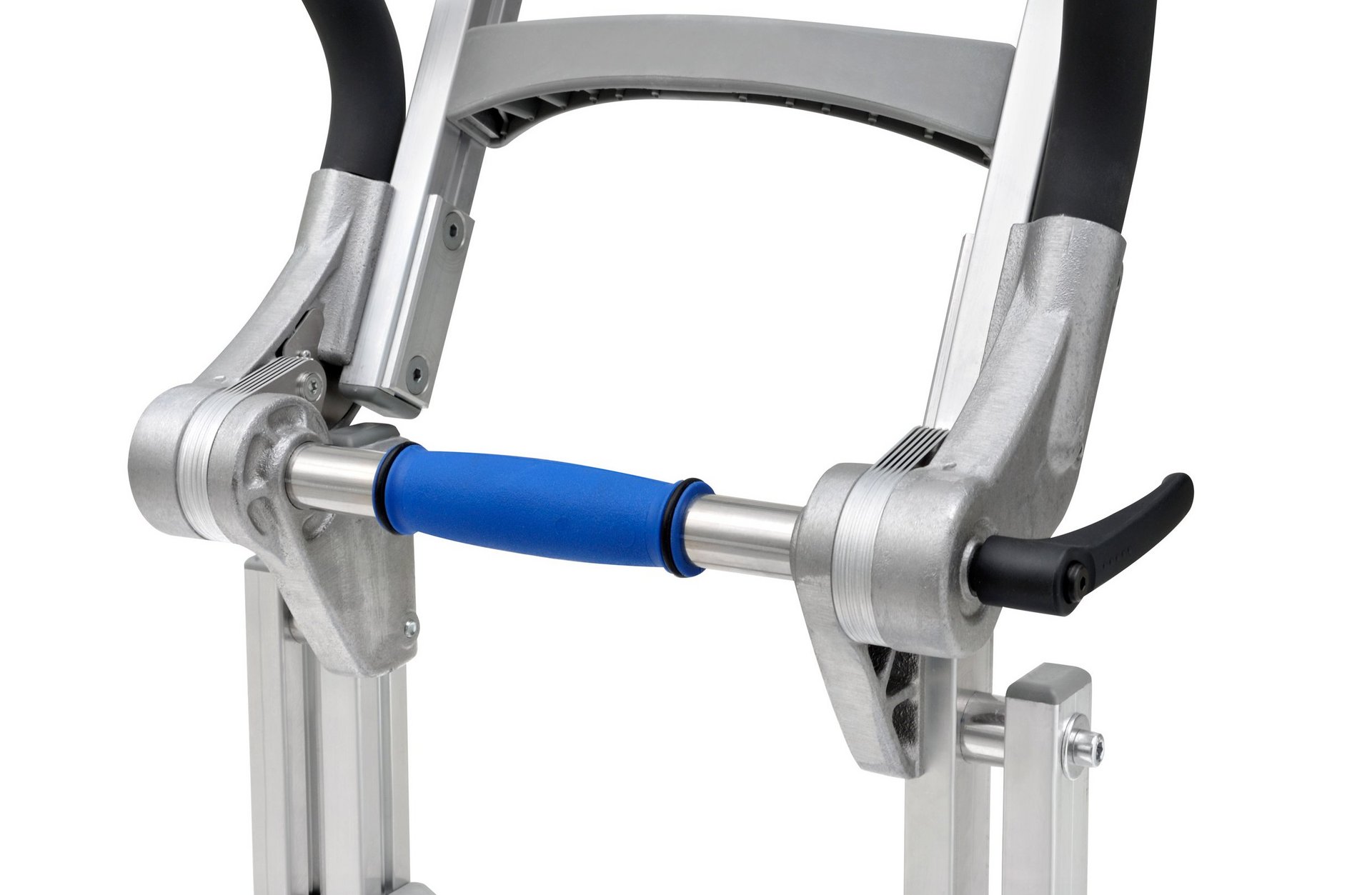

With the LiftKar HD Fold you can set the inclination of the handles to the exact center of gravity of the goods being transported. This means that you can maintain an upright posture while maneuvering stairclimbers carrying even the heaviest loads up and down stairs. It's so easy: just release the clamping lever on the handlebar frame to set the ideal position of the hand grips in seconds. Friction plates ensure they remain securely in place when the clamping lever is tightened. The name says it all: on the LiftKar HD Fold the handlebar unit can be folded away so that the stairclimber can be stowed on even the smallest of transport vehicles.
Available for the following maximum loads:
- LiftKar HD 220 Fold: for a maximum load of 484 lbs
- LiftKar HD 330 Fold: for a maximum load of 726 lbs
- LiftKar HD 360 Fold: for a maximum load of 792 lbs

Move compact, heavy goods perfectly, also on the level.

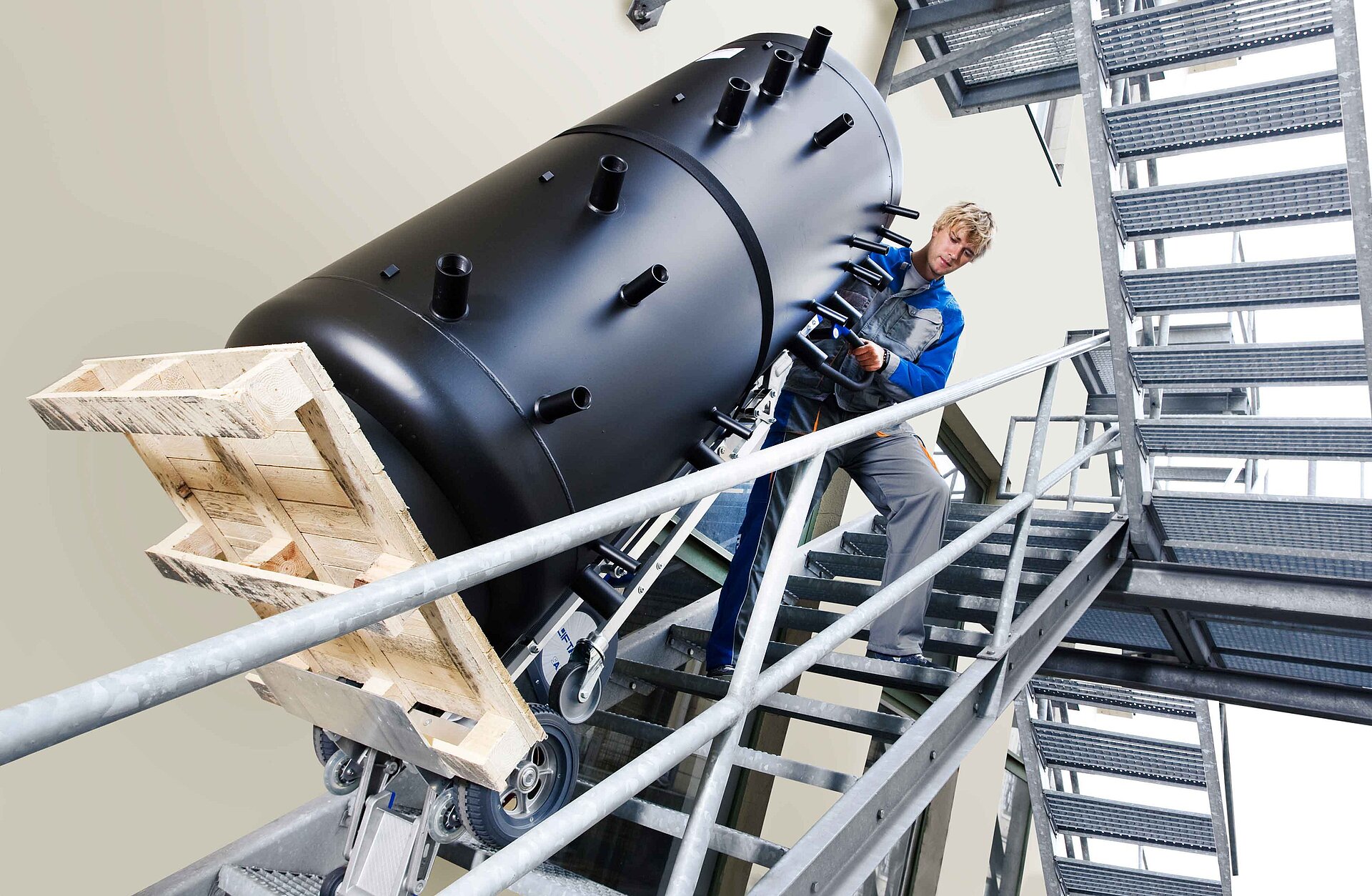

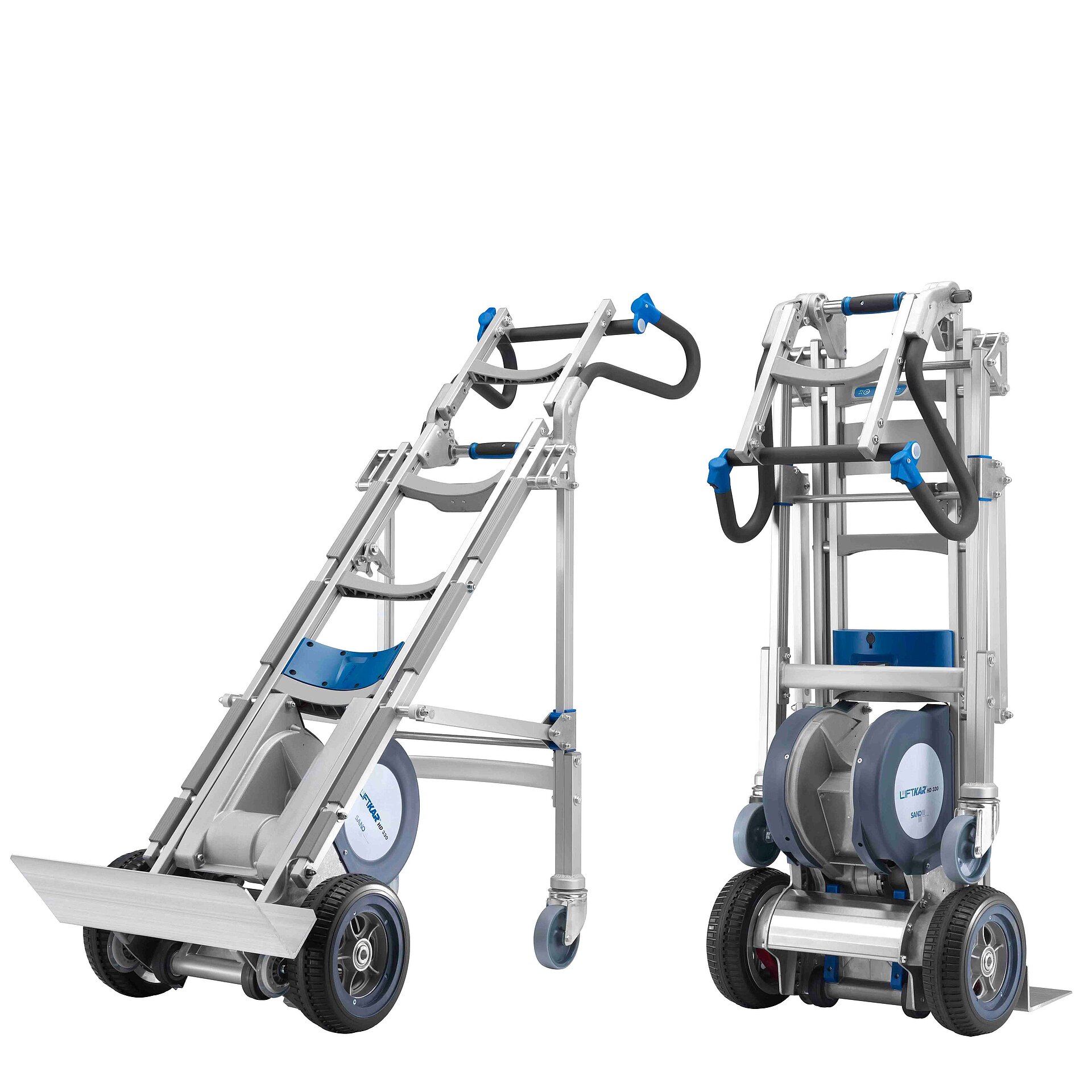

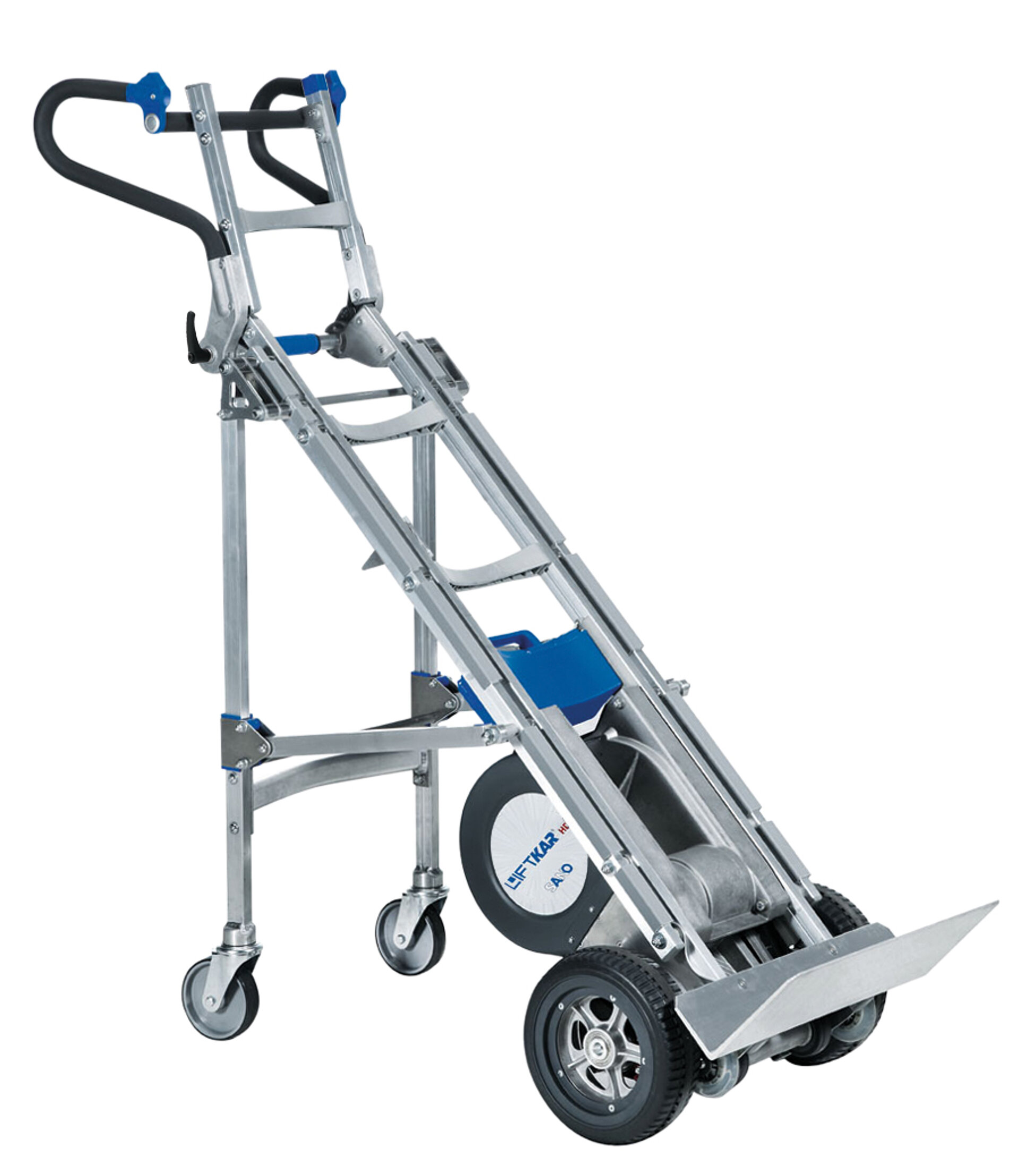

The LIFTKAR HD Fold Dolly gives you all the advantages that the LiftKar HD Fold offers for compact and heavy loads on stairs on the level as well. Once you've managed the stairs, the integrated Dolly system comes into play on level. It's not only about going up and down stairs. You'll often need to cross car parks and company premises too. With the Dolly system you can now do that a great deal faster. With the support wheels folded out, heavy loads can be pushed over level ground with the minimum of effort.
The system is activated in no time: simply lift the LiftKar HD, extend the Dolly and lock it into place. Transform in seconds from climbing stairs to rolling along on level ground. On level areas such as building sites and cobblestones, the puncture-proof tires with an elastic, profiled running surface are ideal. The dolly version is available for both the Universal model and Fold model.
Available for the following maximum loads:
- LiftKar HD 220 Fold Dolly: for a maximum load of 484 lbs
- LiftKar HD 330 Fold Dolly: for a maximum load of 726 lbs
- LiftKar HD 360 Fold Dolly: for a maximum load of 792 lbs

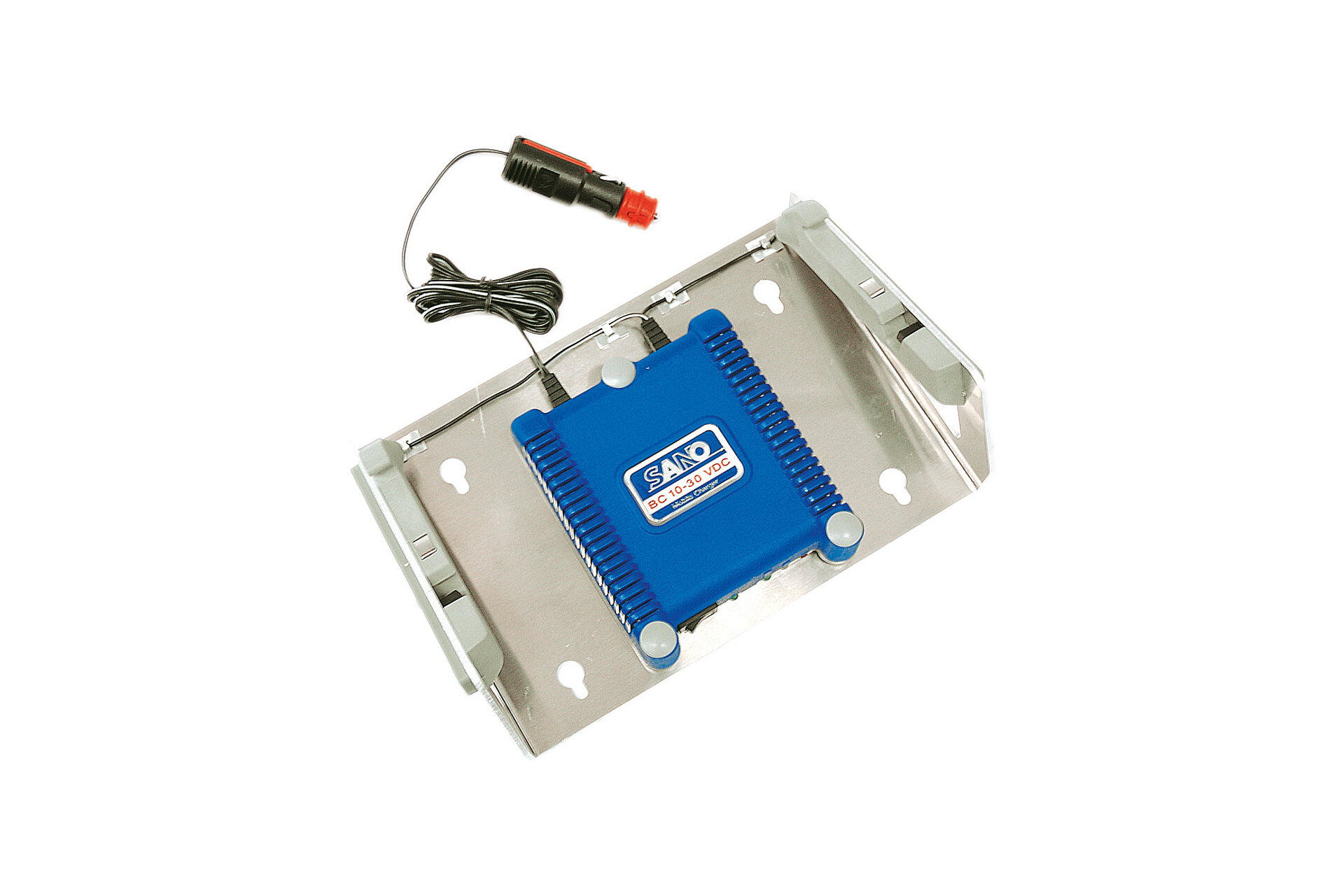

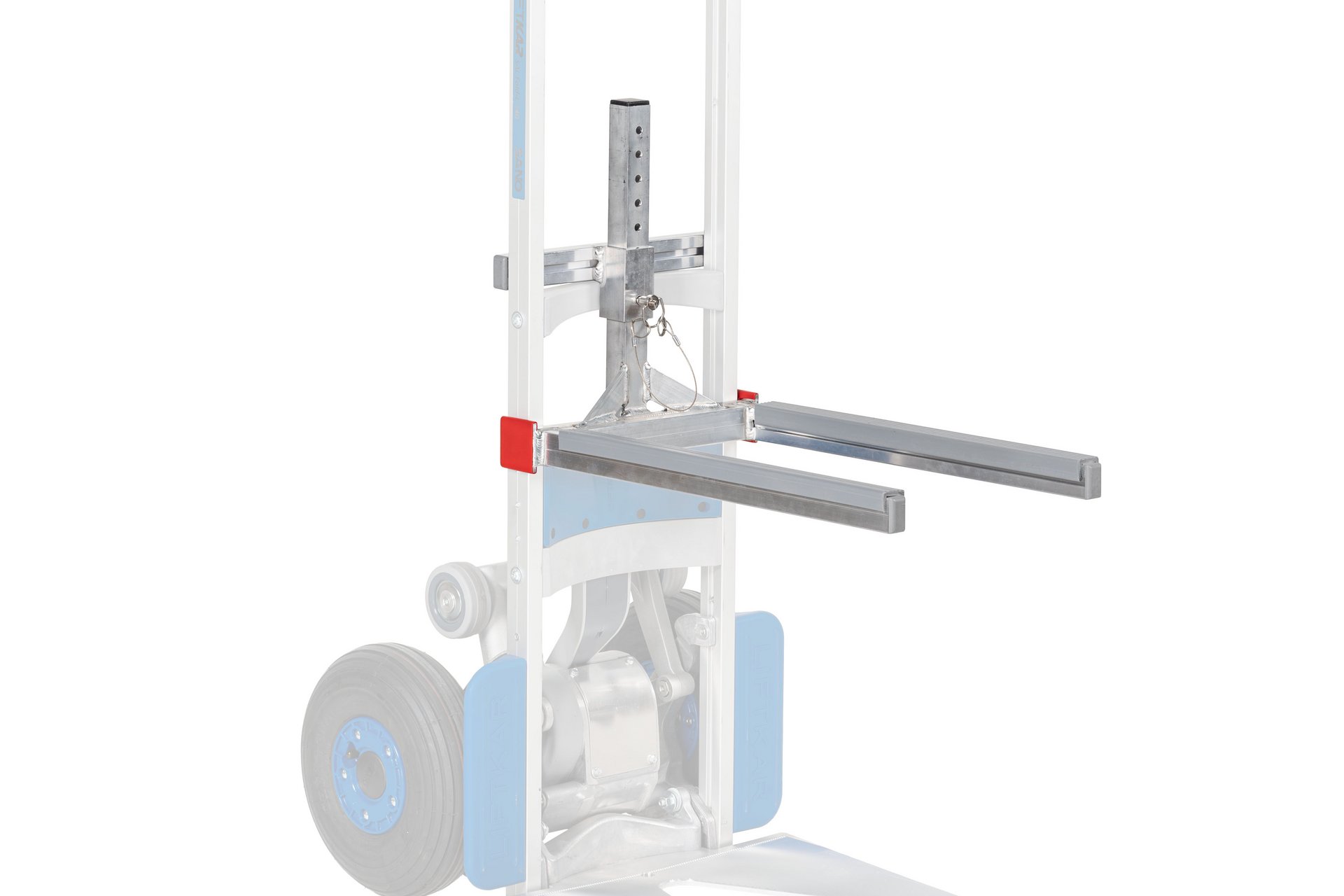

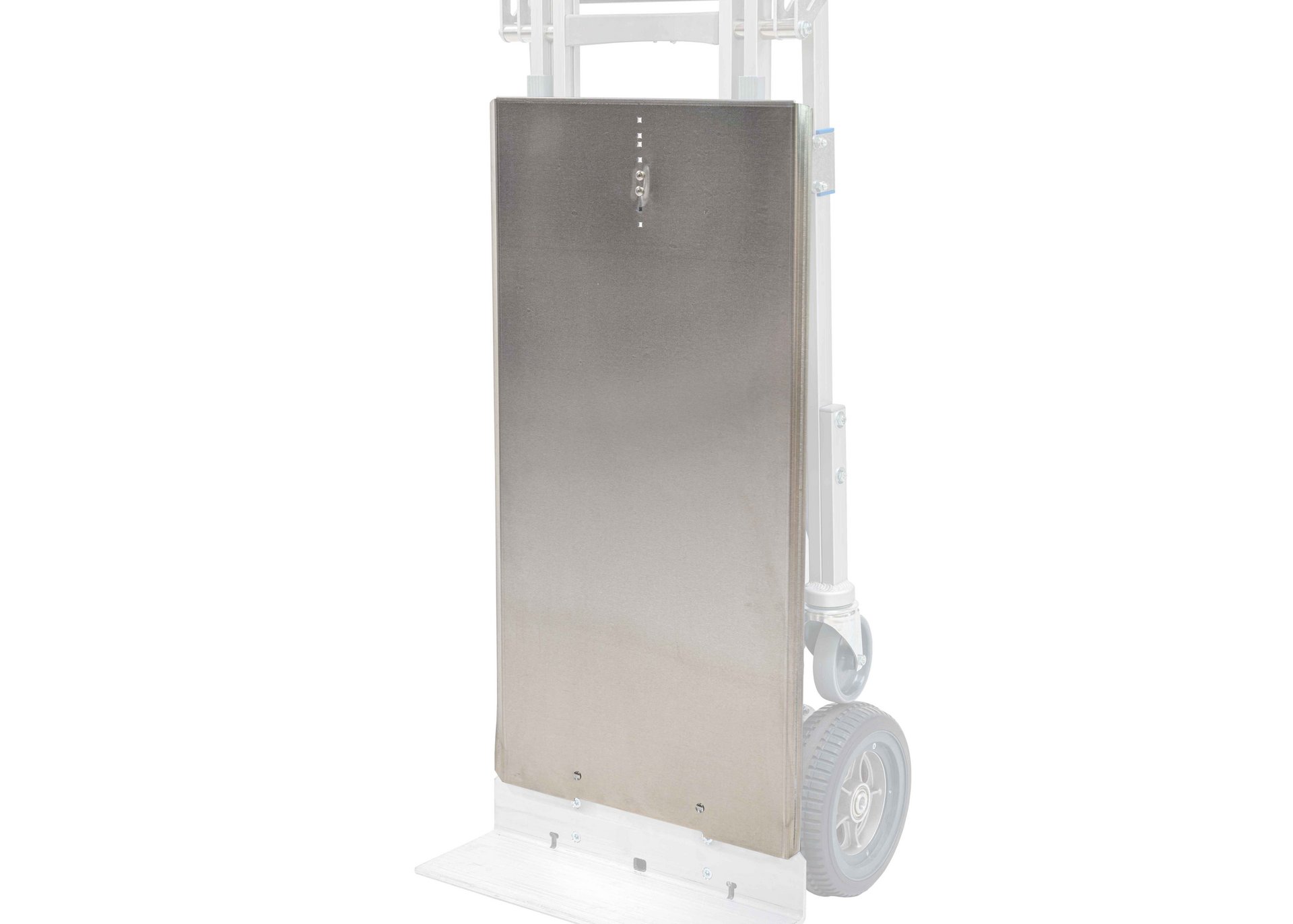

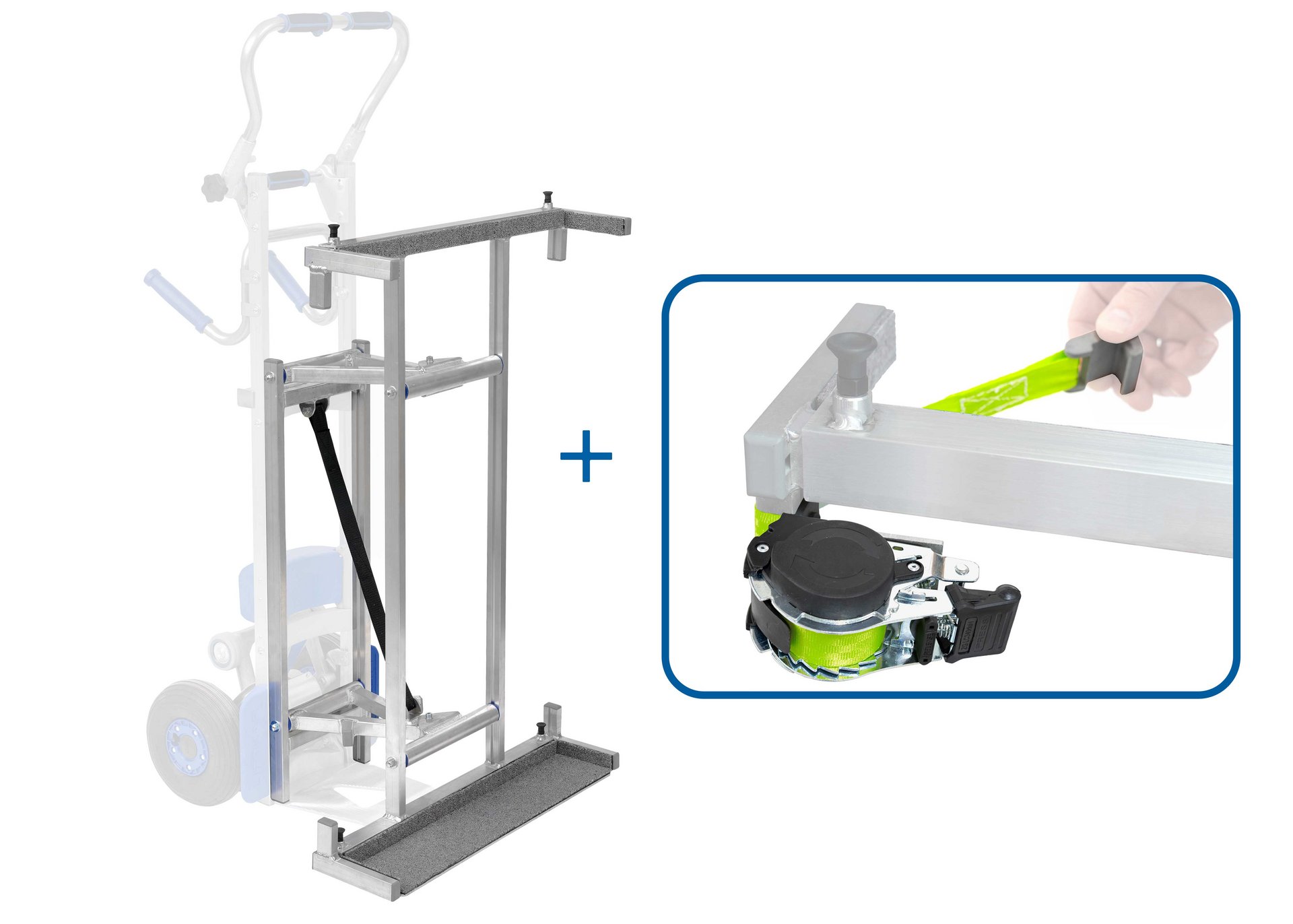

Additional options
matching your needs
The LIFTKAR HD powered stairclimbers
in facts and figures
Load capacity
Load capacity | Pounds
Dimensions (height/width/depth)
Dimensions (height/width/depth) | Inch

220 kg / 330 kg / 360 kg
485 lbs / 727.5 lbs / 793.6 lbs
34 kg
74.9 lbs
4 kg
8.8 lbs
1615 / 560 / 485 mm
63.6" / 22" / 19.1"

220 kg / 330 kg / 360 kg
485 lbs / 727.5 lbs / 793.6 lbs
40 kg
88.2 lbs
4 kg
8.8 lbs
1615 / 560 / 485 mm
63.6" / 22" / 19.1"

220 kg / 330 kg / 360 kg
485 lbs / 727.5 lbs / 793.6 lbs
35 kg
77.1 lbs
4 kg
8.8 lbs
1615 / 560 / 485 mm
(folded 1195 / 560 / 485 mm)
63.6" / 22" / 19.1"
(folded 47" / 22" / 19.1")

220 kg / 330 kg / 360 kg
485 lbs / 727.5 lbs / 793.6 lbs
41 kg
90.4 lbs
4 kg
8.8 lbs
1781 / 560 / 485 mm
(folded 1361 / 560 / 545 mm)
70.1" / 22" / 19,1"
(folded 53.5" / 22" / 21.4")
Load capacity
Load capacity | Pounds
Dimensions (height/width/depth)
Dimensions (height/width/depth) | Inch

220 kg / 330 kg / 360 kg
485 lbs / 727.5 lbs / 793.6 lbs
34 kg
74.9 lbs
4 kg
8.8 lbs
1615 / 560 / 485 mm
63.6" / 22" / 19.1"

220 kg / 330 kg / 360 kg
485 lbs / 727.5 lbs / 793.6 lbs
35,5 kg
78.2 lbs
1,6 kg
3.5 lbs
1615 / 560 / 485 mm
63.6" / 22" / 19.1"
Load capacity
Load capacity | Pounds
Dimensions (height/width/depth)
Dimensions (height/width/depth) | Inch

220 kg / 330 kg / 360 kg
485 lbs / 727.5 lbs / 793.6 lbs
35 kg
77.1 lbs
4 kg
8.8 lbs
1615 / 560 / 485 mm
(folded 1195 / 560 / 485 mm)
63.6" / 22" / 19.1"
(folded 47" / 22" / 19.1")

220 / 330 / 360 kg
485 lbs / 727.5 lbs / 793.6 lbs
36,2 kg
79.8 lbs
1,6 kg
3.5 lbs
1615 / 560 / 485 mm
(folded 1195 / 560 / 485 mm)
63.6" / 22" / 19.1"
(folded 47" / 22" / 19.1")
Load capacity
Load capacity | Pounds
Dimensions (height/width/depth)
Dimensions (height/width/depth) | Inch

220 kg / 330 kg / 360 kg
485 lbs / 727.5 lbs / 793.6 lbs
40 kg
88.2 lbs
4 kg
8.8 lbs
1615 / 560 / 485 mm
63.6" / 22" / 19.1"

220 kg / 330 kg / 360 kg
485 lbs / 727.5 lbs / 793.6 lbs
41 kg
90.4 lbs
4 kg
8.8 lbs
1781 / 560 / 485 mm
(folded 1361 / 560 / 545 mm)
70.1" / 22" / 19,1"
(folded 53.5" / 22" / 21.4")
Load capacity
Load capacity | Pounds
Dimensions (height/width/depth)
Dimensions (height/width/depth) | Inch

220 kg / 330 kg / 360 kg
485 lbs / 727.5 lbs / 793.6 lbs
41 kg
90.4 lbs
4 kg
8.8 lbs
1781 / 560 / 485 mm
(folded 1361 / 560 / 545 mm)
70.1" / 22" / 19,1"
(folded 53.5" / 22" / 21.4")

220 / 330 / 360 kg
485 lbs / 727.5 lbs / 793.6 lbs
43,5 kg
95.4 lbs
1,6 kg
3.5 lbs
1781 / 560 / 485 mm
(folded 1361 / 560 / 545 mm)
70.1" / 22" / 19.1"
(folded 53.6" / 22" / 21.4")
