LiftKar MTK
Powered stairclimber in
steel for loads up to 682 lbs
Stairs used to be a major hurdle for transporting heavy goods; sometimes several people had to handle objects up and down stairs, which often presented a high risk of back injury. That was until the introduction of LiftKar .
LiftKar MTK: easy to operate and ideal for a wide range of applications

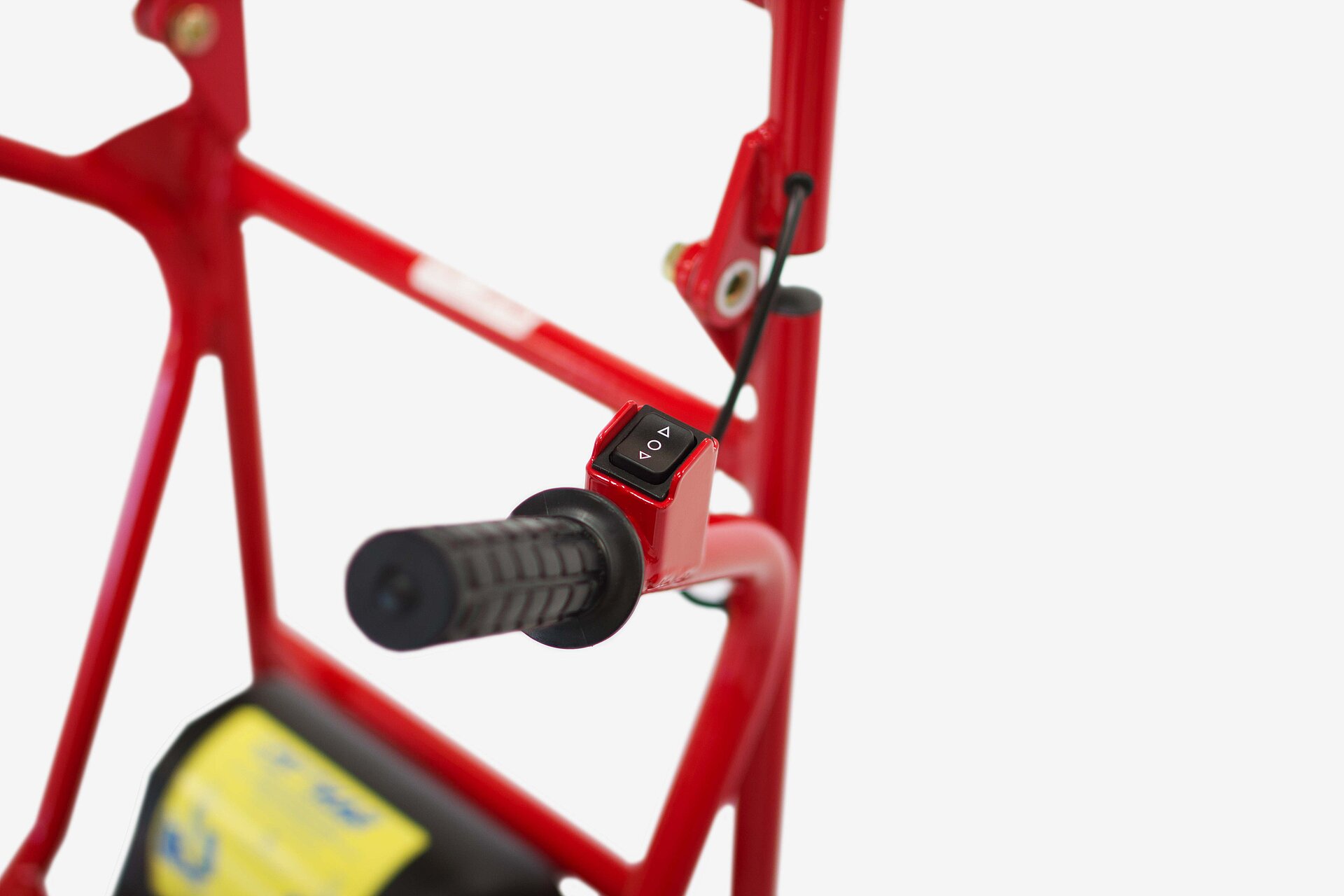

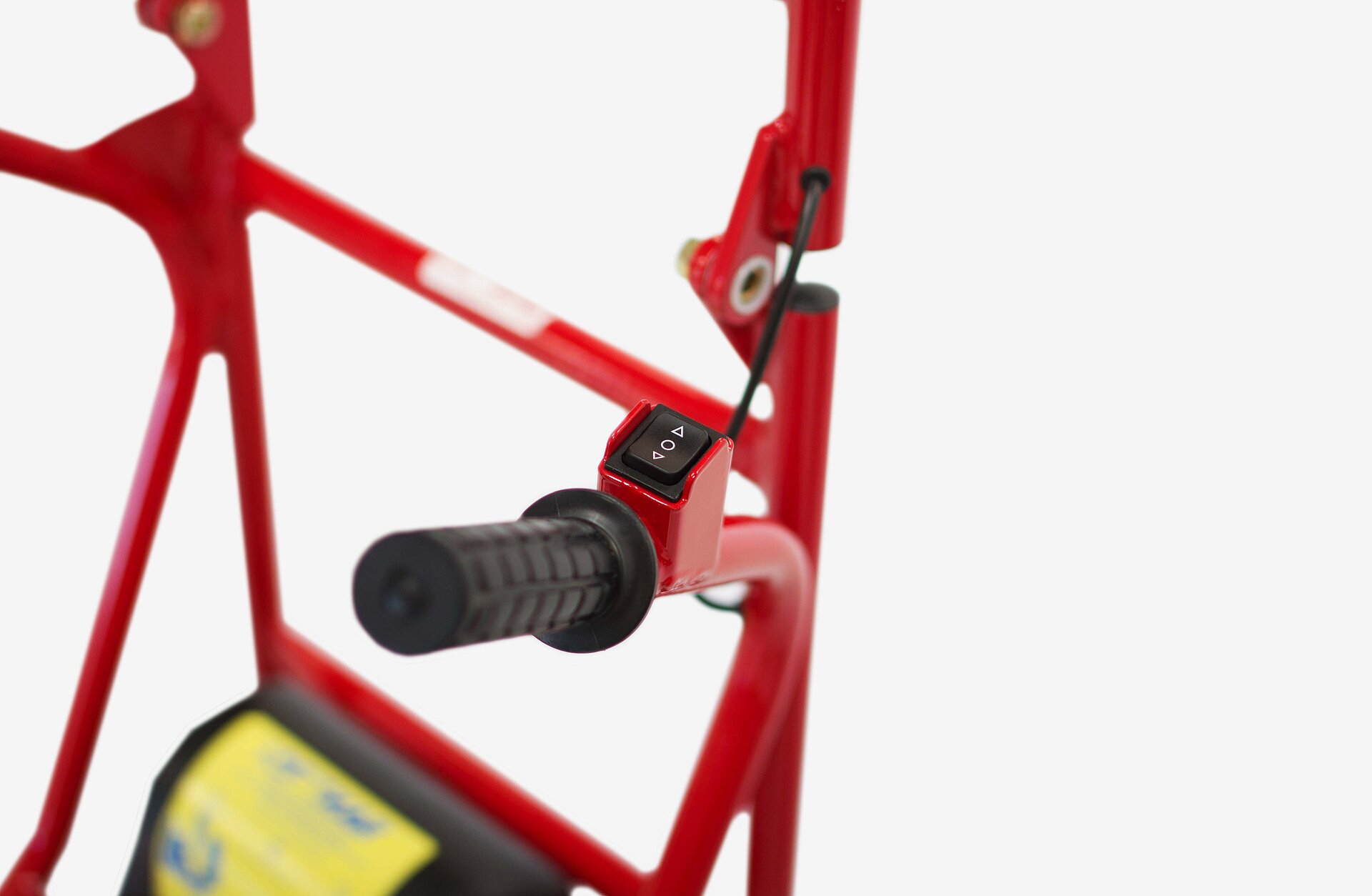

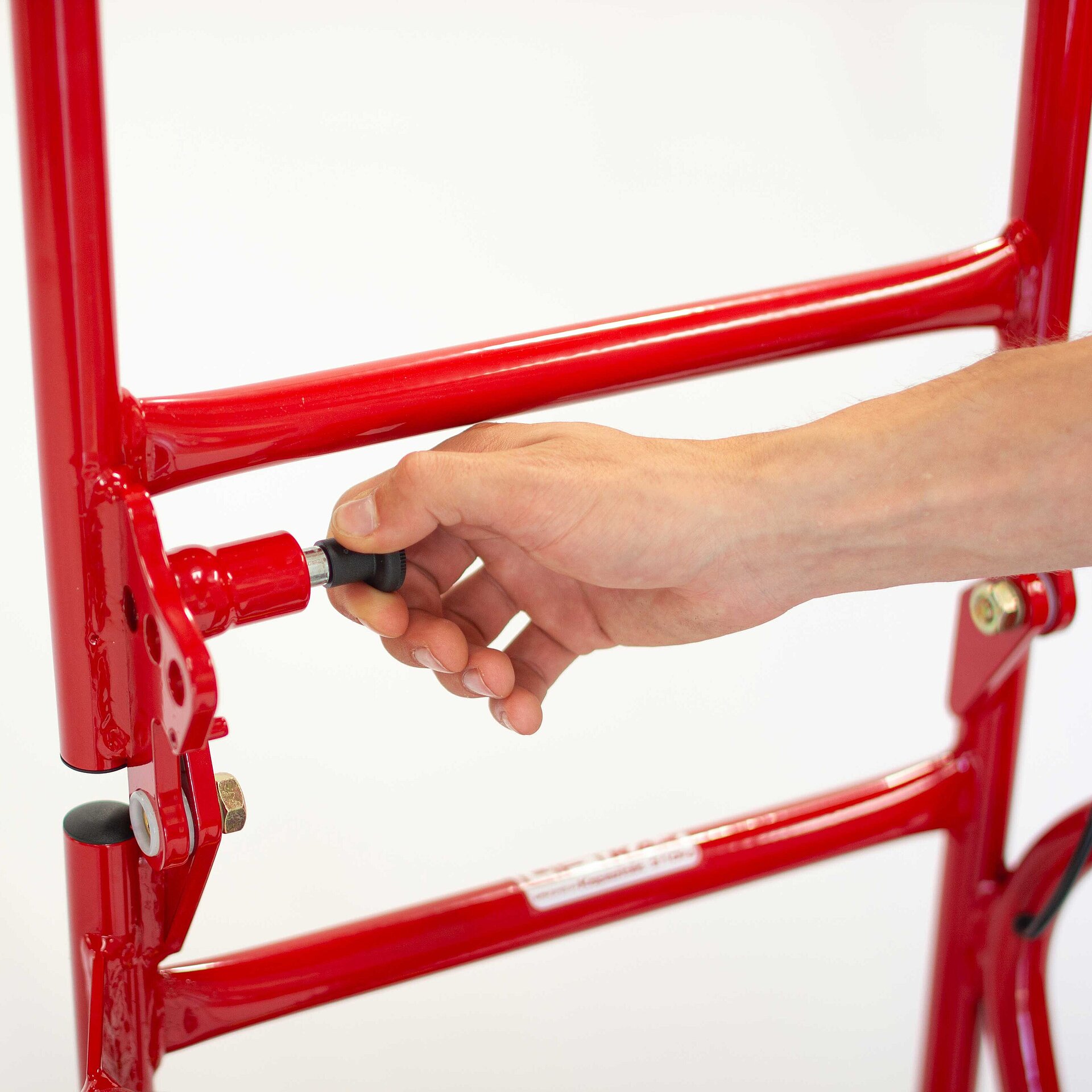

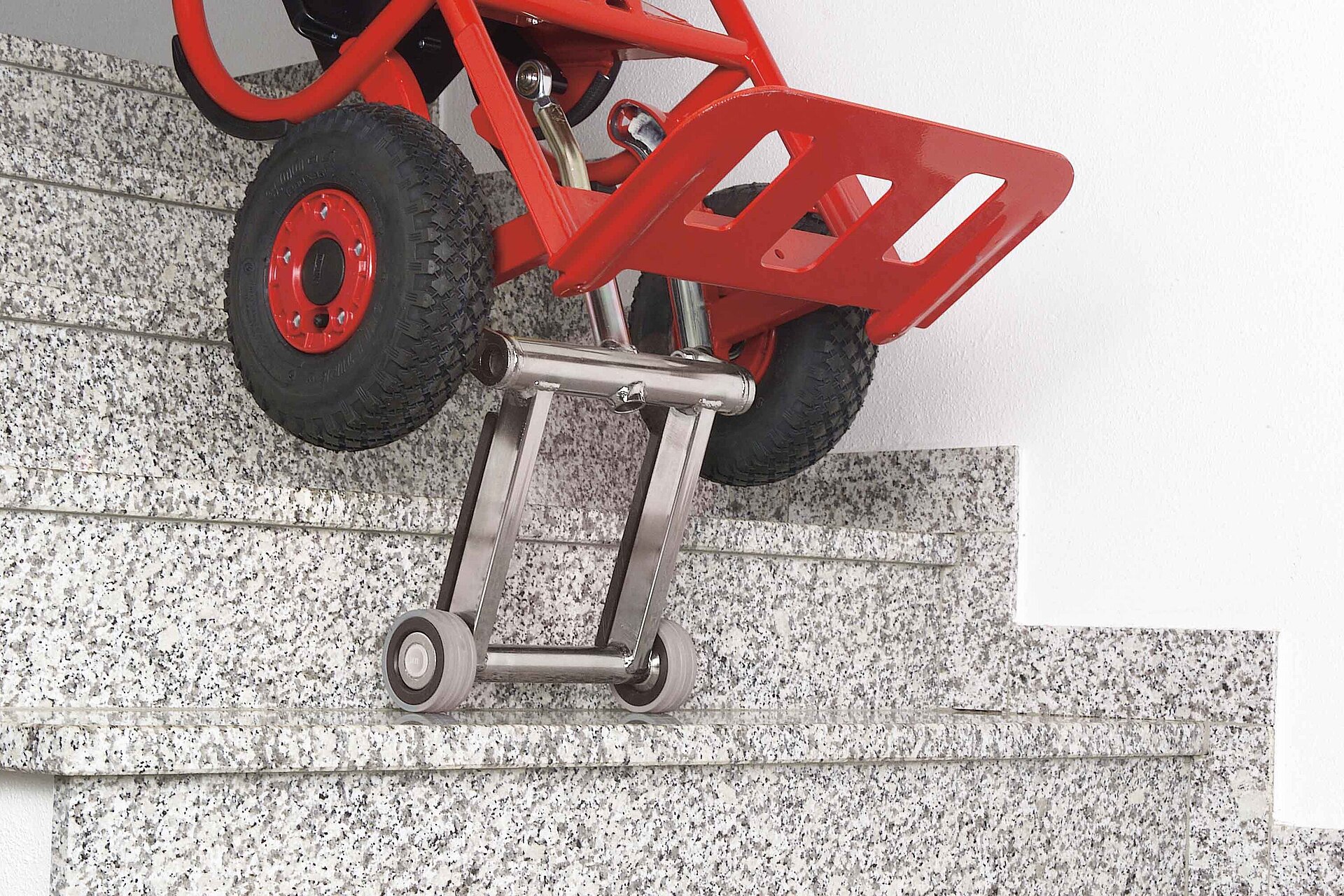

The heart of the handtruck - the electric lifting system with the drive crank - is controlled using electronic switches integrated into the right-hand grip. A sliding clutch protects the handtruck from mechanical overload. Double handles and a folding frame provide optimum control of the load in every position. A practical quick-change battery unit is included. To ensure uninterrupted use, the battery can also be charged quickly in any location using a special charger for in-transit use.
even spiral staircases
8 unbeatable advantages
to convince you
- up to 682 lbs
- effortless, safe and quick up and down almost any steps (even spiral staircases)
- easy operation; smooth movement
- steel construction for maximum robustness
- easy to operate and ideal for a wide range of applications
- sliding clutch for mechanical overload protection

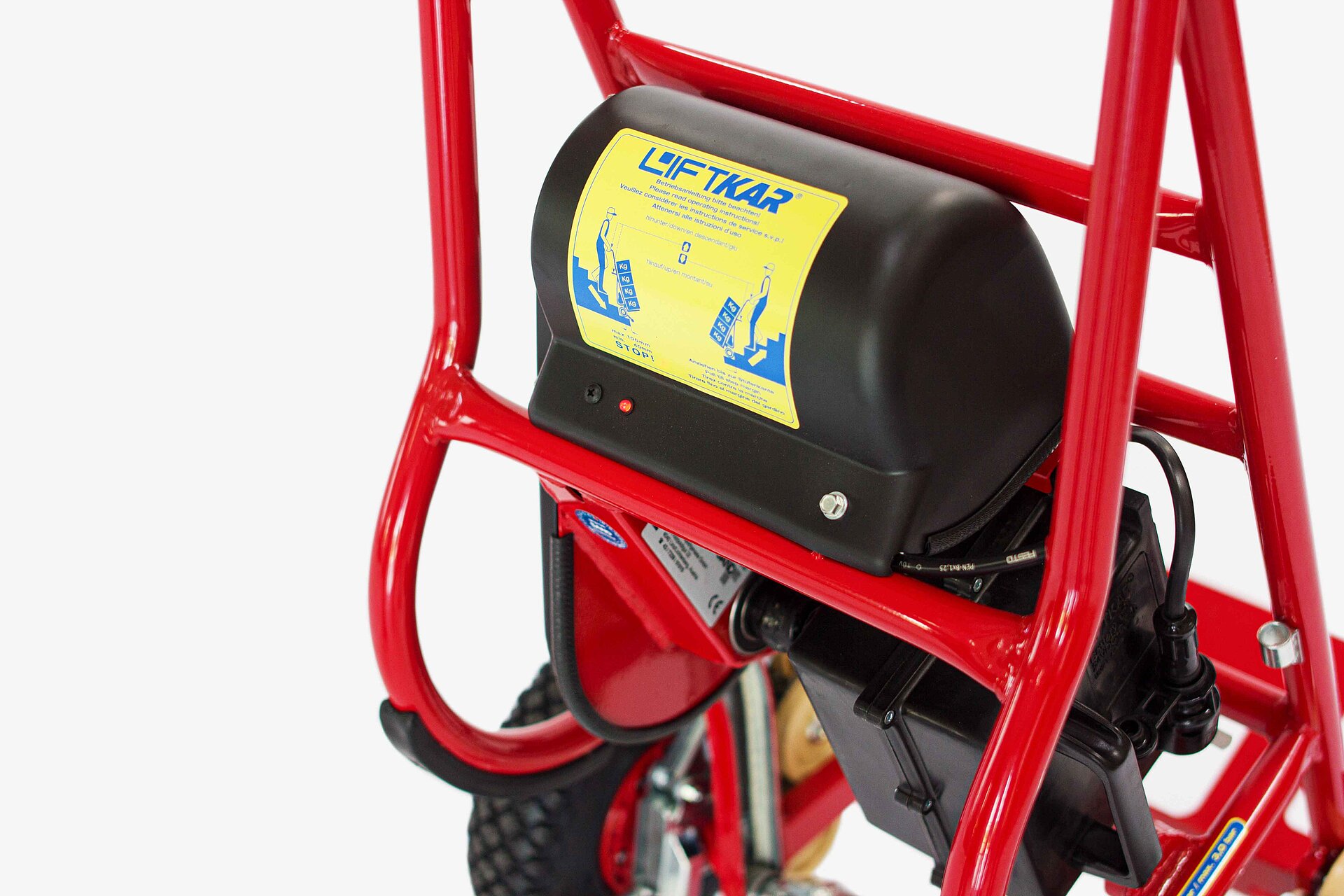

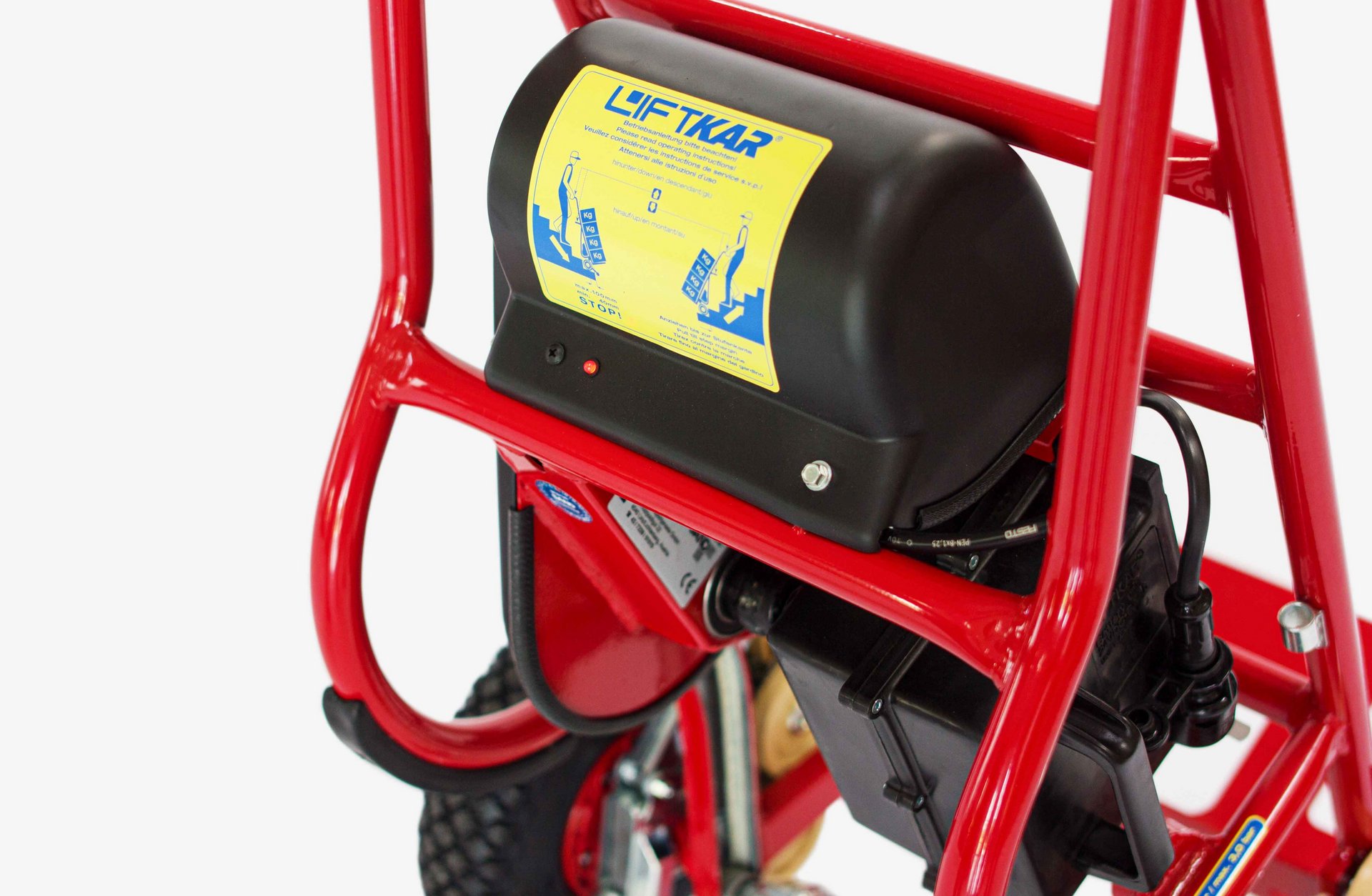

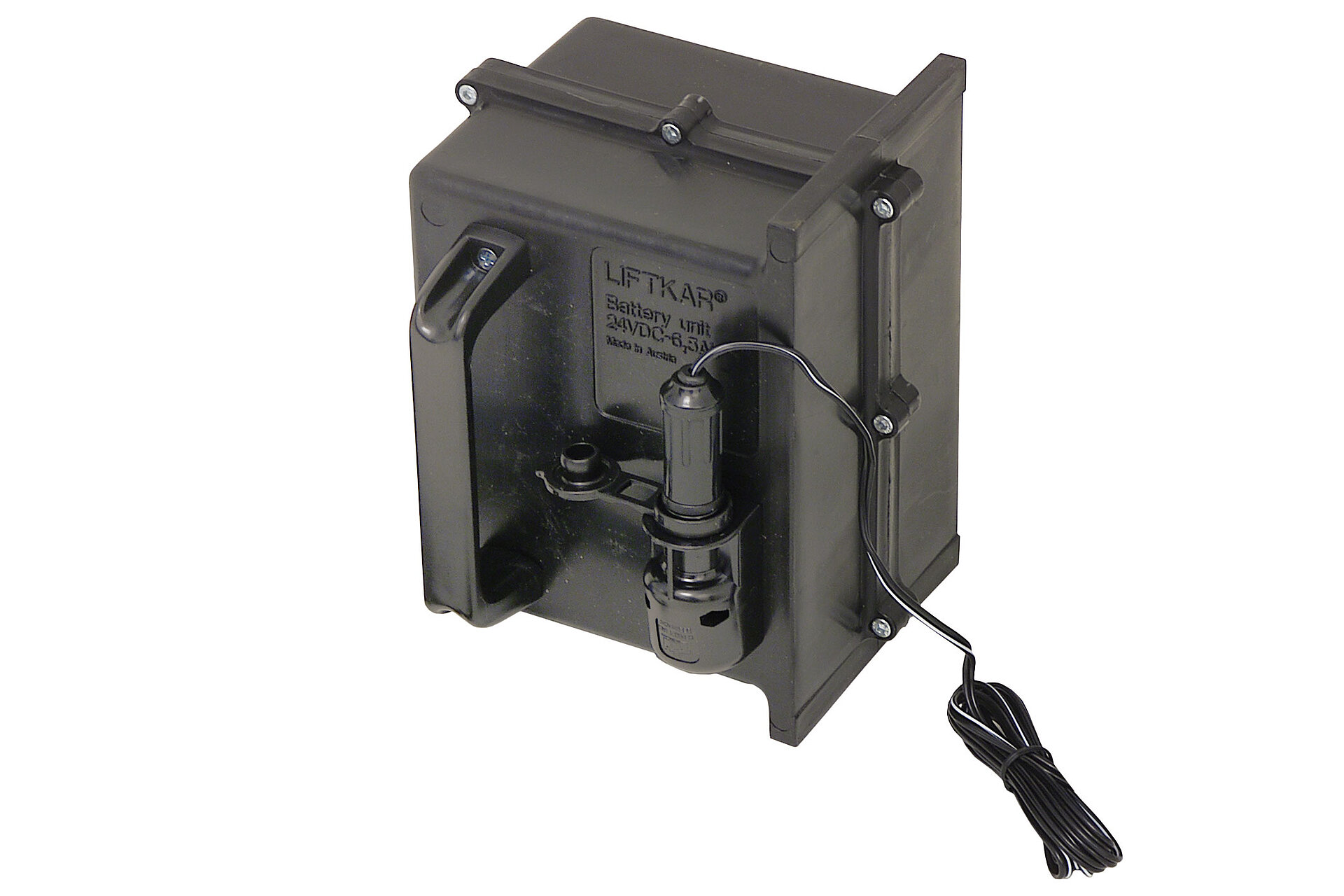

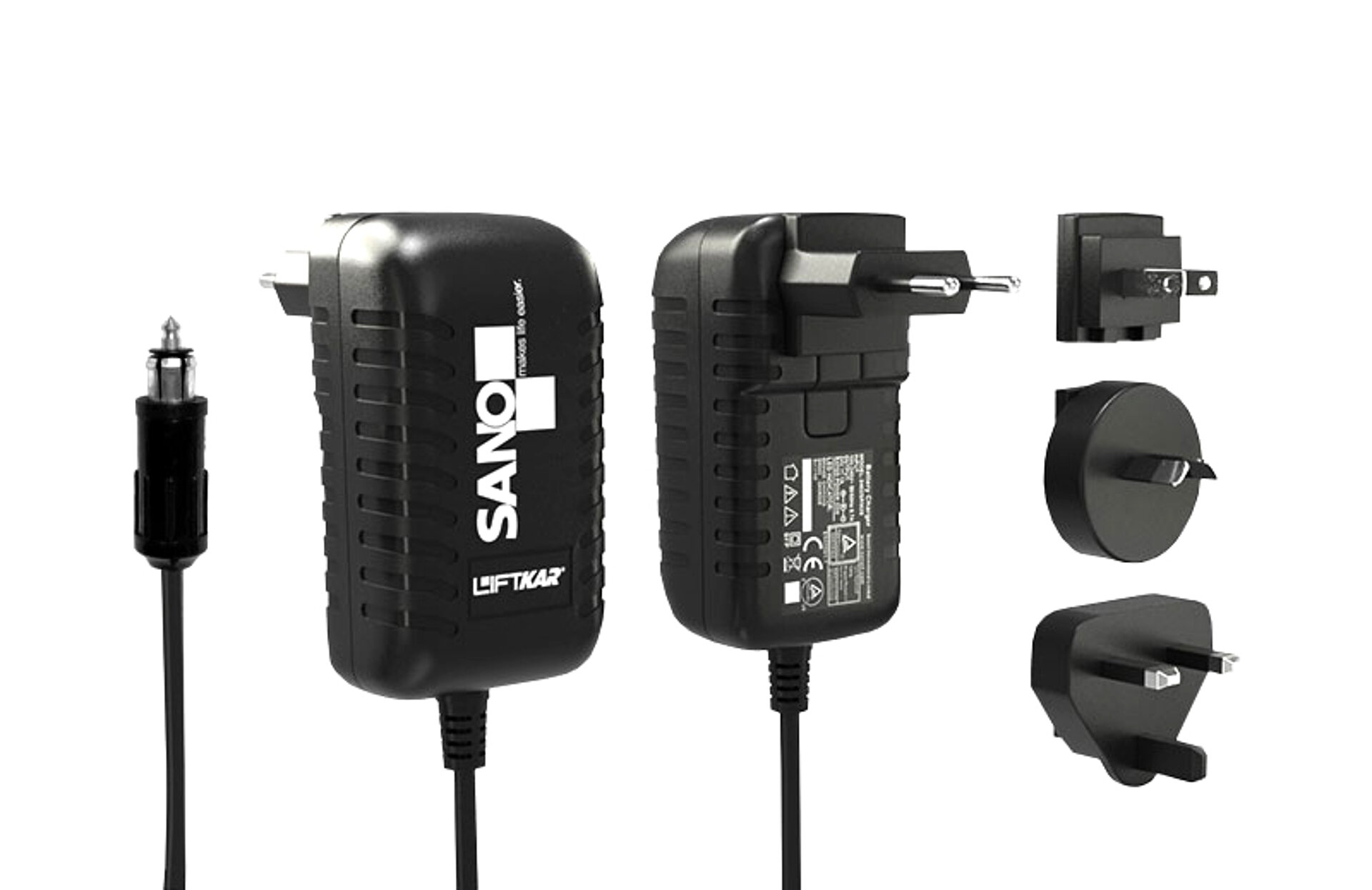

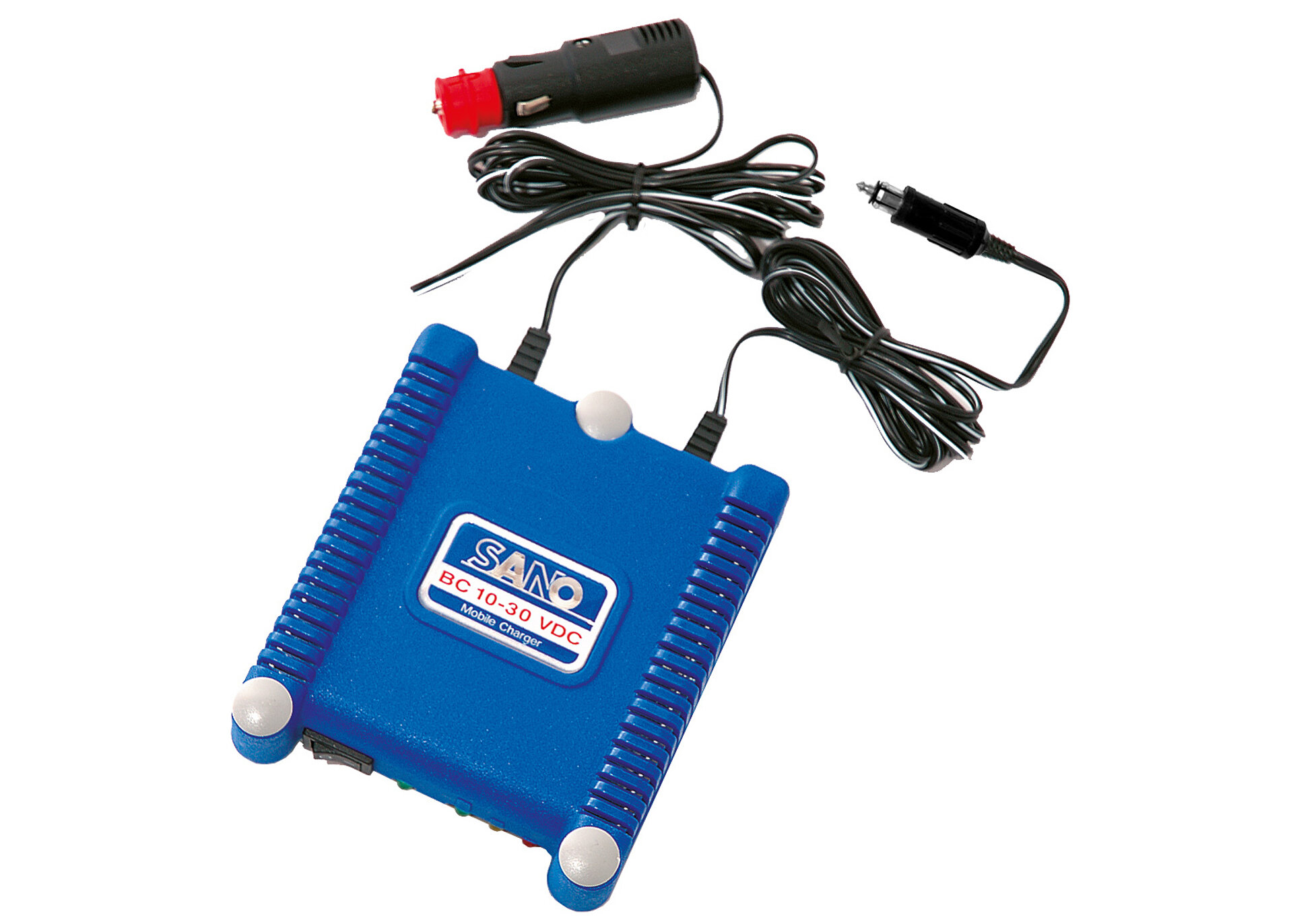

- quick-change battery unit and optional in-transit battery charger for continous operation

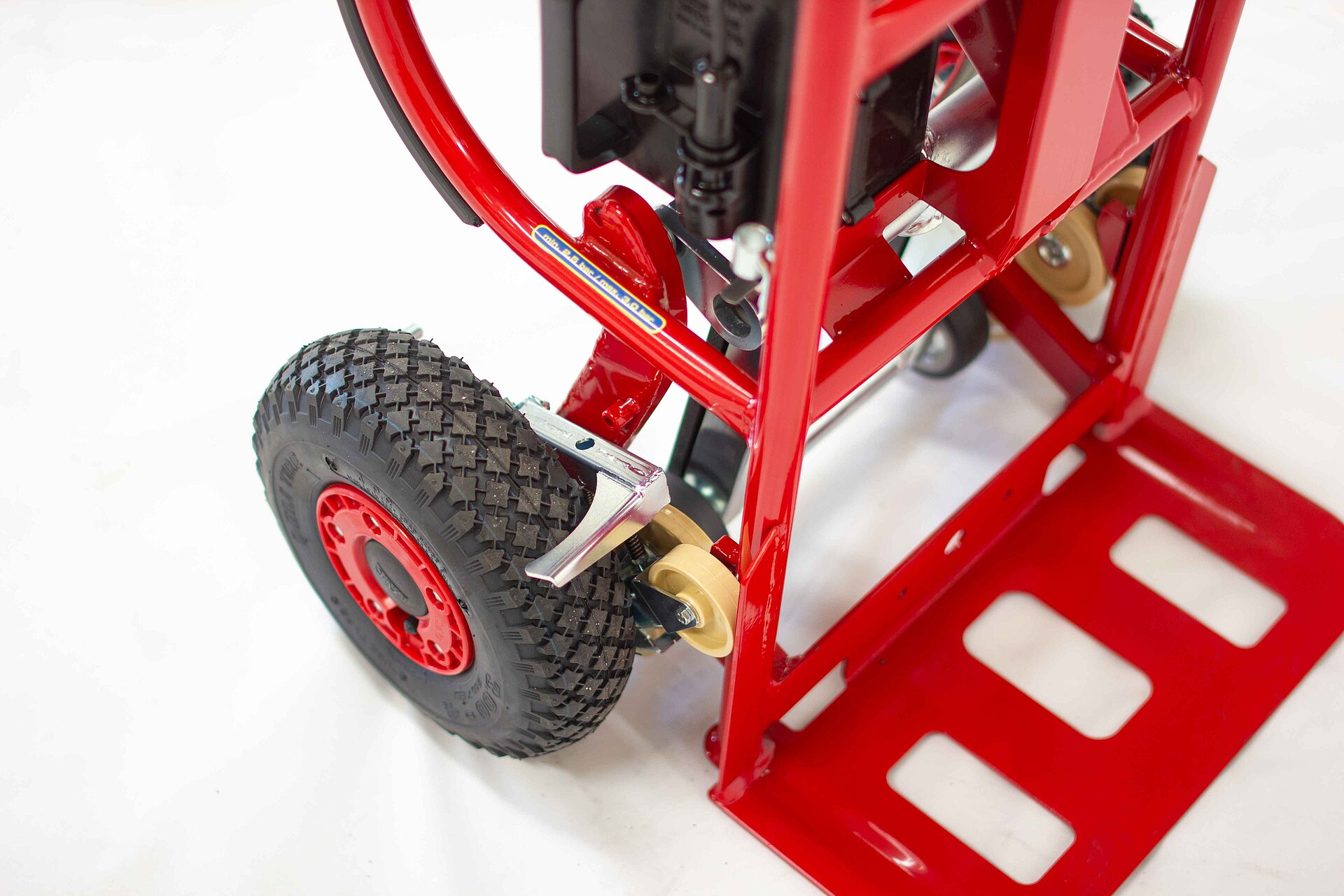

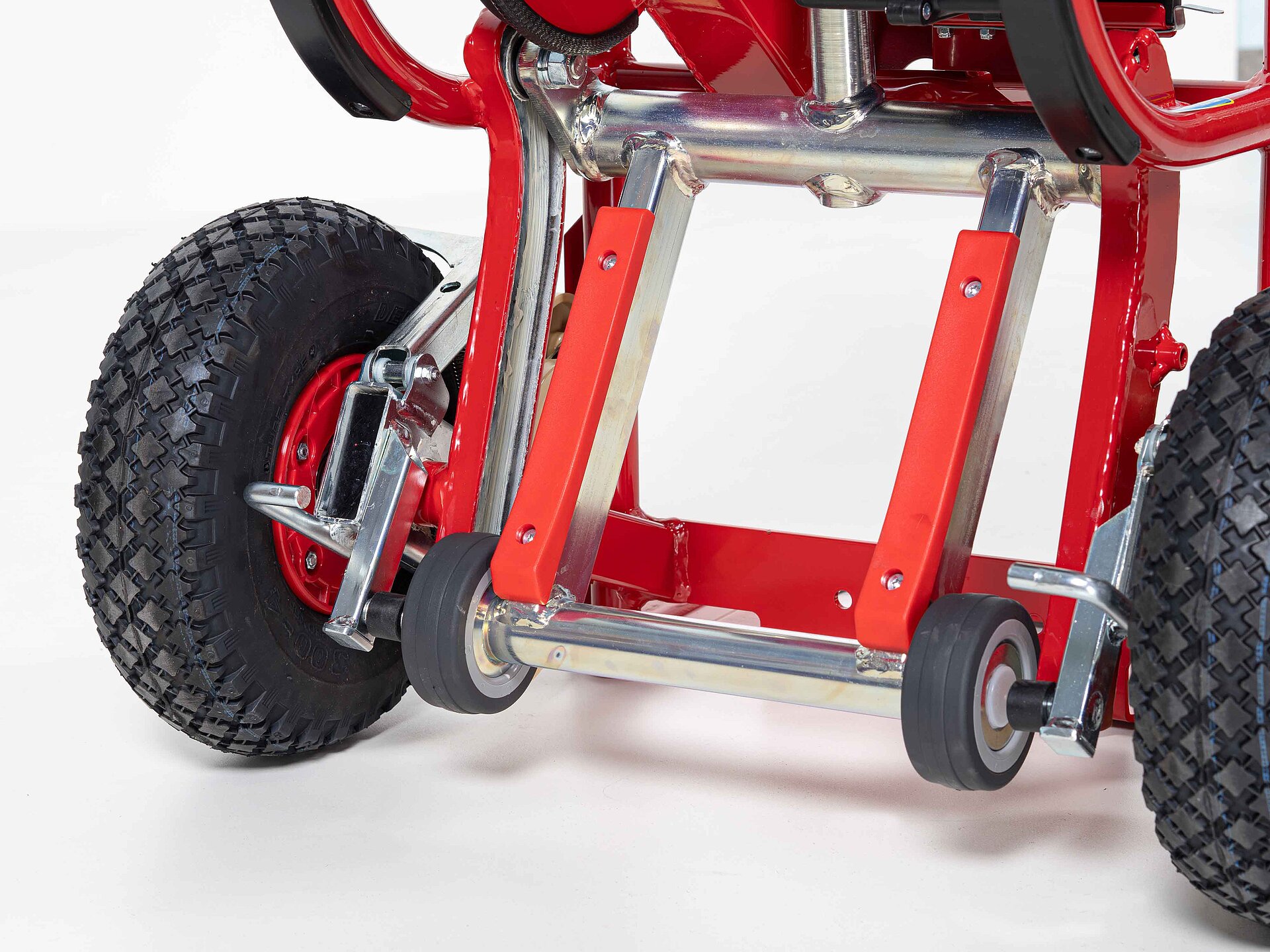

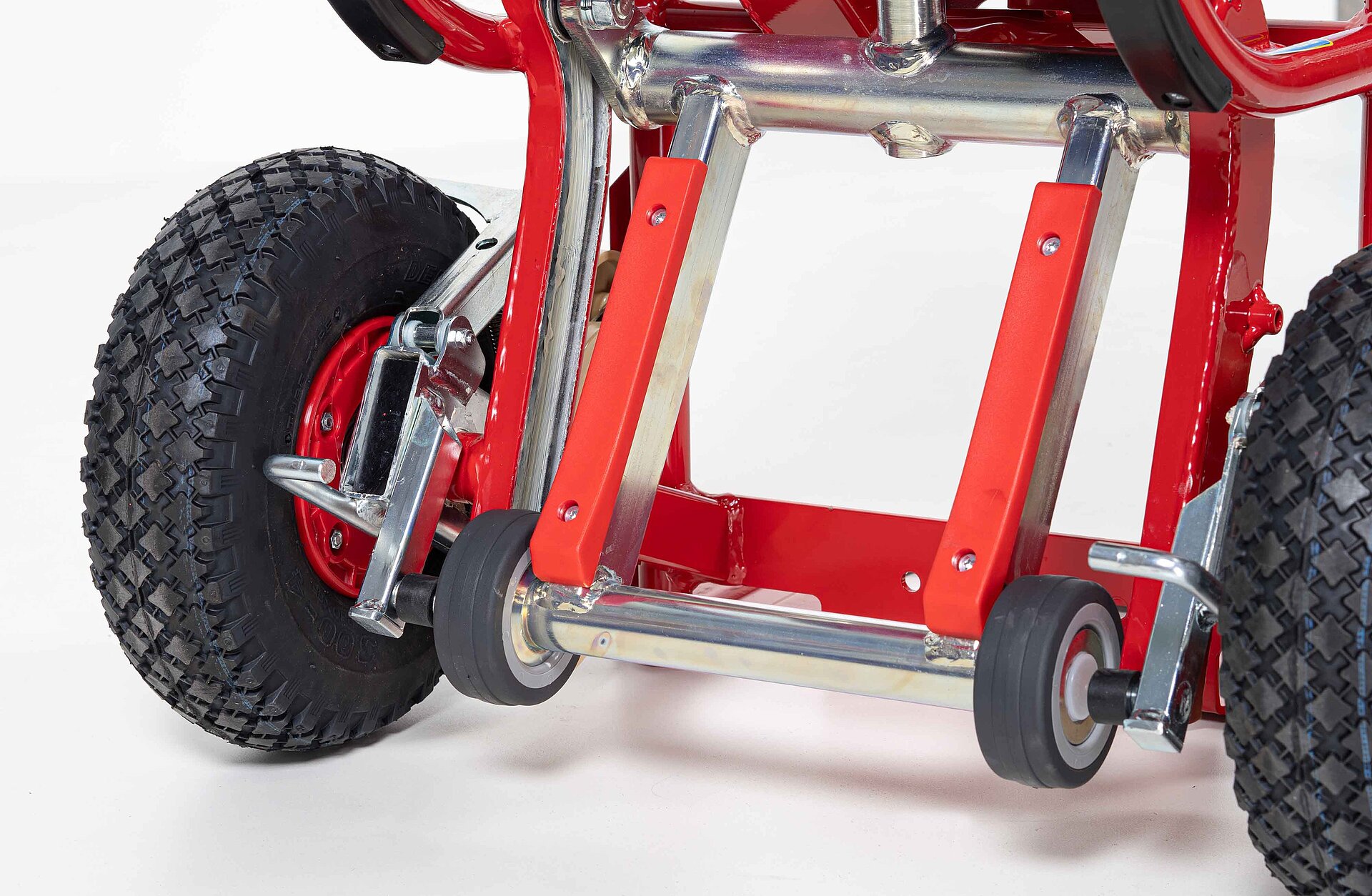

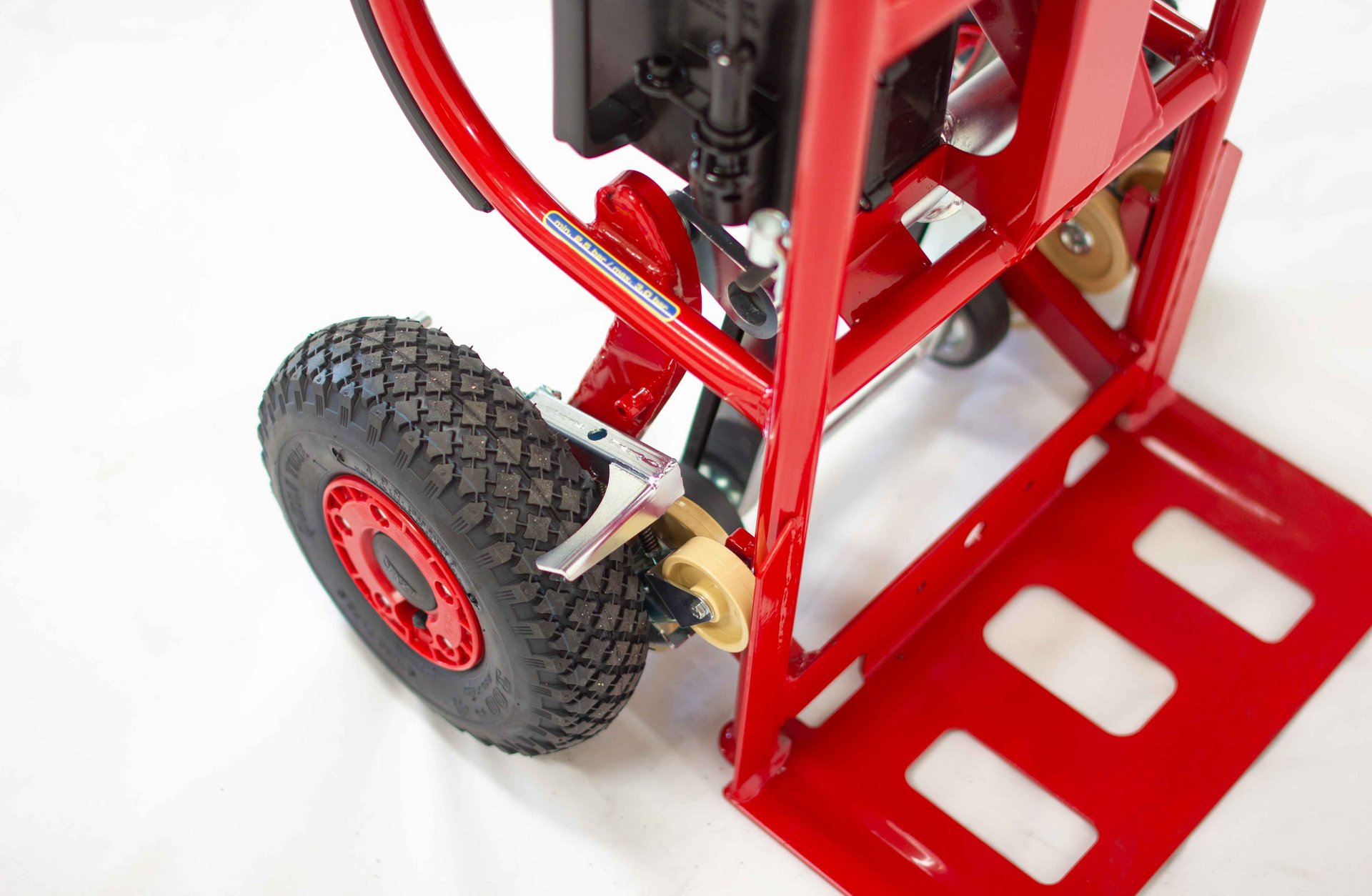

- step edge brake for safe and controlled handling
LiftKar MTK 310-B
Even bulky goods such as cases, stoves, safes and vending machines with a weight capacity of up to 682 lbs are not a problem for this one. An additional step edge brake is fitted as standard to the main wheels to guarantee safe and controlled handling of heavy loads.
![](/fileadmin/_processed_/5/1/csm_100118_Liftkar_MTK_310-B_front_cropped_background_3c7fce3a5e.jpg)

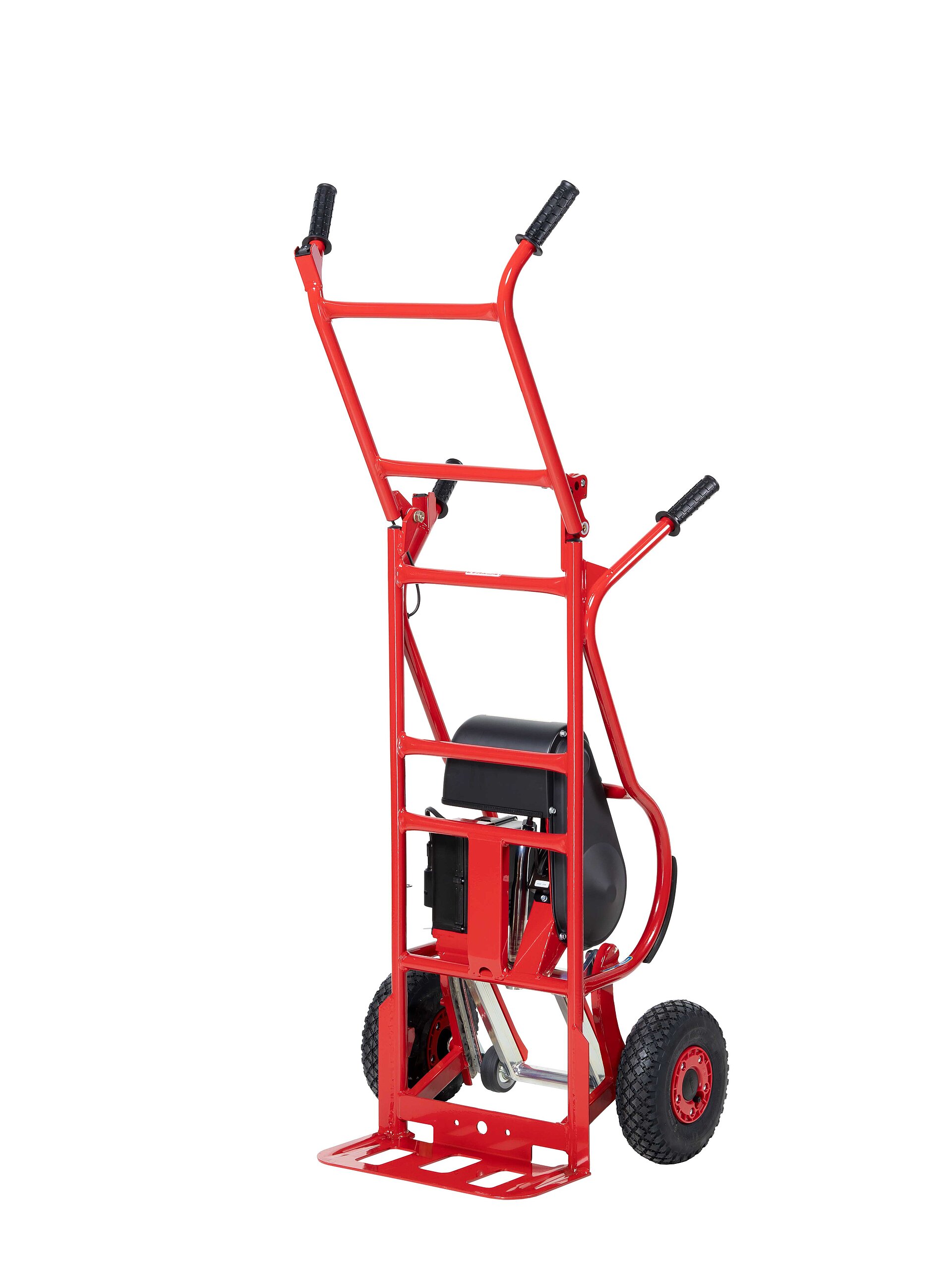

LiftKar MTK 190

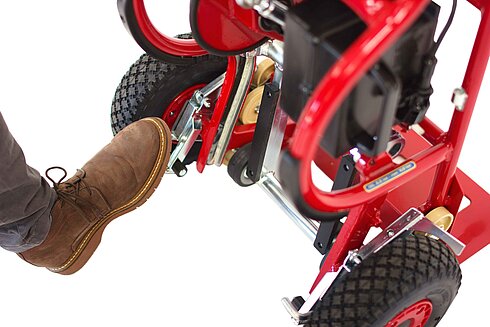

The MTK 310's faster brother for loads up to 418 lbs. Supplied without brakes as standard, although these can be retrofitted if required
![](/fileadmin/_processed_/b/8/csm_100119_Liftkar_MTK_190_open_retouched_cropped_background_6139f11d64.jpg)

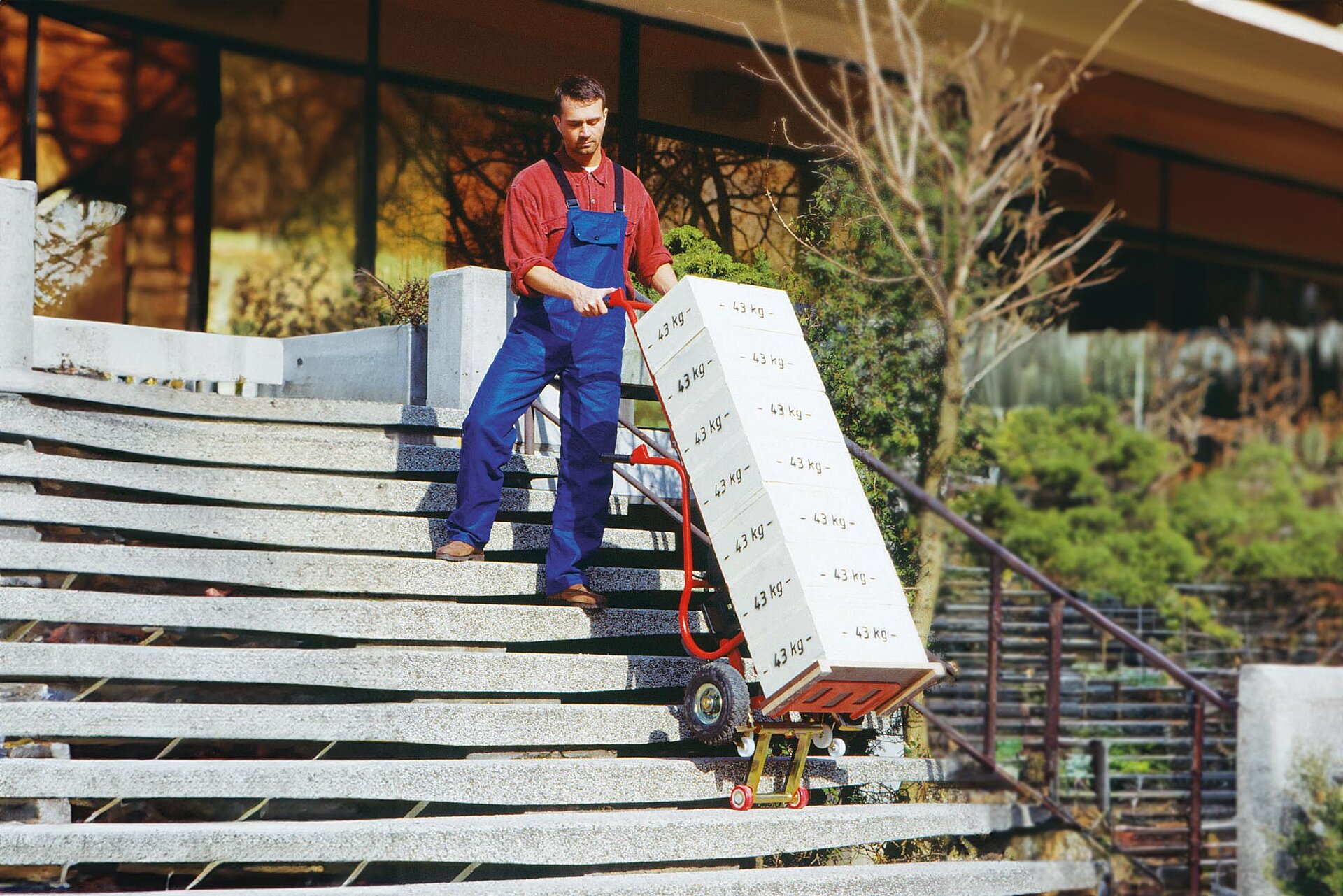

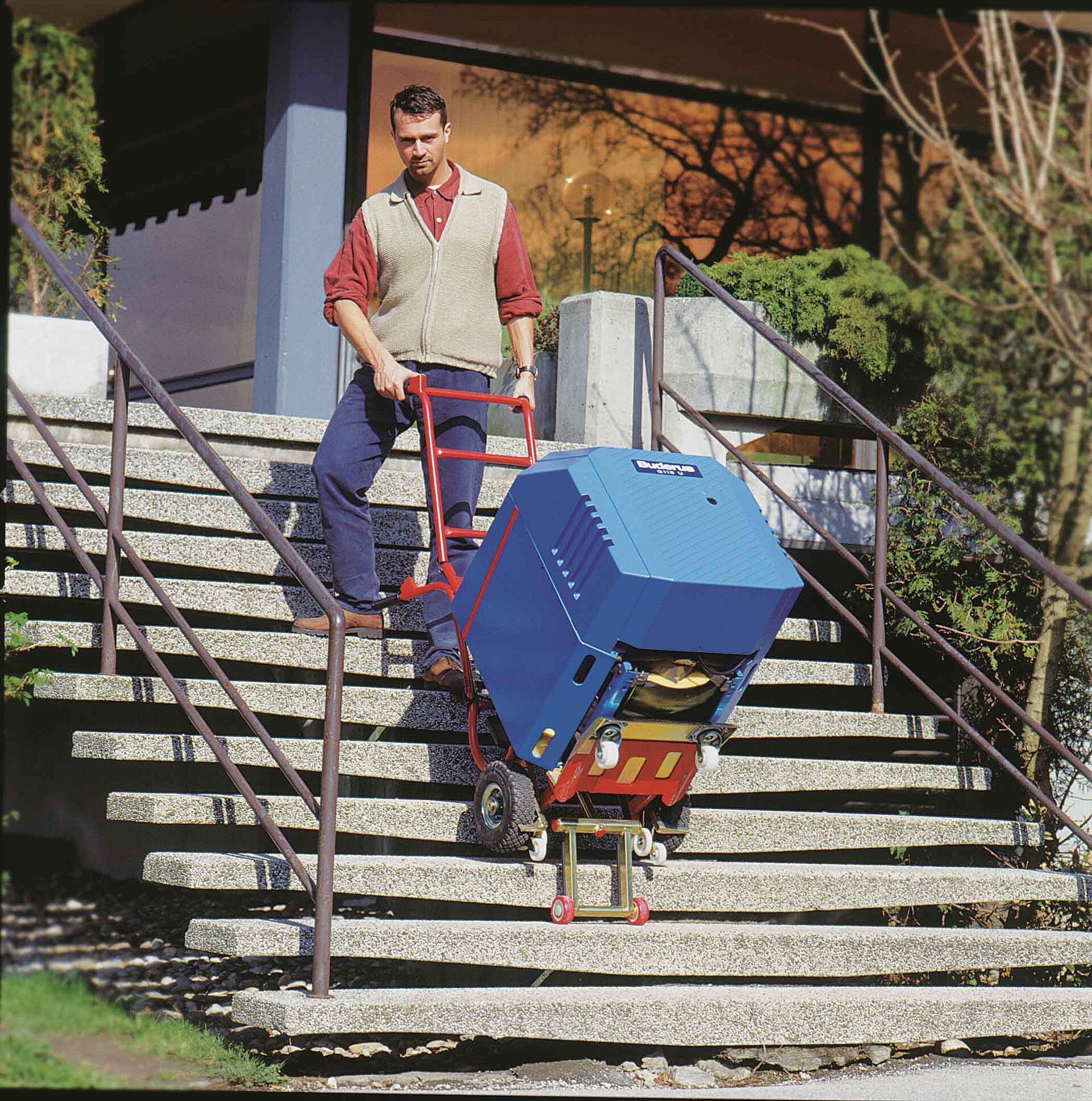

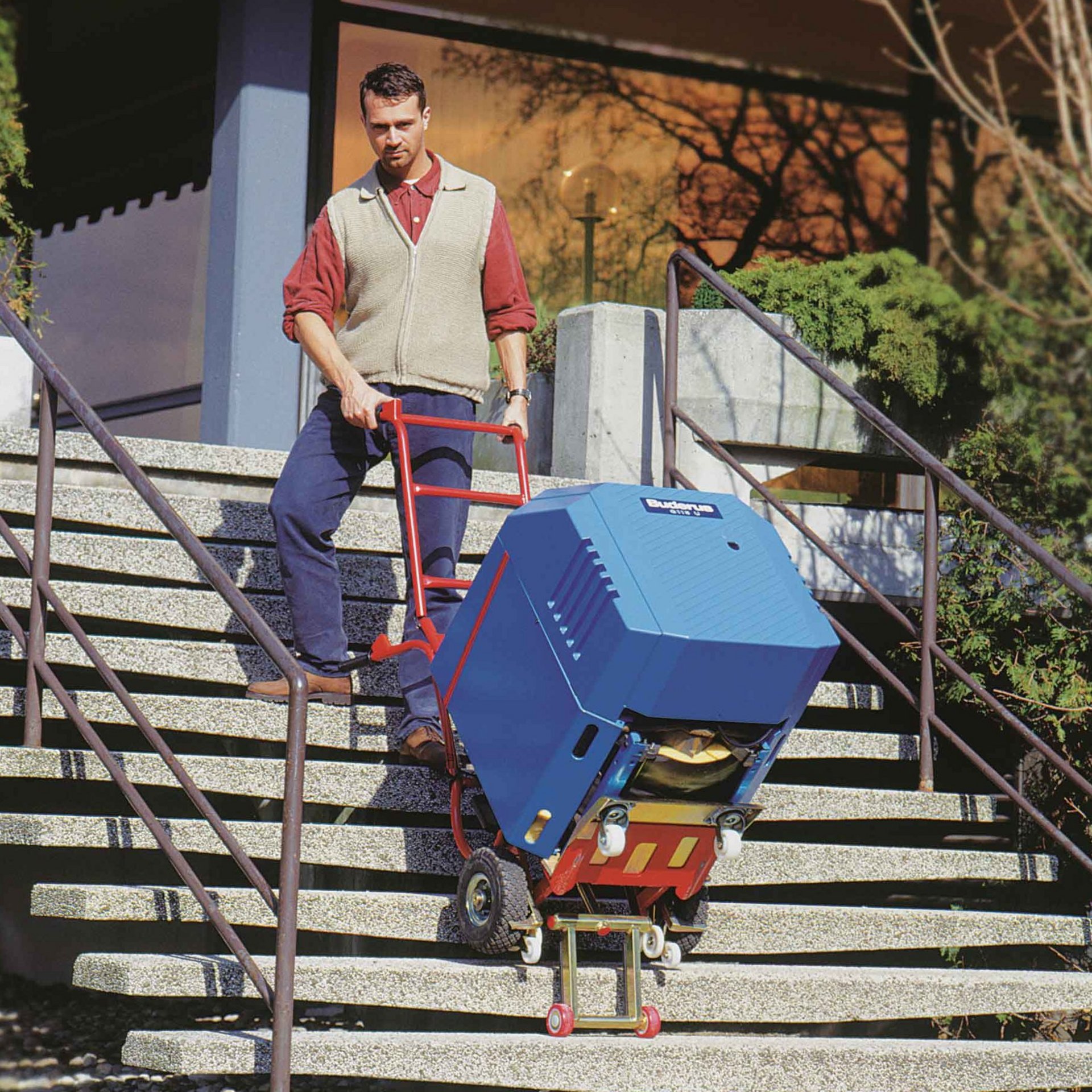

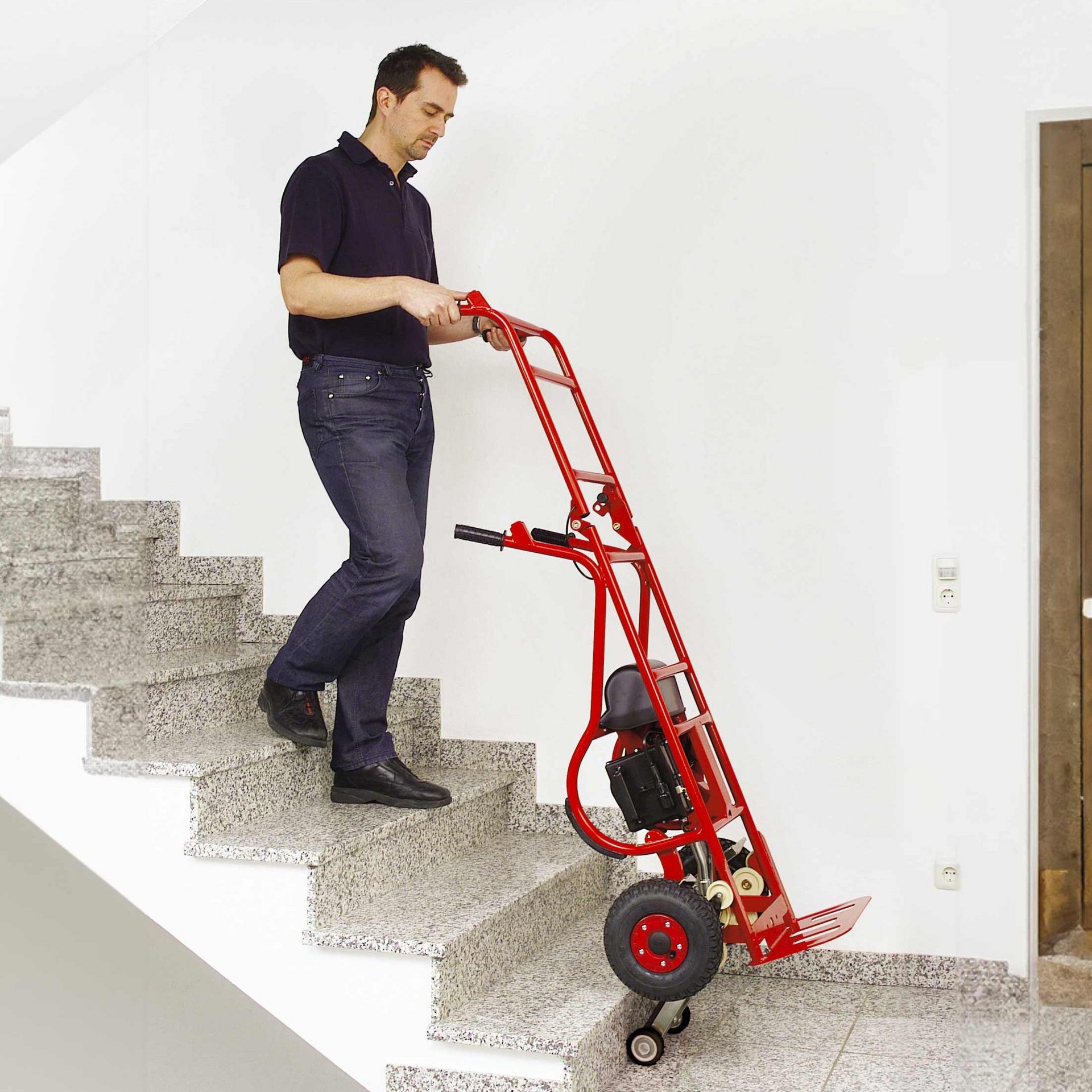

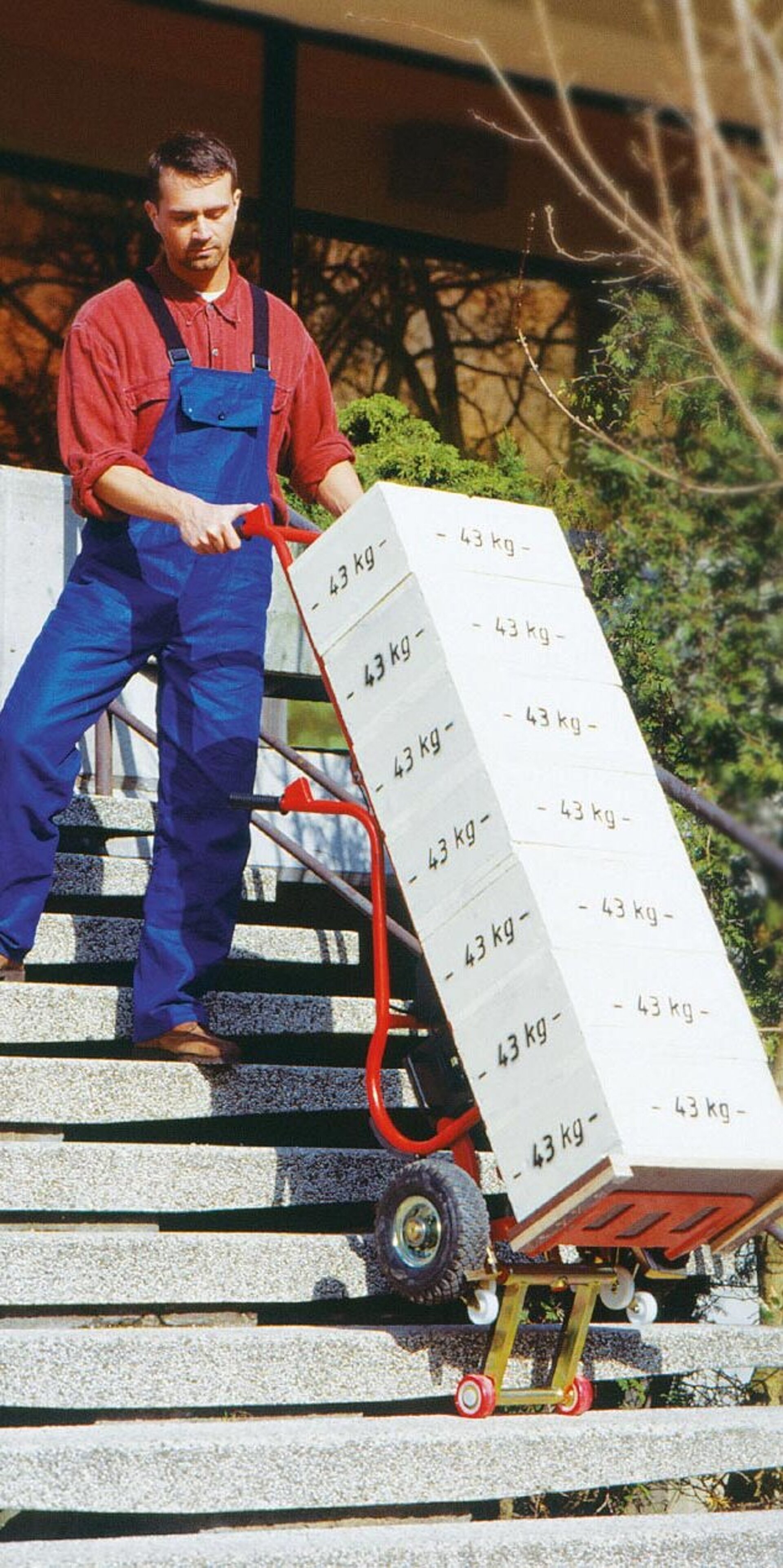

The LiftKar MTK stairclimbers
in daily situations
![](/fileadmin/_processed_/7/e/csm_100118_Liftkar_MTK_310-B_boiler_dc1966f0e5.jpg)
![](/fileadmin/_processed_/7/c/csm_100118_Liftkar_MTK_310-B_on_stairs_01_EXPANDED_da2f494e42.jpg)
![](/fileadmin/_processed_/1/4/csm_100118_Liftkar_MTK_310-B_folding_system_01_4707df3e17.jpg)
![](/fileadmin/_processed_/6/2/csm_100118_Liftkar_MTK_310-B_Boxes_EXPANDED_a99371395f.jpg)

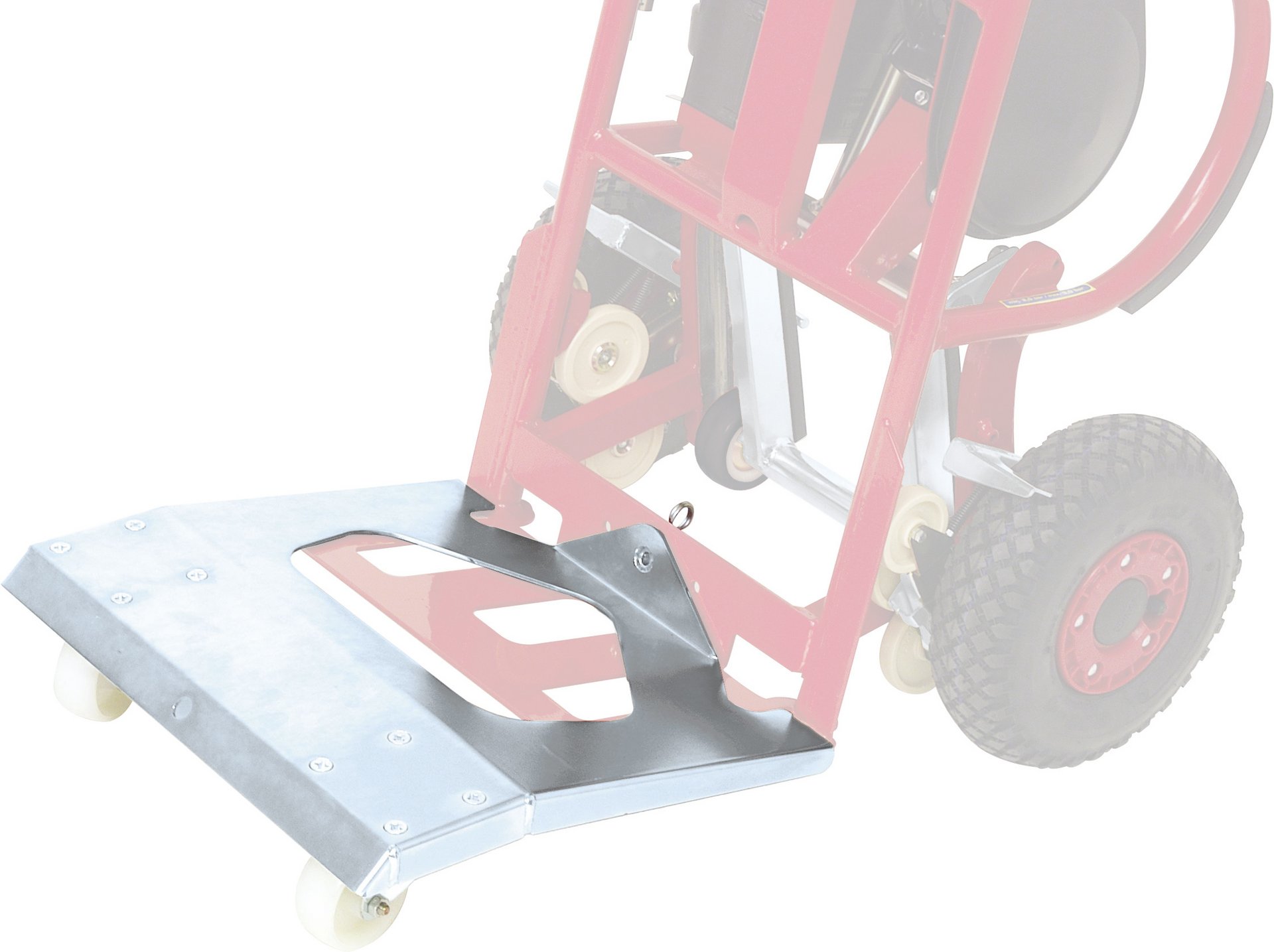

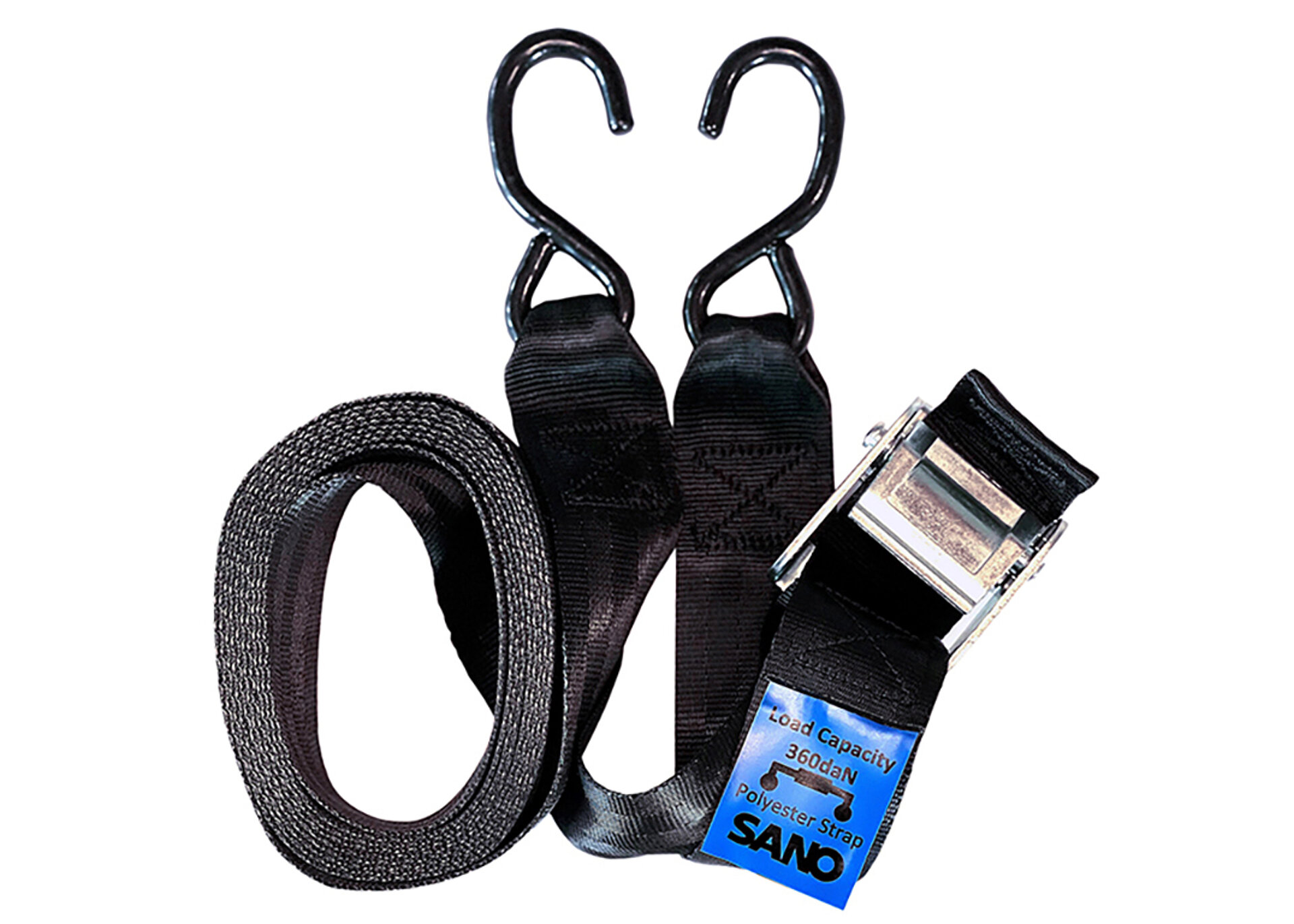

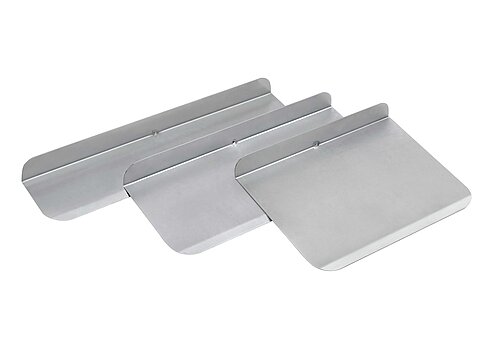

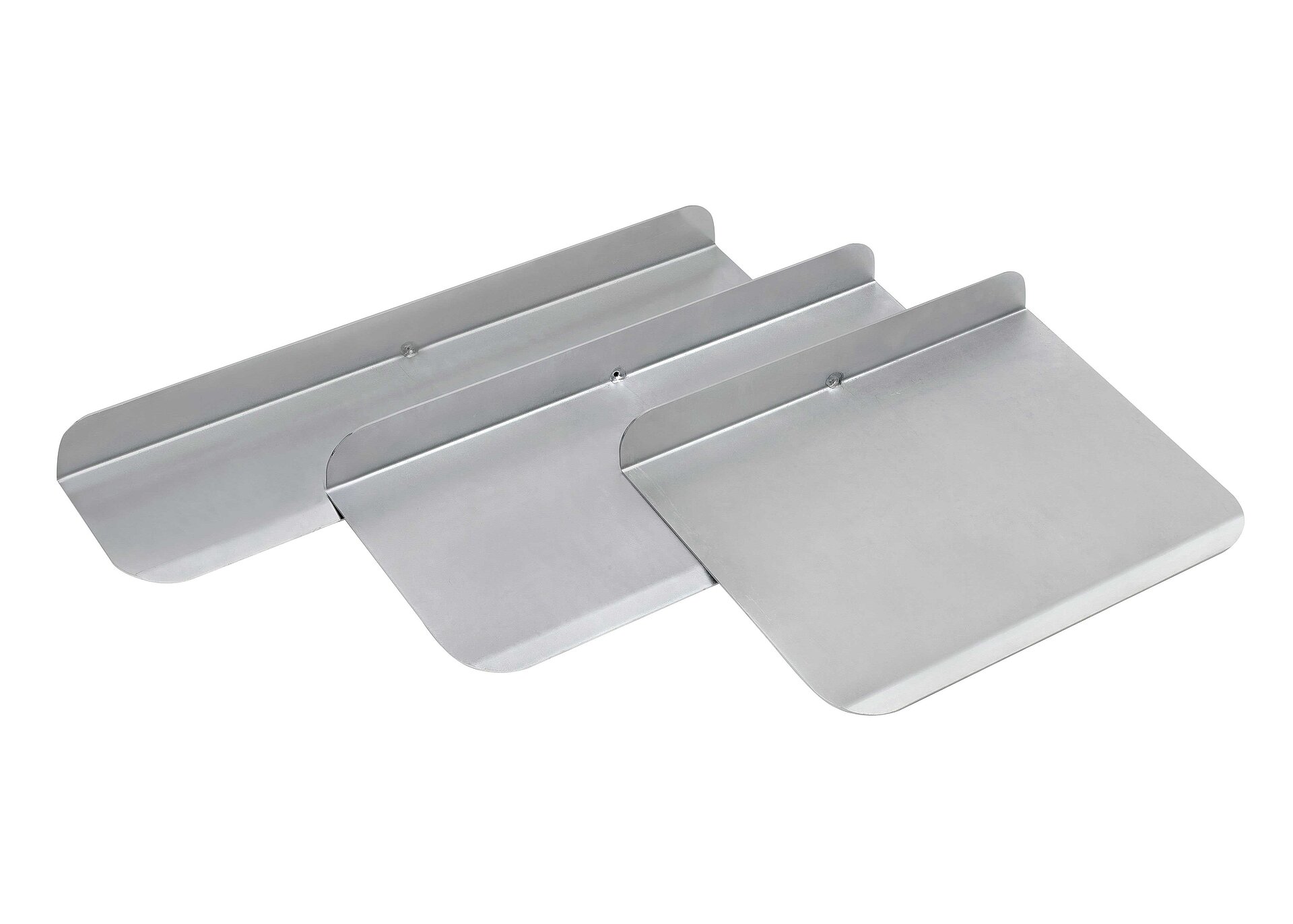

Additional options
matching your needs
The LiftKar MTK stairclimbers
in facts and figures
Load capacity
Load capacity | Pounds
Dimensions (height/width/depth)
Dimensions (height/width/depth) | Inch
![](/fileadmin/_processed_/b/8/csm_100119_Liftkar_MTK_190_open_retouched_cropped_background_6139f11d64.jpg)
190 kg
418.9 lbs
32 kg
70.5 lbs
5,5 kg
12.1 lbs
1520 / 550 / 505 mm
(folded 1100 / 550 / 551 mm)
59.8" / 21.6" / 19.9"
(folded 43.3" / 21.6" / 21.7")
![](/fileadmin/_processed_/5/1/csm_100118_Liftkar_MTK_310-B_front_cropped_background_3c7fce3a5e.jpg)
310 kg
683.4 lbs
35 kg
77.1 lbs
5,5 kg
12.1 lbs
1630 / 580 / 505 mm
(folded 1100 / 580 / 551 mm)
64.2" / 22.8" / 19.9"
(folded 43.3" / 22.8" / 21.7")
Load capacity
Load capacity | Pounds
Dimensions (height/width/depth)
Dimensions (height/width/depth) | Inch
![](/fileadmin/_processed_/5/1/csm_100118_Liftkar_MTK_310-B_front_cropped_background_3c7fce3a5e.jpg)
310 kg
683.4 lbs
35 kg
77.1 lbs
5,5 kg
12.1 lbs
1630 / 580 / 505 mm
(folded 1100 / 580 / 551 mm)
64.2" / 22.8" / 19.9"
(folded 43.3" / 22.8" / 21.7")
![](/fileadmin/_processed_/b/8/csm_100119_Liftkar_MTK_190_open_retouched_cropped_background_6139f11d64.jpg)
190 kg
418.9 lbs
32 kg
70.5 lbs
5,5 kg
12.1 lbs
1520 / 550 / 505 mm
(folded 1100 / 550 / 551 mm)
59.8" / 21.6" / 19.9"
(folded 43.3" / 21.6" / 21.7")
